Orbea Terra H30 Gravel Bike 2022

£2,299.00

Need help choosing a bike, or technical advice?

Call our friendly team of bike experts on 020 3375 8700

Select a colour and size to view stock availability

Orbea
Terra H30 Gravel Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1465758

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

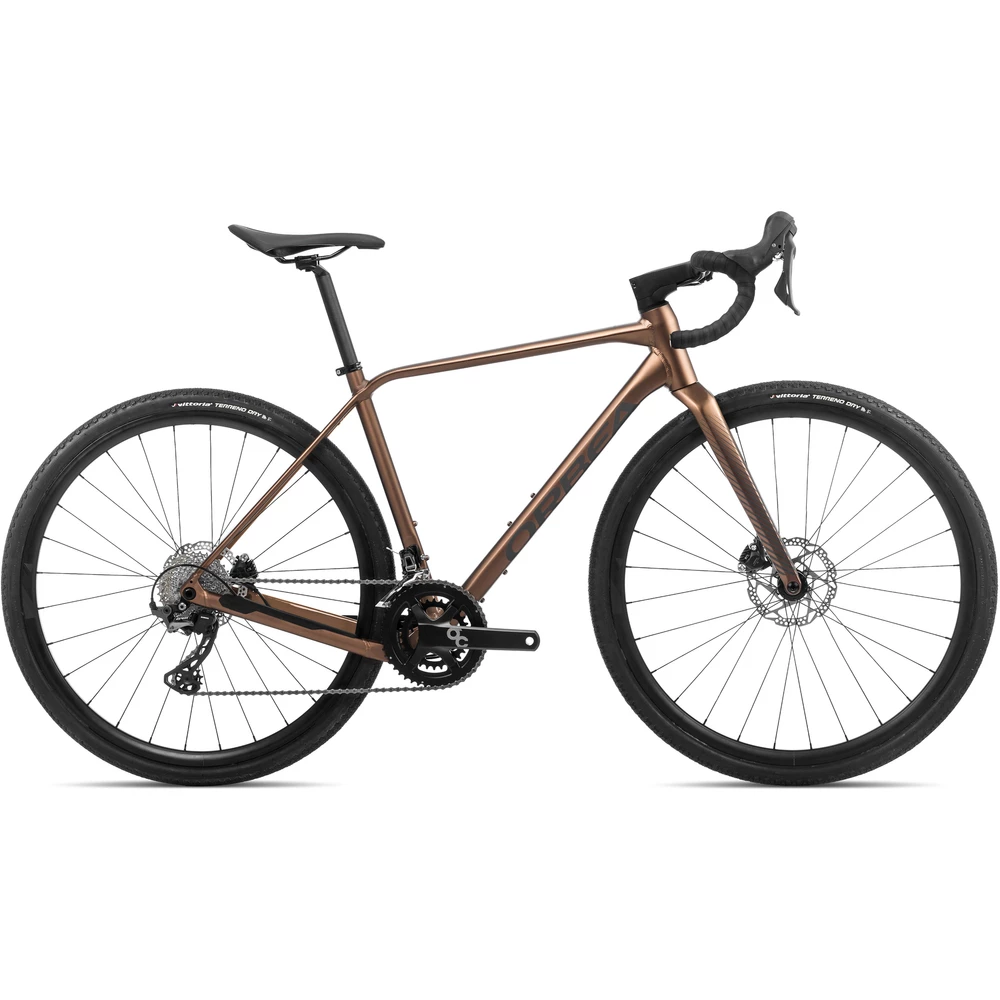

Orbea Terra H30 Gravel Bike 2022

Lightweight, fast and exceedingly versatile, the Orbea Terra H30 Gravel Bike delivers epic performance across all terrain. Ideal for gravel, winter training and bikepacking use, the lightweight aluminium frame is triple-butted to eliminate excess material, while the carbon fork damps vibration to keep you feeling fresh for longer. Shimano RX400 hydraulic disc brakes offer stellar braking performance with controllable power, and a GRX drivetrain offers excellent chain retention on rough terrain.

Drawing inspiration from their mountain and road bike product lines, Orbea has designed this bike with confidence-inspiring, gravel-specific geometry. Wide 38c Vittoria tyres grant traction on loose terrain and offer plush comfort when travelling over longer distances. The Orbea wheels use high-quality Shimano thru-axle hubs, and a flared handlebar offers a stable ride position.

Highlights

  • Versatile gravel-specific geometry
  • Orbea hydroformed, triple-butted aluminium frame is lightweight and responsive
  • Full carbon fork damps vibration to reduce fatigue on rough terrain
  • Wide tyre clearance allows the use of different tyre widths to suit the terrain
  • Integrated mudguard mounts offer all weather protection
  • 2 x 11-speed Shimano GRX groupset is highly durable and supplies excellent chain retention
  • Shimano RX400 hydraulic disc brakes offer powerful stopping power

Technical Specification

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, tapered 1-1/8" - 1,5", BB 68mm – BSC English, thru-axle 12mm x 142mm rear, thread M12x P1.5, DT internal cable routing, 27.2mm seat tube, MMS system
Fork Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts, thru-axle 12mm x 100m, thread M12xP1.5, MMS system
Headset FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB bearings
Stem Orbea OC1 31.8mm interface -6º
Handlebar Orbea OC1 All Road, reach 80mm, drop 125mm, flare 12º
Front Brake Shimano RX400, hydraulic disc
Rear Brake Shimano RX400, hydraulic disc
Brake Levers Shimano ST-RX600
Front Derailleur Shimano GRX RX810
Rear Derailleur Shimano RX812 GS, 11-speed
Shift Levers Shimano ST-RX600, 11-speed
Cassette Shimano 105 R7000, 11-34t, 11-Speed
Crankset Shimano GRX RX600, 30x46t
Chain Shimano HG 601, 11-speed
Front Wheel Ready GR, 700c
Rear Wheel Ready GR, 700c
Front Tyre Vittoria Terreno Dry Gravel G2.0 TNT 700x38c, tubeless-ready
Rear Tyre Vittoria Terreno Dry Gravel G2.0 TNT 700x38c, tubeless-ready
Saddle Selle Royal Seta RS
Seatpost Orbea OC2, 27.2mm, 20mm offset
Pedals Available to be purchased separately

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
