Orbea Wild M-LTD FS Electric Mountain Bike 2023


We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1674323

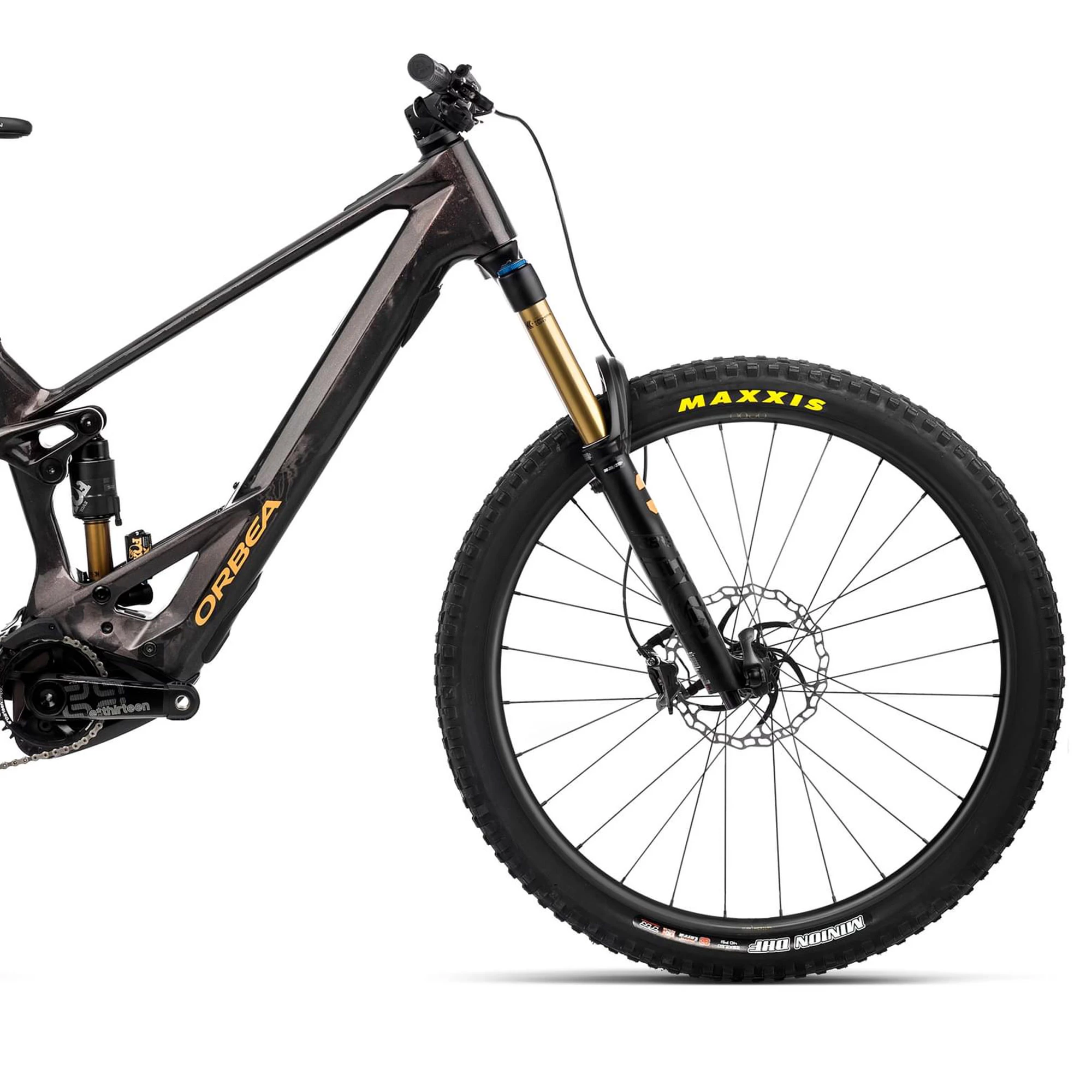

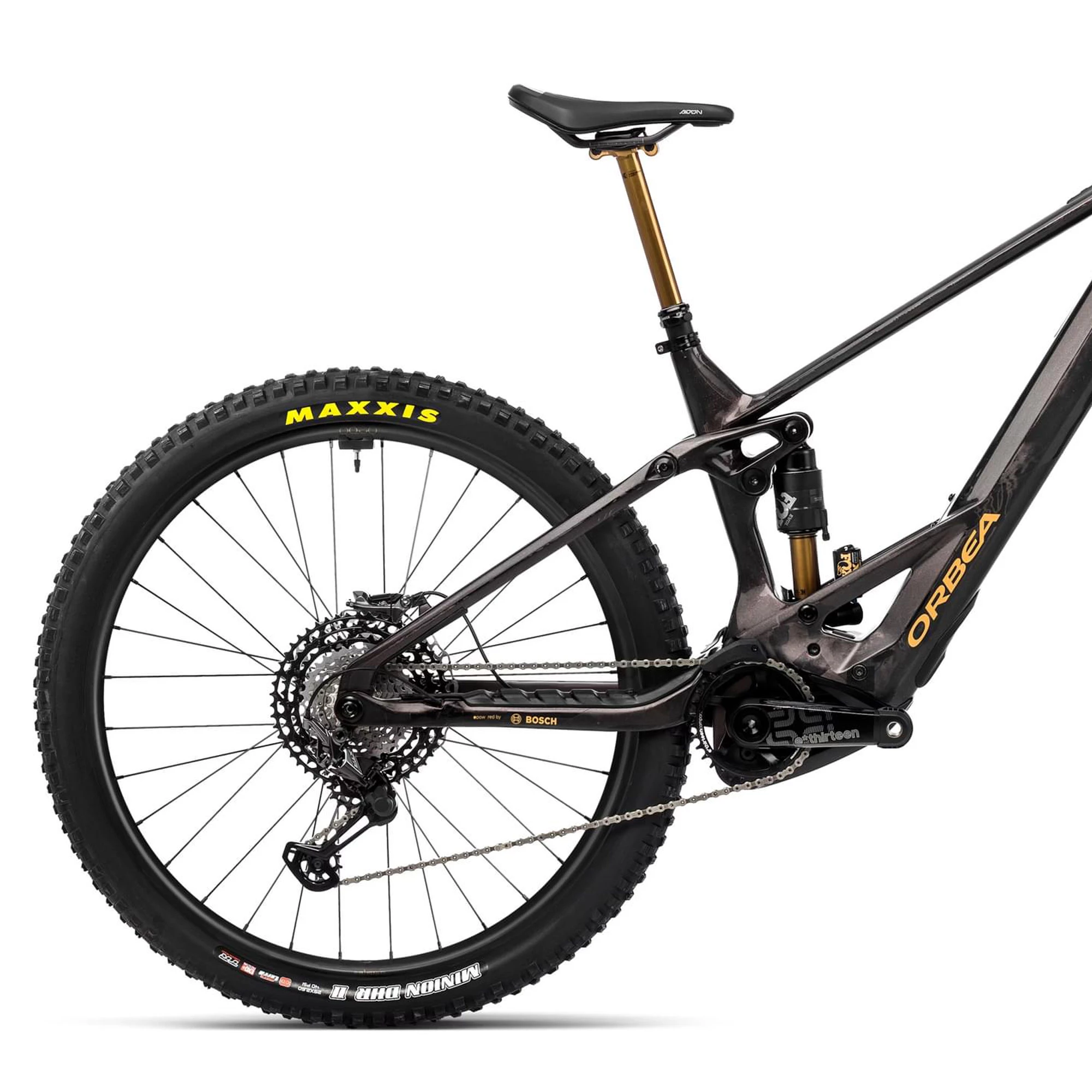

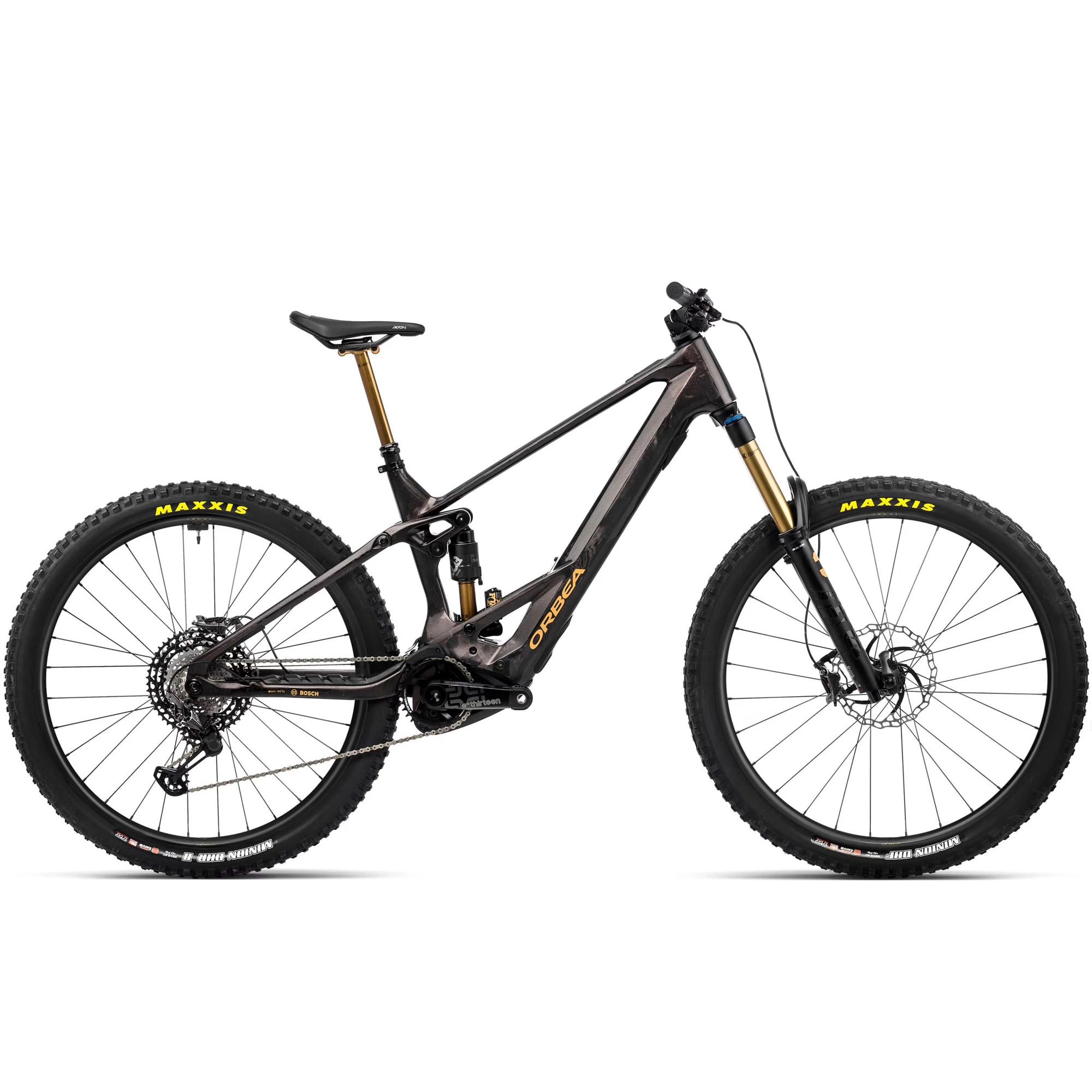

Orbea Wild M-LTD FS Electric Mountain Bike 2023

Tame the trails with the Orbea Wild M-LTD FS Electric Mountain Bike, an enduro machine built for performance with top-drawer components and finishing kit. Lively yet stable, the Wild gives you an additional boost of power up to speeds of 15.5mph / 25kph from the Bosch Smart System Performance Line CX motor and Bosch Powertube 625Wh battery, so you can get up the trails with ease, ready for the fun part. Orbea has optimised the length of the chainstays for 29" wheels and the handling feels natural with excellent traction.

160mm of travel in the frame and 170mm up front from the Fox 38 Float Factory fork delivers plush suspension so you can take on steep descents, big drops and rocky terrain. The carbon frame balances weight and rigidity perfectly, while the electric bike-specific geometry puts you in complete control of the ride. This is one of the lightest e-bikes out there with weight shaved by the inclusion of a carbon handlebar, carbon cranks and carbon wheels. Details such as the SIC system and Clean Cockpit, which routes cables via the headset, and the subtle incorporation of the electric system, means you could almost mistake this for a traditional bike without the added power.

1x12-speed Shimano XTR components perfectly complement this bike and will meet the needs of even the most experienced riders. Shifting is incredibly precise and smooth, with a 10-51 tooth cassette providing a wide gear range, while Shadow technology in the rear mech reduces chain slap and drop, stabilising the system for almost silent functionality. Shimano XTR hydraulic discs allow fast stopping when required on loose, hardpacked, wet and dry trails. The OQUO Mountain Control MC32LTD carbon wheels and Maxxis Minion tyres make a great pairing that delivers grip and puncture protection while rolling fast and smooth, and is more than capable of handling the higher torques of this electric model. The addition of a dropper post allows you to quickly move the saddle down and out of the way for optimum ride position on more challenging terrain.

Browse our range of Orbea electric mountain bikes today.


  • Orbea Wild OMR carbon frame with 160mm travel
  • Fox 38 Float Factory 170 Grip2, 170mm travel fork
  • Fox Float X2 Factory shock
  • SIC system routes the cables through the headset, through internal guides and invisibly from the front to rear triangle via the Cable Pass
  • Clean Cockpit - wireless remote connects to the display integrated in the top tube
  • Shimano XTR drivetrain
  • Shimano XTR hydraulic disc brakes
  • OQUO Mountain Control MC32LTD carbon wheels and Maxxis Minion 2.6" tyres
  • Bosch Smart System Performance Line CX 85Nm motor and Bosch Powertube 625Wh battery

Battery Specification

  • Battery Power: 625Wh
  • Maximum Assist: 85Nm torque
  • Battery Weight: 4.3kg
  • Charge time: Charge time: 50% charge - approximately 2.1 hours / 100% charge - approximately 5.4 hours

Technical Specification

Frame Orbea Wild OMR 2023, 160mm travel, 29" wheels, Concentric Boost 12x148
Fork Fox 38 Float Factory 170 Grip2 QR15x110 Kashima, 170mm travel
Shock Fox Float X2 Factory Trunnion 2-Position Adjust Kashima custom tune 205x65mm
Headset Alloy 1-1/2", Black Oxidated Bearing
Stem OC Mountain Control MC10 Alu SL, 0º
Handlebar OC Mountain Control MC10 Carbon, Rise 20, Width 800
Front Brake Shimano XTR M9120, hydraulic disc
Rear Brake Shimano XTR M9120, hydraulic disc
Brake Levers Shimano XTR
Rear Derailleur Shimano XTR M9100 SGS Shadow Plus, 12-speed
Shift Levers Shimano XTR M9100, 12-speed
Chain Shimano CN-9100, 12-speed
Chainguide e*thirteen Plus Bosch CX Gen4 32-38t
Cassette Shimano XTR M9100, 10-51t, 12-speed
Crankset e*thirteen Race Carbon crank, e*thirteen e*spec Direct Mount 34T Boost chainring
Front Wheel OQUO Mountain Control MC32LTD Carbon, tubeless-ready clincher
Rear Wheel OQUO Mountain Control MC32LTD Carbon, tubeless-ready clincher
Front Tyre Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Rear Tyre Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Saddle Fizik Terra Aidon X1 145mm
Seatpost Fox Transfer Factory Kashima Dropper 31.6
Seatpost Lever Shimano SL-MT-800 I-Spec EV
Pedals Available to be purchased separately
Motor Bosch Performance Line CX-R
Display Bosch System Controller
Remote Bosch Mini Remote BRC3300
Battery BOSCH Powertube 625Wh Horizontal
Charger Bosch Charger 4A (230V)
Electric assisted speed limit 15.5mph / 25kph

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
