Orbea Occam M10 LT Mountain Bike 2023

£6,499.00

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1673574

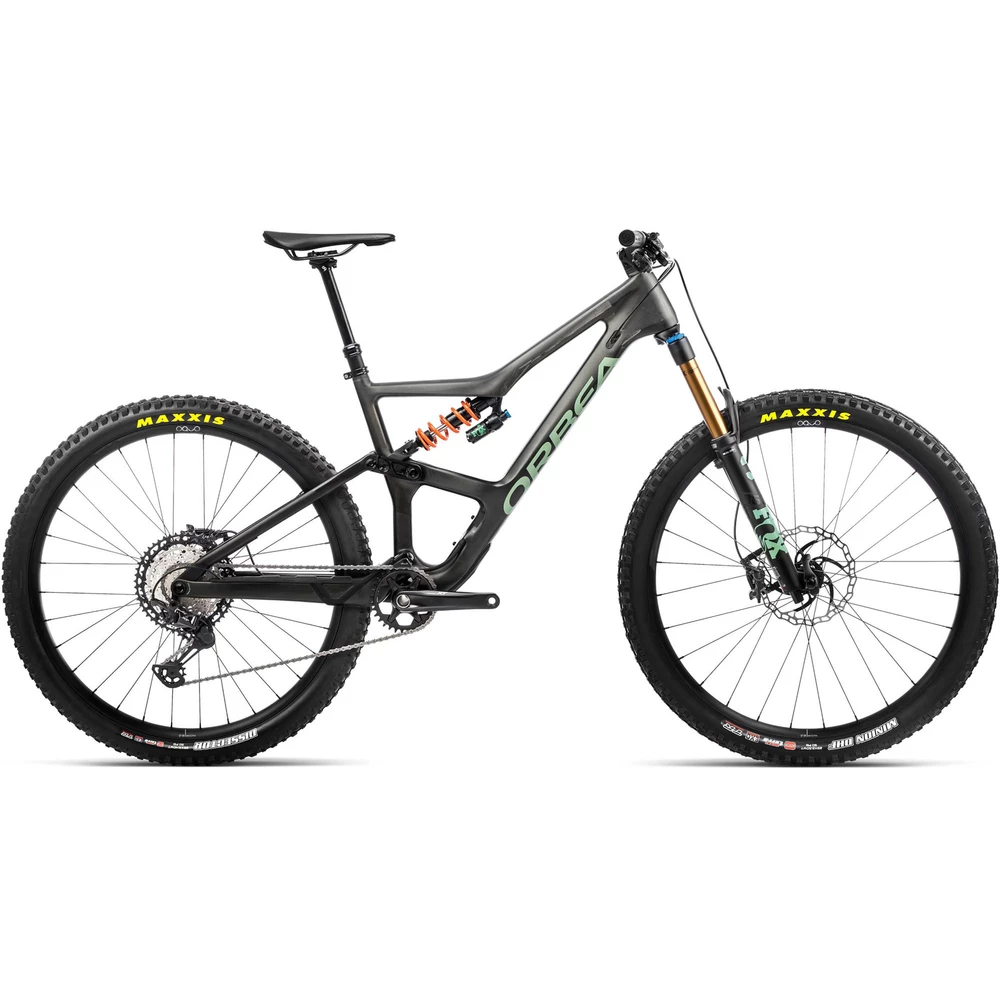

Orbea Occam M10 LT Mountain Bike 2023

With 150mm of plush suspension travel, the Orbea Occam M10 LT Mountain Bike splits the difference between the standard Occam and hell-raising Rallon models, delivering on-trail efficiency with the ability to charge steep, gnarly singletrack. The differences don’t end there though, a FOX 36 Float Factory GRIP2 fork provides unmatched levels of adjustment and sublime stiffness, and the DHX Factory rear coil shock is supremely supple to offer mind-bending levels of traction on rough terrain.

Stiff, lightweight and durable, the OMR carbon frame features an asymmetric design to enhance rigidity and retain an uninterrupted seat tube, allowing for the fitment of long-travel dropper seatposts. 29” wheels are the new standard in speed and grip, with the Maxxis tyre combination delivering claw-like traction, even on loose surfaces. The updated two-piece linkage further improves stiffness by removing unnecessary parts and houses a unique 4-bit multi-tool to help with mechanicals on the trail.

Orbea OC Mountain Control MC10 carbon handlebar deals precise control whilst minimising fatigue and is paired with a short OC Mountain Control stem to keep your weight centred on the bike. The OQUO Mountain Control MC32 TEAM wheels are durable and feature fast pickup for rapid acceleration. A Shimano XT drivetrain rounds off this boutique specification, providing 12-speed performance in a lightweight and tactile package.

Orbea Occam M10 LT Highlights

  • Revised two-part linkage design boosts torsional stiffness for a precise feel
  • 29” OQUO Mountain Control MC32 TEAM wheels deliver fast rolling speeds and exceptional durability
  • The Shimano XT groupset offers a wide gear range and tactile shifting
  • FOX suspension provides burly performance on the trail and is ideal for those who prioritise descending
  • The LT moniker sees this model feature 150mm of front and rear travel
  • Contemporary geometry sees this model excel on all gradients, a true all-rounder
  • Shimano hydraulic disc brakes offer excellent stopping power
  • Advanced moulding techniques and a high modulus carbon monocoque frame construction promote rigidity and compliance for a sublime trail-feel

Technical Specification

Frame Orbea Occam OMR Carbon, 150mm travel, 29", Pure Trail geometry, internal cable routing, asymmetric design, boost 12x148mm thru-axle, 150mm travel
Fork Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
Rear Shock Fox DHX Factory 2-Position custom tune 210x55mm
Headset Acros Alloy 1-1/8 - 1-1/2" integrated
Stem Orbea OC Mountain Control MC10 Alu SL, 0º
Handlebar Orbea OC Mountain Control MC10 Carbon, Rise 20, Width 800
Front Brake Shimano XT M8120 hydraulic disc
Rear Brake Shimano XT M8120 hydraulic disc
Brake Levers Shimano XT M8120
Rear Derailleur Shimano XT M8100 SGS Shadow Plus, 12-speed
Shift Levers Shimano XT M8100 I-Spec EV
Cassette Shimano XT M8100 10-51t 12-speed
Crankset Shimano XT M8100, 32t
Front Wheel OQUO Mountain Control MC32 TEAM
Rear Wheel OQUO Mountain Control MC32 TEAM
Front Tyre Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR, 29", tubeless-ready
Rear Tyre Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR, 29", tubeless-ready
Saddle Fizik Taiga S-alloy rail
Seatpost Orbea OC Mountain Control MC20 dropper, 31.6mm
Dropper Post Remote Shimano SL-MT500 I-Spec EV
Pedals Available to be purchased separately
Accessories OC FLP Multitool MT-20, Hex 2, 3, 4, 5

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
