Santa Cruz Blur Carbon CC Mountain Bike Frame 2021

★★★★★ ★★★★★
(0)
£3,099.00

From only £77.47 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Santa Cruz
Blur Carbon CC Mountain Bike Frame 2021

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1198968

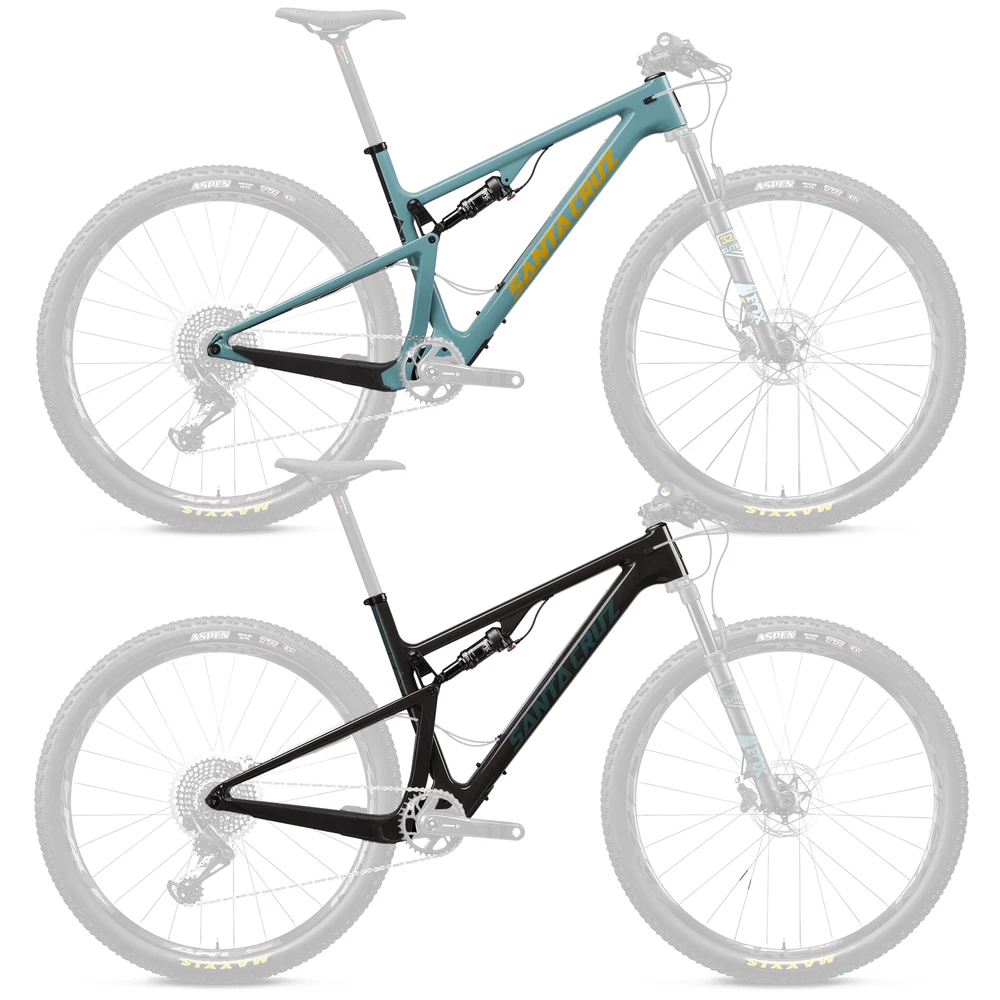

Santa Cruz Blur Carbon CC Mountain Bike Frame 2021

Designed to be the most rapid of cross country steeds, the Santa Cruz Blur Carbon CC Mountain Bike Frame is the choice when speed is of the essence. Svelte and nimble for hot laps but more than tough enough for all-day events, the Blur is committed, agile and ruthless. The Blur is Santa Cruz’s lightest ever 100mm travel, full suspension frame but it also retains all of the stiffness and efficiency required for power transmission and delivery. This is achieved thanks to a complex carbon formation that manipulates material layup according to the specific requirements of different frame zones. The one-piece rear triangle then partners the mainframe with them being conjoined via a VPP suspension design and FOX Float dampener. This configuration works in perfect harmony to deliver a progressive and composed shock rate as well as lateral stiffness for an accurate and ultimately reactive ride experience. The frame’s responsiveness is joined by 29-inch wheel compatibility to ensure that all forward propulsion is maximised before confidence-inspiring geometry then helps the rider find overtaking lines that were previously thought to be unattainable.

Highlights

  • Designed to be Santa Cruz’s fastest XC frame
  • The brands lightest ever 100mm full suspension frame
  • Santa Cruz CC Carbon frame construction with VPP mounted shock design
  • One-piece Santa Cruz CC Carbon rear triangle
  • FOX Float Factory Kashima DPS, with remote rear shock, 100mm travel

Technical Specification

Frame Santa Cruz CC Carbon | One-piece swingarm | VPP shock design | Dual remote Lockout
Fork Compatibility 100-120mm
Rear Shock FOX Float Factory Kashima DPS, w/Remote, 100mm travel
Wheel size compatibility 29”
Tyre clearance Up to 2.4”
Recommended headset IS41/52 Integrated (SHIS name
Seatpost diameter compatibility 31.6mm
Eye to Eye length 170mm
Stroke 35mm
Thru-axle 12mm rear x 148 boost
Bottom bracket shell Threaded BSA 73mm
Max Chainring Size 36t
Brake Types Post Mount
Shock Mounting Bushing Front 20x8
Shock Mounting Bushing Rear 20x8
Chainguide compatibility Yes
Changeable rear derailleur hanger Yes
Refined cable routing for better shifting performance, simpler installation, and no cable rub
Downtube protector | Shock guard | Ribbed chainstay protector
Water bottle mounts on seat tube and underneath the downtube
Included in delivery Frame including FOX Float Factory Kashima DPS shock, 12mm thru-axle and seat clamp
Manufacturer Claimed Weight 2.0kg, size M

Santa Cruz Blur Carbon CC Mountain Bike Frame 2021 Sizing
