Product Highlights
Mounted in the linkage, this flip chip allows for alterations to geometry and suspension progression.
Hear that? Silence. The ribs on this chainstay protector reduce chain slap to dampen noise.
Stiff and robust, this linkage is optimised for pedalling efficiency and smoothing out big hits.
Known for their advanced materials and construction methods, Santa Cruz carbon is light and durable.

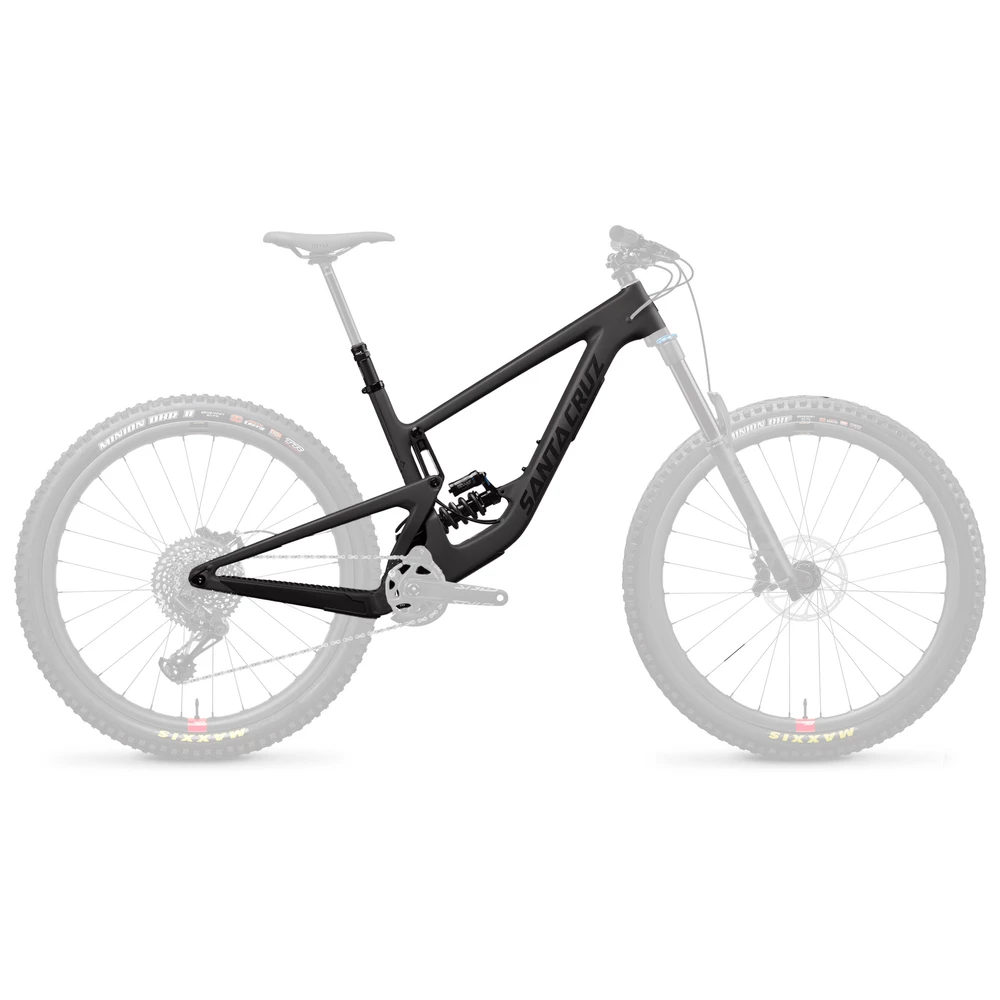

Santa Cruz Megatower Carbon CC Air Shock Mountain Bike Frame 2020
The Santa Cruz Megatower Carbon CC AIr Shock Mountain Bike Frame is the most versatile off-road chassis within the brand’s range. Amalgamating big 29er wheel compatibility with the hardest-hitting suspension, the Megatower infuses confidence into any standard of rider allowing them to attack the longest of descents, the roughest of trails and the most technical of singletrack with total dedication and enthusiasm.
The frame features the highest grade of carbon from Santa Cruz’s stable that promotes a responsive and resilient but smooth ride sensation. A one-piece swingarm, rear suspension unit is then mounted to the main chassis via a VPP lower-link design.
An already comprehensive ride character can then be adjusted by two sets of Flip Chips that are located within the lower link setup and the rear dropouts. These modulate the feel of the rear suspension and rider weight distribution respectively to fine-tune the ride attributes according to the forthcoming sub-genre of trail.
The package is completed in a thorough fashion with threaded bottom bracket compatibility for convenience, water bottle mounts inside the mainframe for on-the-fly hydration and neat cable routing for enhanced maintenance and aesthetics.
Highlights
- The toughest trail frame in the Santa Cruz collection fuses big 29er wheel compatibility and long-travel suspension for the hardest hits on the roughest of rides
- Santa Cruz CC carbon full suspension frame with the one-piece swing arm and VPP lower-link mounted rear shock design
- Flip Chip technology: User-adjustable features allows the rear suspension and the chainstay length to be adjusted depending on the terrain to be faced
- Balanced geometry suitable for a completely versatile trail performance is provided by the 76-degree seat angle and 65-degree head angle
Technical Specification
| Frame | Santa Cruz CC Carbon | One-piece swingarm | VPP lower-link mounted shock design | Flip Chip units in the lower link and rear dropouts |
| Fork Compatibility | 160-180mm / specced with 44mm offset fork |
| Rear Shock | RockShox Super Deluxe Coil Ultimate rear shock, 160mm travel |
| Wheel size compatibility | 29” |
| Tyre clearance | Up to 2.5” (short Flip Chip position) or 2.6” (long Flip Chip position) |
| Recommended headset | IS41/52 Integrated (SHIS name |
| Seatpost diameter compatibility | 31.6mm |
| Eye to Eye length | 230 |
| Stroke | 57.5 |
| Thru-axle | 12mm rear x 148 boost |
| Bottom bracket shell | Threaded BSA 73mm |
| Max Chainring Size | 36t |
| Chainline Spec | Boost |
| Brake Types | Post Mount |
| Shock Mounting Bushing Front | 20x8 |
| Shock Mounting Bushing Rear | 30x8 |
| Chainguide compatibility | Yes |
| Changeable rear derailleur hanger | Yes |
| Refined cable routing for better shifting performance, simpler installation, and no cable rub | |
| Shuttle guard | |
| Downtube protector | Shock guard | Ribbed chainstay protector | |
| Water bottle mounts inside the main frame | |
| Included in delivery | Frame including RockShox Super Deluxe Coil Ultimate, 12mm thru-axle and seat clamp |
| Manufacturer Claimed Weight | 2kg, size M |
