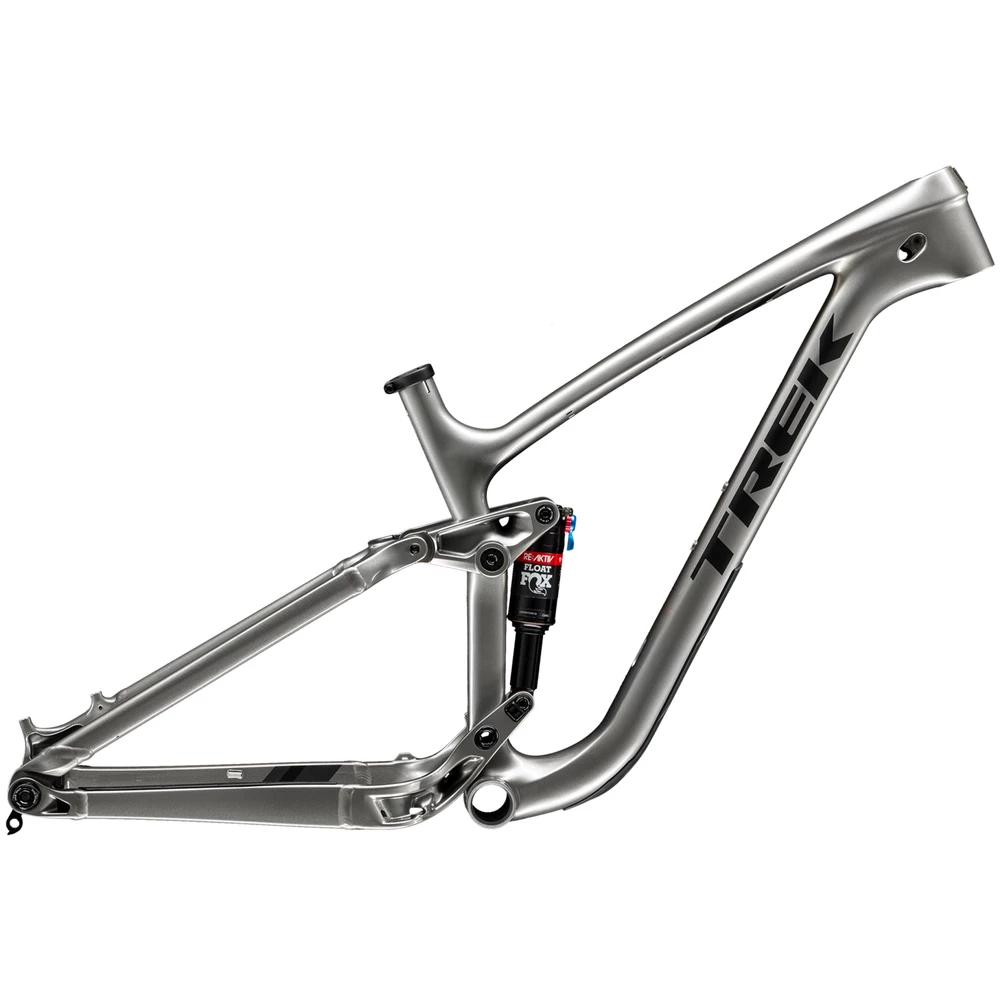

Trek Farley EX Mountain Bike Frame 2020
Trek’s Farley EX Mountain Bikes Frame combines 120mm of suspension with the ability to take tyres up to 4.5” wide (on 26” wheels), making it one of the most comfortable and fun available. Alternatively, it can be used with 3.8” tyres and 27.5” wheels for better fast-rolling ability, but whichever size is chosen, the grip levels and stability are huge.
The frame features super clean Control Freak cable management and an Active Braking Pivot (ABP) design to ensure the suspension remains supple even when subjected to braking forces. The FOX Performance FLOAT EVOL rear shock has been tuned by the Trek Suspension Lab to work with the specific dynamics of a fat bike, keeping the pedalling as efficient as possible.
- OCLV Mountain Carbon main frame with alloy stays, ABP, Full Floater, Control Freak internal routing, Carbon Armor and 120mm travel
- FOX Performance FLOAT EVOL rear shock with RE:aktiv 3-position damper tuned by Trek Suspension Lab
- Compatible with 26” wheels and 4.5” wide tyres or 27.5” wheels with 3.8” tyres
|Frame||Trek OCLV Mountain Carbon main frame, alloy stays, ABP, Full Floater, EVO link, tapered head tube, Control Freak internal routing, Carbon Armor, 120mm travel|
|Rear Suspension||FOX Performance FLOAT EVOL, RE|
|Headset||FSA IS-2, 1-1/8˝ top, 1.5˝ bottom|
|Manufacturer Claimed Weight||M - 2.78 kg / 6.13 lb|
Trek Farley EX Mountain Bike Frame 2021 Sizing
