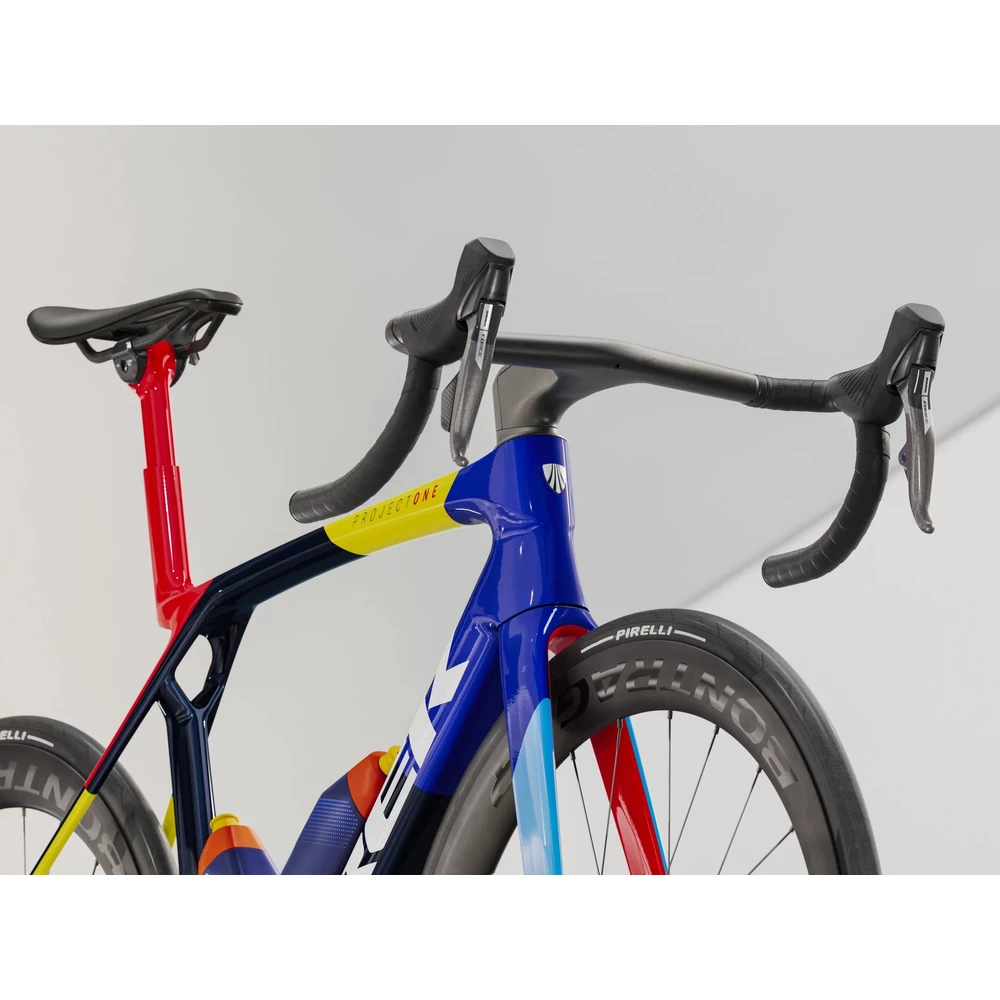

Trek Madone SLR 7 AXS Gen 8 Road Bike
The Madone SLR 7 AXS Gen 8 stands out as an ultra-aero and exceptionally lightweight road bike engineered for competitive racing. Its 900 Series OCLV Carbon frame not only prioritizes aerodynamics but also achieves remarkable weight savings for effortless climbs. Featuring IsoFlow comfort technology, it ensures a smooth ride without compromising speed.
This race-ready road bike machine is equipped with RSL Aero Bottles and Cages to minimize drag, alongside a SRAM Force AXS D2 wireless electronic drivetrain with a power meter for precise, programmable shifting and enhanced training insights. Completed with Bontrager Aeolus Pro 51 tubeless carbon wheels and a Trek Aero RSL one-piece carbon bar/stem, this bike offers the ultimate trifecta of lightweight performance, aerodynamics, and comfort. Perfect for dedicated racers seeking top-tier carbon technology and wireless shifting advantages, the Madone SLR 7 AXS Gen 8 is designed to excel on race day.
Technical Specification
| Frame with Fork | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 bottom bracket, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle |
| Battery | SRAM eTap battery pack (with charger) |
| Shifter | SRAM Force AXS D2, 12 speed |
| Front Derailleur | SRAM Force AXS D2, braze-on |
| Rear Derailleur | SRAM Force AXS D2, 36T max cog |
| Crank | SRAM Force AXS D2, power meter, 48/35, DUB, Size XS, S - 165mm length, Size M - 170mm length, Size ML, L - 172.5mm length, Size XL |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM Force XG-1270, 10-33, 12 speed |
| Chain | SRAM Force, 12 speed |
| Max Chainring Size | 1x |
| Front Wheel | Bontrager Aeolus Pro 51, OCLV Carbon, tubeless ready, 100x12 mm thru axle |
| Rear Wheel | Bontrager Aeolus Pro 51, OCLV Carbon, tubeless ready, Shimano 11/12 speed freehub, 142x12 mm thru axle |
| Front Skewer | Bontrager Switch chamfered thru axle, removable lever |
| Rear Skewer | Bontrager Switch chamfered thru axle, removable lever |
| Tyres | Bontrager Aeolus RSL RD, tubeless ready, cotton construction, aramid bead, 170 tpi, 700x28 mm |
| Tyre Part | Bontrager TLR sealant, 180 ml / 6 oz |
| Max Tyre Size | 32 mm (as measured, see manual for details) |
| Saddle | Size XS, S |
| Seatpost | Size XS, S, M, XL |
| Handlebar/Stem (Integrated) | |
| Size XS | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 8mm stem length |
| Size S | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 37cm control width, 40cm drop width, 90mm stem length |
| Size M | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length |
| Size ML, L | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 100mm stem length |
| Size XL | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 41cm control width, 44cm drop width, 110mm stem length |
| Handlebar Tape | Trek EcoTack |
| Brake Rotor | SRAM CentreLine X, CentreLock, round edge, 160 mm |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
Size Guide
Trek Madone SLR 7 AXS Gen 8 Road Bike Sizing
