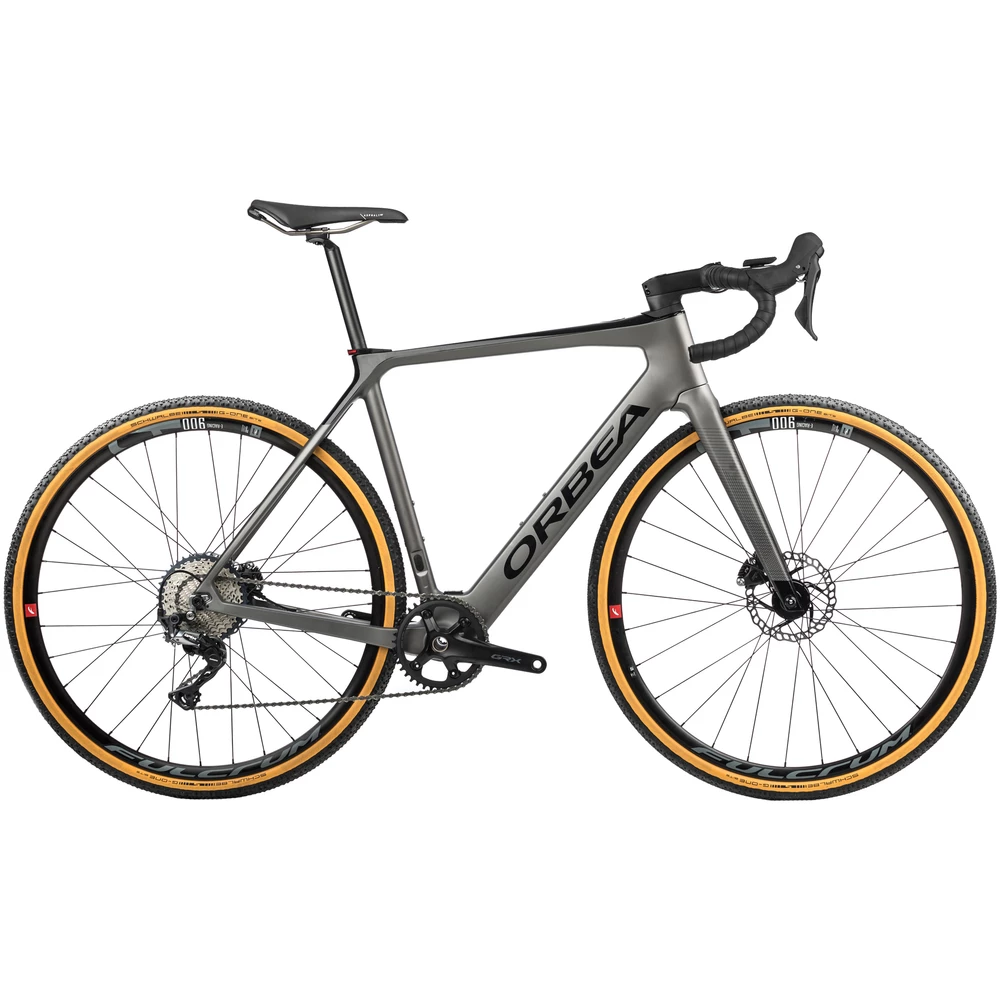

Orbea Gain M30 GRX 600 Disc E-Gravel Bike 2021

★★★★★ ★★★★★
(0)
£3,599.00

Select a colour and size to view stock availability

Find My Size
Orbea
Gain M30 GRX 600 Disc E-Gravel Bike 2021

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1314836

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Orbea Gain M30 GRX 600 Disc E-Gravel Bike 2021

Set off on your next adventure without being restricted to the road with the Orbea Gain M30 GRX 600 Disc E-Gravel Bike. Towpaths, fire roads and single track of any gradient are tamed by the powerful 250-watt motor while the lightweight carbon fibre frameset provides a comfortable and nimble ride.

With the motor mounted to the rear hub and the battery hidden in the downtube, this looks like a regular gravel bike at first glance. But when you need a little assistance, the powerful 250-watt Mahle Ebikemotion motor can be switched on at the push of a button. When disengaged, the motor doesn't hinder the drivetrain so you can ride unimpeded.

The dedicated gravel specification on this bike includes the superb Shimano GRX 600 groupset, offering a 1 x 11-speed gearing setup. With less maintenance thanks to the single chainring and all the ratios you need for any terrain, it's a fantastic option that also boasts powerful hydraulic disc brakes for superior stopping power. The bike comes fitted with Schwalbe G-ONE Bite clincher tyres, perfect for mixed terrain, so you can get out exploring from day one.

Highlights

  • A hugely capable gravel-specific e-bike
  • Lightweight Orbea Carbon OMR monocoque frameset
  • The Mahle Ebikemotion X35 Plus motor is designed to improve your rides, not dominate them
  • Motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
  • ICR Plus internal cable routing keeps the cockpit clean looking
  • Integrated lights
  • Mahle Ebikemotion 248Wh battery neatly housed in the downtube
  • Mahle Ebikemotion iWoc ONE interface displays battery and assist levels as you ride
  • Endurance geometry is perfect for riding all day long
  • Shimano GRX 600 11-speed gravel-specific groupset
  • Schwalbe G-ONE Bite gravel tyres are 38mm wide for superb traction

Battery Specification

  • Maximum Assist: 250w up to 25km/hr
  • Motor Weight: 3.5kg
  • Range: Up to 47 miles / 75km depending on usage and riding conditions
  • Battery Power: 248Wh

Technical Specification

Frame Orbea Gain Carbon OMR monocoque structure, integrated seat clamp with integrated Lezyne STVZO rear light, ICR internal cable routing, forged bottom bracket BB386 EVO, 135x9mm quick release, flat mount disc, 700x40mm maximum tyre clearance, 1" 1/2 semi headset
Fork Orbea Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40mm maximum tyre clearance, flat mount disc, Orbea 12x100mm Thru-Axle M12x2 P1 Lite, down tube aero integration
Headset Orbea Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea ICR -8º
Handlebar OC1 All Road, reach 80mm, drop 125mm, flare 12º
Front Brake Shimano RX400 hydraulic disc
Rear Brake Shimano RX400 hydraulic disc
Brake Levers Shimano GRX 600
Rear Derailleur Shimano GRX RX812 GS
Front Derailleur N/A
Shift Levers Shimano GRX ST-RX600 11-speed
Chain Shimano HG 601, 11-speed
Cassette Shimano SLX M7000 11-40t 11-speed
Crankset Shimano GRX RX600 40t
Front Wheel Fulcrum E-Racing 900 clincher
Rear Wheel Fulcrum E-Racing 900 clincher
Front Tyre Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic SkinX, tubeless-ready clincher
Rear Tyre Schwalbe G-ONE Bite, 40-622, 700x38C, Performance Line RaceGuard, TLE, ADDIX Classic SkinX, tubeless-ready clincher
Saddle Selle Royal Asphalt GR
Seatpost OC2 Carbon, 27.2, Offset 20mm
Pedals Available to be purchased separately
Accessories 60 Lumen COB LED front light on display holder, 11-lumen Lezyne STVZO integrated seat clamp rear light
Motor Mahle Ebikemotion X35 Plus 25kmh (250 watts, 40Nm maximum torque)
Remote Mahle Ebikemotion iWoc ONE
Display Mahle Ebikemotion Pulsar One monochrome ANT+ LEV
Battery Mahle Ebikemotion 36V/6.9A 248Wh ANT+
Charger Mahle Ebikemotion X35

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Orbea Gain M30 GRX 600 Disc E-Gravel Bike 2021 Sizing
