Orbea Keram 10 Electric Mountain Bike 2021

★★★★★ ★★★★★

Select a colour and size to view stock availability

Find My Size
Keram 10 Electric Mountain Bike 2021
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1232245

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports cycle to work scheme
Cycle to Work Scheme

Cyclescheme can save you up to 39% on a bike and accessories. Visit our Cycle to Work Scheme page to learn more and claim.

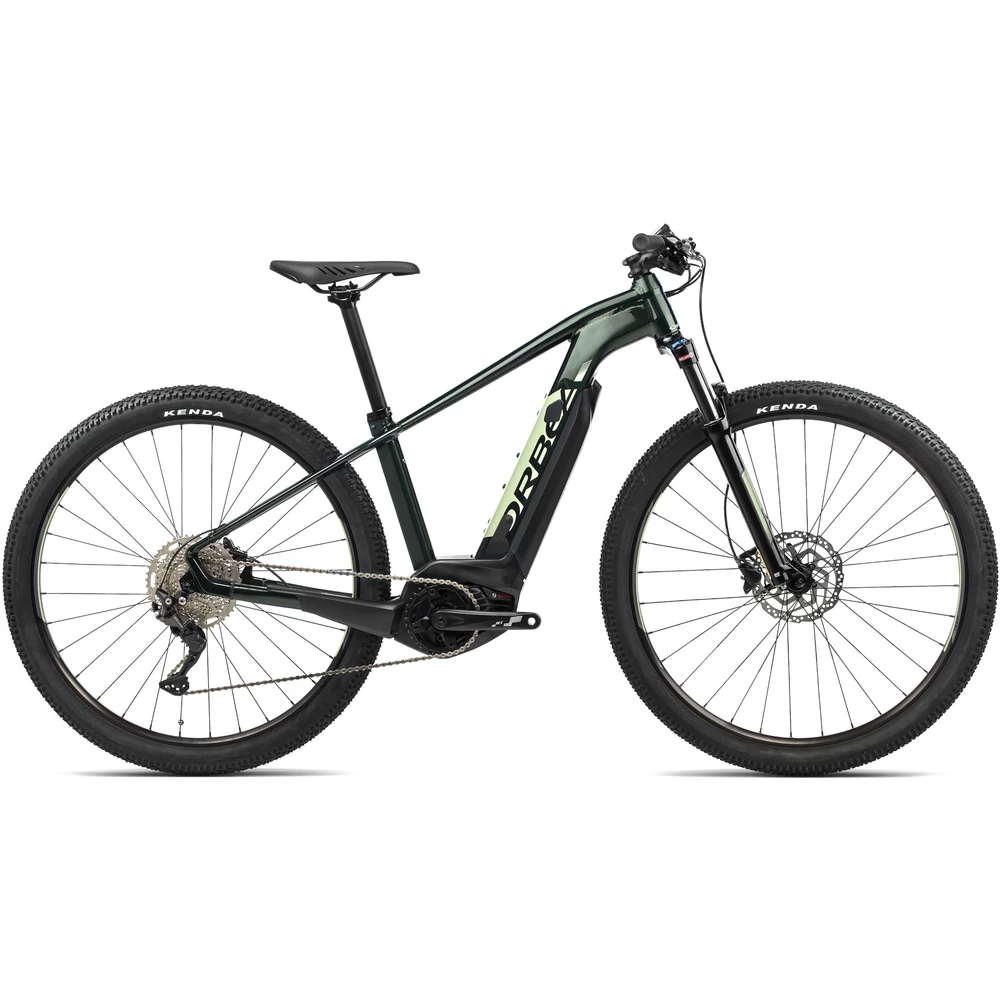

Orbea Keram 10 Electric Mountain Bike 2021

With an upright position for better comfort and control, the Orbea Keram 10 is a superb electric mountain bike that inspires confidence to tackle new trails and head further offroad. The strong aluminium frame and powerful Bosch motor are the quality parts you need to ensure years of great service. With 100mm of travel, the front suspension tames rocks and ruts to help smooth out your ride.

When riding along a particularly tough section with lots of twists or sudden inclines, the Extended Boost mode of the Bosch Performance CX motor kicks in, effectively smoothing out the trail for a more consistent effort. The 500Whr battery can last around 65km, which is enough for even the most enthusiastic days out on the trails.

Quality Shimano components cater for your shifting and braking, with a Deore 10-speed gearset and powerful MT210 hydraulic disc brakes ensuring you can stop quickly and safely. Orbea's own Tryp wheelset is size-specific, with the size Small frame coming with 27.5" wheels, and all other sizes rolling on 29".


  • Hard Tail e-MTB designed for a more comfortable position
  • Size-specific wheels provide a consistent handling across the range
  • SR Suntour XCR32 suspension fork with 100mm of travel
  • A fun and easy bike to ride
  • 500Wh battery for a long day out on the trails
  • Bosch Performance CX Cruise motor has 85Nm of torque to tame the trails
  • Shimano Deore M4100 shifters
  • Shimano Deore M5120 10-speed rear derailleur
  • Shimano hydraulic disc brakes

Battery Specification

  • Maximum Assist: 85Nm up to 25km/hr
  • Motor Weight: 2.9kg
  • Battery Power: 500Wh
  • Range: 65km/40 miles (depending on power mode selected and trail conditions)

Technical Specification

Frame Orbea Keram 2019, Hydroformed Alloy 6061, Hide out battery technology, bottle cage and dual battery compatible and hidden kickstand compatible
Fork SR Suntour XCR32 LO Coil 100mm QR
Stem Orbea Alloy 31.8mm interface 7º
Handlebar Orbea OC1 Flat, 31.8mm, 740mm width
Front Brake Shimano MT200 hydraulic disc
Rear Brake Shimano MT200 hydraulic disc
Brake Levers Shimano MT200 hydraulic disc
Front Derailleur N/A
Rear Derailleur Shimano Deore M5120 SGS Shadow Plus 10-speed
Shift Levers Shimano Deore M4100 10-speed
Cassette Shimano Deore M4100 11-46t 10-speed
Crankset Orbea PW EB04-NW32 G4
Chain KMC e10 Turbo Silver, 10-speed
Front Wheel Orbea Tryp 25c Disc tubeless-ready clincher (Size Specific)
Rear Wheel Orbea Tryp 25c Disc tubeless-ready clincher (Size Specific)
Front Tyre Kenda K1153 2.35" 30TPI, clincher
Rear Tyre Kenda K1153 2.35" 30TPI, clincher
Saddle Selle Royal 2077 DRN
Seatpost Orbea Alloy 31.6x400mm, Offset 0
Pedals Available to be purchased separately
Accessories Abus battery Powertube Lock PLUS
Battery Bosch Performance 500Wh
Ui/Remote Bosch Performance Purion
Motor Bosch Performance CX Cruise (25km/h) BDU450CX
Charger Bosch Compact Charger 2A (100-240V) Worldwide

Orbea Keram 10 Electric Mountain Bike 2021 Sizing
