Orbea Oiz M PRO TR Mountain Bike 2021

★★★★★ ★★★★★

From only £124.98 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Oiz M PRO TR Mountain Bike 2021
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1288481

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

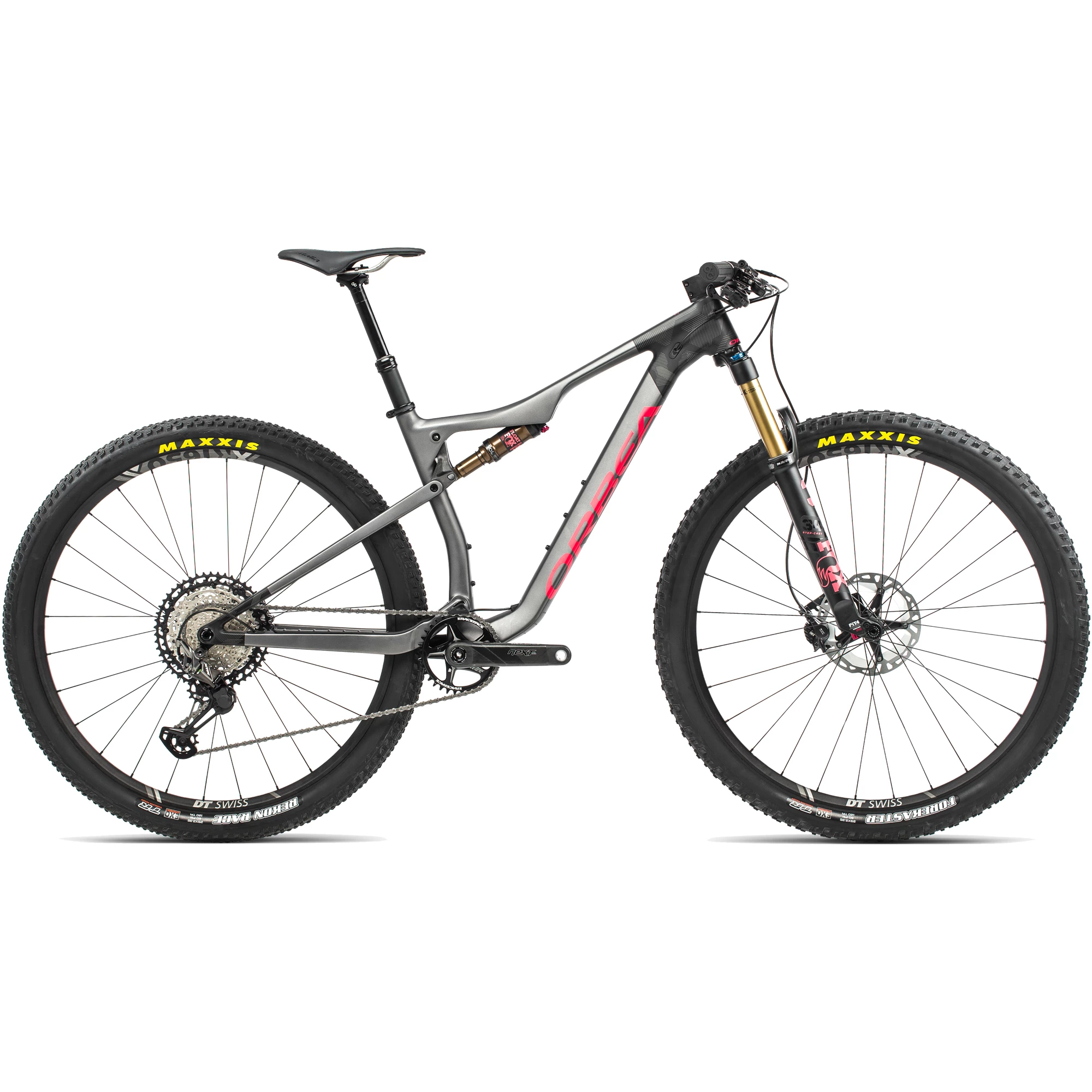

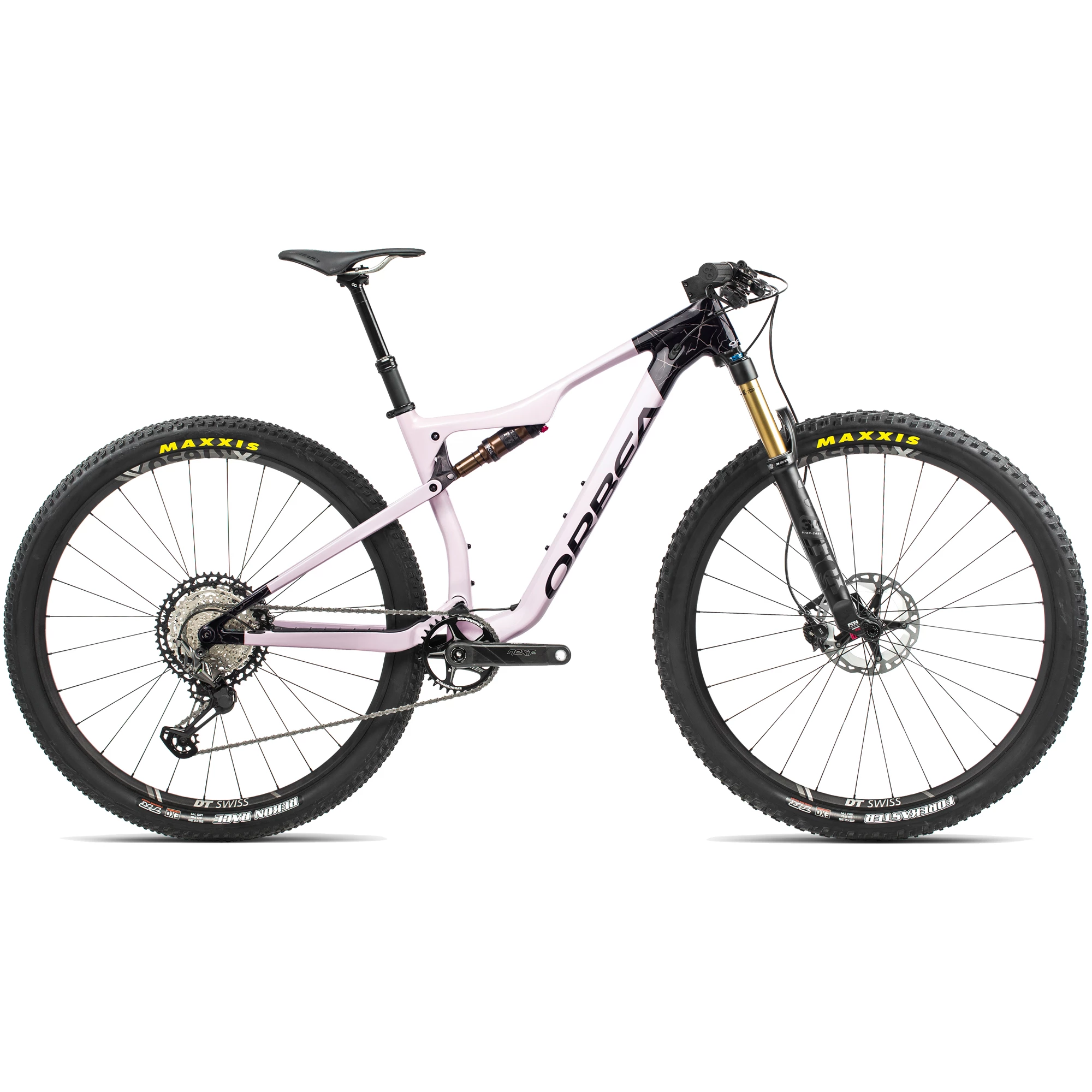

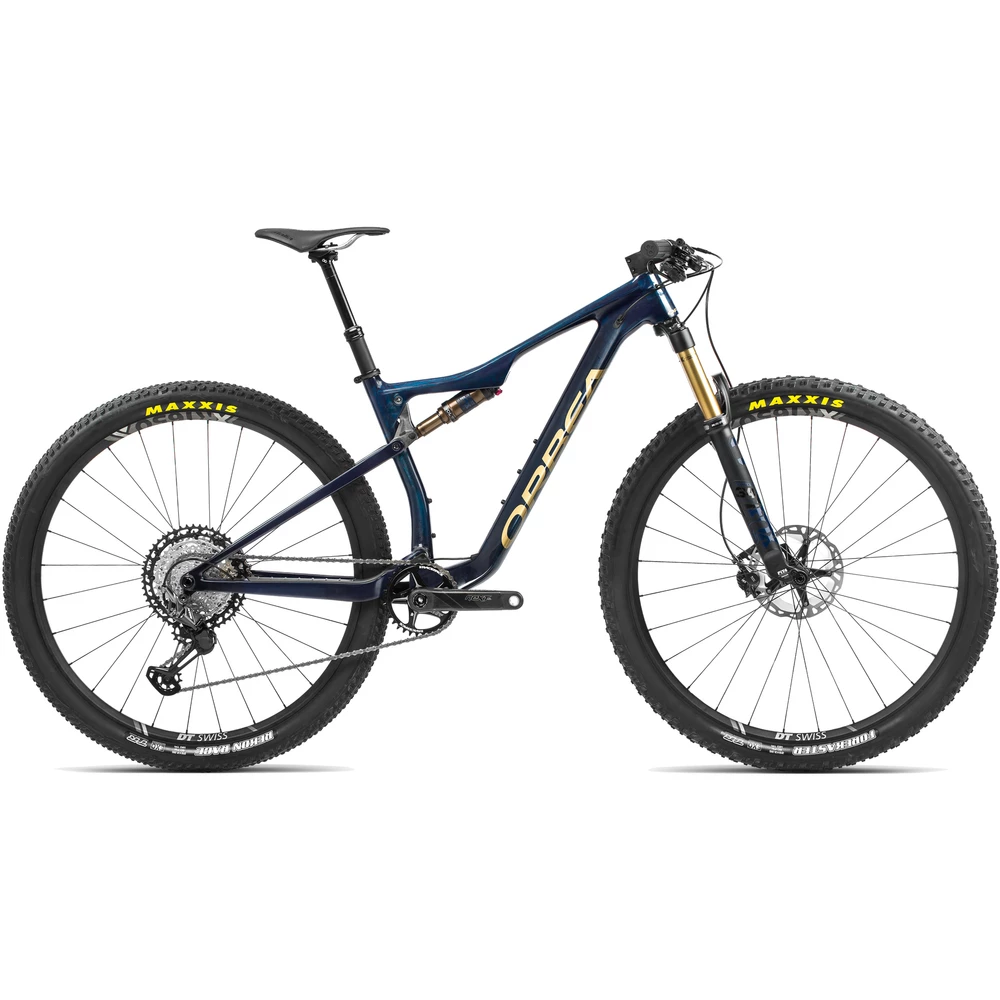

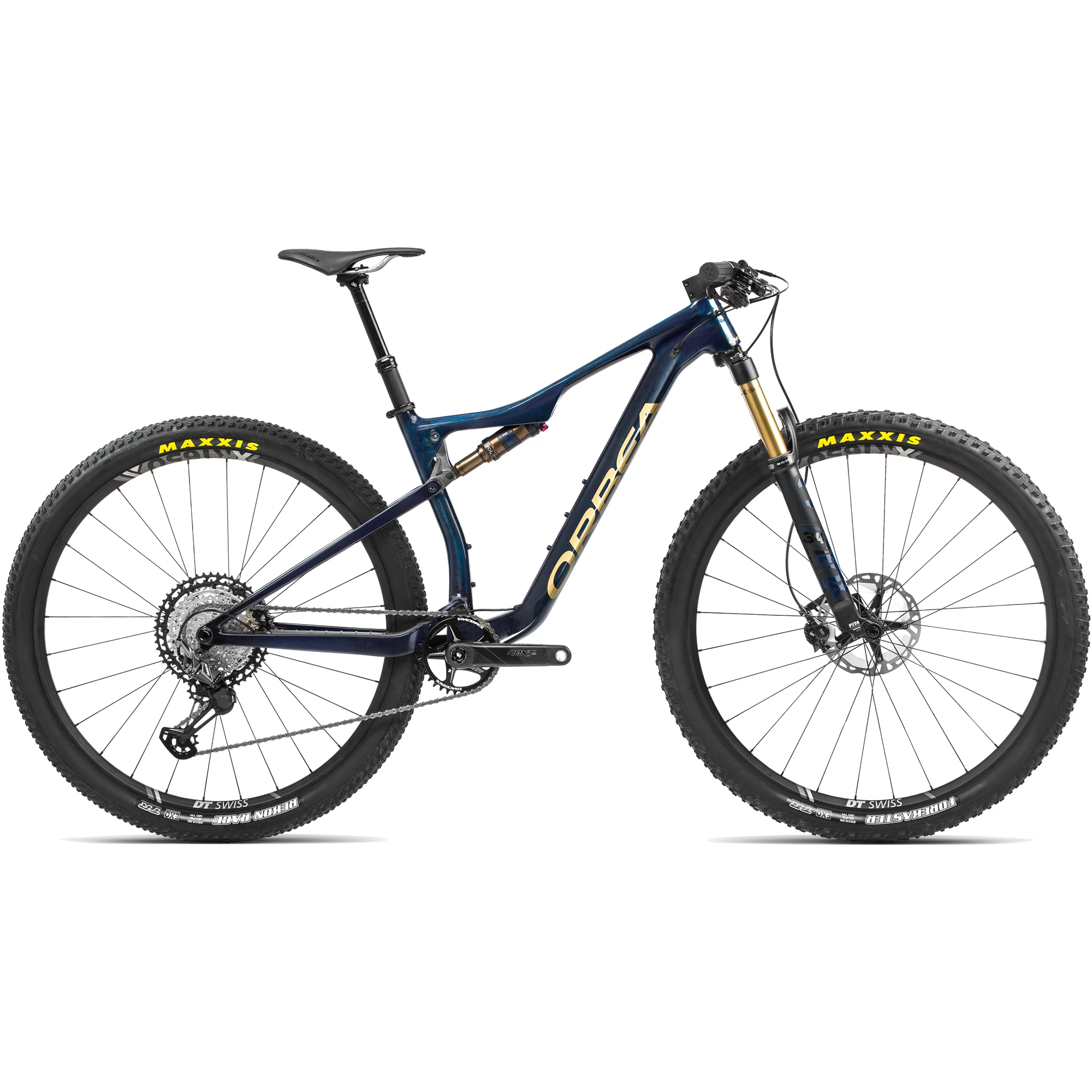

Orbea Oiz M PRO TR Mountain Bike 2021

The Orbea Oiz M PRO TR Mountain Bike takes a full carbon, cross country racing platform and an aggressive geometry and adds bigger suspension to result in a ride that’s ready to conquer any trail, no matter its technicality or severity.

OMX carbon is at the height of Orbea’s composite technology and is used for the front and rear frame triangles to elicit a lofty stiffness to weight ratio. A highly technical rear suspension design includes a super clean linkage arrangement to result in a lightweight configuration that collaborates with the FOX damping unit to progressively manage the biggest of hits with aplomb. A FOX 32 Float SC Factory suspension fork supplements the frame by adding its 120mm of travel to deliver composure across even the roughest of trails. The chassis possesses an aggressively tuned geometry that promotes reactive handling in the tightest of riding situations and places the rider powerfully over the pedals.

DT Swiss XR-1650 Spline wheels use robust but light 29” alloy rims that surge forward under power and maintain impetus over the most irregular of terrain. Driving these wheels is the slick and dependable Shimano XT and XTR gear partnership while stopping duties are taken care of by powerful and precise hydraulic disc brakes.

A dropper post is added to give heightened levels of control when thundering down steep escarpments.


  • The Oiz TR takes a thoroughbred XC racing platform and adds bigger suspension, front and rear to create a super-fast and nimble character that is set to conquer any trail
  • An OMX carbon frame with a highly advanced layup pattern delivers an optimum stiffness to weight ratio

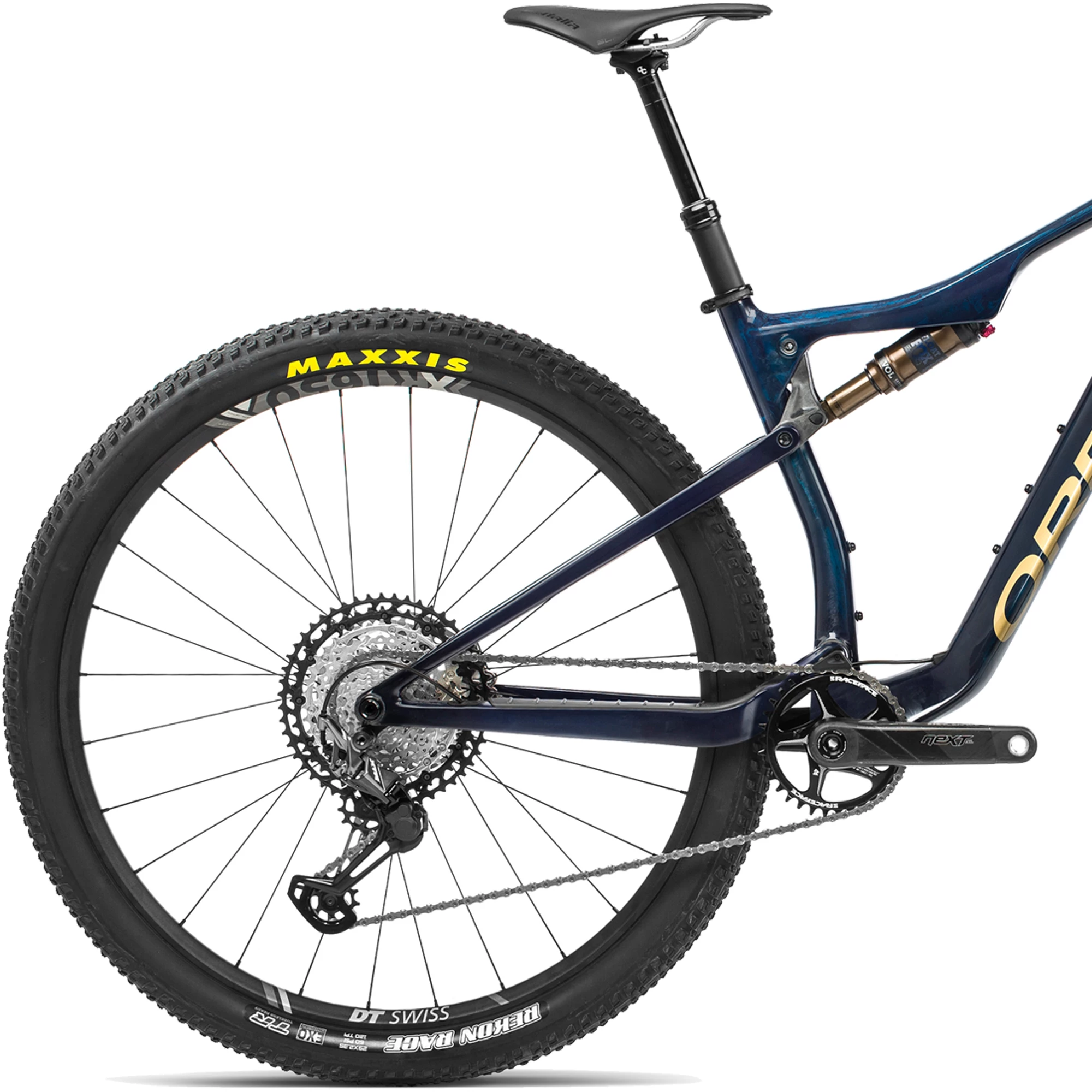

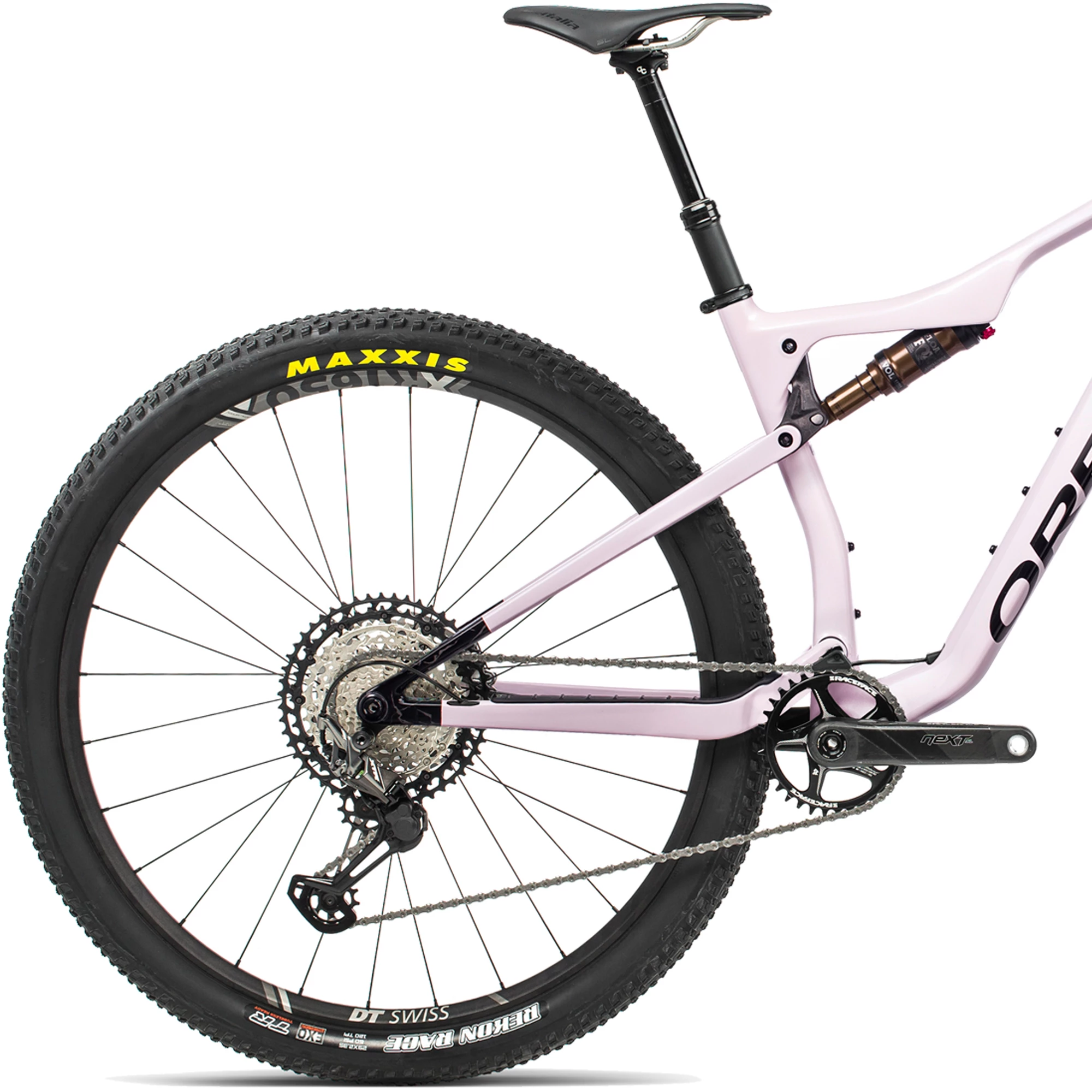

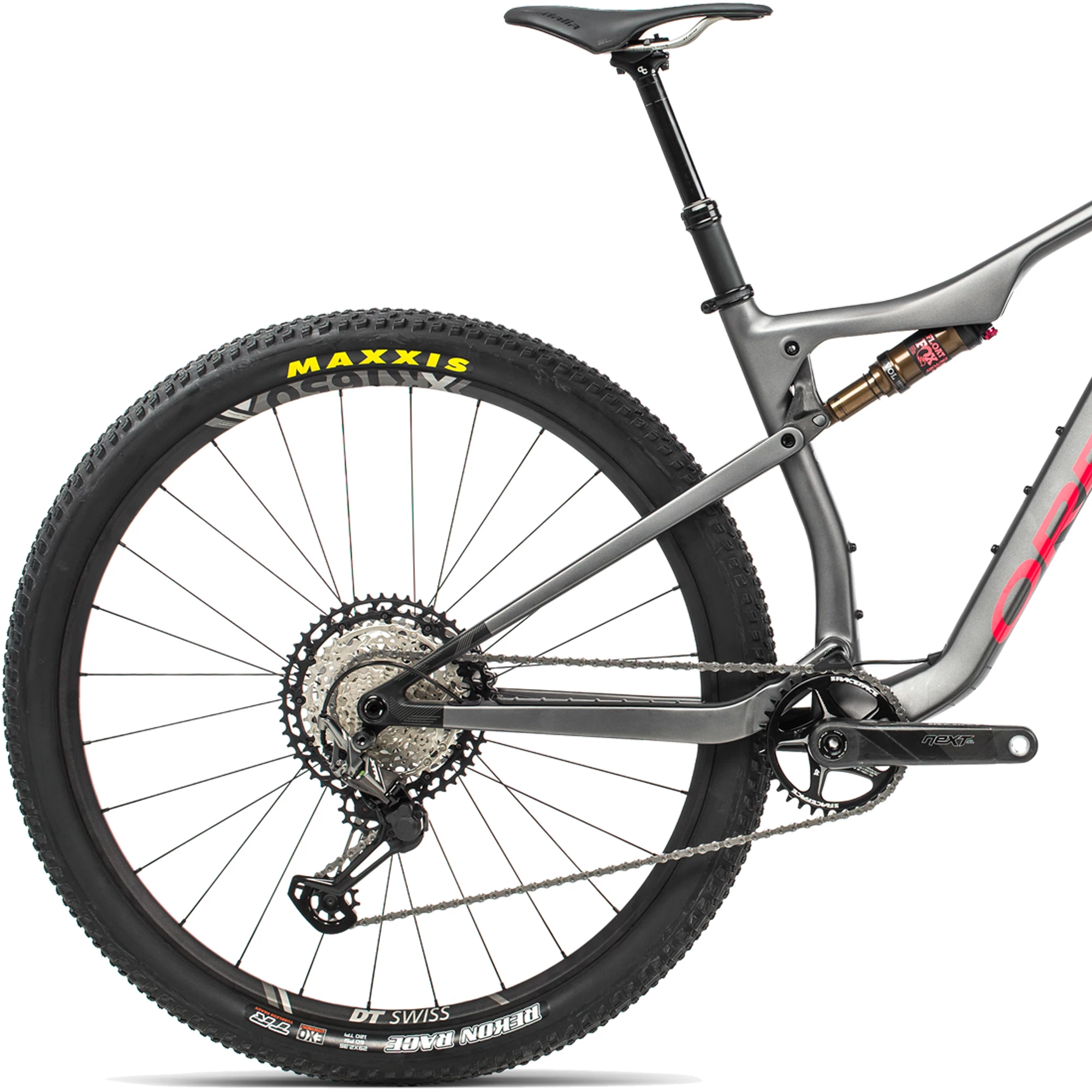

  • UFO rear suspension design reduces pivot points and combines with the Fibrelink junction to deliver lateral stiffness, a composed action and low weight
  • FOX i-line DPS Factory rear shock with 120mm of suspension progressively manages even the largest of impacts

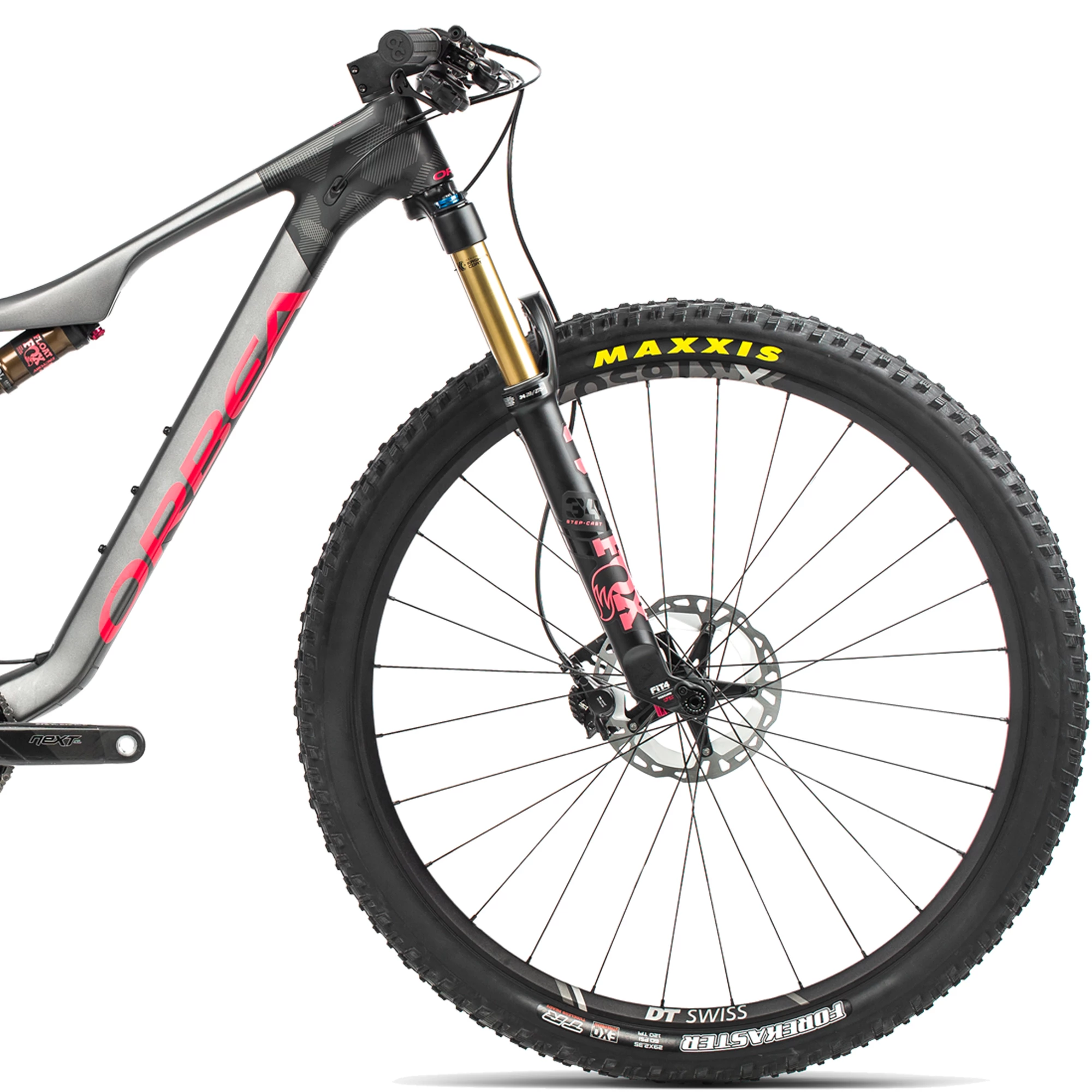

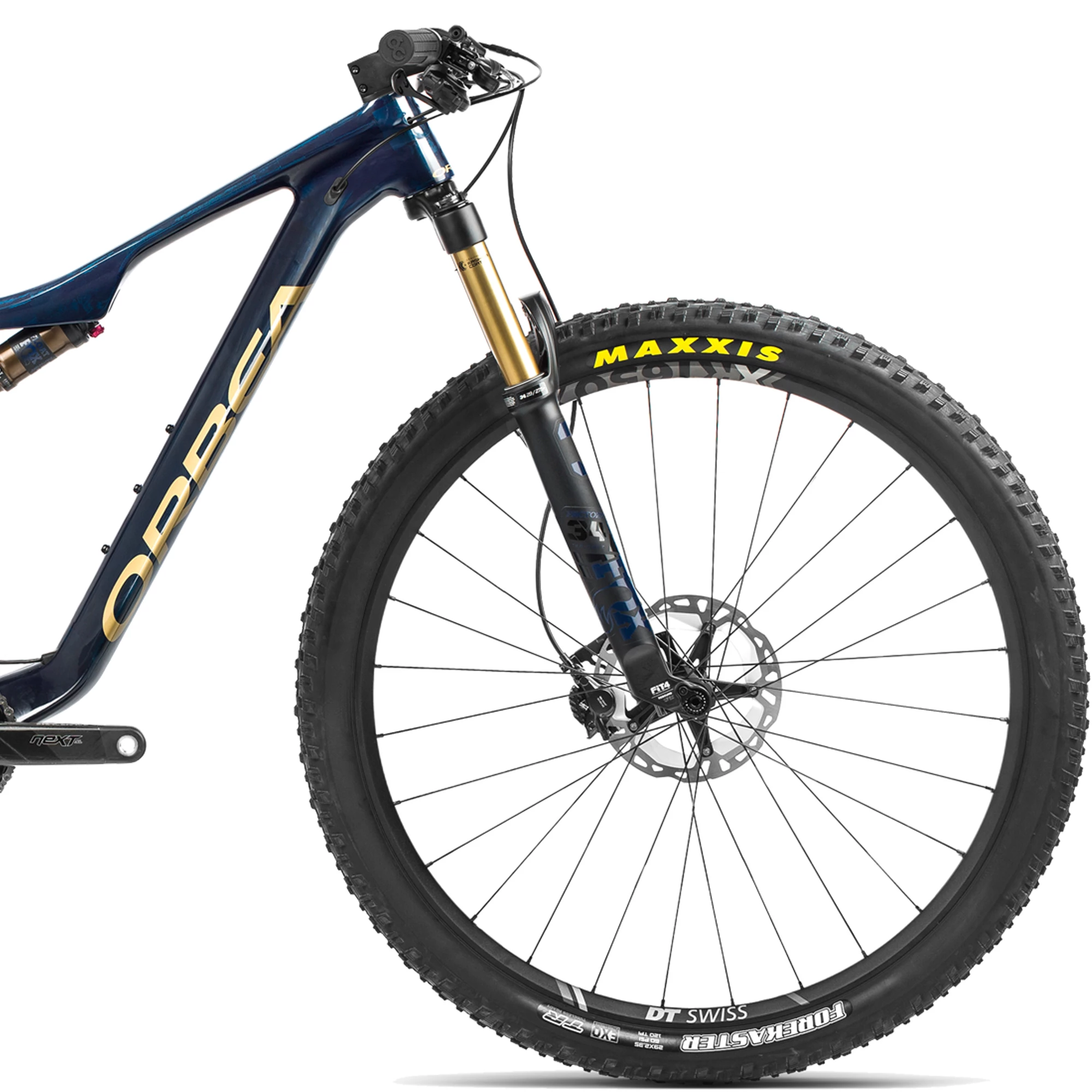

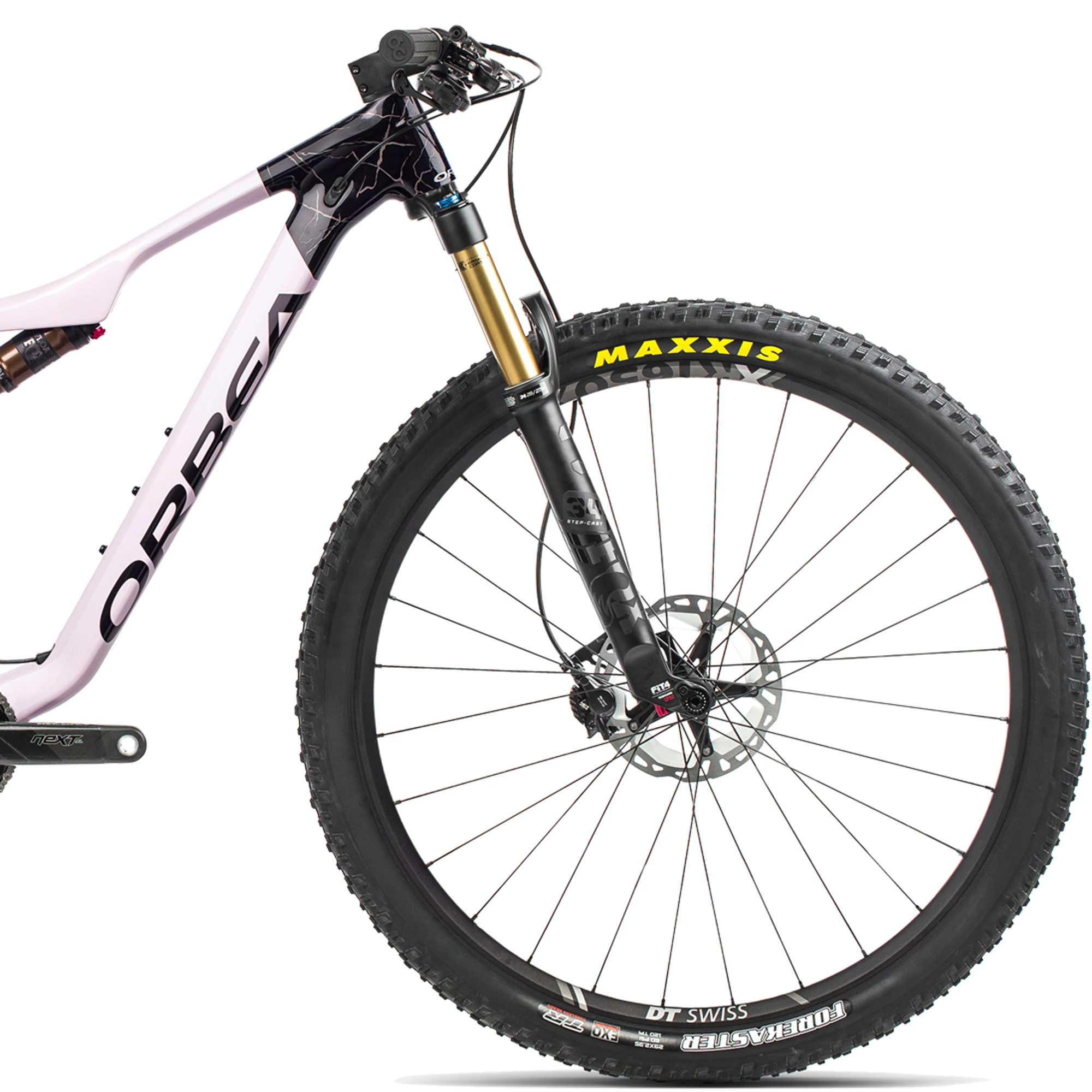

  • FOX 32 Float SC Factory fork increases line accuracy and control with its 120mm of metered travel
  • The geometry is aggressive and precise for maximum power transfer and rapid handling
  • DT Swiss XR-1650 Spline 25c 29” alloy wheels are stiff, strong and light
  • Shimano XT/XTR gear partnership changes without fault and are durable
  • Shimano XT hydraulic disc brakes are powerful and modulated regardless of riding conditions
  • A dropper post is added to aid control on the most technical downhill sections

Technical Specification

Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, PF BB, UFO2, I-line shock
Fork FOX 34 Float SC Factory, 120mm travel, FIT4 Remote-Adj Push-Unlock, QR15x110
Rear Shock FOX i-line DPS Factory 120mm travel, Remote Push-Unlock, Evol Kashima custom tune, 190x45mm
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Stem Orbea OC3, 31.8mm interface, -8 degree (Length
Handlebar Orbea OC3 Carbon Flat, 31.8mm diameter, 760mm width
Front Brake Shimano XT M8100, hydraulic disc
Rear Brake Shimano XT M8100, hydraulic disc
Brake Levers Shimano XT M8100, hydraulic disc
Rear Derailleur Shimano XTR M9100 SGS Shadow Plus, 12-speed
Shift Levers Shimano XT M8100 I-Spec EV, 12-speed
Chain Shimano M8100, 12-speed
Cassette Shimano CS-M8100, 10-51t, 12-speed
Crankset Race Face Next-SL, 34 tooth chainring (Length
Front Wheel DT Swiss XR-1650 Spline 25c TLR CL, Boost axle
Rear Wheel DT Swiss XR-1650 Spline 25c TLR CL, Star Ratchet, Boost axle
Front Tyre Maxxis Rekon Race 2.35”, 120 TPI Exo, tubeless-ready
Rear Tyre Maxxis Rekon Race 2.35”, 120 TPI Exo, tubeless-ready
Saddle Selle Italia SLR Boost, Titanium Rail 316 Ø7mm
Seatpost Orbea OC2 Dropper, 31.6mm diameter, 390/125mm length
Remote Lockout Orbea OC Squidlock 3-position
Pedals Available to be purchased separately
Accessories Orbea OC chainguide

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.
