Orbea Vibe Mid H30 Electric Hybrid Bike 2021

★★★★★ ★★★★★
(0)
£2,099.00

From only £78.71 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Orbea
Vibe Mid H30 Electric Hybrid Bike 2021
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Save up to £500 with our Price Match Promo offer on selected 2019 bicycles and frames. Find out more.

Product ID: 1292848

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

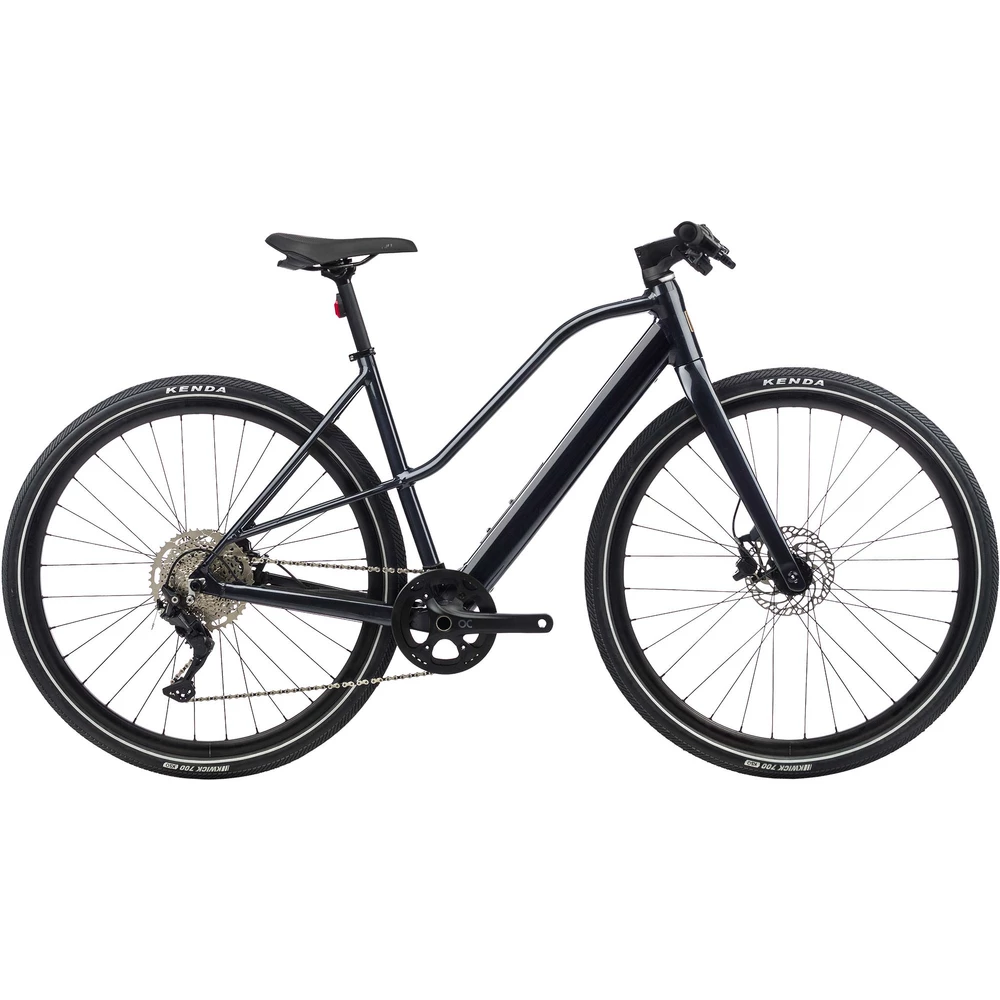

Orbea Vibe Mid H30 Electric Hybrid Bike 2021

Stylish, fun, incredible value, and with city-friendly features, the Orbea Vibe Mid H30 Electric Hybrid Bike is the perfect choice for any leisure cyclist. To retain the look of a manual bike, the Ebikemotion X35 Plus motor and 248Wh battery are integrated into the hub and downtube respectively to provide clean lines throughout the frame. Despite its compact size, the Ebikemotion X35 Plus motor delivers 40Nm of torque, providing all the support needed to speed up steep climbs. Thanks to the low weight of the battery, the handling is responsive and reminiscent of a standard hybrid, ensuring the Vibe Mid H30 is a joy to ride across town.

To reduce vibrations from the road, a carbon fork is used, helping limit fatigue on rough roads and paths. Integrated cabling keeps things simple, keeping the cockpit clean and tidy and the cables safely out of the way of harm. The 248Wh battery is super light compared to higher-capacity models and provides more than enough power for leisure and town riding. For longer rides, an aftermarket range extender is available, ideal for boosting power. A reliable Shimano Deore drivetrain and Magura MT30 hydraulic brakes are both durable and efficient, and the low-profile Kenda tyres roll quickly on pathways and roads.

Highlights

  • Unisex mid-style frame design
  • Integrated frame lighting
  • Lightweight internal Ebikemotion 248Wh battery
  • Ebikemotion X35 hub motor system
  • Minimalist and integrated design to mimic the look of a manual bike
  • Torque Simulation Algorithm to mirror the effort you put in, with a max torque of 40Nm
  • Near drag-free pedalling when the motor is not in use
  • Discreet iWOC TRIO handlebar remote
  • 10-speed Shimano Deore groupset for smooth shifting
  • Powerful hydraulic Magura MT30 disc brakes
  • Comfortable Selle Royal Lift saddle
  • Aftermarket range extender available

Battery Specifications

  • Maximum Assist: 250w / 40Nm torque
  • Motor Weight: 2.1kg
  • Battery Power: 248wh

Technical Specification

Frame Orbea Vibe Mid Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135x9 QR, flat mount disc, 700x45 maximum tyre clearance, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and mudguard compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximum tyre clearance, flat mount disc mount, thru-axle 12x100mm, mudguard compatible
Headset Orbea Acros Alloy 1-1/2" Internal Cable Routing
Stem Orbea OC1 31.8mm interface -6º
Handlebar Orbea Alloy 31.8mm, 12mm rise, 700mm width
Grips Brooks Comfort Cambium 130mm
Front Brake Magura MT30 Hydraulic Disc Easy Route Connection
Rear Brake Magura MT30 Hydraulic Disc Easy Route Connection
Brake Levers Magura MT30 E-STOP
Rear Derailleur Shimano Deore M5120 SGS Shadow Plus, 10-speed
Shift Levers Shimano Deore M4100 10-speed
Chain KMC X10
Cassette Shimano CS-M4100 11-46t 10-Speed
Crankset Orbea OC 42t, with chainguard
Front Wheel Blackjack Ready GR
Rear Wheel Blackjack Ready GR
Front Tyre Kenda K1052 700x45C Reflective type, puncture protection strip, clincher
Rear Tyre Kenda K1052 700x45C Reflective type, puncture protection strip, clincher
Saddle Selle Royal Lift 1404 HRN 266x170mm
Seatpost Orbea Alloy 27.2, offset
Pedals Available to be purchased separately
Motor Ebikemotion X35 Plus 25kmh
Ui/Remote Ebikemotion iWoc TRIO
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Accessories Integrated lights front and rear (Lezyne FENDER STVZO rear light), Knog OI Classic bell

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if specified), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. We do not install accessories to bikes, including mudguards.


Orbea Vibe Mid H30 Electric Hybrid Bike 2021 Sizing
