Trek Rail 7 Electric Mountain Bike 2021

★★★★★ ★★★★★
(0)
£5,000.00

From only £125.00 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Trek
Rail 7 Electric Mountain Bike 2021
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1245618

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with PedalSure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

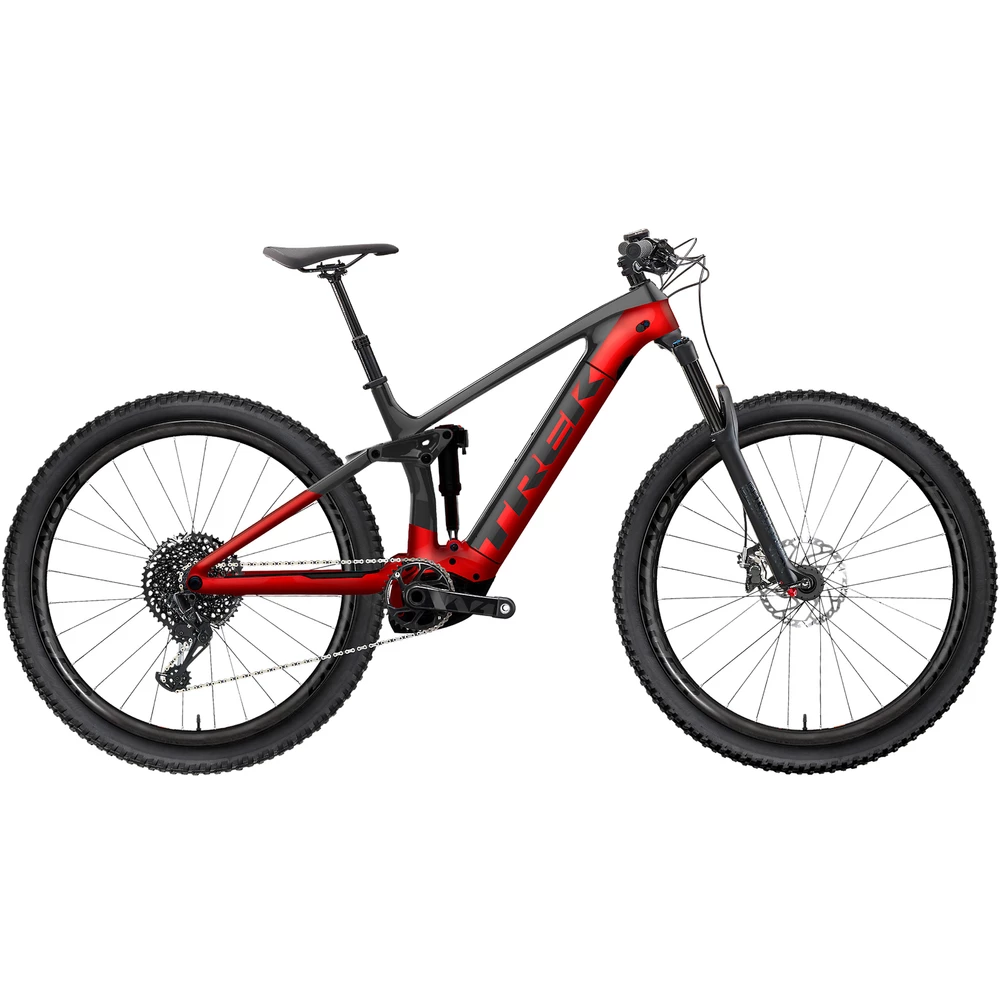

Trek Rail 7 Electric Mountain Bike 2021

All the capability of an analogue MTB with 250W of assistance available when needed - the Trek Rail 7 Electric Mountain Bike is a rip-roaring ride crafted from durable Alpha Platinum aluminium and built for trails. The Bosch Performance CX Motor kicks into play up to 25km/h and is compact, light and efficient to minimise drag when freewheeling and feel unobtrusive whilst pedalling. The Bosch PowerTube 625 battery sits within the frame when in use, maintaining a clean silhouette, and can be removed without the need for tools when a charge is needed. A full charge is complete in a little under five hours, but the battery can be used at less than full capacity should the need for a spontaneous ride emerge.

The responsive RockShox Yari RC fork provides a tasty 160mm of travel to tackle varied terrain, and there's 150mm of travel to the rear with the RockShox Deluxe Select+ shock - so it's safe to say this bike can handle higher drops. The Mino Link adjustable geometry can be tweaked to suit rider preference and the TranzX JD-YSP18 dropper seatpost is advantageous on sweeping bends and technical descents.

The 1x12-speed Shimano drivetrain makes for easier maintenance and consistent, reliable shifting with a generous gear range that keeps grinding at bay when gradients ramp up. Go full send on technical descents with confidence thanks to Shimano M6120 4-piston hydraulic disc brakes, which boast heavy-duty stopping power regardless of terrain or conditions.

Battery Specification

  • Maximum assist: 250w
  • Motor weight: 2.9kg
  • Battery Power: Approximately 625Wh

Highlights

  • Trek Alpha Platinum Aluminium frame with RIB
  • RockShox Yari RC, DebonAir spring fork with 160mm of travel
  • Shimano SLX/XT 1x12-speed drivetrain
  • Shimano M6120 4-piston hydraulic disc brakes
  • 29” wheels with 2.60” tubeless-ready tyres
  • TranzX JD-YSP18 dropper seatpost gets the saddle out of the way quickly
  • Bosch Performance CX 250W motor
  • Bosch PowerTube 625 battery

Technical Specification

Frame Trek Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru-axle, 150mm travel
Fork RockShox Yari RC, DebonAir spring, Motion Control RC damper, e-MTB optimised, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 160mm travel
Rear Shock RockShox Deluxe Select+, 230x57.5mm
Headset Trek Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Stem Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree
Handlebar Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise
Grips Bontrager XR Trail Comp, nylon lock-on
Front Brake Shimano M6120 4-piston hydraulic disc
Rear Brake Shimano M6120 4-piston hydraulic disc
Brake Levers Shimano M6120
Rear Derailleur Shimano XT M8100, long cage, 51T max cog
Shift Levers Shimano SLX M7100, 12-speed
Chain Shimano SLX M7100, 12-speed
Cassette Shimano SLX M7100, 10-51, 12-speed
Crankset E*thirteen E*spec Plus, 34T
Front Wheel Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110
Rear Wheel Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost148
Front Tyre Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60" clincher
Rear Tyre Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.60" clincher
Saddle Bontrager Arvada, steel rails, 138mm width
Seatpost TranzX JD-YSP18 dropper, internal routing, 31.6mm
Pedals Trek VP-536 nylon platform
Claimed Manufacturers Weight Size M - 23.59kg / 52.00lbs
Charge time 100% charge, 4.9 hours with Standard Charger
Motor Bosch Performance CX, magnesium motor body, 250 watts, 75 Nm, 25km/h
Ui/Remote Bosch Purion
Battery Bosch PowerTube 625
Charger Bosch standard 4A (220-240 V) charger

Trek Rail 7 Electric Mountain Bike 2021 Sizing
