Product Details

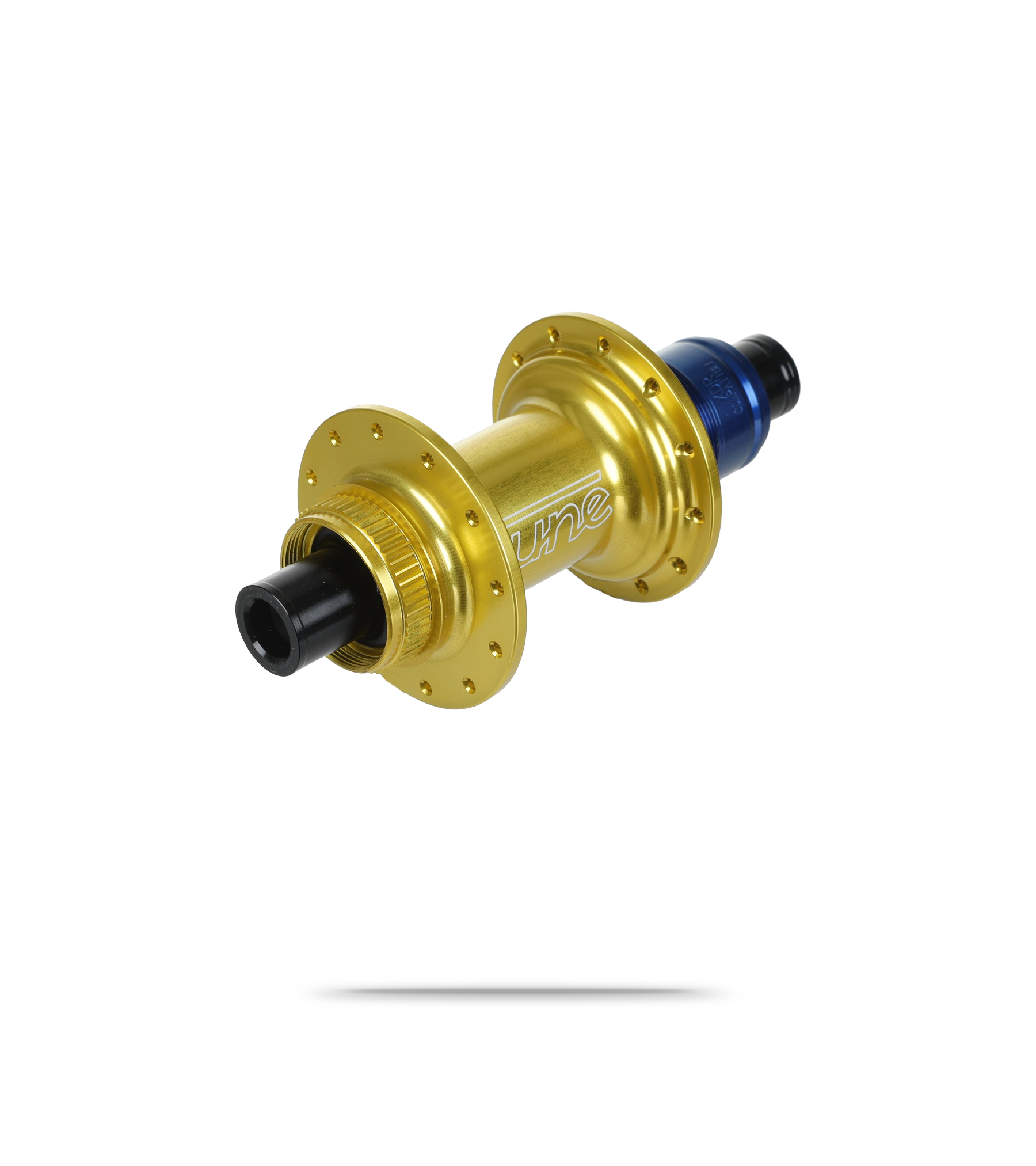

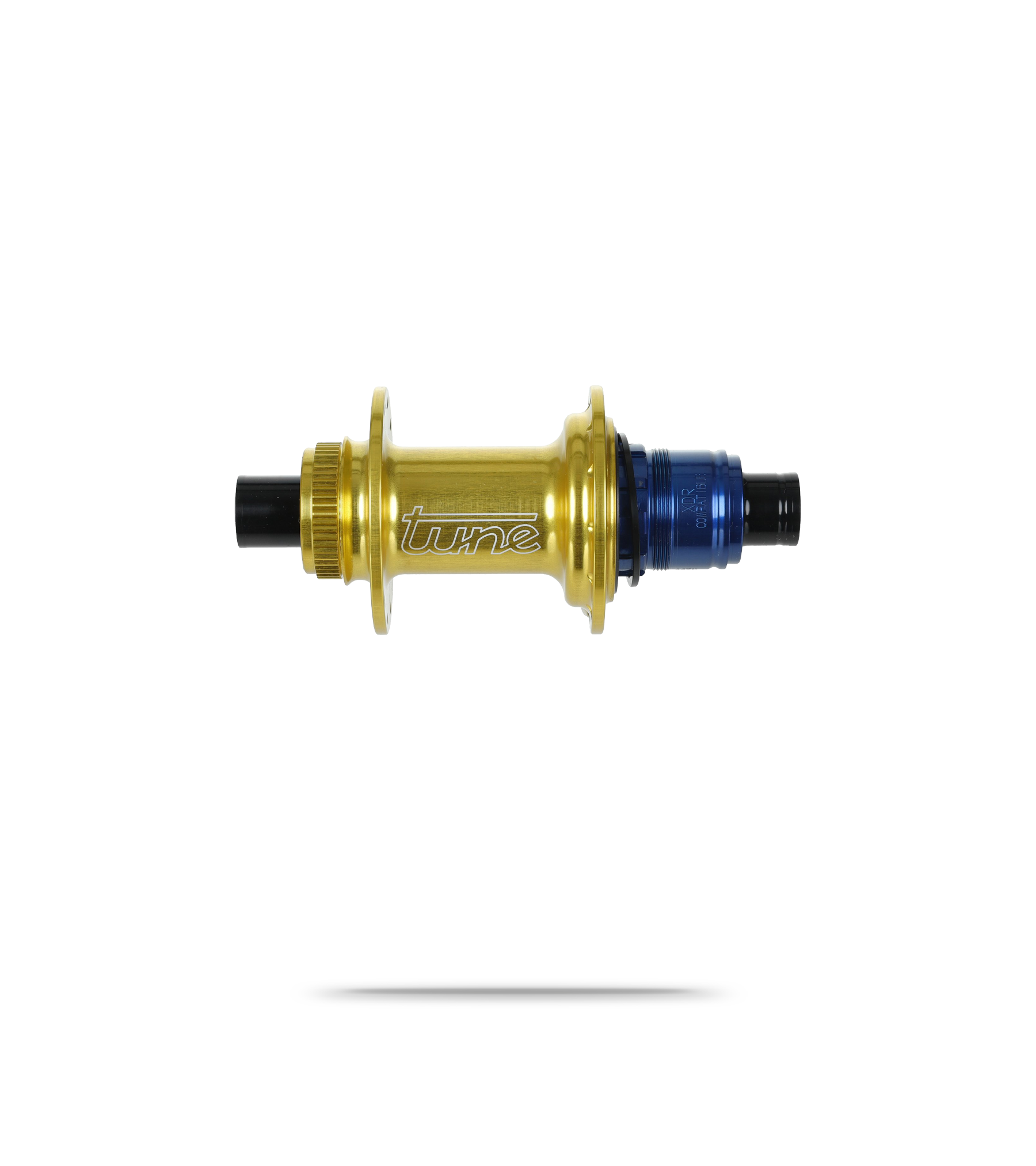

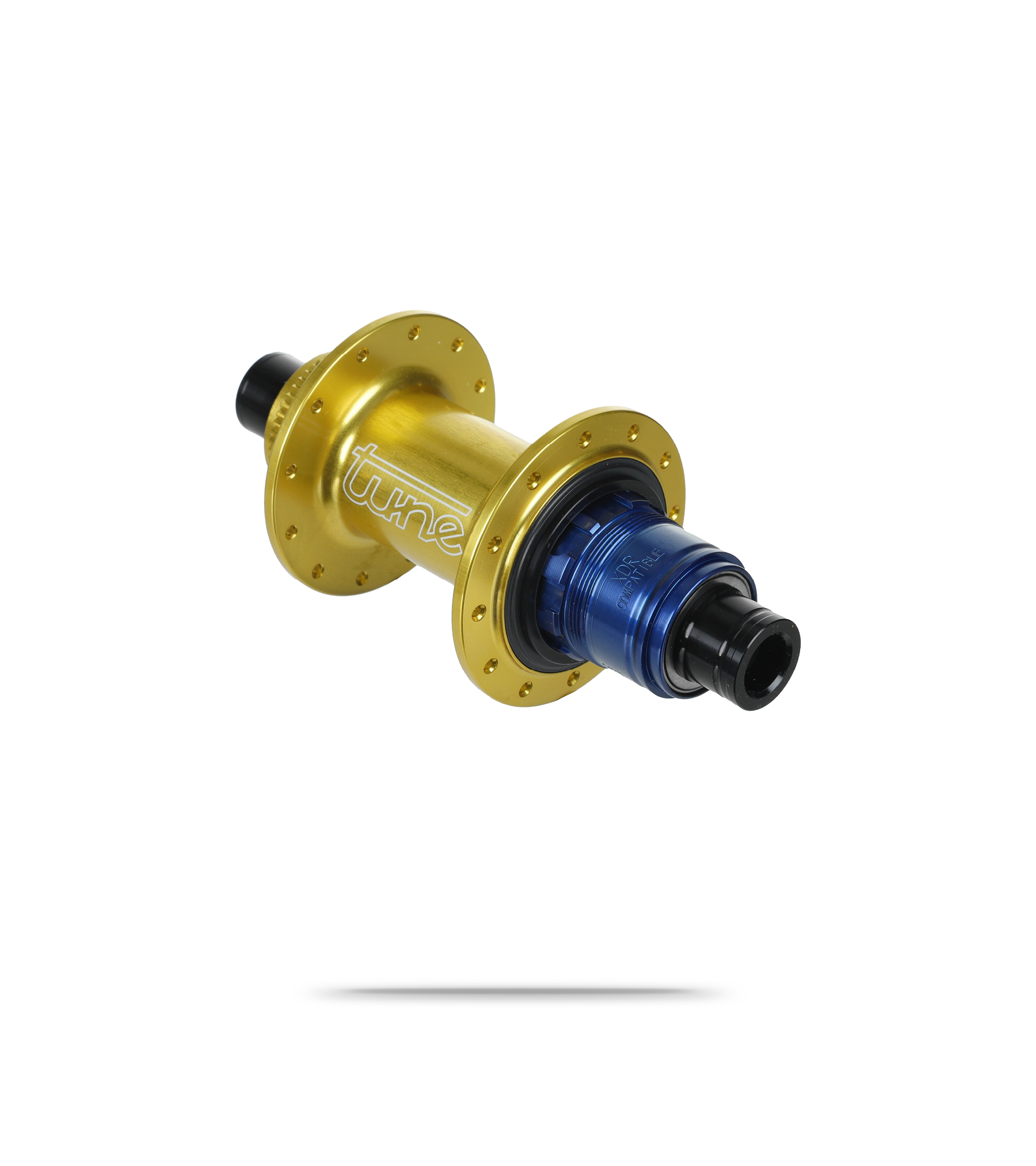

Tune ClimbHill CL 24 Rear Hub with Ceramic Bearings
Utilising Tune’s fastest ceramic bearings, the ClimbHill CL 24 Rear Hub is perfect for anyone wanting to build up a fast road wheel. The ceramic bearings create less friction than steel alternatives and the hub shell is made from aerospace-grade aluminium that has been CNC-machined into shape. Although the hub still weighs just 209 grams, it has an increased rider weight limit compared with Tune’s most extreme offerings, making it a better option for bigger riders or anyone wanting a little more versatility. With a Center Lock fitting and a thru-axle design, the hub will work with the majority of disc brake road bikes.
Features
- Recommended spokes: SAPIM CX-Ray, SAPIM D-Light
- Maximum spoke tension: 1100N
- Maximum rider weight: 100kg
- Maximum system weight: 115kg
- Field of use: 24h road
- Flange distance left: 34.4mm
- Flange distance right: 20.6mm
- Pitch circle left: 55.5mm
- Pitch circle right: 55.5mm
- Diameter spoke holes: 2.4mm
- 12 x 142 thru-axle
- Spoke lacing pattern: 24 spokes 2-cross pattern
- Claimed manufacturer’s weight: 208.9 grams
Specifications
- Brake Interface
- Centerlock
- Discipline Compatibility
- Road
- Wheel Size
- 700C
- Axle Standard
- 12x142
- F Hub [Maker]
- Tune
- Family
- ClimbHill
- Freehub Standard
- HG, XDR
- Intended Use
- Performance
- R Hub [Maker]
- Tune
- R Hub [Model]
- ClimbHill CL 24
- Spoke Hole Count
- 24
- Wheels [Configuration]
- Rear
- Wheelset [Maker]
- Tune
- Wheelset [Material]
- Aluminium
- Product code
- 1594192 / 54295499768154
