What is the crank length?
Hi there, Crank length varies with frame size on the SuperSix EVO 1. It's 165mm on the 44 to 50cm frames, 170mm on the 52 to 56cm, and 172.5mm on the 58 to 61cm. Many thanks Joe W
Final Few
Final Few
Product Details

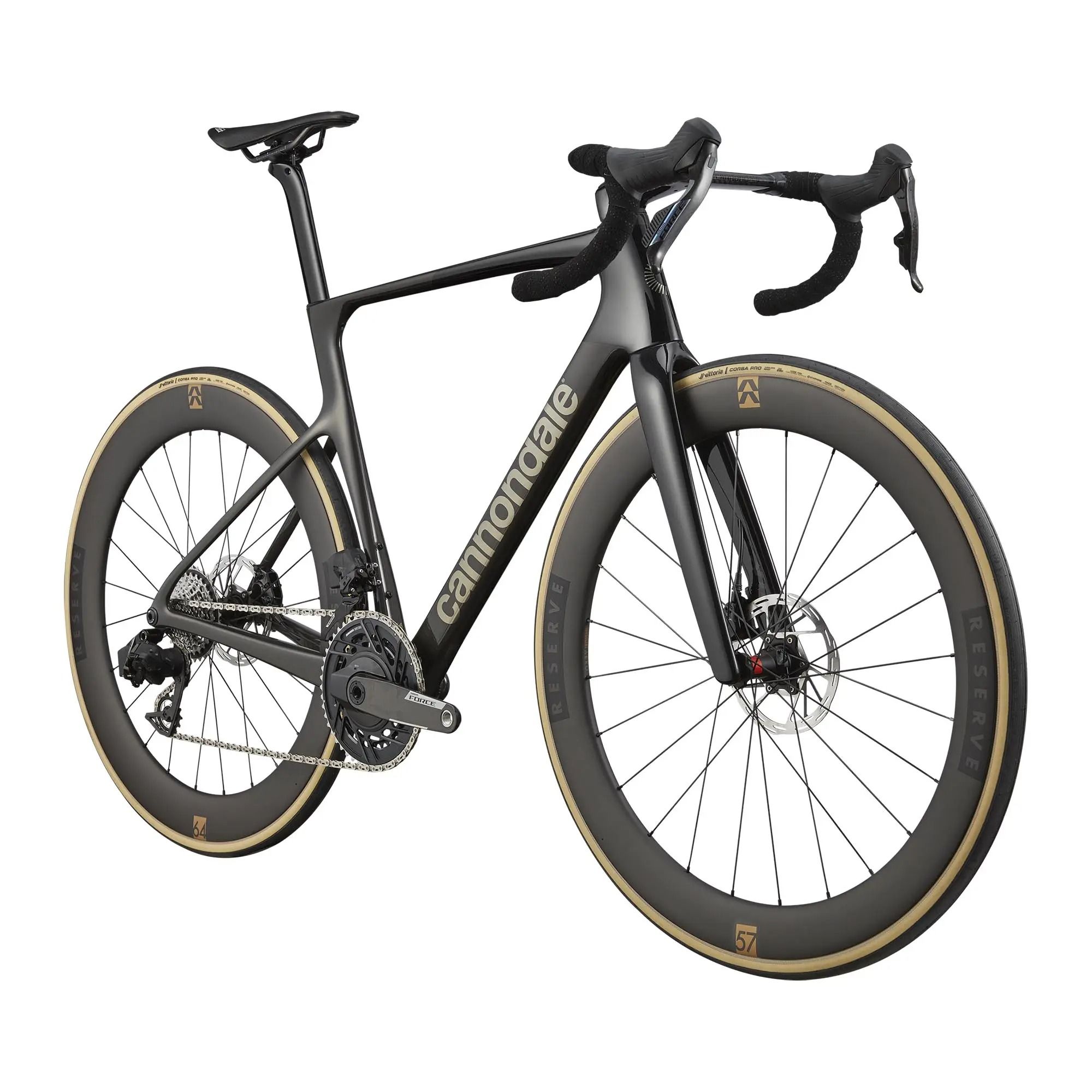

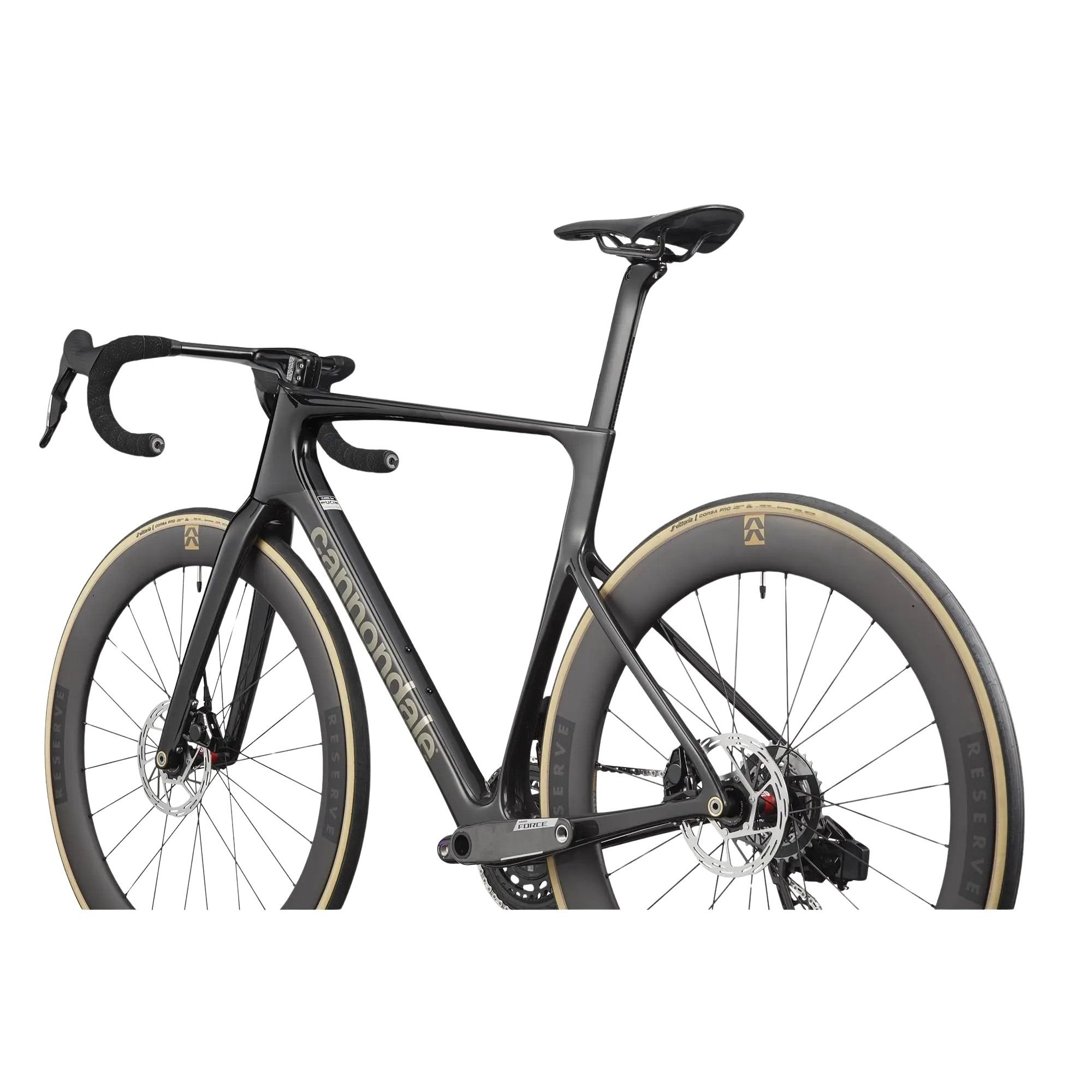

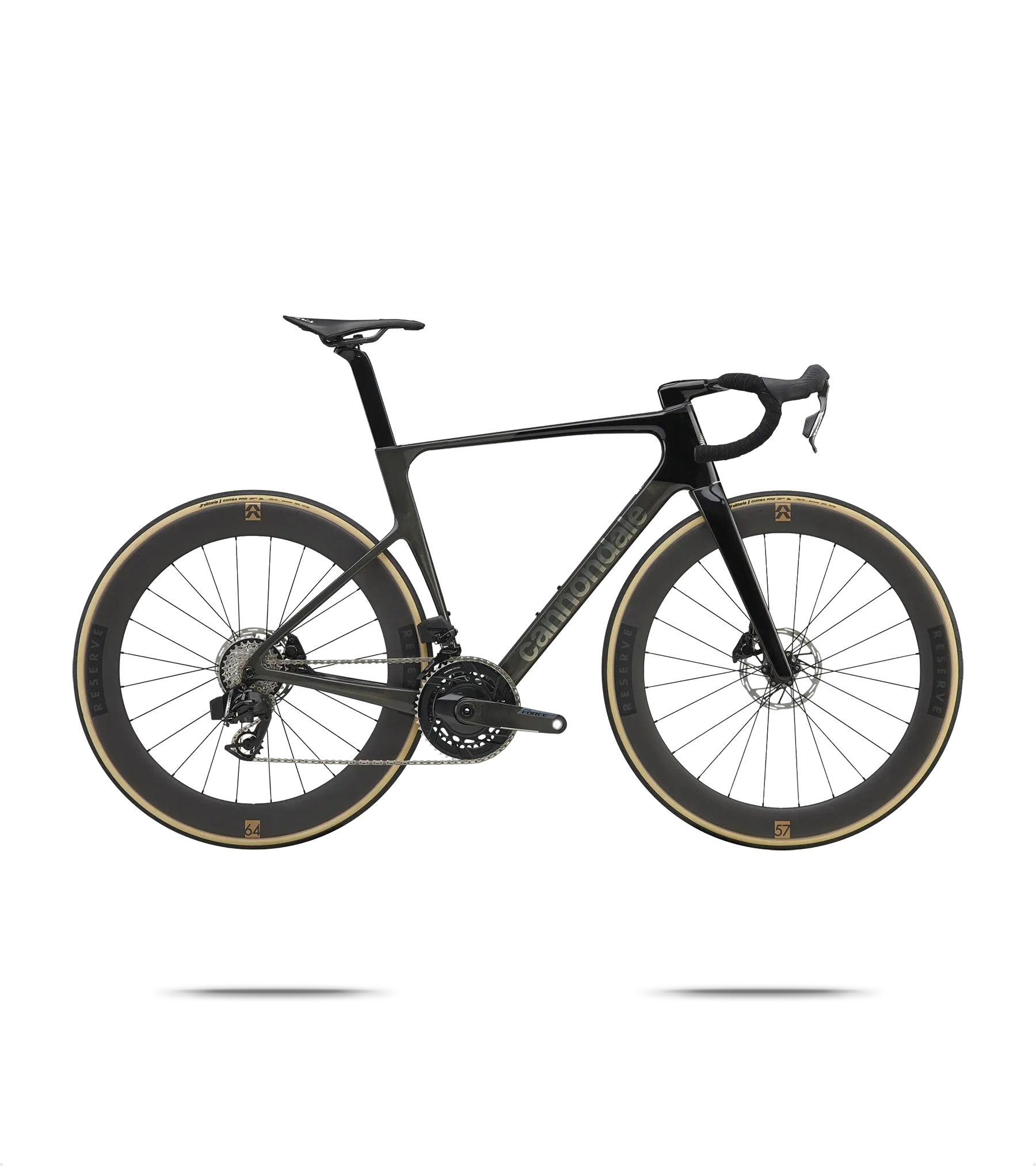

Cannondale SuperSix EVO 1 Force AXS Carbon Road Bike 2026

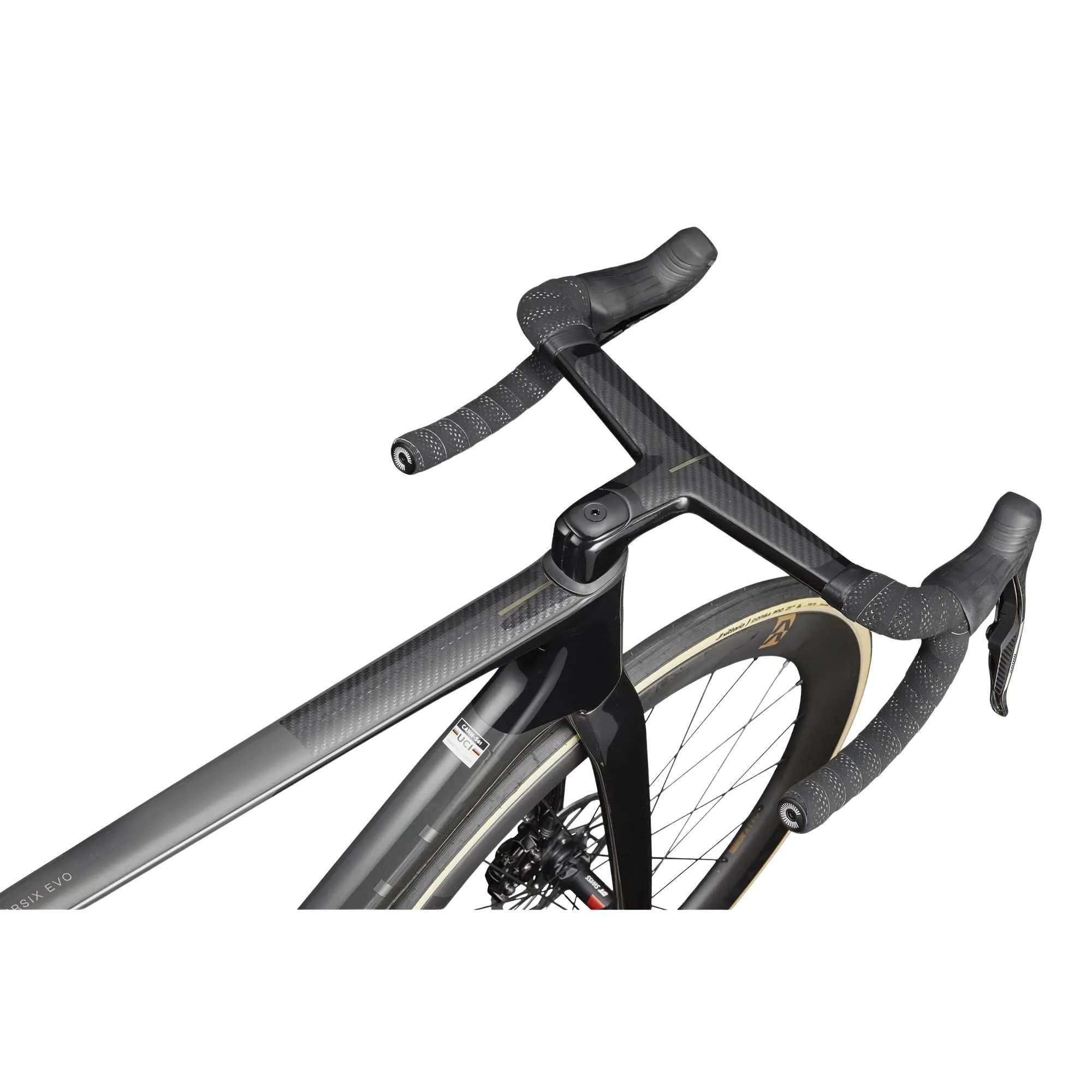

The Cannondale SuperSix EVO 1 Force AXS Road Bike features the Gen 5 SuperSix EVO frameset with Hi-MOD carbon construction, making it incredibly light, responsive, and stiff. Low-drag tube shaping ensures that every watt of power translates into forward motion, helping you slice through the wind effortlessly. Combined with the aero-optimised Cannondale SystemBar Road, an integrated full-carbon handlebar and stem, you gain precision steering and maximum efficiency for race-winning speed.
Precision Wheels and Handling
The Reserve 57|64 wheelset with DT Swiss 240 hubs offers a perfect balance of aerodynamic performance and control. The 57mm front and 64mm rear rims enhance stability at high speeds while delivering relentless aero gains, allowing confident cornering and superior handling in all conditions.
Cutting-Edge Drivetrain and Comfort

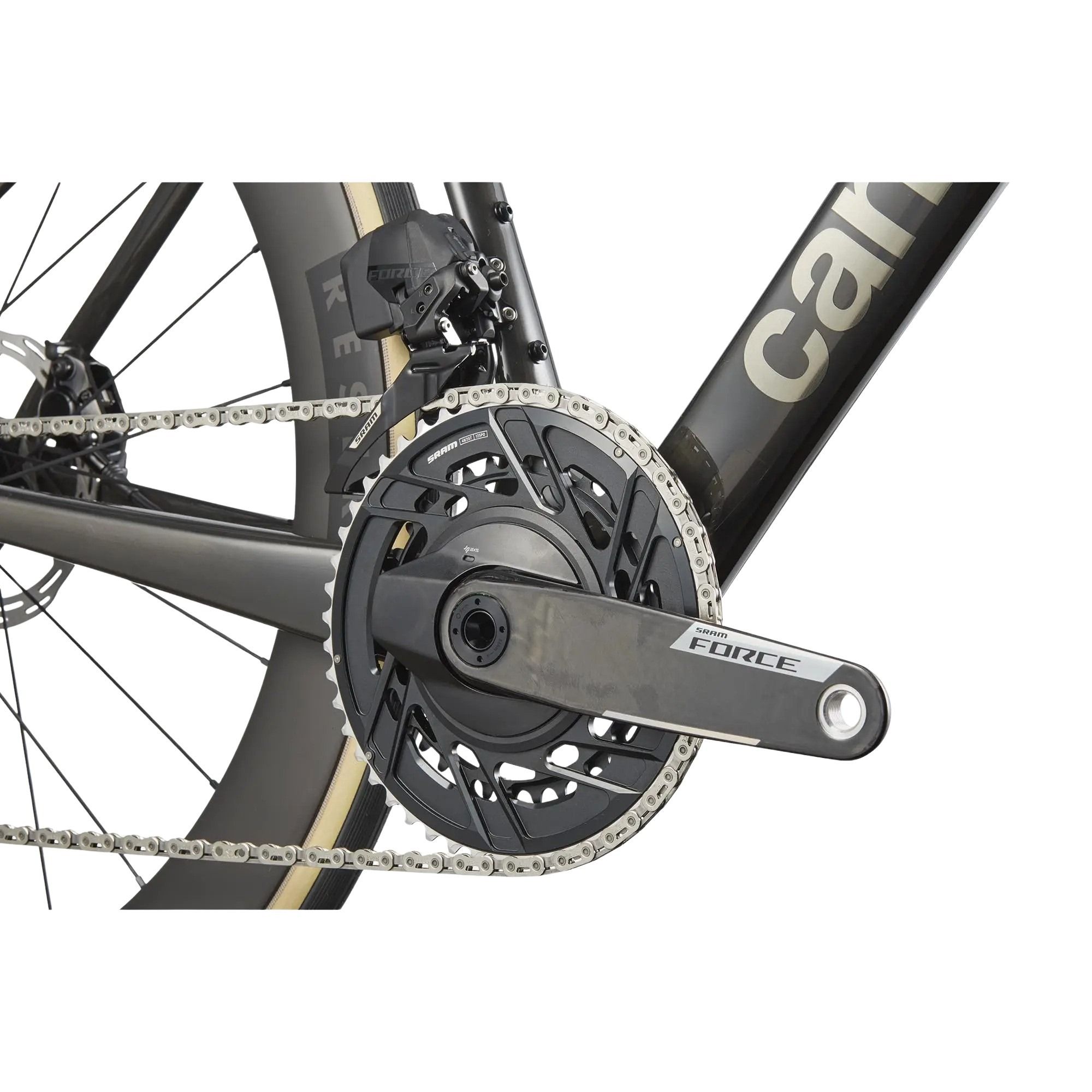

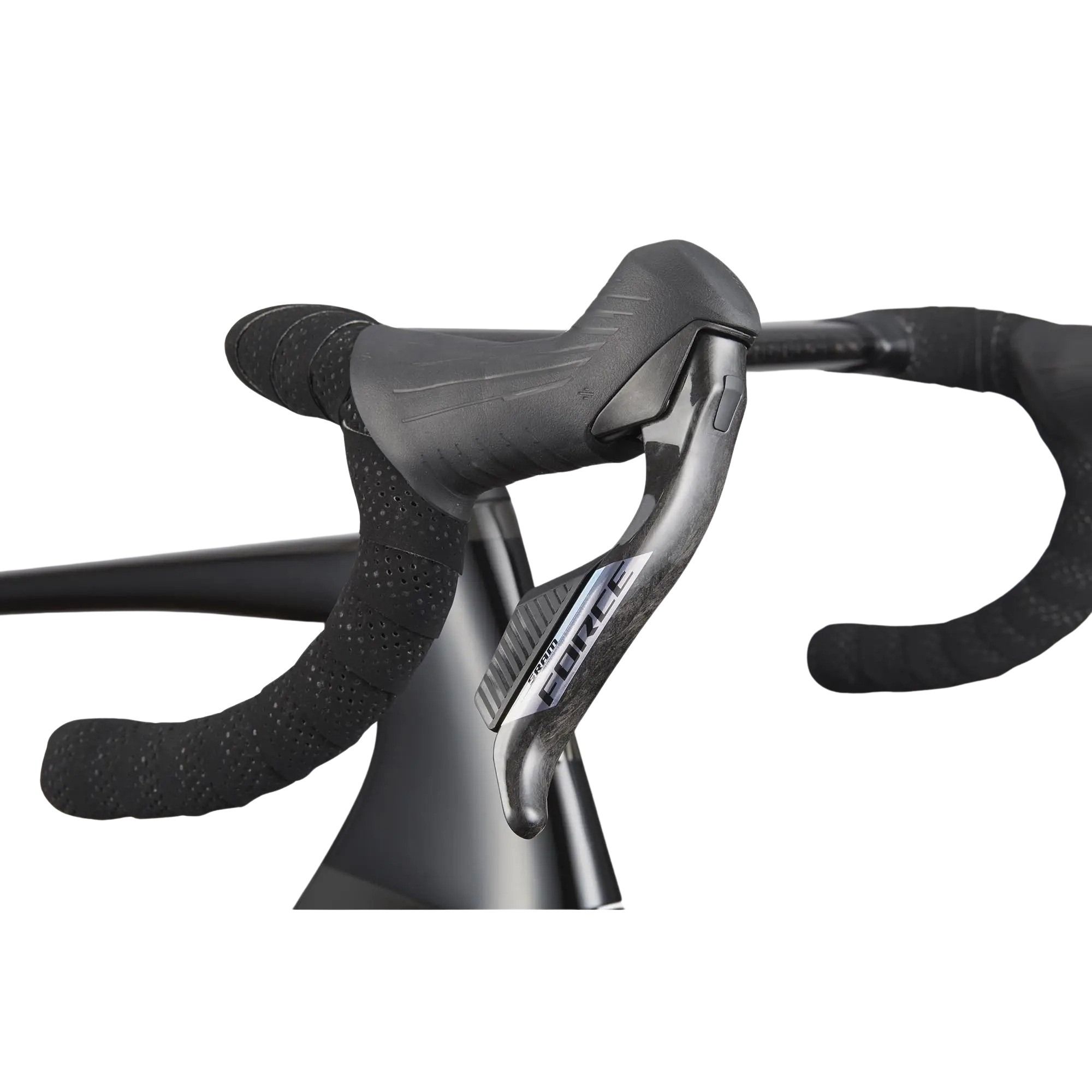

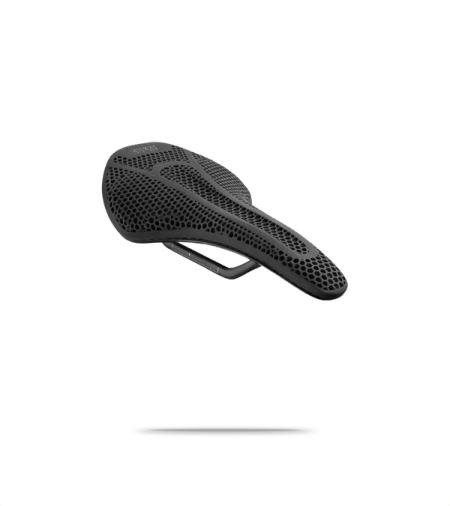

Equipped with SRAM Force AXS 12-speed wireless electronic shifting, every gear change is crisp, programmable, and precise. The SRAM Force AXS carbon cranks with an integrated Power Meter provide accurate power data without compromising weight or stiffness. Completing the package, Fizik’s Vento Antares R1 saddle with carbon rails ensures comfort and support during long rides, so you can focus on speed and performance rather than fatigue.
Features
- Frame: SuperSix EVO Hi-MOD Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
- Fork: SuperSix EVO Hi-MOD Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
- Rims: Reserve 57|64 Carbon, Turbulent Aero, tubeless ready
- Hubs: DT Swiss 240, centerlock, straight pull - (F) 12x100mm, (R) 12x142mm, Ratchet EXP 36
- Spokes: Sapim CX-Ray Aero straight pull
- Tyres: Vittoria Corsa Pro, 700x29c, wide rim, tubeless ready
- Pedals: Not included
- Crank: SRAM Force AXS Power Meter, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
- Bottom Bracket: SRAM DUB BSA
- Chain: SRAM Force, 12-speed
- Rear Cogs: SRAM Force XG-1270, 10-33, 12-speed
- Front Derailleur: SRAM Force AXS
- Rear Derailleur: SRAM Force AXS, 12-speed
- Shifters: SRAM Force AXS, 2x12-speed
- Handlebar: Cannondale SystemBar Road, ultra low drag, full carbon integrated bar/stem: 90x340mm (44-52cm), 100x360mm (54-56cm), 110x380mm (58-61cm)
- Grips: Fizik Tempo Bondcush Soft, 3mm
- Stem: Cannondale SystemBar Road, ultra low drag, full carbon integrated bar/stem
- Headset: Integrated, 1-1/8" - 1-1/4"
- Brakes: SRAM Force AXS hydraulic disc, 160/160mm PaceLine centerlock rotors
- Brake Levers: SRAM Force AXS hydraulic disc
- Saddle: Fizik Vento Antares R1, carbon rails, 140mm
- Seatpost: Cannondale C1 Aero 40 Carbon V2, Ti Hardware, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
- Speeds: 24
- Extras: Cannondale Gripper Aero Bottles & CarbonGrip Aero Cages, Fillmore tubeless valves, SRAM AXS charger, SystemBar SL Garmin/Wahoo computer mount
Highlights
- Superlight, low drag Gen 5 SuperSix EVO frameset. Hi-MOD carbon construction - incredibly light and responsive
- Cannondale SystemBar Road - aero-optimised, lightweight full carbon integrated bar/stem for race-winning speed and efficiency
- Reserve 57|64 wheelset with DT Swiss 240 hubs- 57mm front / 64mm rear for confident handling and relentless aero gains
- SRAM Force AXS 12-speed – precise, programmable shifting from SRAM’s penultimate wireless electronic group
- SRAM Force AXS carbon cranks with integrated Power Meter - light, stiff, and super accurate
- Fizik's premium Vento Antares R1 saddle with carbon rails
Specifications
- Model
- SuperSix EVO 1 Force AXS
- Bottom Bracket [Maker]
- SRAM
- Bottom Bracket Standard
- BSA
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- SRAM
- Brakes [Model]
- Force AXS
- Cassette [Gearing]
- 10-33
- Cassette [Maker]
- SRAM
- Cassette [Model]
- Force XG-1270
- Chain [Maker]
- SRAM
- Chain [Model]
- Force 12-speed
- Chainring [Gearing]
- 48/35
- Crank [Maker]
- SRAM
- Crank [Model]
- Force AXS Power Meter
- Discipline Compatibility
- Road
- E-Bike
- No
- F Hub [Maker]
- DT Swiss
- F Hub [Model]
- DT Swiss 240
- Family
- SuperSix EVO
- FD [Maker]
- SRAM
- FD [Model]
- Force AXS
- Fenders Mounts
- No
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- 12x100mm Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cannondale
- Fork [Material]
- Carbon
- Fork [Model]
- SuperSix EVO Hi-MOD Carbon Gen 5
- Fork [Rake]
- 55 mm
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Carbon
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Cannondale
- Handlebar [Material]
- Carbon
- Handlebar [Shape]
- Aero Drop
- Handlebar [Width]
- 340 mm
- Headset [Maker]
- Cannondale
- Power Meter [Maker]
- SRAM
- Power Meter [Model]
- Force AXS Power Meter
- R Hub [Maker]
- DT Swiss
- R Hub [Model]
- DT Swiss 240 Ratchet EXP 36
- Rack Mounts
- No
- RD [Maker]
- SRAM
- RD [Model]
- Force AXS
- Saddle [Maker]
- Fizik
- Saddle [Material]
- Carbon
- Saddle [Width]
- 140 mm
- Seatpost [Length]
- 365 mm
- Seatpost [Maker]
- Cannondale
- Seatpost [Material]
- Carbon
- Seatpost [Offset]
- 0 mm
- Shifters [Maker]
- SRAM
- Shifters [Model]
- Force AXS
- Shifting
- Electronic
- Stem [Maker]
- Cannondale
- Stem [Material]
- Carbon
- Sub Family
- Supersix EVO Gen 5
- Suspension Configuration
- Rigid
- Tires [Maker]
- Vittoria
- Tires [Width]
- 29 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Inner Width]
- 21 mm
- Wheelset [Maker]
- Reserve
- Wheelset [Material]
- Carbon
- Wheelset [Model]
- Reserve 57|64
- Product code
- 2006957 / 54293398618458
Size Guide
| Size | 44 | 48 | 50 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|---|
| Seat Tube (ctr-top - mm) | 400 | 429 | 448 | 467 | 490 | 510 | 532 | 570 |
| Effective Top Tube (mm) | 510 | 522 | 529 | 536 | 544 | 560 | 577 | 600 |
| Actual Top Tube (mm) | 492 | 503 | 511 | 519 | 527 | 543 | 559 | 582 |
| Head Tube Angle (°) | 70.9 | 71.2 | 71.2 | 71.2 | 73.0 | 73.0 | 73.0 | 73 |
| Seat Angle (°) | 74.5 | 74.0 | 74.0 | 74.0 | 74.0 | 73.5 | 73 | 72.5 |
| Standover (mm) | 694 | 717 | 733 | 752 | 770 | 790 | 812 | 848 |
| Head Tube Length (mm) | 89 | 101 | 114 | 130 | 143 | 154 | 178 | 209 |
| Wheelbase (mm) | 980 | 985 | 993 | 1002 | 1010 | 995 | 1007 | 1024 |
| Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Fork Rake | 55 | 55 | 55 | 55 | 55 | 45 | 45 | 45 |
| Stack (mm) | 495 | 508 | 520 | 532 | 545 | 565 | 585 | 615 |
| Reach (mm) | 373 | 376 | 379 | 383 | 387 | 393 | 398 | 406 |
