Product Details

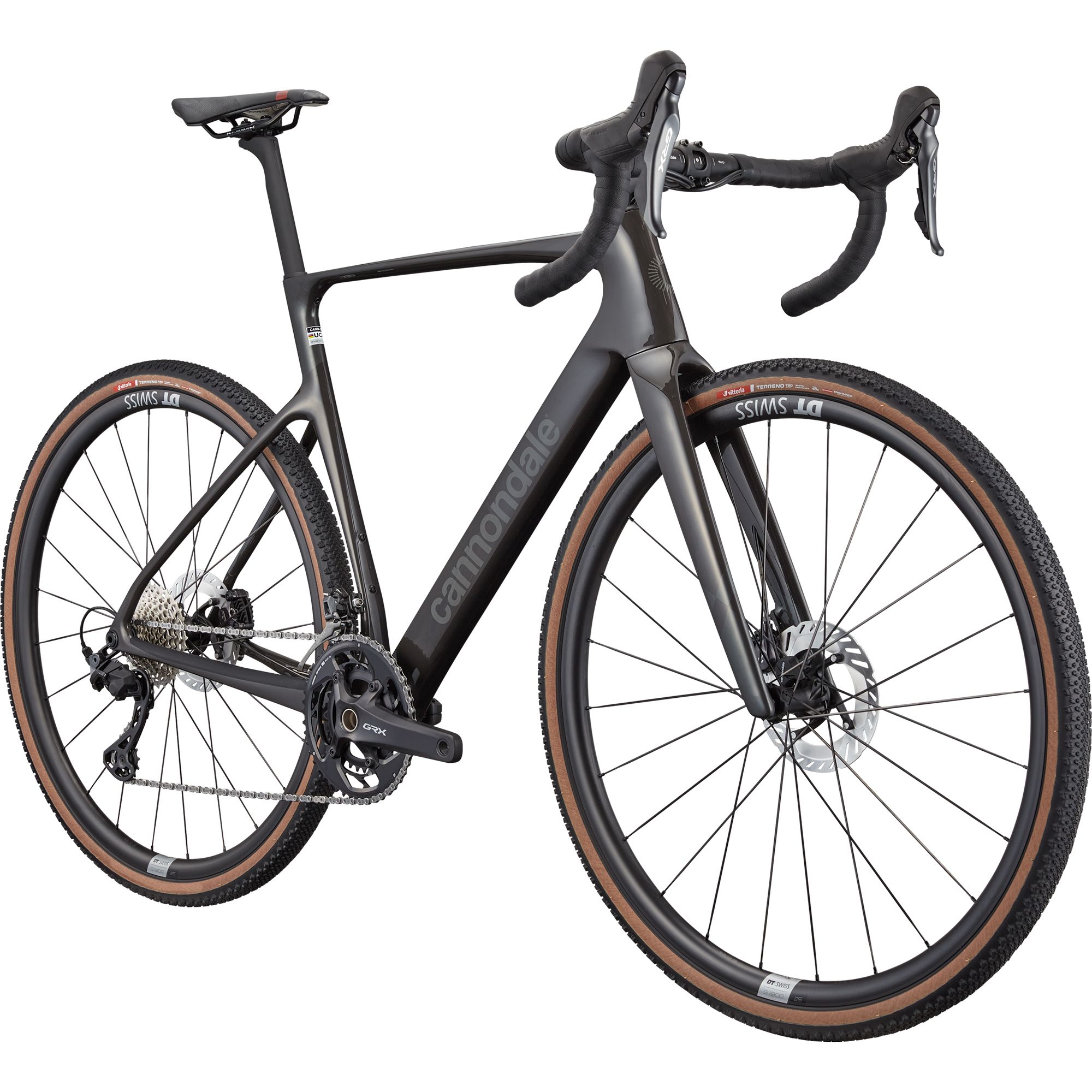

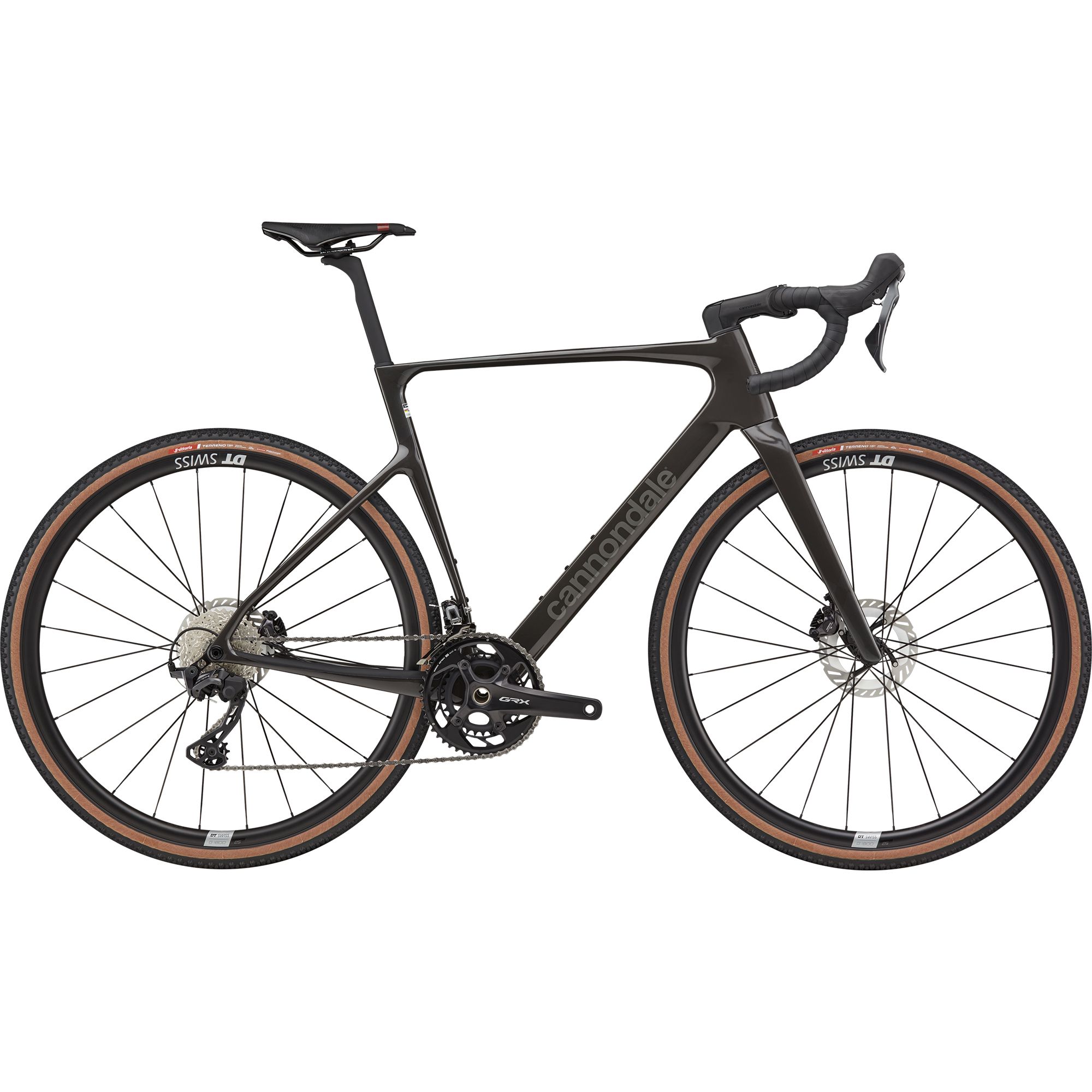

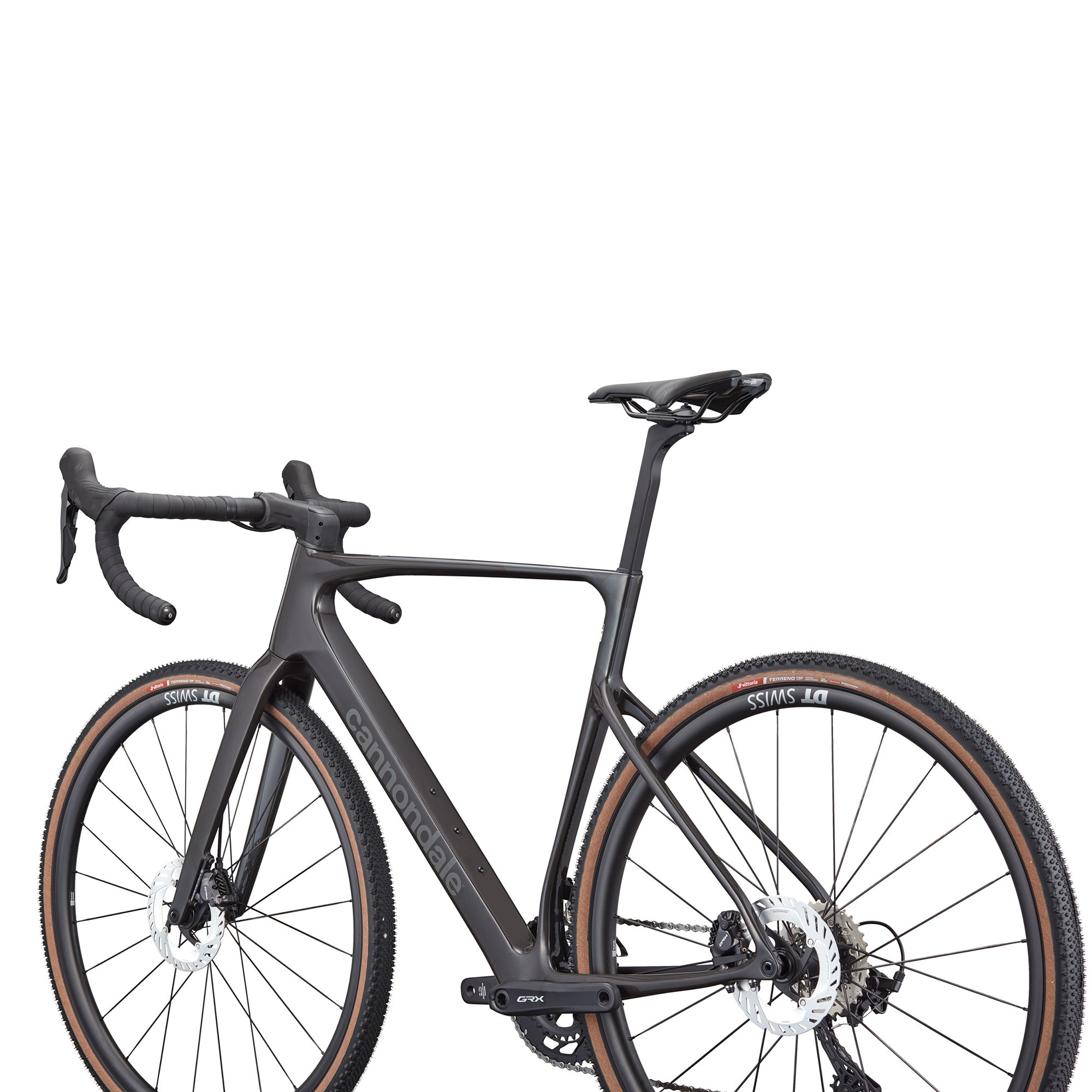

Cannondale SuperX Carbon 3 Gravel Bike

The Cannondale SuperX Carbon 3 Gravel Bike is built for one purpose: dominating gravel races. Lightweight and aerodynamic, its SuperX carbon frameset ensures speed and efficiency, backed by Cannondale’s Lifetime Warranty for peace of mind.

The Shimano GRX 820 gravel groupset delivers crisp, reliable shifting, while GRX 820 hydraulic disc brakes with CL800 rotors provide powerful and controlled braking in any conditions. DT Swiss G1800 Spline wheels with DT 370 hubs offer precise handling and durable performance on any terrain. The sleek Conceal stem and Delta Steerer integrate cables cleanly through the headtube for a streamlined appearance. Vittoria Terreno T50 tubeless-ready tyres in a versatile 700x40c size provide unmatched speed and capability across diverse surfaces.

Features
  • Frame: SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
  • Fork: SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
  • Headset: Integrated, 1-1/8" - 1.5"
  • Wheels: DT Swiss G1800 Spline, 24mm inner width, 25mm depth, 24h, tubeless ready
  • Hubs: Front - DT Swiss 370, 12x100mm centerlock / Rear - DT Swiss 370, 12x142mm centerlock
  • Spokes: DT Swiss Aero Comp
  • Tyres: Vittoria Terreno T50, 700x40c, tubeless ready

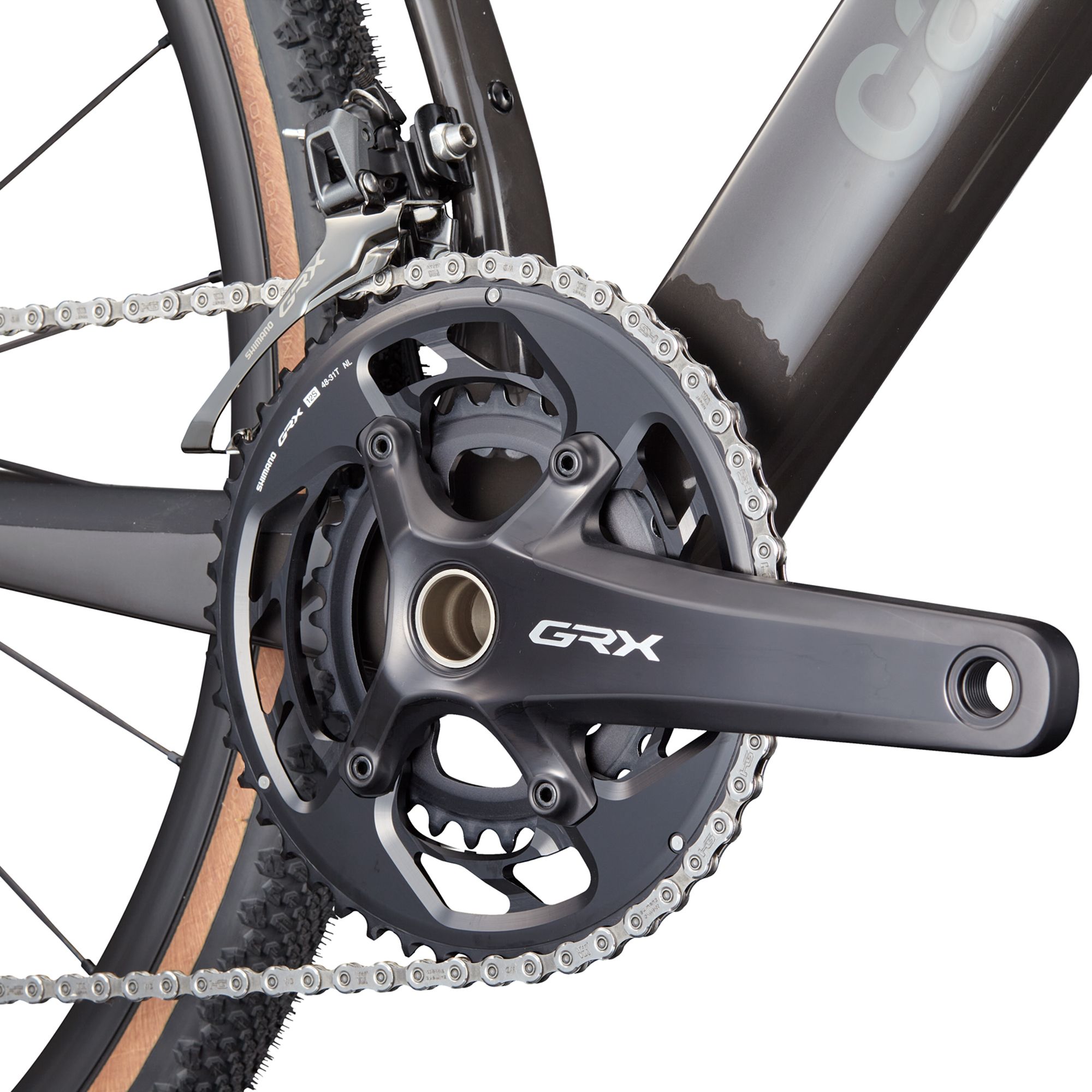

  • Crankset: Shimano RX 820, 48/32
  • Bottom Bracket: Shimano BSA 68
  • Chain: Shimano M8100, 12-speed
  • Front Derailleur: Shimano GRX 820, braze-on

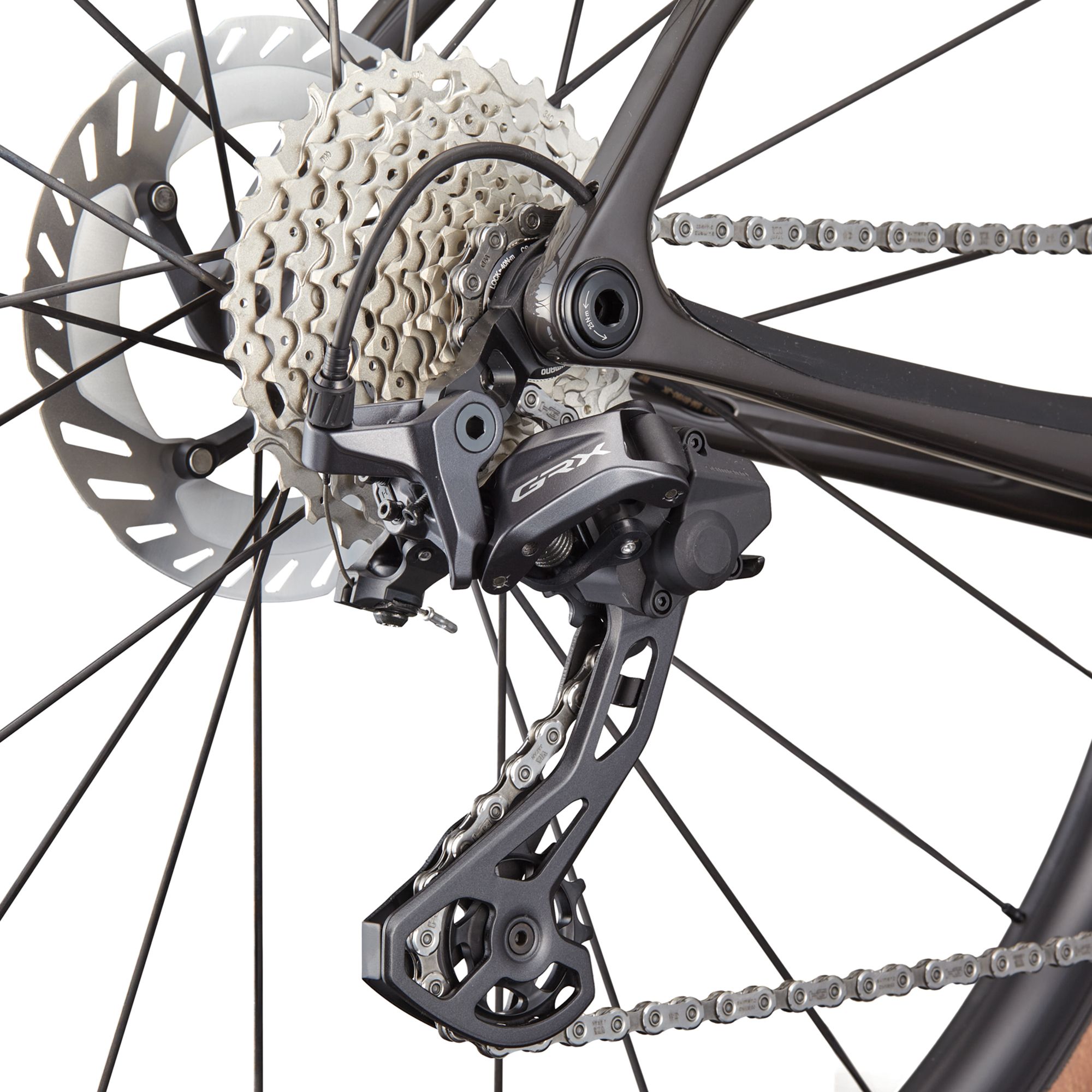

  • Rear Derailleur: Shimano GRX 820, Shadow RD+
  • Cassette: Shimano 105 7100, 11-36, 12-speed
  • Shifters: Shimano GRX 820, 12-speed

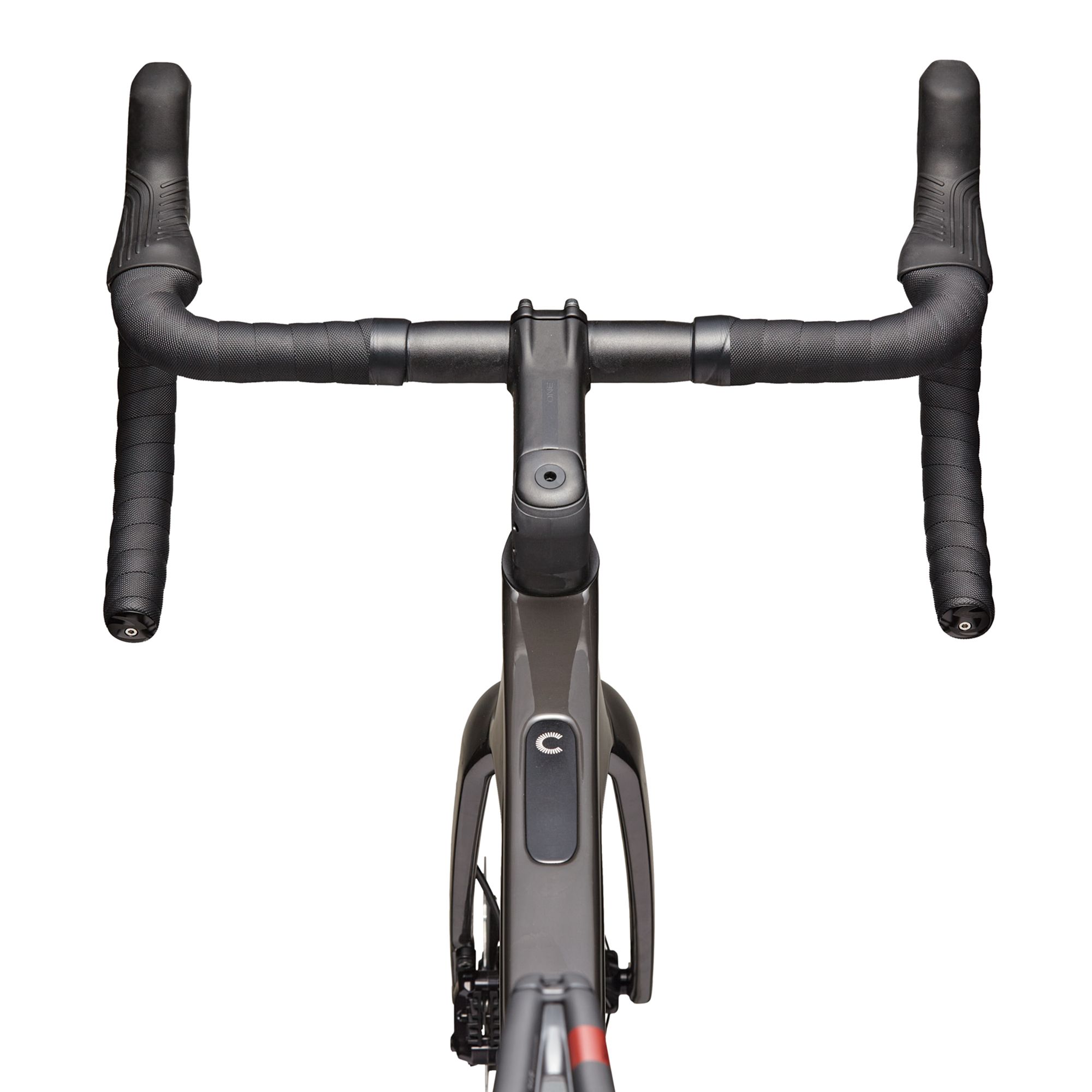

  • Handlebars: Cannondale C2, 7050 Alloy, Compact
  • Bar Tape: Cannondale Bar Tape, 3.5mm
  • Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°
  • Brake Levers: Shimano GRX RX820 hydraulic disc
  • Brakes: Shimano GRX 820, 160/160mm CL800 rotors
  • Saddle: Prologo Dimension AGX STN
  • Seatpost: Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
Highlights
  • SuperX Carbon
  • Shimano GRX 820 Groupset
  • DT Swiss G1800 Spline Wheelset
Specifications
Model
SuperX Carbon 3
Bottom Bracket [Maker]
Shimano
Bottom Bracket Standard
BSA
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
Shimano
Brakes [Model]
GRX 820
Cassette [Gearing]
11-36
Cassette [Maker]
Shimano
Cassette [Model]
105 7100
Chain [Maker]
Shimano
Chain [Model]
M8100
Chainring [Gearing]
48-32
Crank [Maker]
Shimano
Crank [Model]
GRX RX820
Discipline Compatibility
Gravel
E-Bike
No
F Hub [Maker]
DT Swiss
F Hub [Model]
370
Family
SuperX
FD [Maker]
Shimano
FD [Model]
GRX 820
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cannondale
Fork [Material]
Carbon
Fork [Model]
SuperX Carbon
Fork [Rake]
55 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
48c mm
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Cannondale
Handlebar [Material]
Aluminium
Handlebar [Shape]
Drop bar
Headset [SHIS]
integrated-1-1-8-1-5
R Hub [Maker]
DT Swiss
R Hub [Model]
370
Rack Mounts
No
RD [Maker]
Shimano
RD [Model]
GRX 820
Saddle [Maker]
Prologo
Seatpost [Diameter]
27
Seatpost [Kind]
Rigid
Seatpost [Maker]
Cannondale
Seatpost [Material]
Carbon
Seatpost [Offset]
0 mm
Shifters [Maker]
Shimano
Shifters [Model]
GRX 820
Shifting
Mechanical
Stem [Angle]
-6 degree
Stem [Clamp Diameter]
31.8
Stem [Maker]
Cannondale
Stem [Material]
Aluminium
Suspension Configuration
Rigid
Tires [Maker]
Vittoria
Tires [Width]
40 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
24 mm
Wheelset [Maker]
DT Swiss
Wheelset [Material]
Aluminium
Wheelset [Model]
G1800 Spline
Product code
1894285 / 54294164046170
Size Guide
SizeXSSMLXL
Rider Height (cm)152 - 165162 - 175170 - 185180 - 193190 - 203
Rider Height (ft. in.)5'0" - 5'5"5'4" - 5'9"5'7" - 6'1"5'11" - 6'4"6'3" - 6'8"
Seat Tube (ctr-top)410458505553600
Seat Tube (ctr-ctr)-----
Effective Top Tube525544561579596
Actual Top Tube -----
Seat Angle (°)73.173.173.173.173.1
Head Tube Angle (°)7071717171
Head Tube Length89118149182214
Fork Rake55 55555555
Chainstay Length430430430430430
Wheelbase10111022104010601078
Stack518549579610640
Reach368377385394402
Cannondale Topstone Alloy Bikes and Framesets Size Guide 2022

All measurements in mm unless otherwise stated.
