Product Details

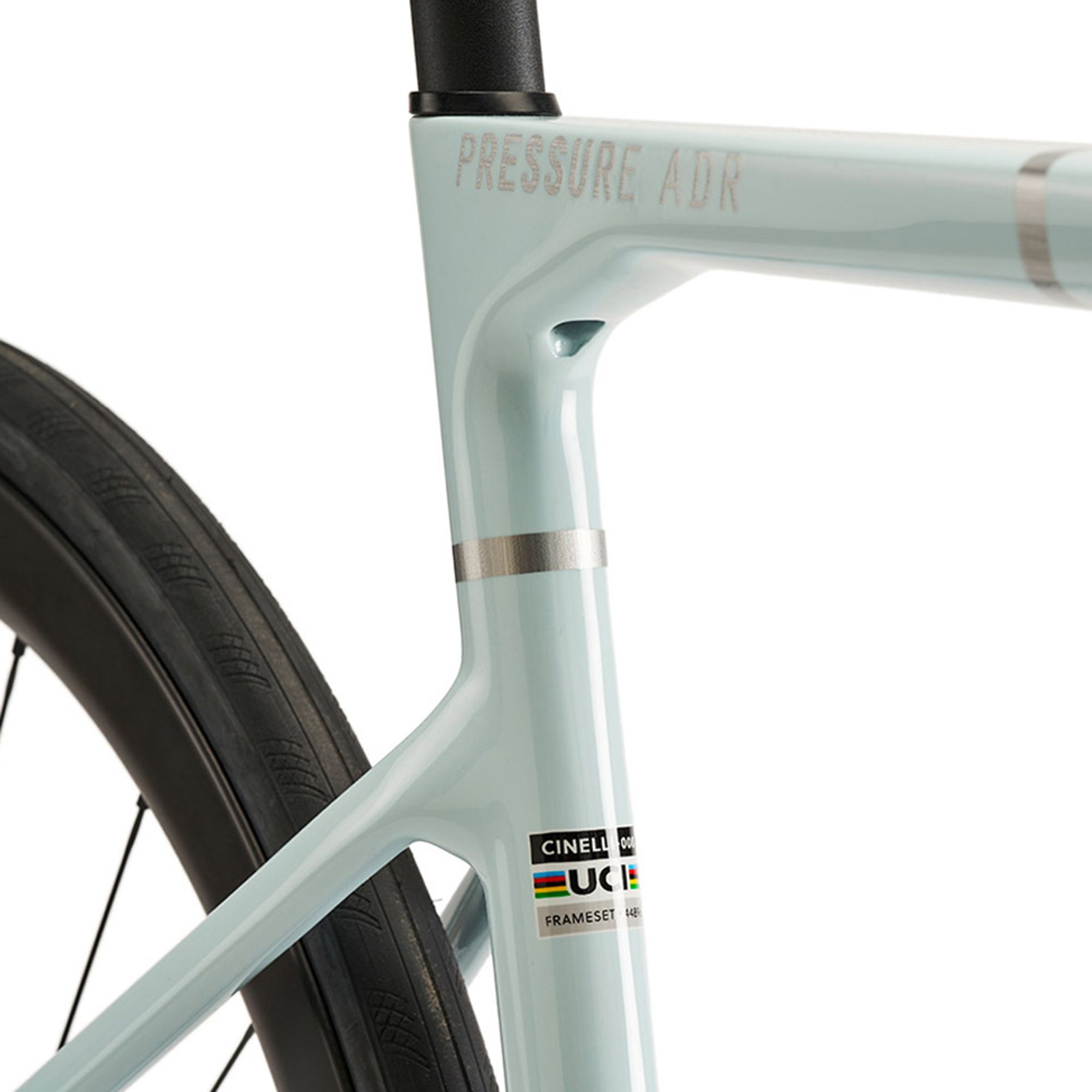

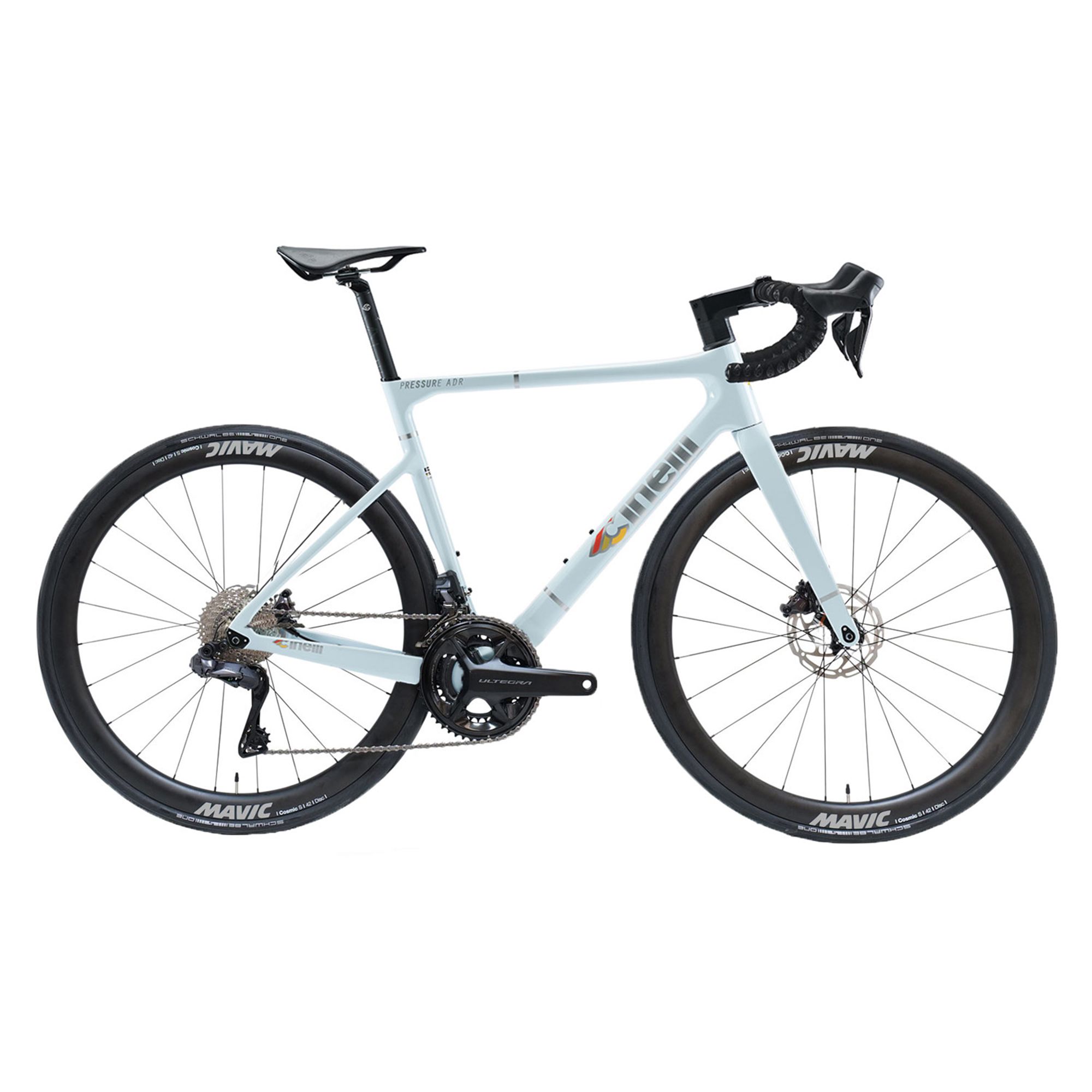

Cinelli Pressure ADR Ultegra Di2 Road Bike
The Pressure ADR Ultegra Di2 Road Bike builds on the design and performance of Cinelli's aero-racer, the Pressure, refining it for epic, long-distance racing while maintaining UCI approval.
Retaining the signature competition-ready handling of the Pressure, the ADR features optimised tube profiles and a revised carbon fibre lay-up to enhance comfort over extended rides. These engineering refinements are paired with fully integrated cable routing and standard seatpost and fork steerer diameters, allowing for seamless compatibility with world-leading aftermarket components.
Features
- UCI Approved]
- Frame: Columbus Carbon Monocoque
- Fork: Columbus Disc 1-1/2" Carbon Monocoque (Internal Cable Routing)
- Cable Routing: Full Internal Di2/EPS
- Brake Fitment: Flat Mount Disc
- Axles: Front TA 12x142mm - 12x162mm, Rear TA 12x100mm - 12x120mm
- Bottom Bracket: Press Fit 86,5x41
- Seatpost Dia: 27.2mm
- Seatclamp: Hidden
- Front Derailleur: Braze on
- Max Tyre Clearance: 700x30c
- Frame Weight: 990g
- Fork Weight: 420g
- Components: Shimano Ultegra Di2 12x Hydraulic
- Chainset: Shimano Ultegra 8150 12x
- Disc Brakes: Shimano Ultegra Hydraulic
- Disc Rotors: Shimano Ultegra ICE rotors 140/160mm
- Cassette: Shimano 105 12x
- Chain: KMC 12x Silver/Black
- Saddle: San Marco Monza
- Bar: Deda Zero 2 EVO DCR
- Stem: FSA ACR
- Wheelset: Mavic Cosmic S 42
- Tyres: Schwalbe Lugano II 700x28c
Highlights
- Columbus Carbon Monocoque Frame
- Shimano Ultegra Di2 Groupset
- Mavic Cosmic S 42 Wheelset
Specifications
- Model
- Pressure ADR Ultegra Di2
- Bottom Bracket Standard
- BB86/BB92
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- Ultegra
- Cassette [Maker]
- Shimano
- Cassette [Model]
- 105
- Chain [Maker]
- KMC
- Crank [Maker]
- Shimano
- Crank [Model]
- Ultegra 8150
- E-Bike
- No
- Family
- Pressure
- FD [Maker]
- Shimano
- Fenders Mounts
- No
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Columbus
- Fork [Material]
- Carbon
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Carbon
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- deda
- Handlebar [Shape]
- Drop bar
- Rack Mounts
- No
- RD [Maker]
- Shimano
- RD [Model]
- Ultegra Di2
- Saddle [Maker]
- san-marco
- Seatpost [Diameter]
- 27.2
- Shifting
- Electronic
- Stem [Maker]
- FSA
- Suspension Configuration
- Rigid
- Tires [Maker]
- Schwalbe
- Wheels [Configuration]
- Front+Rear
- Wheelset [Maker]
- Mavic
- Wheelset [Model]
- Cosmic S 42
- Product code
- 1900800 / 54294113485146
Size Guide
| — | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube (ctr-top) | 460 | 480 | 510 | 540 | 570 | 600 |
| Seat Tube (ctr-ctr) | — | — | — | — | — | — |
| Effective Top Tube | 519 | 537 | 555 | 570 | 590 | 604 |
| Actual Top Tube | — | — | — | — | — | — |
| Seat Angle (°) | 74.5 | 74 | 73.3 | 73 | 72.8 | 72.9 |
| Head Tube Angle (°) | 71 | 72.5 | 73.5 | 73.3 | 73.3 | 73.3 |
| Head Tube Length | 121 | 133 | 147 | 160 | 182 | 203 |
| Fork Rake | 43 | 43 | 43 | 43 | 43 | 43 |
| Chainstay Length | 406 | 406 | 406 | 406 | 406 | 406 |
| Wheelbase | 976 | 976 | 982 | 992 | 1008 | 1024 |
| Stack | 520 | 536 | 555 | 564 | 586 | 606 |
| Reach | 375 | 383 | 391 | 398 | 408 | 418 |

All measurements in mm unless otherwise stated.
