Product Details

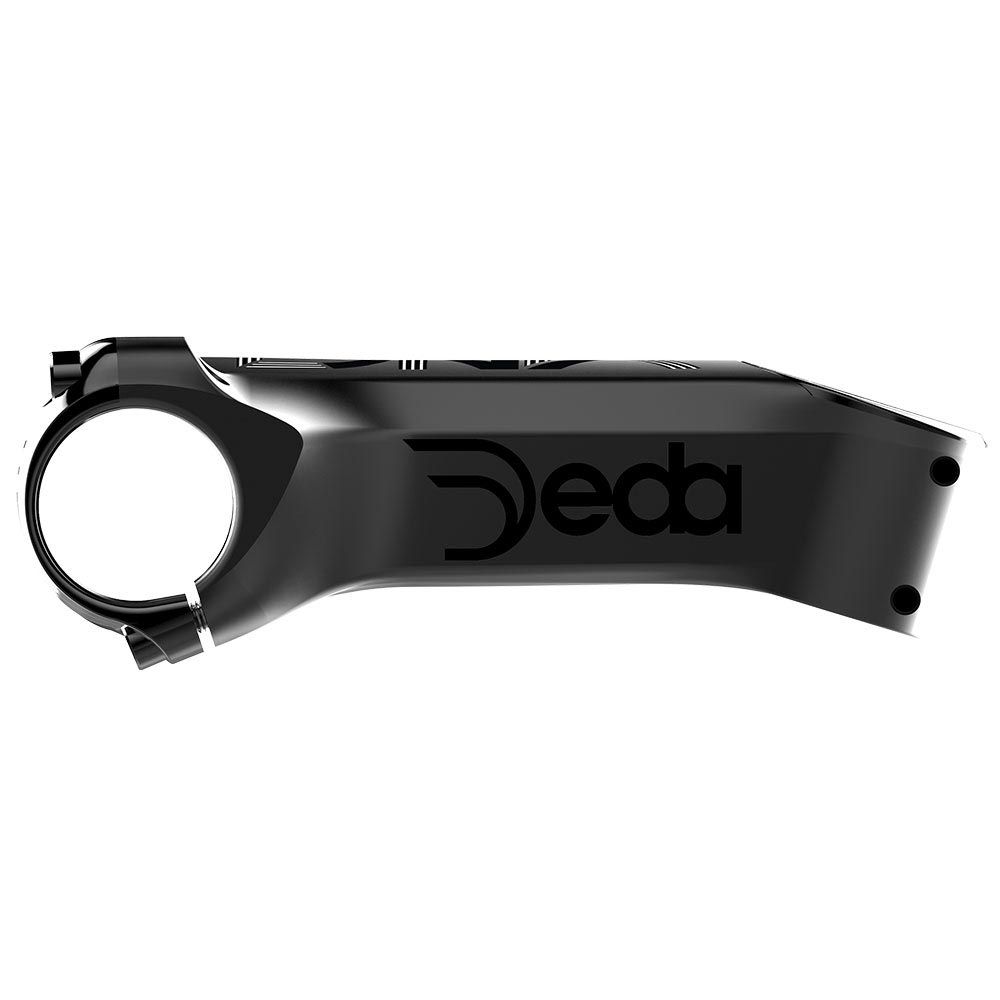

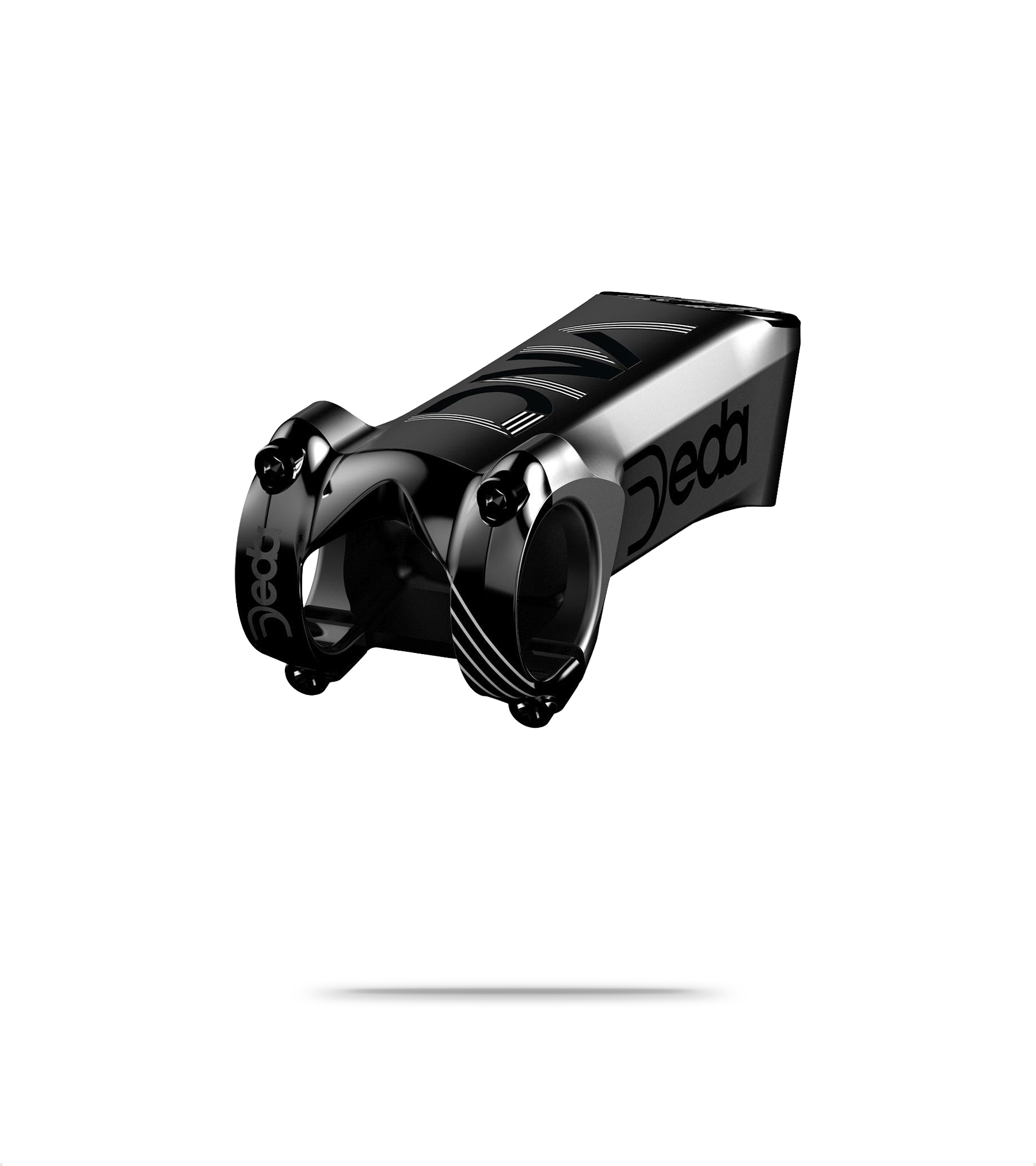

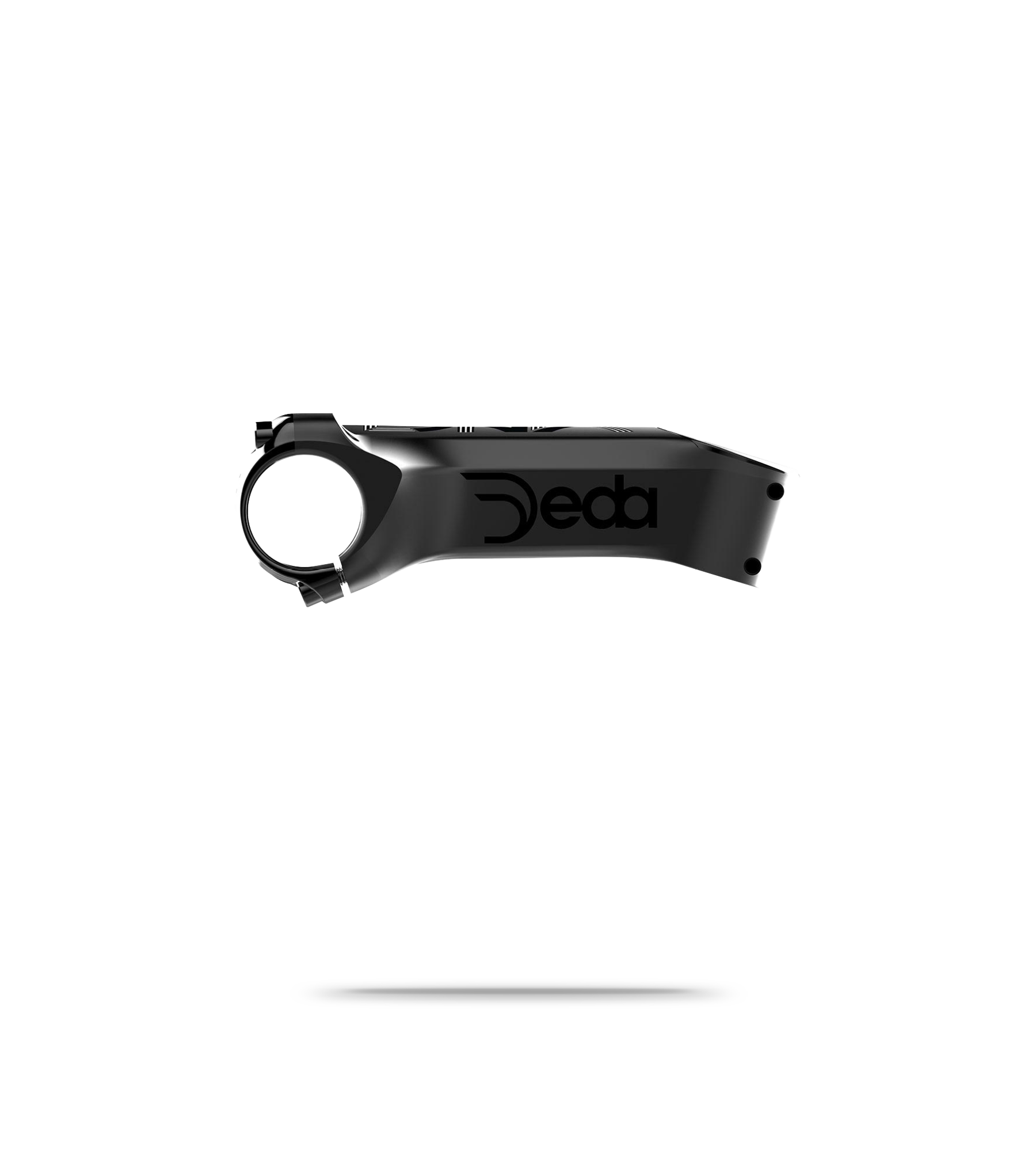

Deda Elementi Vinci Stem

Designed to minimise drag and deliver a sleek aesthetic, the Deda Elementi Vinci Stem features fully integrated cable routing when used with DCR (Deda Internal Cable Routing) handlebars. Utilising a standard 31.8mm clamping diameter, this versatile stem is compatible with both 1 1/8” and 1 1/4" steerer tubes, owing to the included adapter.

At the back of the stem is a gap to house the cables between the headset bearing and fork, and the unique stem spacers can be added or removed without the need to adjust the cable routing. To enhance performance, the 3D forged construction features a flat, aero-optimised design, as well as an integrated top cap to reduce wind resistance.

Features
  • Deda Internal Cable Routing compatible
  • Includes stem, aero-optimised top cap, headset spacers and alloy sleeve adaptor for a 1 1/8" fork
  • Alloy 2014 construction
  • Aero-optimised 3D forged design
  • 73-degree angle
  • Handlebar diameter: 31.8mm
  • Fork steerer: 1 1/4", adaptor included for 1 1/8"
  • Drop: 40mm (Including the upper headset spacer)
  • DCR system requires a frameset with a 1.5" upper bearing
  • Manufacturer claimed weight of 190 grams (110mm length)
Specifications
Discipline Compatibility
Road
Stem [Length]
90 mm, 100 mm, 110 mm, 120 mm, 130 mm, 140 mm
Faceplate Bolt Pattern
4-Bolt
Intended Use
Performance
Steerer Tube Compatibility
1 1/8", 1 1/4"
Stem [Angle]
17 degree
Stem [Clamp Diameter]
31.8
Stem [Maker]
Deda Elementi
Stem [Material]
Aluminium
Stem [Rise]
73 degree
Aerodynamic Profile
Aero
Internal Cable Routing Support
Full
Product code
1402056 / 54308883792218
Reviews
No reviews yet

No reviews yet. Be the first to review this product.

Shipping & Returns

Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.

Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.

Q & A

6 questions answered

  1. Hi, is this the one with the aero front plate or the one on the foto? I'm looking for the one in the picture, and dont want the one with the aero cap since I think my Wahoo wont fit before this aero version with my current mount. Thanks!!

    Asked by Michiel0211 (Ypres Belgium) —

    1. Hi there, This has the standard plate as per the images, Many thanks Joe W

      Joe W

  2. Hi Would I be able to fit this to a supersix evo 2024 model? Many thanks

    Asked by zam (london) —

    1. Hi there, Yes this will but you will possibly need a new headcap, Many thanks Joe W

      Joe W

  3. Can this stem be used without using the DCR routing option. My frame is not DCR compatible.

    Asked by Steve (London) —

    1. Hi Steve Yes this can be used as a normal stem, Many thanks Joe W

      Joe W
