Product Details

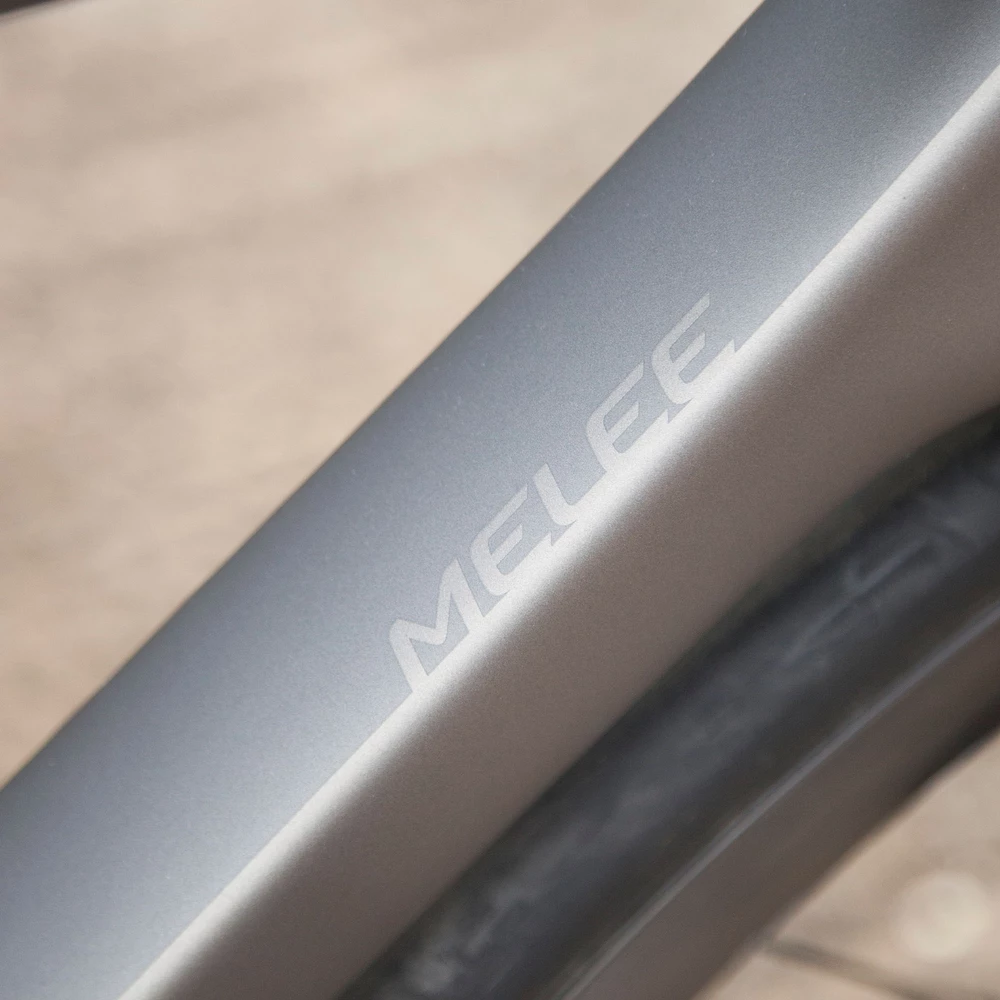

ENVE Melee Custom Road Bike

The ENVE Melee Custom Road Bike is a modern road racing bike that embodies ENVE’s Real-World Fast™ philosophy, designed for agility, responsiveness, and speed. With up to 35 mm of tyre clearance, the Melee excels in a range of racing environments, from criteriums to classics. Drawing inspiration from ENVE’s Custom Road, the Melee prioritises efficiency and speed, focusing on power transmission, aerodynamics, and versatility.

Built to perform with 27 to 32 mm tyres, the ENVE Melee is engineered for competitive riders demanding top performance. The bike’s design complements ENVE’s SES™ wheel line, ensuring that aerodynamic efficiency places it among the fastest road bikes. Tube shapes are tailored to enhance the SES™ rim profiles, while the Integrated Front-End keeps wires and hoses hidden for optimised aerodynamics.

Developed using Computational Fluid Dynamics (CFD) and tested in the wind tunnel, the Melee features refined tube shapes for maximum aerodynamic performance. Wind tunnel testing at 32 kph and 48 kph proves the ENVE Melee’s readiness for high-speed racing.

ENVE Melee Features:

Real-World Fast™ Defined:

Aero efficiency balanced with weight savings
Tube shapes complement SES rim designs
Integrated Front-End hides wires and brake cables for a sleek look

Integrated for Speed:

The Melee’s Integrated Front-End routes wires and hoses internally through the bar, stem, and headset, secured with ENVE’s anti-rattle kit for a silent and aerodynamic ride. The design features a two-piece Integrated Aero Stem and SES AR Handlebar, combining practicality with aerodynamic benefits.

Integrated Aero Stem:

Debuting with the ENVE Melee, the new Integrated Aero Stem offers a streamlined design that hides cables, wires, and brake hoses. Available in a range of lengths, it is also compatible with the ENVE x K-Edge Aero Stem accessory and computer mount.

Aero Seatpost:

The Melee’s aero seatpost includes a Kamm tail design and ENVE’s twin-bolt saddle rail clamp, available in straight or 20 mm setback options. It supports 7x7, 7x9, and 7x10 mm saddle rails for flexibility.

Material Optimised Design (M.O.D.):

ENVE’s expertise in carbon fibre ensures the Melee is crafted with continuous fibres throughout the frame and fork, removing excess material to save weight while maximising impact resistance, stiffness, and compliance. The result is a race bike that delivers exactly what’s needed for peak performance.

35 mm of Freedom:

While the Melee’s geometry is optimised for 27 to 32 mm tyres, it offers flexibility with clearance for up to 35 mm tyres, providing additional speed and comfort when required.

Threaded T47 Bottom Bracket:

The ENVE Melee features a threaded T47 inboard-bearing bottom bracket for smooth, silent, and creak-free performance, allowing riders to focus on the road ahead.

Features
  • Frame Material: ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing
  • Fork Material: ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing
  • Headset: ENVE Integrated IS52/IS52 Internal Drop-In
  • Headset Bearing: 1.5" IS52 Upper and Lower
  • BB Type: Sram DUB T47 Bottom Bracket
  • Brake Mount: Flat Mount
  • Brake Rotor Compatibility: F/R 160/160
  • Front Axle: 12x100 (Total Length: 122, TP:1.5, TL:15)
  • Rear Axle: 12x142 (Total Length: 168, TP:1.0, TL:14)
  • Minimum Tyre Size: 700 x 25c
  • Optimal Tyre Size: 700 x 27c-32c
  • Maximum Listed Tyre Clearance: 700 x 35c
  • Frame Routing: ENVE IN-Route Internal
  • Groupset: Sram Red eTap AXS E1 with Powermeter Chainset
  • Cockpit: ENVE AR Compact Handlebar, ENVE Aero Integrated Stem
  • Seatpost: ENVE Aero Seatpost
  • Saddle: Selle Italia SLR Boost saddle Ti 130mm
  • Wheelset: ENVE Foundation Collection 45
Highlights
  • Real-World Fast™ aero optimisation
  • Tube shapes complement SES rim shapes
  • ENVE Foundation Collection 45 Wheelset
  • Sram Red eTap AXS E1 with Powermeter Chainset
Specifications
Model
Melee
Bottom Bracket Standard
T47
E-Bike
No
Family
Melee
Fork [Brake Type]
Disc
Fork [Maker]
ENVE
Fork [Material]
Carbon
Fork [Wheel Size]
700c
Frame [Material]
Carbon
Frameset
No
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Aero
Handlebar [Maker]
ENVE
Handlebar [Material]
Carbon
Seatpost [Kind]
Aero
Seatpost [Maker]
ENVE
Seatpost [Material]
Carbon
Stem [Maker]
ENVE
Suspension Configuration
Rigid
Product code
1857553 / 54294326837594
Size Guide
Size47505254565860
Rider Height (cm)152 - 158158 - 163163 - 168168 - 174174 - 180180 - 185185 - 190
Rider Height (inches)4'11.8" - 5'2.2"5'2.2" - 5'4.2"5'4.2" - 5'6.1"5'6.1" - 5'8.5"5'8.5" - 5'10.9"5'10.9" - 6'0.8"6'0.8" - 6'2.8"
Seat Tube (ctr-top)431.2451.8470.5484.6510527.1552.3
Seat Tube (ctr-ctr)-------
Effective Top Tube510524537548563578597
Actual Top Tube -------
Seat Angle (°)7574.57473.873.573.272.8
Head Tube Angle (°)7171.572.272.473.373.373.7
Head Tube Length105120130145160180200
Fork Rake55514747434339
Chainstay Length410410410410410412412
Wheelbase980.1983.4982.5990.9991.91006.41012.3
Stack507.2524.4537.6550.6569.1586.4608.1
Reach370376381.5386.7394.3401408.8
ENVE Melee size guide 2022

All measurements in mm unless stated otherwise.
