Description

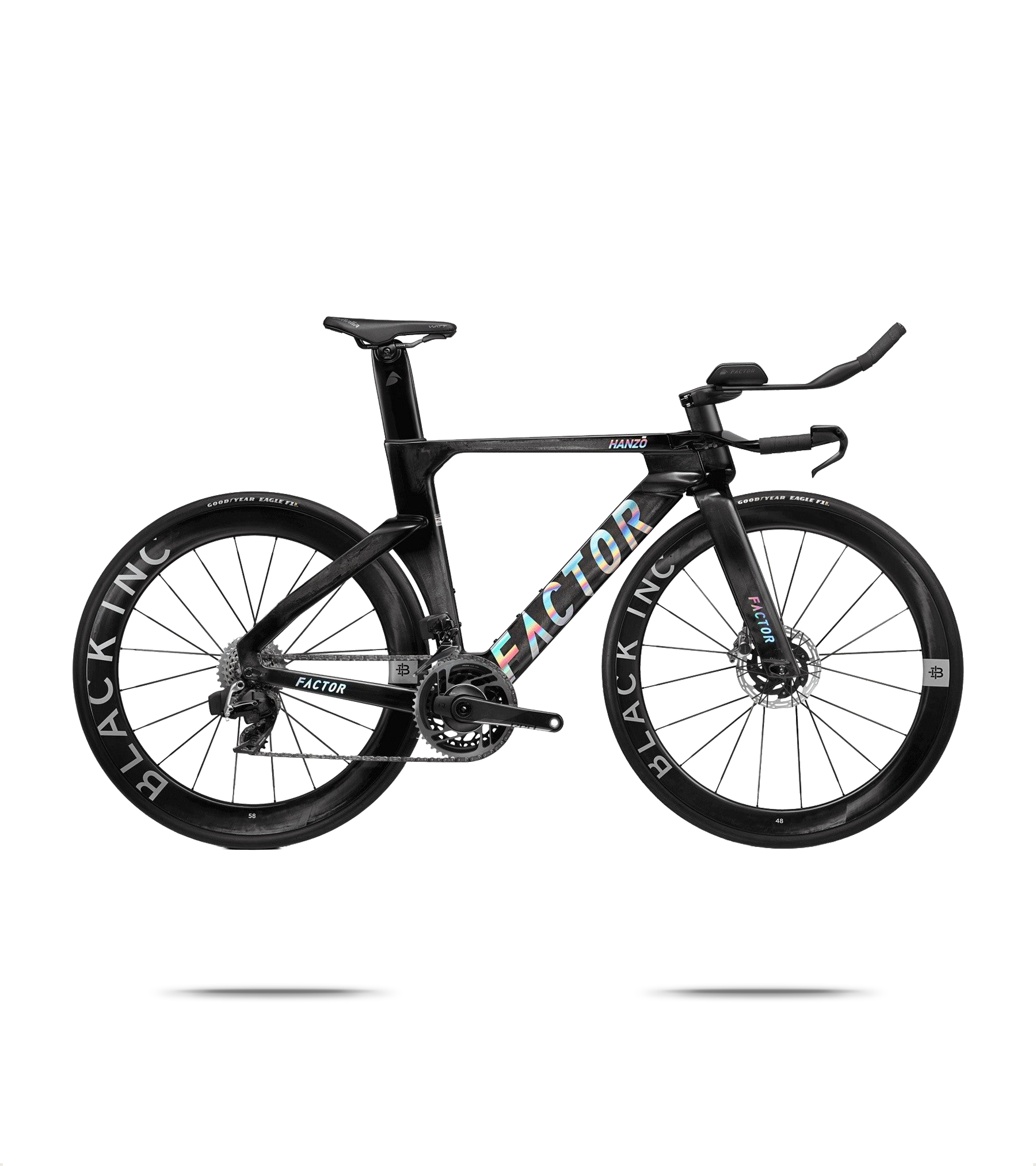

Factor HANZO Red AXS Black Inc 48/58 TT/Triathlon Bike
Unlike standard “aero” bikes, the Factor HANZŌ TT/Triathlon Bike was designed from the ground up to exploit every UCI rule change for aerodynamic advantage. By reducing the minimum frontal tube cross-section from 2.5cm to 1cm, Factor has slashed the net aerodynamic drag of the front end by up to 60%. Innovative tube shaping and careful management of airflow around the headset, cables, and rider ensure the HANZŌ is faster than even non-UCI legal TT and triathlon frames. This isn’t just theoretical performance – it’s speed that translates directly to every race, sprint, and long-distance effort.
Precision Aerodynamics in Every Detail
Factor’s engineers went further, designing the HANZŌ to handle real-world flow conditions, including turbulence from the wheels, riders’ legs, and changing yaw angles. Wide frame clearance, radical seatstays, and specialised dropout shapes guide airflow for optimal efficiency. The fork and mono-riser combination forms a true airfoil, achieving laminar flow at low yaw and unparalleled structural stiffness. The result is a frame that not only slices through the air but also maintains exceptional stability, control, and handling at every speed.
Stiff, Responsive, Power-Translating Frame
Aerodynamics alone won’t win races – power delivery matters. The HANZŌ’s one-piece fork, head tube, and mono-riser create an ultra-rigid front end that responds instantly to rider input. The aerodynamic down tube integrates an aero water bottle while feeding the super-stiff bottom bracket, ensuring every pedal stroke translates directly into forward motion. The result is a bike that’s both incredibly fast and supremely efficient, letting you push harder without compromise.
Tailored Fit Without Sacrificing Speed
A perfect fit is essential for sustained performance. The HANZŌ’s mast and frame have been engineered to work seamlessly with multiple manufacturers’ aero extension bars, including AeroCoach and WattShop, giving riders flexibility beyond Factor’s own Black Inc TT extensions. With this adaptability, you can optimise pad stack and reach for your ideal aero position – achieving peak speed without sacrificing comfort or efficiency.
Technical Specification
| Frame | Factor HANZŌ Toray® & Nippon Graphite® Pan-Based Fibre |
| Fork | Factor Wide Stance Fork |
| Headset | CeramicSpeed SLT 1″ bearings |
| Axles | Front Axle, 12 x 100mm thru-axle - Rear Axle, 12 x 142mm thru-axle |
| Rims/wheels | Black Inc 48|58 Wheelset |
| Hubs | Front, HU-08 High Flange Alloy Body WT – Rear, HU-08 High Flange Alloy Body WT |
| Bearings | CeramicSpeed" |
| Spokes | Black Inc Straightpull Aero Carbon Spokes |
| Tyres | Goodyear Eagle F1 R Tube Type |
| Crankset | SRAM Red AXS E1 DUB Power Meter Chainset |
| Chainring(s) | 48/35 |
| Bottom Bracket | CeramicSpeed PF4630 Aluminium cups |
| Chain | SRAM Red E1 Flattop Chain |
| Front Derailleur | SRAM Red AXS E1 Front Derailleur |
| Rear Derailleur | SRAM Red AXS E1 Rear Derailleur |
| Cassette | 10-33 |
| Shifters | SRAM AXS Wireless Blips |
| Handlebar | Factor Mono-Riser Aerobar System |
| Grips/Tape | Factor Bar Tape |
| Stem | Factor Mono-Riser Aerobar System |
| Brake Levers | S-900 Aero HRD Disc Brake |
| Brakes | Front Rotor 160mm - Rear Rotor 160mm |
| Saddle | Selle Italia Watt Saddle |
| Seat Post | Factor HANZO Carbon Zero (0mm setback) |
| Battery | SRAM AXS Battery |
| Charger | SRAM AXS Battery Charger |
| Extras | Black Inc V10 Barstem Computer Mount, Spare Rear Mech Hanger |
Size Guide
Factor HANZO Red AXS Black Inc 48/58 TT/Triathlon Bike Sizing
