Product Details

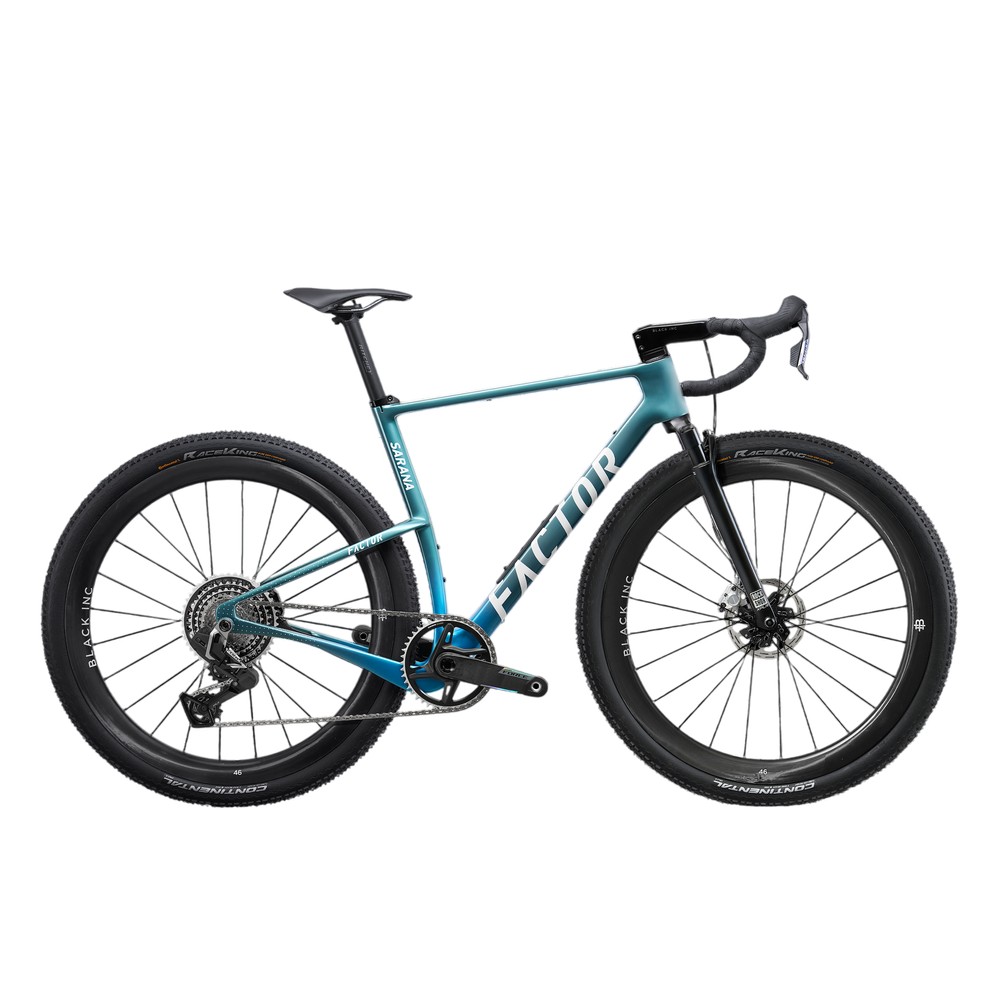

Factor Sarana Force XPLR Suspension Gravel Bike

Engineered for exceptional speed, compliance, and multi-day versatility, the Factor Sarana Force XPLR Suspension Gravel Bike combines a high-performance carbon chassis with trail-smoothing front suspension integration. Built from premium Toray and Nippon Graphite pan-based fibres, the monocoque frame delivers outstanding lateral stiffness for efficient power transfer alongside tuned in-plane flex to reduce rider fatigue over harsh terrain. The cockpit features a 1.5-inch integrated headset with fully internal cable routing seamlessly integrated into a Black Inc integrated barstem. Running on smooth CeramicSpeed T47A WIDE bottom bracket bearings, this 700c setup offers massive tyre clearance up to 57 millimetres to handle unpredictable backcountry routes with complete stability.

Shifting and Braking Performance

At the core of the drivetrain is SRAM's wireless Force E1 XPLR 1x13-speed electronic groupset, featuring a 44-tooth chainring paired with a wide-range 10 to 46-tooth cassette for smooth transitions on fast sections and ample range for steep gradients. Hydraulic disc brakes with 160 millimetre rotors front and rear ensure controlled, reliable stopping power across all weather conditions, supported by stiff 12 millimetre front and rear thru-axles. The lightweight Black Inc 46 carbon wheelset enhances acceleration and aerodynamic efficiency, delivering a fast, planted feel over loose surfaces and high-speed gravel tracks.

Integrated Storage and Bike Build Features

Designed for demanding endurance events and remote adventures, this complete build includes integrated accessories such as a custom downtube storage bag, top tube pack, and frame pack. The setup includes an FSA SL-K seatpost for targeted rear-end flex, while remaining fully compatible with 30.9 millimetre dropper posts for enhanced control on steep technical descents. Backed by Factor's limited lifetime warranty, this 13-speed suspension-ready gravel build brings together clean internal integration, modern electronic shifting, and rugged reliability for uncompromised speed on any terrain.

Please note: Images are for illustration of colourway only.

Features
  • Frame: Toray, Nippon Graphite® Pan-Based Fiber
  • Fork: Factor SARANA carbon
  • Seatpost: FSA SL-K SB0 Seatpost
  • Compatible with 30.9mm dropper seatpost
  • Barstem: Black Inc Integrated Barstem Reach 75mm, drop 116mm.
  • Multiple stem lengths and bar widths available
  • Headset: 1.5″ bearings
  • Head Tube Diameter: 1.5″ upper and lower
  • Saddle Rail Clamps: 7x7 and 7x9
  • Bottom Bracket: CeramicSpeed T47A WIDE Aluminium cups.
  • CeramicSpeed bearings available for DUB and 24mm.
  • Cable Routing: Internal
  • Compatible Components: Electronic
  • Brake Type: Disc
  • Max Rotor Size: 160mm front & rear
  • Max Chainring: 52-tooth
  • Front Axle: 12 x 100mm thru-axle
  • Rear Axle: 12 x 142mm thru-axle
  • Wheelset: Black Inc 46
  • Wheel Size: 700c
  • Max Tyre Clearance: 57mm measured
  • Included Accessories: Downtube storage bag / Top tube pack / Frame pack
  • Manufacturer Warranty: Limited Lifetime Warranty
  • Groupset: SRAM FORCE E1 XPLR
  • Speed: 1x13-speed
  • Crank: 44T
  • Cassette: 10-46T
  • Rotors:160mm
Size Guide
Size495254565861
A. Stack (mm)530547565585605625
B. Reach (mm)377385393402412422
C. Head Tube Angle71.571.972727273
D. BB Drop (mm)808078787878
E. Trail (mm)64.461.861.261.261.261.2
F. Fork Rake/Offset (mm)505050505050
G. Chainstay Length (mm)420420420423425425
H. Wheelbase (mm)992.61002.51016.5103510531070
I. Standover (mm)749.5770793812833850.5
J. Seat Tube Length (mm)455480505525549565
K. Seat Tube Angle74.5747473.573.573.5
