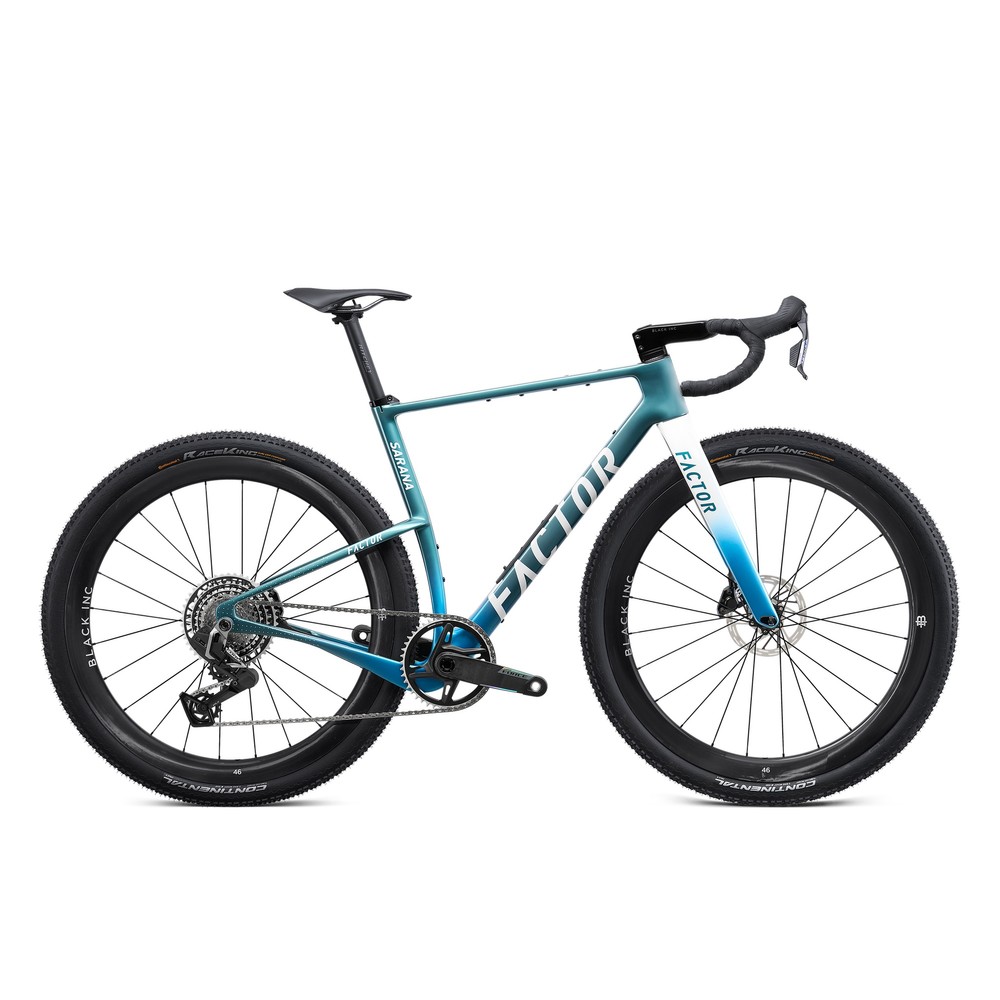

Factor Sarana Red XPLR Gravel Bike

£9,399.00

The Factor Sarana Red XPLR Gravel Bike pairs a vibration-damping carbon monocoque frame with a wireless SRAM RED E1 1x13-speed electronic drivetrain for responsive power transfer and precise gearing across harsh terrain. Featuring massive 57mm tyre clearance, lightweight Black Inc 46 wheels, and integrated frame storage packs, it provides a complete, race-ready package optimized for all-day speed and endurance.

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more.
We do not accept Halfords Cycle2Work or Evans Cycles Ride-to-Work Scheme vouchers.
Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Specialized
Diverge 4 Expert GRX Di2 Gravel Bike
£4,199.00
£5,499.00
Specialized
Diverge 4 Sport Alloy Gravel Bike
£1,699.00
£1,999.00
Cervelo
Aspero-5 Force E1 AXS Gravel Bike
£6,499.00
£8,250.00

Product Details

Factor Sarana Red XPLR Gravel Bike

Engineered for ultimate speed, compliance, and all-day endurance, the Factor Sarana Red XPLR Gravel Bike combines cutting-edge carbon technology with premium components. Crafted from Toray and Nippon Graphite pan-based fibres, the monocoque frame delivers exceptionally responsive handling and power transfer while absorbing harsh trail feedback. The front end features a 1.5-inch integrated headset with clean internal cable routing and a sleek Black Inc integrated barstem, ensuring an aerodynamic profile without sacrificing control. Designed around modern 700c gravel geometry, this build runs on CeramicSpeed T47A WIDE bottom bracket bearings for maximum drivetrain efficiency and offers massive tyre clearance up to 57 millimetres to conquer the most challenging terrain.

Shifting and Braking Performance

At the heart of this high-performance setup is the wireless SRAM RED E1 XPLR 1x13-speed electronic groupset, paired with a 44-tooth crankset and a wide-range 10 to 46-tooth cassette for precise gearing across steep climbs and fast flats. Powerful hydraulic disc brakes with 160 millimetre rotors front and rear provide consistent stopping power in all weather conditions, while 12 millimetre thru-axles ensure total frame rigidity under heavy cornering. The lightweight Black Inc 46 wheelset complements the drivetrain seamlessly, delivering sharp acceleration, stability in crosswinds, and effortless momentum over unpredictable surfaces.

Integrated Storage and Bike Build Features

Designed for gravel racing and remote adventure, this complete build comes equipped with custom frame accessories including a dedicated downtube storage bag, top tube pack, and frame pack. A lightweight FSA SL-K seatpost offers subtle vibration dampening at the rear, while the frame remains fully compatible with 30.9 millimetre dropper posts for steep, technical descents. Backed by Factor's limited lifetime warranty, this 13-speed gravel machine represents a race-ready package designed for uncompromising speed, comfort, and reliability across any course.

Please note: Images are for illustration of colourway only.

Features

Frame: Toray, Nippon Graphite® Pan-Based Fiber
Fork : Factor SARANA carbon
Seatpost: FSA SL-K SB0 Seatpost
Compatible with 30.9mm dropper seatpost
Barstem: Black Inc Integrated Barstem Reach 75mm, drop 116mm
Headset: 1.5″ bearings
Head Tube Diameter: 1.5″ upper and lower
Saddle Rail Clamps: 7x7 and 7x9
Bottom Bracket: CeramicSpeed T47A WIDE Aluminium cups
CeramicSpeed bearings available for DUB and 24mm.
Cable Routing: Internal
Compatible Components: Electronic
Brake Type: Disc
Max Rotor Size: 160mm front & rear
Max Chainring: 52-tooth
Front Axle: 12 x 100mm thru-axle
Rear Axle: 12 x 142mm thru-axle
Wheelset: Black Inc 46
Wheel Size: 700c
Max Tyre Clearance: 57mm measured
Included Accessories: Downtube storage bag / Top tube pack / Frame pack
Manufacturer Warranty: Limited Lifetime Warranty
Groupset: SRAM RED E1 XPLR
Speed: 1x13-speed
Crank: 44T
Cassette: 10-46T
Rotors: 160mm

Size Guide

Size	49	52	54	56	58	61
A. Stack (mm)	530	547	565	585	605	625
B. Reach (mm)	377	385	393	402	412	422
C. Head Tube Angle	71.5	71.9	72	72	72	73
D. BB Drop (mm)	80	80	78	78	78	78
E. Trail (mm)	64.4	61.8	61.2	61.2	61.2	61.2
F. Fork Rake/Offset (mm)	50	50	50	50	50	50
G. Chainstay Length (mm)	420	420	420	423	425	425
H. Wheelbase (mm)	992.6	1002.5	1016.5	1035	1053	1070
I. Standover (mm)	749.5	770	793	812	833	850.5
J. Seat Tube Length (mm)	455	480	505	525	549	565
K. Seat Tube Angle	74.5	74	74	73.5	73.5	73.5
