Garmin Rally RS/XC210 Power Meter Pedal Bundle

1956342 / 54293749104986

Product Details

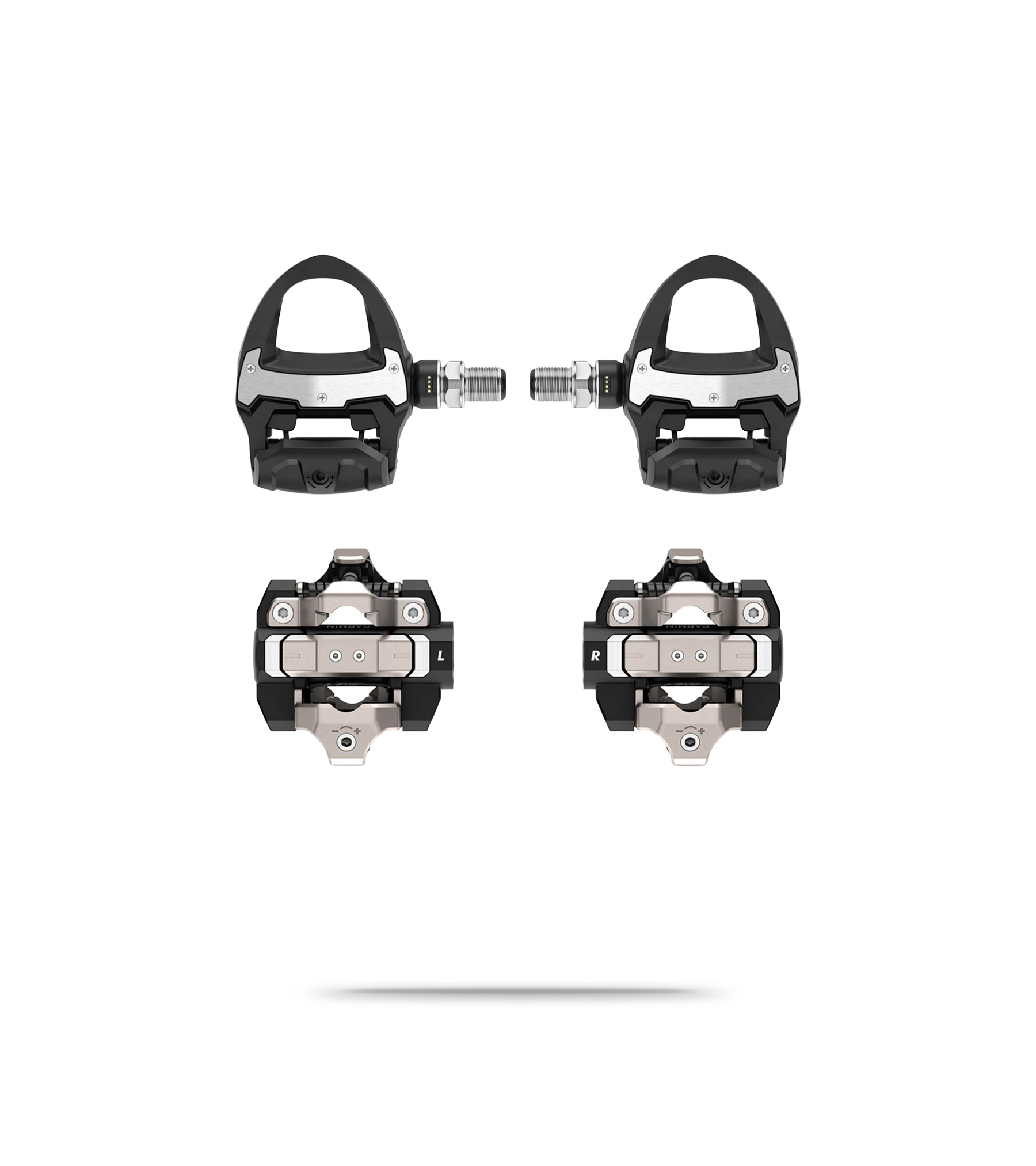

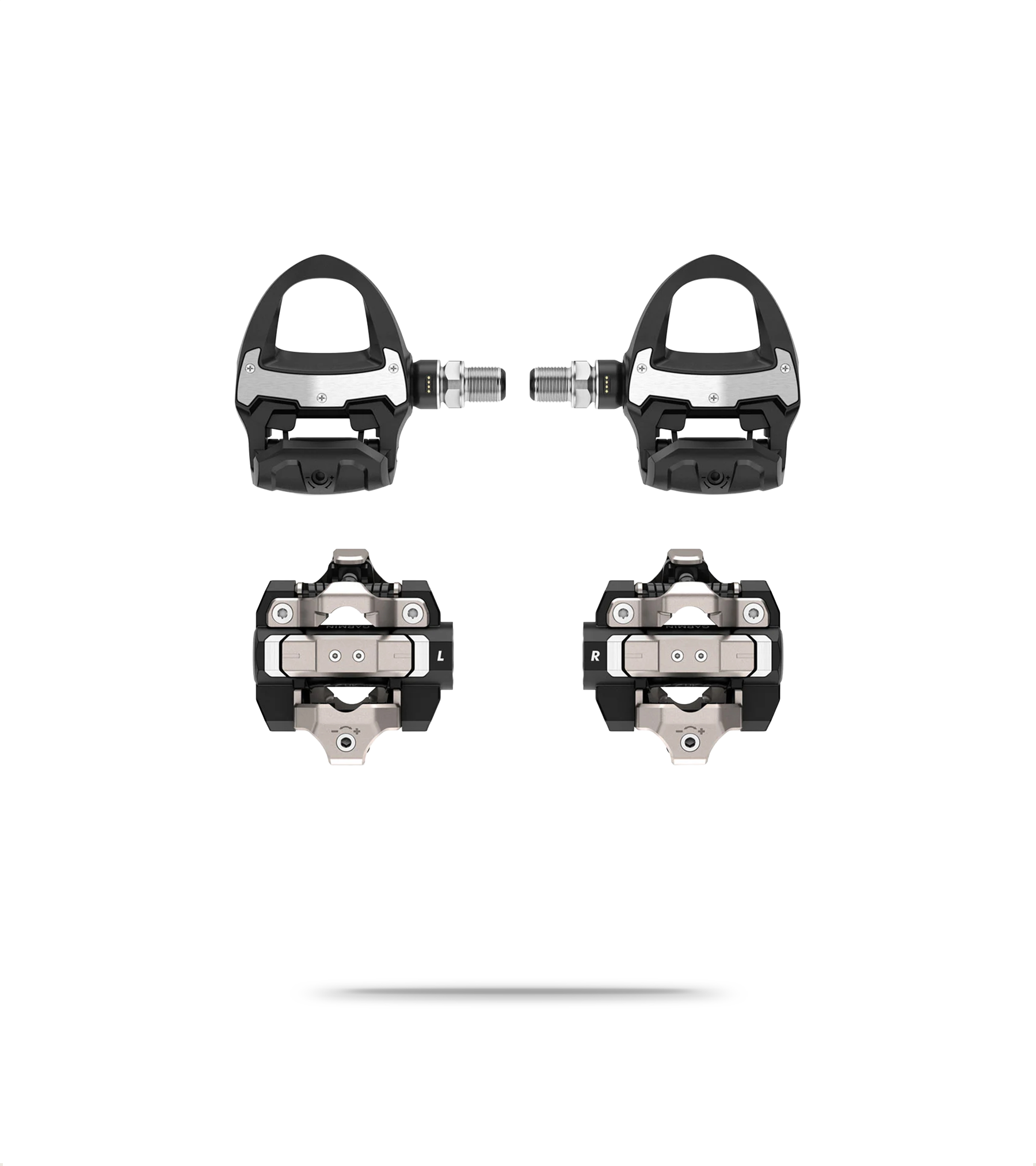

Garmin Rally RS/XC210 Power Meter Pedal Bundle

The new Garmin Rally RS/XC210 Power Meter bundle is a dual-sensing power meter that provides accurate power data and, with two included pedal body sets, can be easily swapped between road and off-road bikes.

Easily Transfer Power Sensor Between Garmin Rally Pedal Bodies

This pedal-based power meter installs like any standard pedal and allows quick transfer between bikes. With both road and off-road pedal bodies included, the power meter can be easily swapped between bikes.

Garmin Advanced Cycling Dynamics

Riders gain detailed insights into left versus right leg balance, seated versus standing time, and power phases to better understand and improve their riding.

Garmin Accuracy and Pedal IQ Smart Calibration

With a reimagined strain gauge and added gyroscope, these pedals are highly responsive and accurate within +/- 1%. The Pedal IQ feature alerts riders when calibration is required, taking into account factors such as temperature changes since the last calibration when paired with compatible Garmin devices.

Garmin Rally Ride Time and Charging

These rechargeable pedals offer up to 90 hours of ride time. Quick charging delivers up to 12 hours of ride time from just 15 minutes of charging. Travel mode puts the pedals to sleep to conserve battery during transport.

Garmin Rally's Durable Carbon and Metal Design

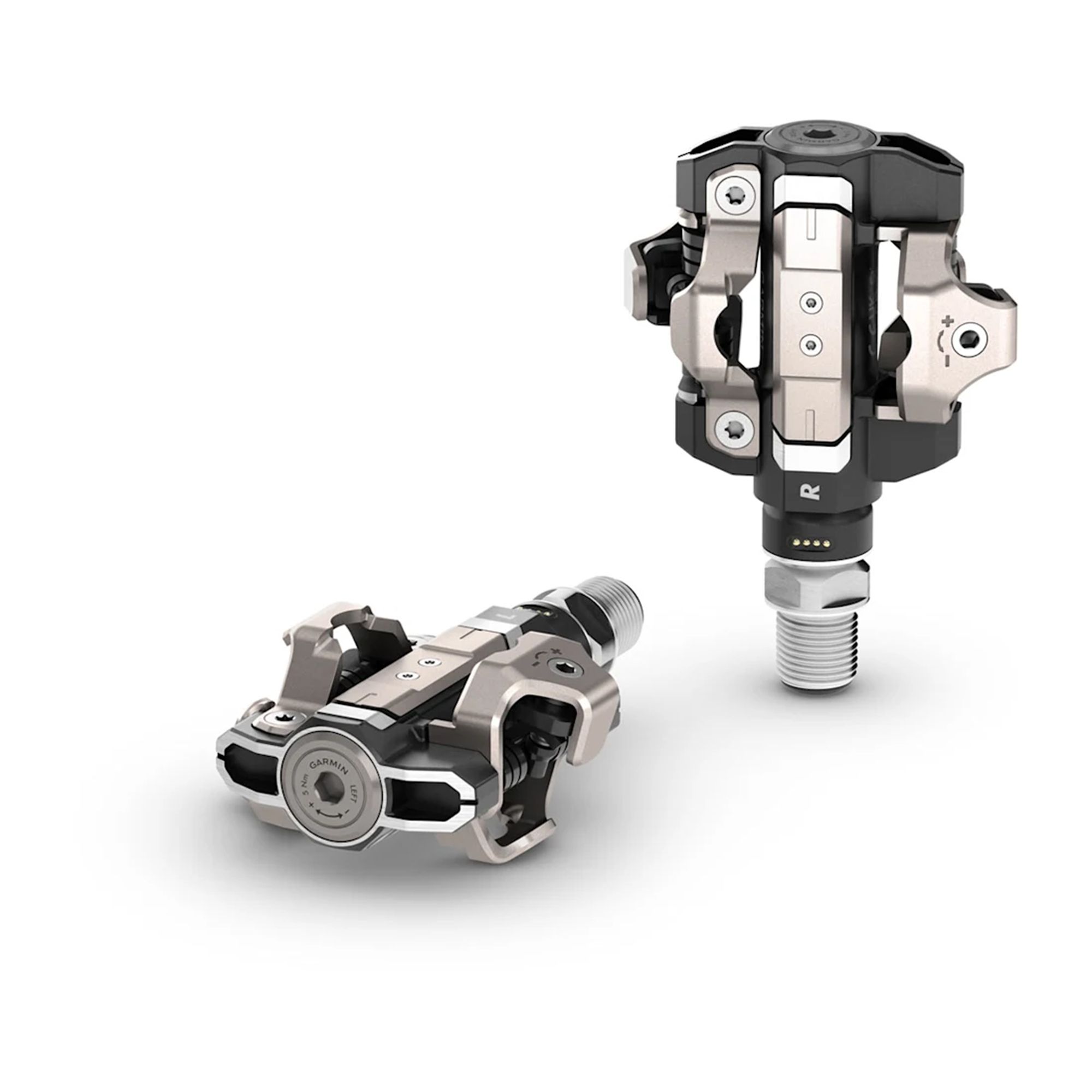

Rally RS210 pedals feature an all-new carbon design that is lighter, stronger, and has a professional-level look. The included XC210 pedal bodies feature an all-metal design with a lower stack height to reduce pedal strikes on rocks and roots.

Garmin Cleat Compatibility

The pedals are compatible with Shimano SPD-SL cleats for road use (RS) and Shimano SPD cleats for off-road use (XC).

In The Box

Rally RS210 pedal-based power meter
Rally XC pedal bodies
Two charging clips and charging cables
SHIMANO SPD compatible cleats
SHIMANO SPD-SL compatible cleats
Hardware
Documentation

Features

Weight: RS - 312 g (11 oz) / XC - 436 g (15.37 oz)
Stack height: RS - 12.2 mm (0.48″) / XC - 11.5 mm (0.45″)
Adjustable release tension: Yes
Water rating: IPX7
Maximum rider weight: 105 kg (231.5 lbs)
Cleat Type: SHIMANO SPD-SL / SPD
Q-factor: 53 mm (55 mm with provided 2 mm washer)
Quick change pedal body: Compatible with all Rally 110/210 pedal bodies
Pedal body materials: RS - Carbon material based design / XC - All metal pedal body
Force data: Yes
Battery type: Rechargeable
Quick charge: 12 hours in 15 minutes of charging time (USB-C required)
Accuracy (+/-): 1%
Battery life: Up to 90 hours
Temperature compensation: Yes
Oval chainring compatible: Yes
Measurement location: Spindle
Field calibration: Yes
Communication: ANT+®, BLUETOOTH® and USB (USB-C compliant)
Pedal IQ™ Smart Calibration: Yes
Travel mode: Yes
Cycling Dynamics compatible: Yes
Garmin Connect™ compatible: Yes

Specifications

Compatibility (Device / Platform): ANT+, Bluetooth
Connectivity Type: ANT+, Bluetooth
Power Source Type: Rechargeable Battery
Primary Product Type (Electronics): Power Meter
Water Resistance Rating: IPX7
Accuracy Rating (%): 1 %
Battery Life (Typical Use, Hours): 90 hrs
Battery Type (Power Meter): Rechargeable
Cadence Measurement: Built-in
Charging Interface: Proprietary
Display Type: No Display
Firmware Upgradable: Yes
Measurement Position: Pedal
Measures Left / Right Balance: Yes
Mounting Location: Pedal
Product code: 1956342 / 54293749104986
