Product Details

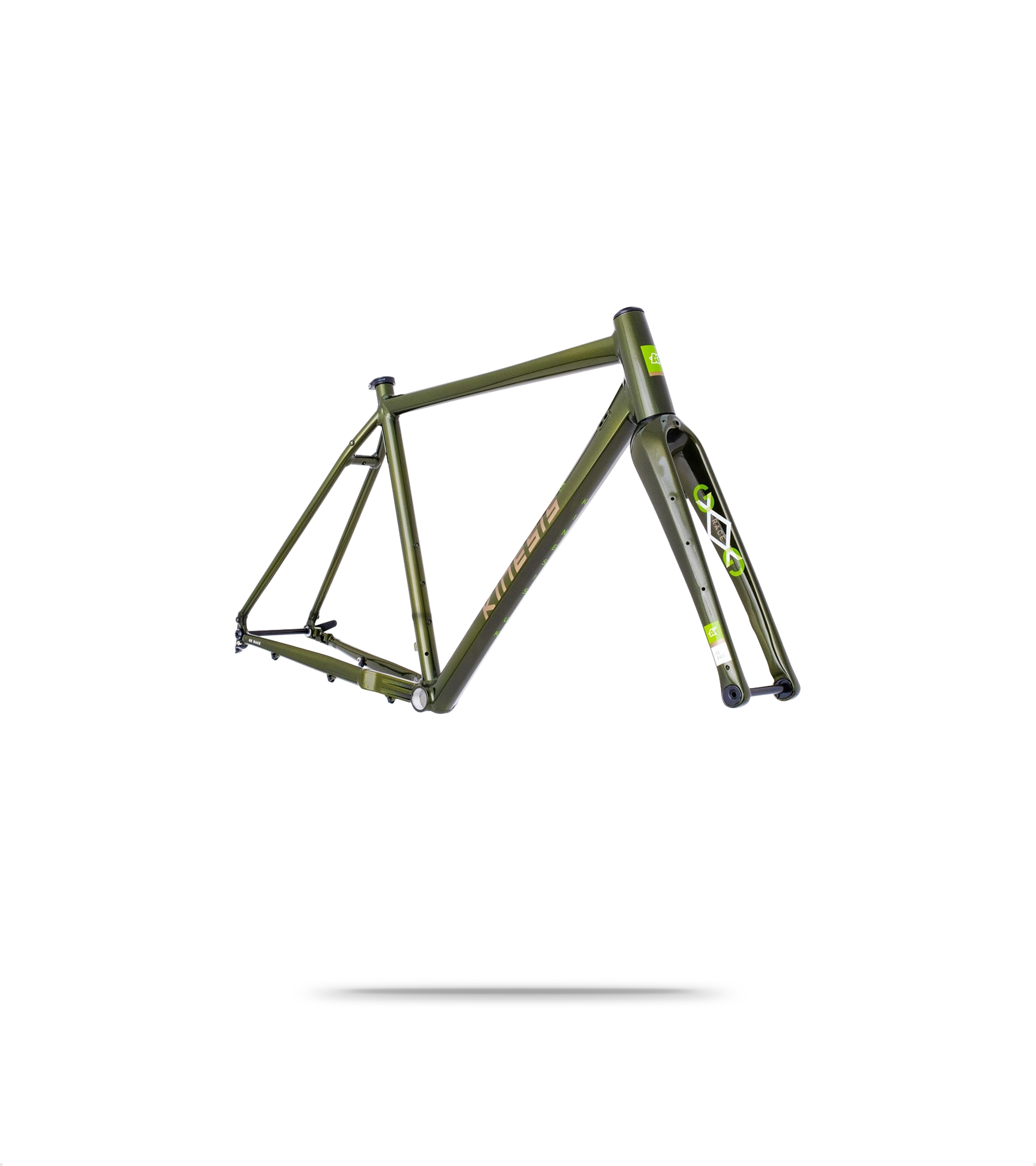

Kinesis GX Race Gravel Frameset

The GX Race Gravel Frameset combines the handling and speed of Kinesis’ CX Race bike with the versatility and strength of their Tripster AT model. A longer reach means that a shorter stem can be fitted, giving better handling off-road and the gravel-specific geometry gives a more aerodynamic position, whether on the hoods or on the drops.

It has plenty of clearance for large 700c or 650b tyres and includes mudguard mounts for all-weather commuting or long adventures. The frame has top tube bag mounts and multiple-position bottle cage bosses whilst the carbon fork also features luggage mounts and internal routing for a dynamo. Any type of cabling can be run using the adaptable ports and the fork has a flip-chip that can be altered to change the offset.

Features
  • Frame: Kinesis GX Race Gravel premium alloy 6069 series tubeset with top tube mounts, adaptable cable ports, mudguard and rack mounts
  • Fork: Columbus Futura Cross Plus full carbon monocoque with cargo mounts, internal dynamo cable routing and adjustable offset
  • Headset: Included
  • Seatpost: 27.2mm (not included)
  • Bottom bracket: BSA threaded (not included)
  • Tyre clearance: 700c x 45mm / 650b x 50mm (40mm tyres with full mudguards)
  • Manufacturer’s claimed weight: 1.69kg (54cm frame)
Highlights
  • Alloy Frame
  • Tough yet lightweight 6069 series tubeset with tapered machined headtube.
  • Columbus Futura Plus Carbon Disc Fork
  • Carbon Fibre Monocoque construction. Stiff with high vibration damping for a smooth ride.
  • 45mm Tyre Clearance
  • It is becoming widely accepted that wider tyres offer more speed, more grip and more comfort on real world surfaces. The GX Race will take up to 45mm tyres on a 700c wheel and up to 50mm on a 650b wheel.
  • Kinesis Rider Fit Geometry
  • Geometry adjustments have been made to ensure a better fit across a greater range of rider dimensions. As a result there is more consistent handling across sizes, less toe overlap, and more intuitive sizing.
  • 68mm Threaded BB
  • Threaded BBs allow you to use reliable, creak free bottom brackets that withstand year round British conditions.
  • Adaptable Cable Ports
  • Thanks to interchangeable cable entry points you can run exactly the routing you need, ensuring there are no excess holes into the frame.
  • Wireless Electronic / Mechanical / 2x / 1x Compatible
  • The frame is designed to work with mechanical and all wireless electronic groupsets.
Specifications
Model
GX Race Gravel Frameset
Bottom Bracket Standard
BSA
Brakes [Kind]
Hydraulic Disc
Discipline Compatibility
Gravel
E-Bike
No
Family
GX Race
Fenders Mounts
Yes
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Columbus
Fork [Material]
Carbon
Fork [Model]
Futura Cross Plus
Fork [Rake]
47 mm
Fork [Wheel Size]
700c, 650b
Frame [Material]
Aluminium
Frame [Tire Clearance]
45c mm
Frameset
Yes
Gearing [Kind]
Conventional
Gender
Unisex
Rack Mounts
Yes
Seatpost [Diameter]
27.2
Suspension Configuration
Rigid
Wheels [Configuration]
Front+Rear
Product code
1343123 / 54295760503130
Size Guide
48505254565860
Seat Tube (ctr-top)440470495540560580600
Seat Tube (ctr-ctr)-------
Effective Top Tube521531542557569584600
Actual Top Tube -------
Seat Angle (°)74747473.7573.7573.573.3
Head Tube Angle (°)707070.570.570.570.571
Head Tube Length110120135155175195215
Fork Rake47474747474747
Chainstay Length440440440440440440440
Wheelbase1018102910371051106410781087
Stack533543559575594612633
Reach368375382389396403410
Kinesis GX Race 2022
Reviews
Rating 5 out of 5
5
Value of Product
4.5
Quality of Product
5
Rating 5 out of 5
Mark Mackham,
Verified purchaser

Nice looking frame with a balanced geometry - great for short events or extended gravel tours. Cable routing looks cleanest if you connect the rear brake to the right hand shifter. Got this because most new bikes come with fully internal cables going through the headset which would be a total PITA if you do your own maintenance. Only downside compared to my old Cube bike is that the paint is not very durable and already shows small scratches and blemishes where it came in contact with tools and cables during assembly. The colour is much darker than it shows on the clean product photos, check the action pics from the Kinesis website to get a better feel for how it looks.

Rating 5 out of 5
Wayne65,
Verified purchaser

Bought this frameset to upgrade my existing gravel bike. As always, Kinesis deliver a fantastic product. Only rode it a couple of times so far & unfortunately not taken it offroad yet, however it’s a lovely ride, feels fast, feels light. Cannot wait for it’s first full gravel excursion!

Shipping & Returns

Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.

Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.

Q & A

5 questions answered

  1. Hi - is this frame UDH compatible ? Cheers !

    Asked by JUC (UK)

    1. HI there, No this is not, Many thanks Joe W

      Joe W

  2. What size would I need I'm 179cm tall?

    Asked by J72

    1. Hi there, You are between the 54 and 56 in this, I would recommend having a bike fitting to confirm, Many thanks Joe W

      Joe W

  3. How stable versus lively is the ride? Given its slack head angle and long wheelbase/chainstay, is this more towards an adventure bike than a cyclocross bike?

    Asked by John (London)

    1. HI John, This is a Gravel/Adventure bike, Many thanks Joe W

      Joe W
