Product Details

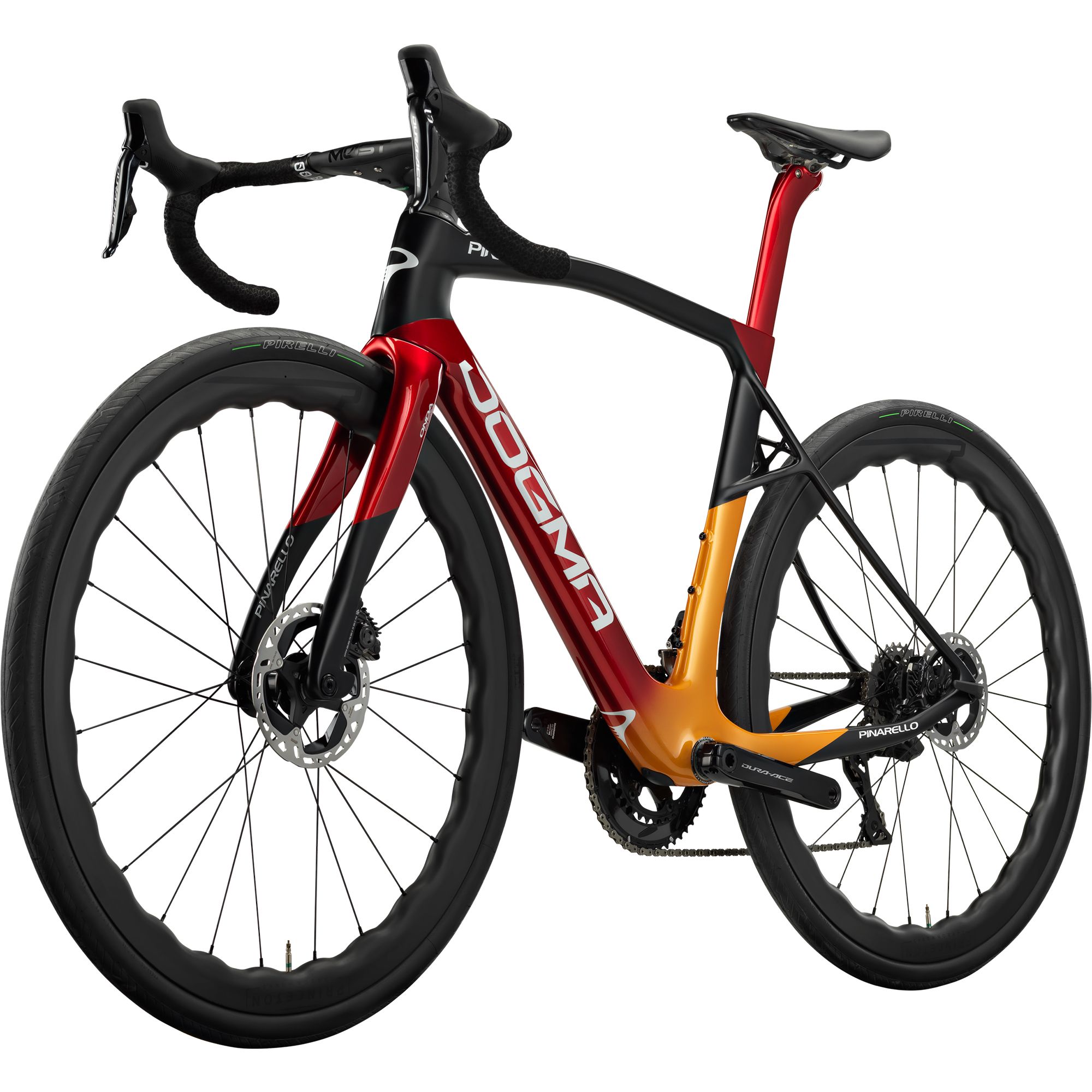

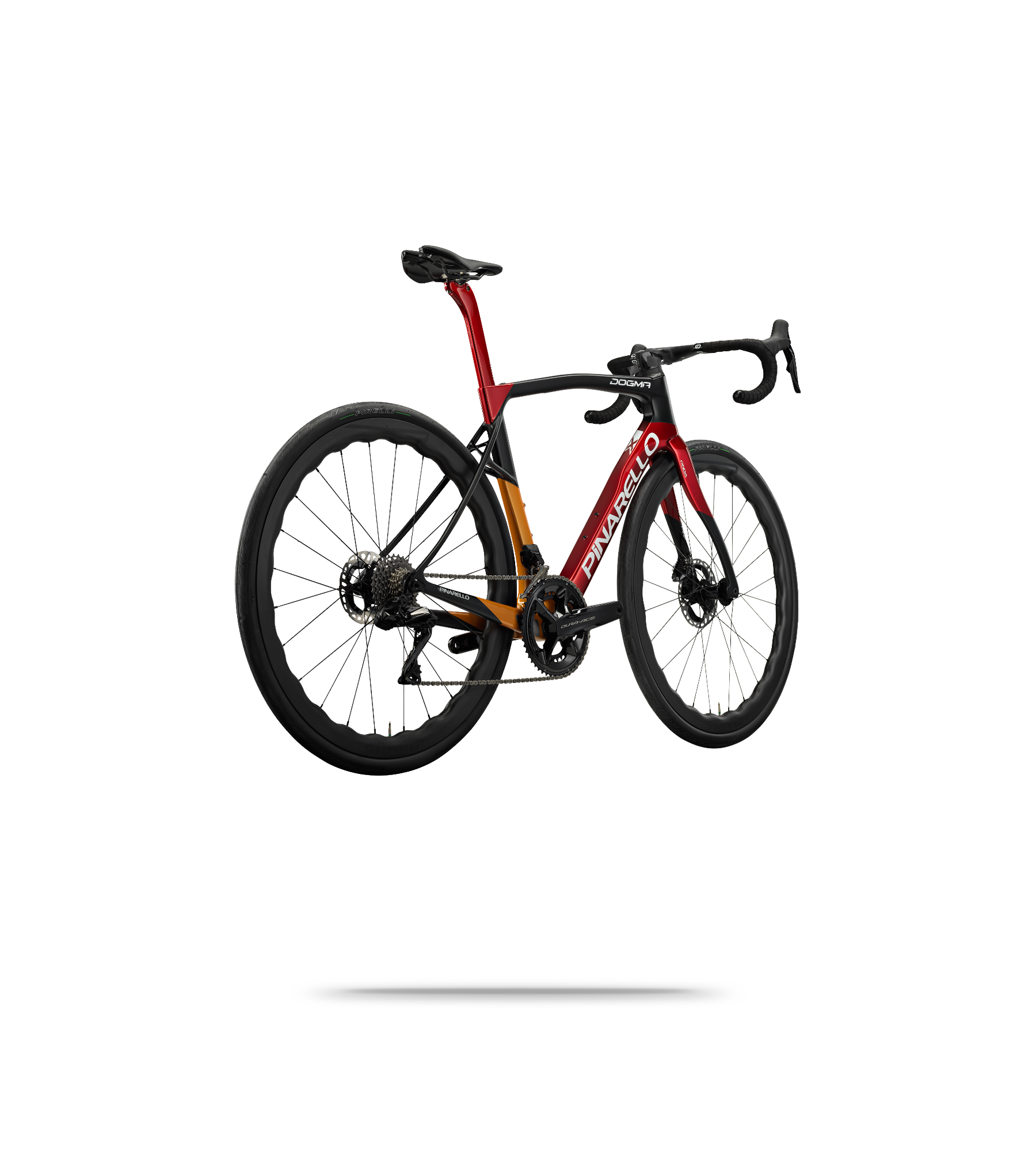

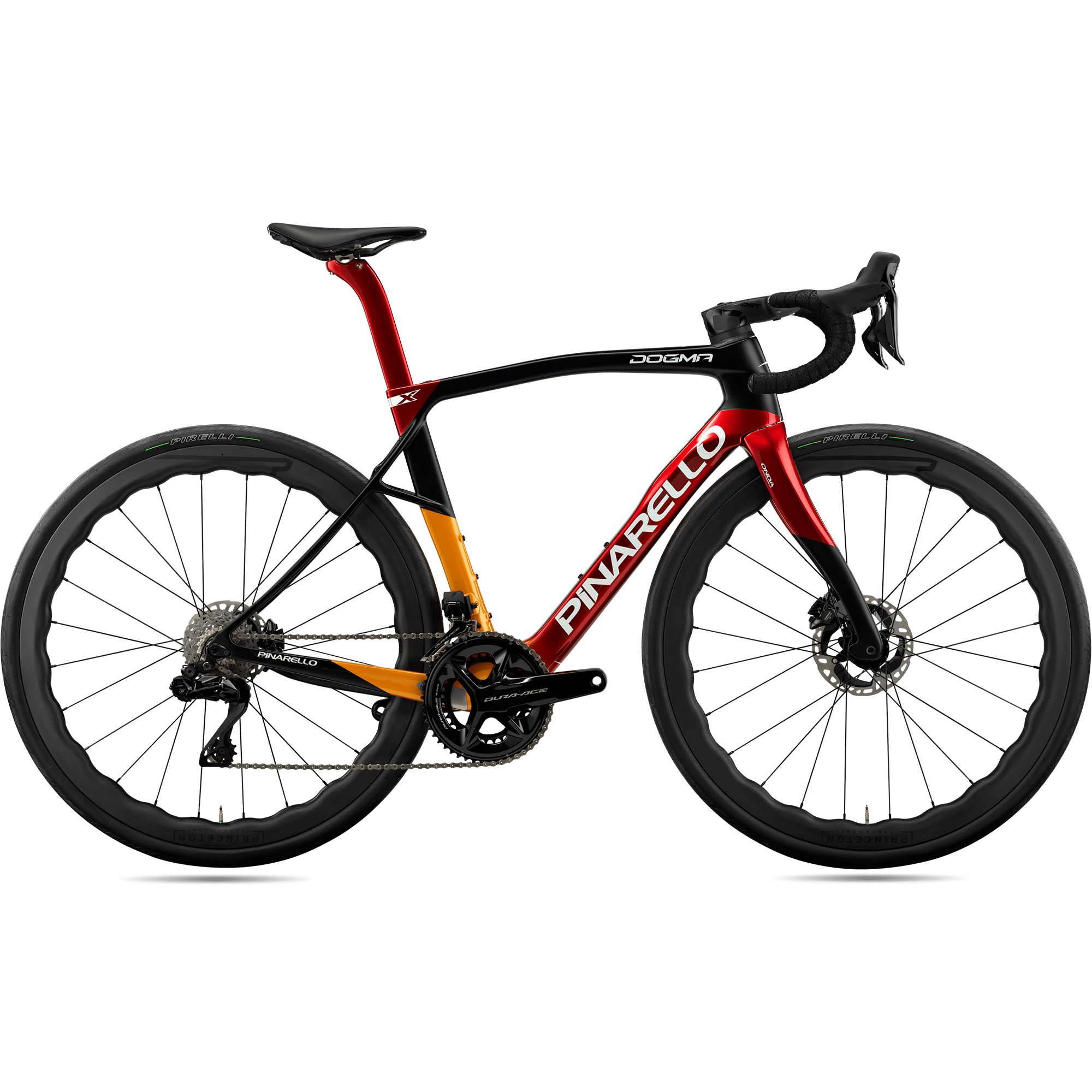

Pinarello Dogma X Disc Dura-Ace Road Bike 2024

The DOGMA X represents the epitome of cycling innovation, perfectly blending performance and comfort for riders who relish long hours in the saddle. This bicycle isn't just about raw performance; it's an engineering marvel designed to elevate the emotional aspect of road cycling, redefining the conventional notions of endurance and speed. Crafted from high-tensile and high-modulus carbon fiber infused with patented Nanoalloy Technology, the DOGMA X leverages these extreme performance materials to create a bike that offers real-world comfort without sacrificing on speed. Pinarello's X Stays technology is a groundbreaking feature, capable of absorbing vibrations while maintaining a lightweight frame and responsive bottom bracket stiffness. Additionally, the asymmetric frame design optimizes force distribution to enhance overall performance. With tire clearance of up to 35mm, this bike unlocks its full potential, providing unmatched comfort and speed for cyclists.

The DOGMA X DURA ACE Di2 boasts innovative features that redefine the cycling experience. Its endurance geometry strikes a perfect balance between high-caliber performance and real-world comfort, making it the ideal choice for those seeking long-distance adventures. The carbon T1100 1K frame, along with X Stays technology, contributes to vibration absorption and a lightweight, reactive frame. The asymmetric frame design compensates for unbalanced forces, enhancing the overall riding experience. With tire clearance of up to 35mm, this bike maximizes comfort and speed. The geometries and dimensions are meticulously designed to suit various riders' needs, offering a wide range of options. With a high-quality drivetrain, cockpit, saddle, and wheels, the DOGMA X DURA ACE Di2 is a masterpiece of cycling technology that combines performance and endurance for cyclists seeking the best of both worlds.

The image shown is indicative only.

Components and graphic details may differ from the actual mode.

Features
  • Frame: TorayCa T1100 1K Dream Carbon with Nanoalloy technology, internal cable routing, Italian BB, UCI approved
  • Crankset and Chainrings: Shimano Dura Ace Di2 RD-R9200 12s
  • Front Derailleur: Shimano Dura Ace Di2 FD-9200 11S
  • Rear Derailleur: Shimano Dura Ace Di2 RD-R9200 12s
  • Cassette: Shimano Dura Ace CS-R9200 12S
  • Chain: Shimano Dura Ace CN-HG 12S
  • Bottom Bracket: Shimano Dura Ace SM-BB9200
  • Front Brake Disc: Dura Ace BR-R9200, 2 pistons caliper, 160mm rotor
  • Rear Brake Disc: Dura Ace BR-R9200, 2 pistons caliper, 140mm rotor
  • Integrated Handlebar: MOST Talon Ultra Light
  • Saddle: Most Lynx Ultrafast Superflow L Carbon Large 145mm
  • Seatpost: Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts
  • Seat Clamp: Seatclamp Twinforce, titanium bolts
  • Tyres Disc: Pirelli P ZERO Race TLR 35-622
  • Wheelset Disc: PRINCETON GRIT 4540 DB
  • Axles Disc: Ultra Light Custom Axle 12x100 & 12x142, tool-free removal
  • Bottles and Bottle Cages: Bottlecage Trap PACF ø 74mm, Fly Bottle Pinarello Bottle 550ml Black
  • The image shown is indicative only.
  • Components and graphic details may differ from the actual mode.
Highlights
  • DOGMA X: Blends performance and comfort, engineered with high-tech carbon fiber.
  • X Stays Technology: Absorbs vibrations while maintaining lightweight and responsive frame.
  • Asymmetric Frame Design: Optimizes force distribution for enhanced performance.
  • Tire Clearance up to 35mm: Unlocks superior comfort and speed.
Specifications
Model
Dogma X
Bottom Bracket [Maker]
Shimano
Bottom Bracket Standard
Italian
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
Shimano
Brakes [Model]
Dura-Ace
Cassette [Gearing]
11-30
Cassette [Maker]
Shimano
Cassette [Model]
Dura-Ace CS-R9200
Chain [Maker]
Shimano
Chain [Model]
Dura-Ace CN-HG
Chainring [Gearing]
50/34
Crank [Maker]
Shimano
Crank [Model]
Dura-Ace
Discipline Compatibility
Road
E-Bike
No
F Hub [Maker]
princeton
Family
Dogma
FD [Maker]
Shimano
FD [Model]
Dura-Ace Di2 FD-9200
Fenders Mounts
No
Fork [Axle Type]
12x100mm Thru-Axle
Fork [Brake Type]
Disc
Fork [Material]
Carbon
Fork [Wheel Size]
700c
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
MOST
Handlebar [Shape]
Drop bar
R Hub [Maker]
princeton
Rack Mounts
No
RD [Maker]
Shimano
RD [Model]
Dura-Ace Di2 RD-R9200
Saddle [3D Printed]
No
Saddle [Maker]
MOST
Saddle [Material]
Carbon
Saddle [Width]
145 mm
Seatpost [Kind]
Rigid
Seatpost [Maker]
Pinarello
Seatpost [Material]
Carbon
Shifters [Maker]
Shimano
Shifters [Model]
Dura-Ace Di2
Shifting
Electronic
Stem [Maker]
MOST
Sub Family
Dogma X
Suspension Configuration
Rigid
Tires [Maker]
Pirelli
Tires [Width]
35 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
21 mm
Wheelset [Maker]
princeton
Wheelset [Material]
Carbon
Wheelset [Model]
Grit 4540 DB
Product code
1742175 / 54294812393818
Size Guide
CECCLA(°)B(°)PTDRGReachStack
42543050574.4704221077747375349.3524.2
45046551574.4704221197747375358.1535.5
4655005257470.54221247747375365.4542.1
48551553573.7714221297747375371.7548.6
50053054573.771.54221387747375379.4559
51054055273.4724221467747375381.2568.4
52055055773.4724221677747375383578.9
5255605657372.54221657747375384,6588.4
5405755757372.84221787747375390.8601.7
56059559572.4734222147247375395.3632
60062062072734222547247375403.8670.3
