Product Details

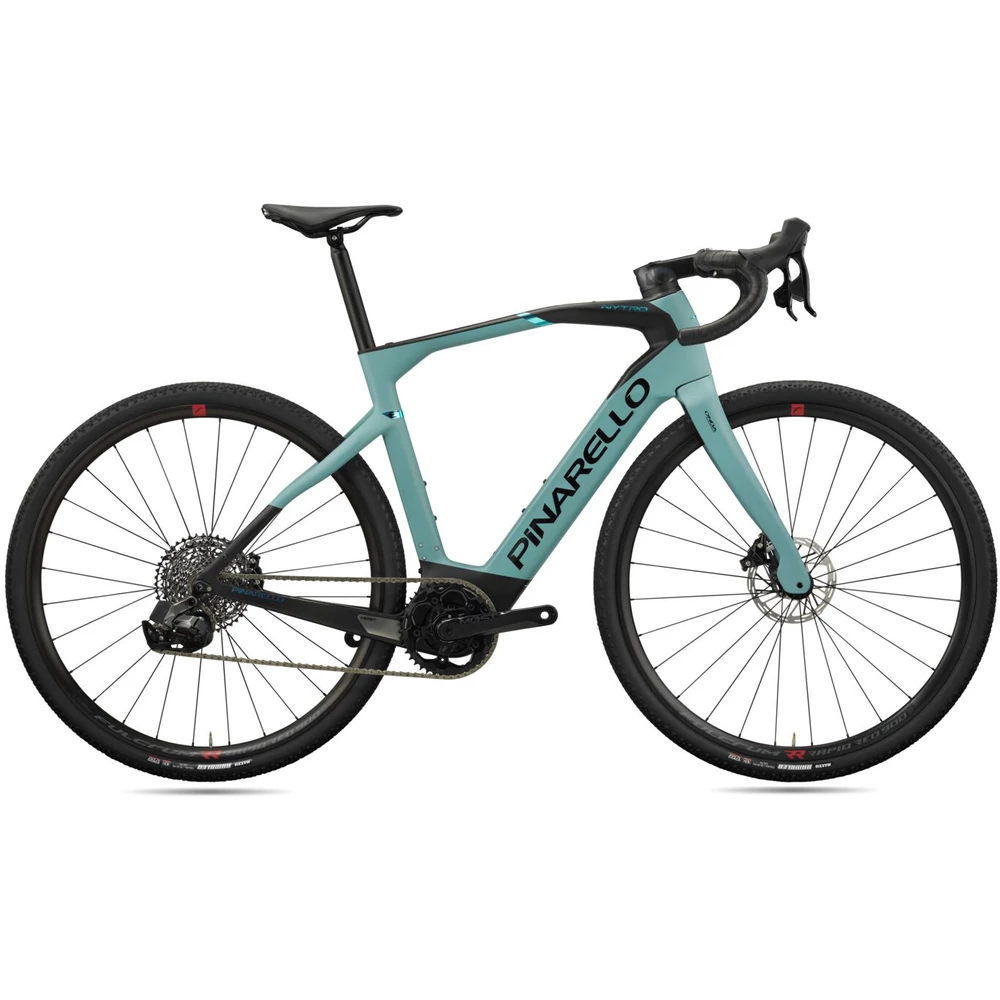

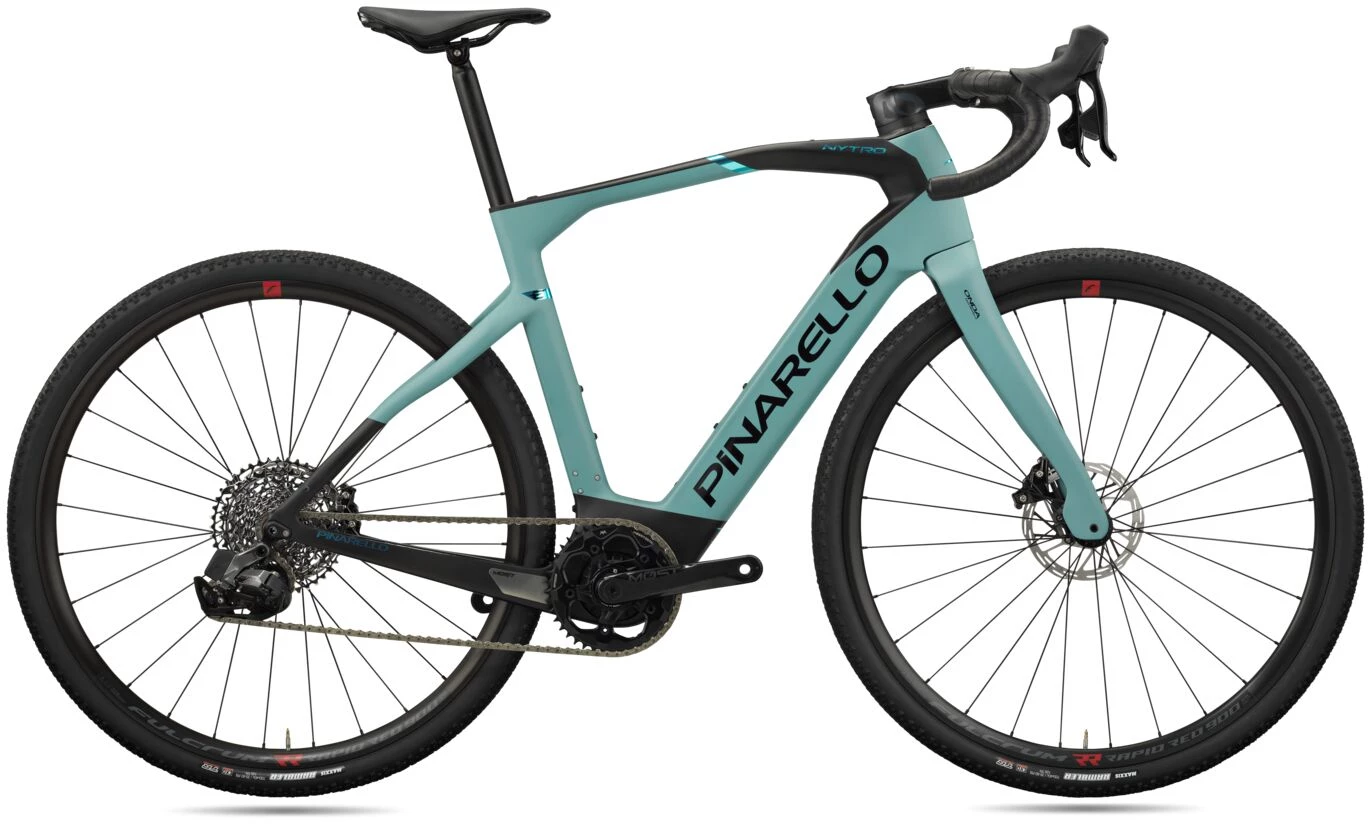

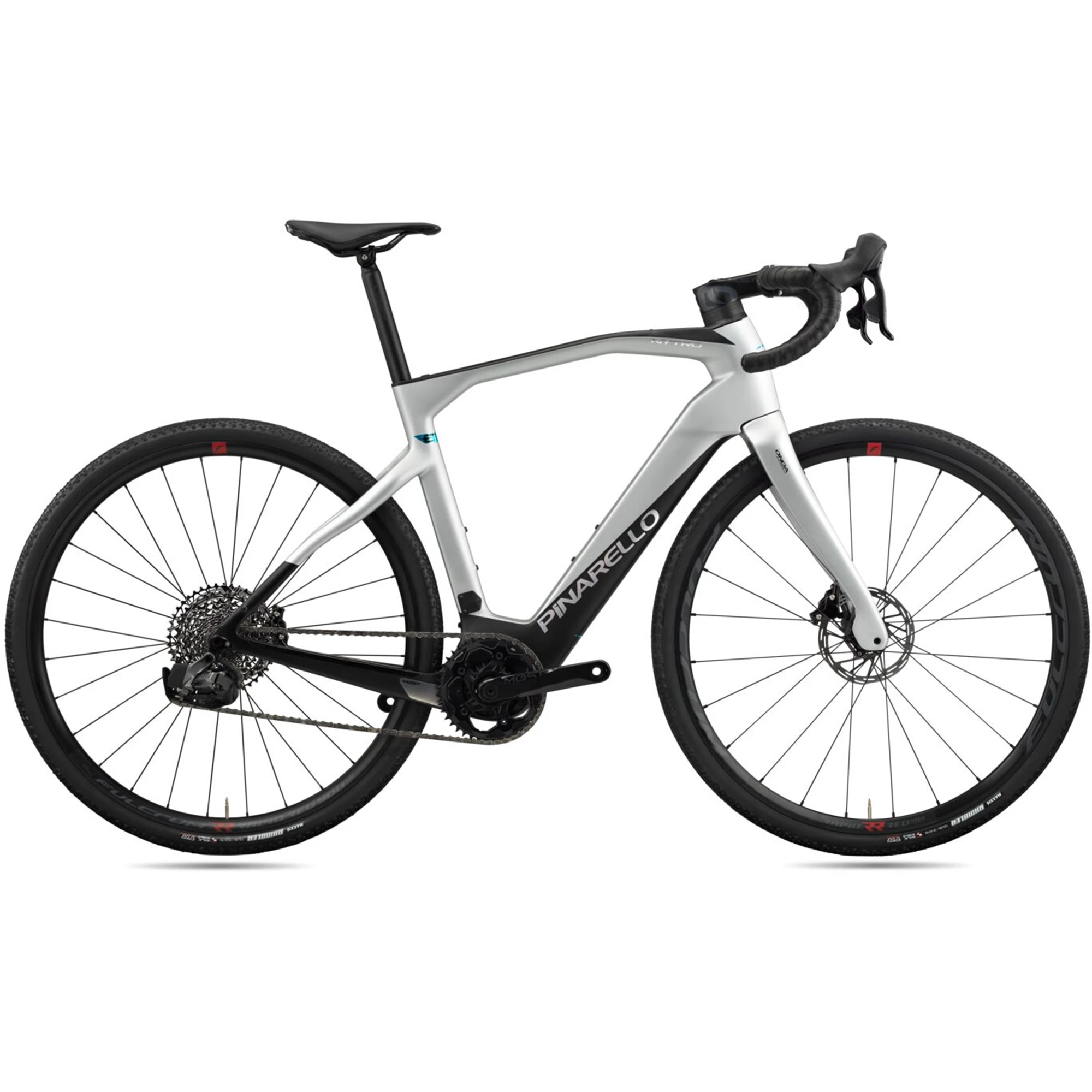

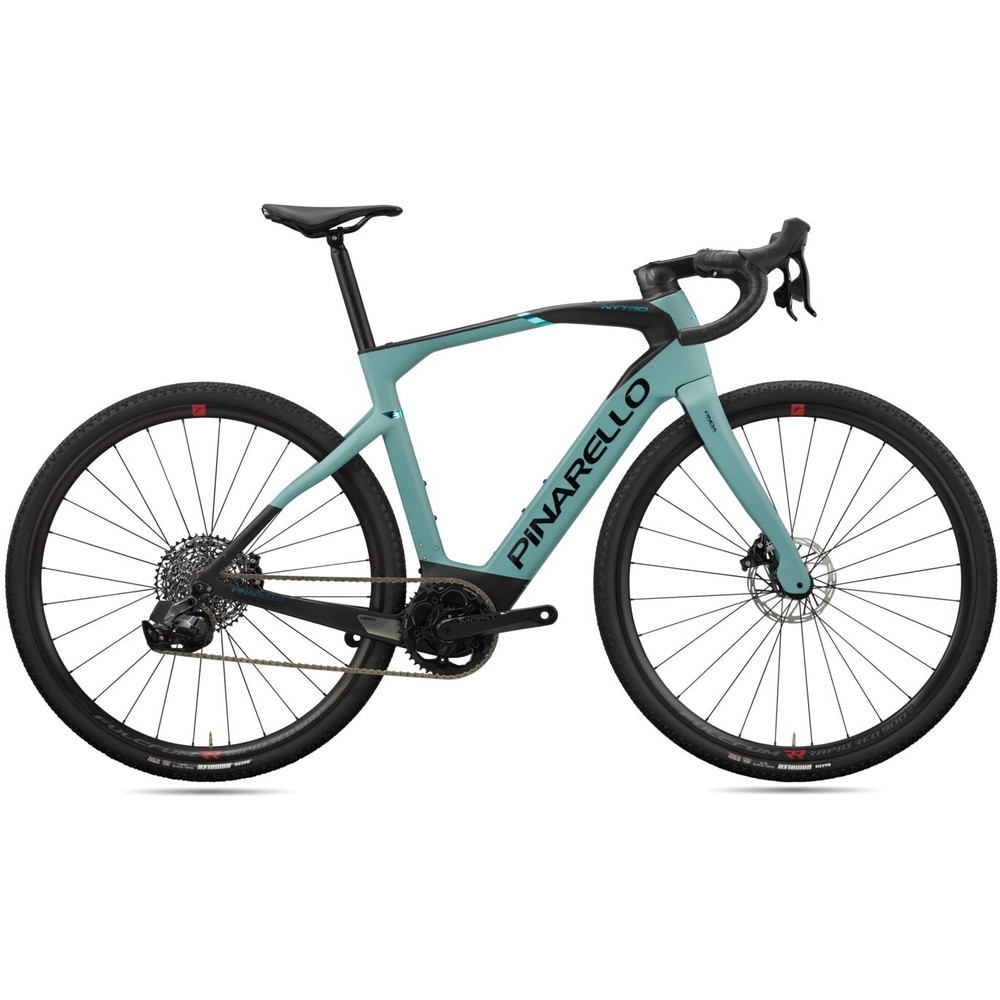

Pinarello Nytro Gravel E5 Disc Electric Bike

The Pinarello Nytro E5 embodies the essence of a high-performance race bike, delivering both sleek aesthetics and exceptional performance. From its meticulously crafted geometry to its advanced technical features, every detail is designed to elevate the cycling experience.

Constructed with a full carbon frame and equipped with the latest TQ-HPR50 motor and TQ 360 Wh battery, the Nytro E5 weighs just 11.4 kg, with the motor system adding only 4 kg. This ensures a nimble and responsive ride, whether utilising e-assistance or relying purely on pedal power.

Tailored for enthusiasts who seek exhilarating rides, the Nytro E5 seamlessly integrates electric assistance without compromising its racing pedigree. Its refined frame design exudes sophistication, complemented by the Shimano 105 Di2 wireless shifting system for precise gear changes. Exceptional handling makes it adept at both powering through flat roads and conquering challenging climbs.

The Pinarello Nytro E5 isn't just a bike—it’s a racing machine built to excel in every scenario, offering a riding experience that balances power, precision, and elegance.

Features
  • Frame: TorayCa T700 UD, TiCR™ Cable Routing
  • Fork: Nytro Onda carbon fork with forkflap™
  • Stem: MOST Tiger Aero Alu TiCR
  • Handlebar: MOST Jaguar XA TiCR
  • Front Brake: Sram Rival, 160mm rotor
  • Rear Brake: Sram Rival, 160mm rotor
  • Brake Levers: Sram Rival AXS
  • Front Derailleur: Sram Rival AXS
  • Rear Derailleur: Sram Rival AXS
  • Wheelset: Fulcrum Rapid Red 900
Highlights
  • Sram Rival AXS Groupset
  • Fulcrum Rapid Red 900 Wheelset
Specifications
Model
Nytro Gravel E5
Battery [Capacity]
360 Wh
Battery [Maker]
tq
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Rival
Cassette [Maker]
SRAM
Cassette [Model]
Rival 12S
Chain [Maker]
SRAM
Chain [Model]
Rival 12S
Crank [Maker]
SRAM
Crank [Model]
Rival eTap AXS
E-Bike
Yes
Family
Nytro
FD [Maker]
SRAM
FD [Model]
Rival AXS
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Pinarello
Fork [Material]
Carbon
Fork [Model]
Nytro Onda
Fork [Rake]
50 mm
Fork [Wheel Size]
700c
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Handlebar [Kind]
Drop
Handlebar [Maker]
MOST
Handlebar [Material]
Aluminium
Handlebar [Model]
Jaguar GR TiCR Alu
Handlebar [Shape]
Drop bar
Motor [Kind]
Mid-Drive
Motor [Maker]
tq
RD [Maker]
SRAM
RD [Model]
Rival AXS
Shifters [Maker]
SRAM
Shifters [Model]
Rival AXS
Shifting
Electronic
Stem [Maker]
MOST
Stem [Material]
Aluminium
Stem [Model]
Tiger Aero Alu TiCR
Sub Family
Nytro Gravel
Suspension Configuration
Rigid
Tires [Maker]
Maxxis
Tires [Width]
40 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Clincher
Wheelset [Maker]
Fulcrum
Wheelset [Model]
Rapid Red 900
Product code
1930029 / 54294917972314
Size Guide
—46.550535558
Rider Height (cm)163-168169-174175-181182-188189-195
Seat Tube (ctr-top)465488518538568
Seat Tube (ctr-ctr)-----
Effective Top Tube525525545560590
Actual Top Tube -----
Seat Angle (°)747473.773.472.5
Head Tube Angle (°)71.471.472.572.873.5
Head Tube Length130130149168215
Fork Rake5050505050
Chainstay Length412412412412412
Wheelbase-----
Stack531531553572615
Reach370370382389397
Pinarello Nytro eRoad Bike Size Guide

All measurements in mm unless otherwise stated.
