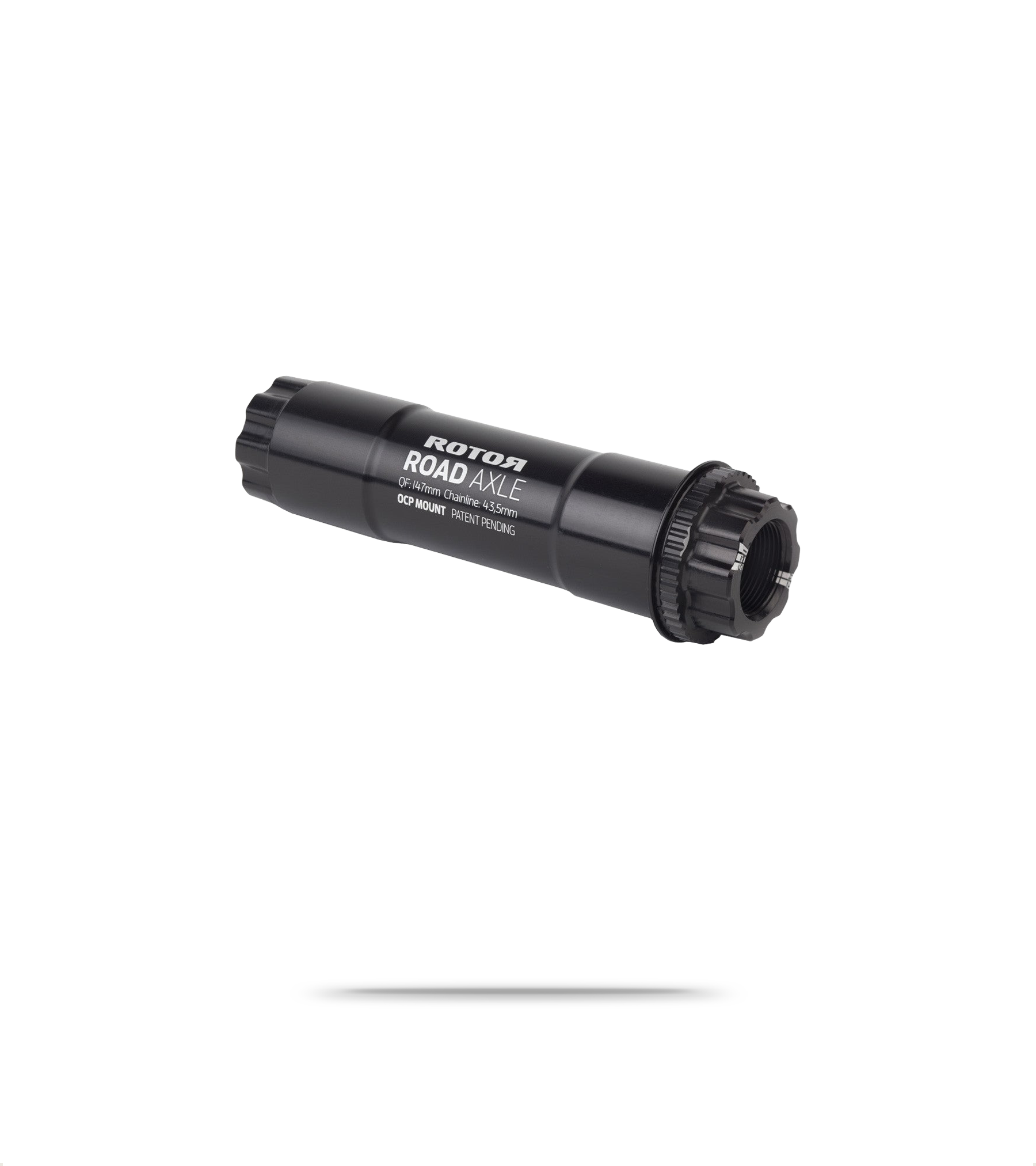

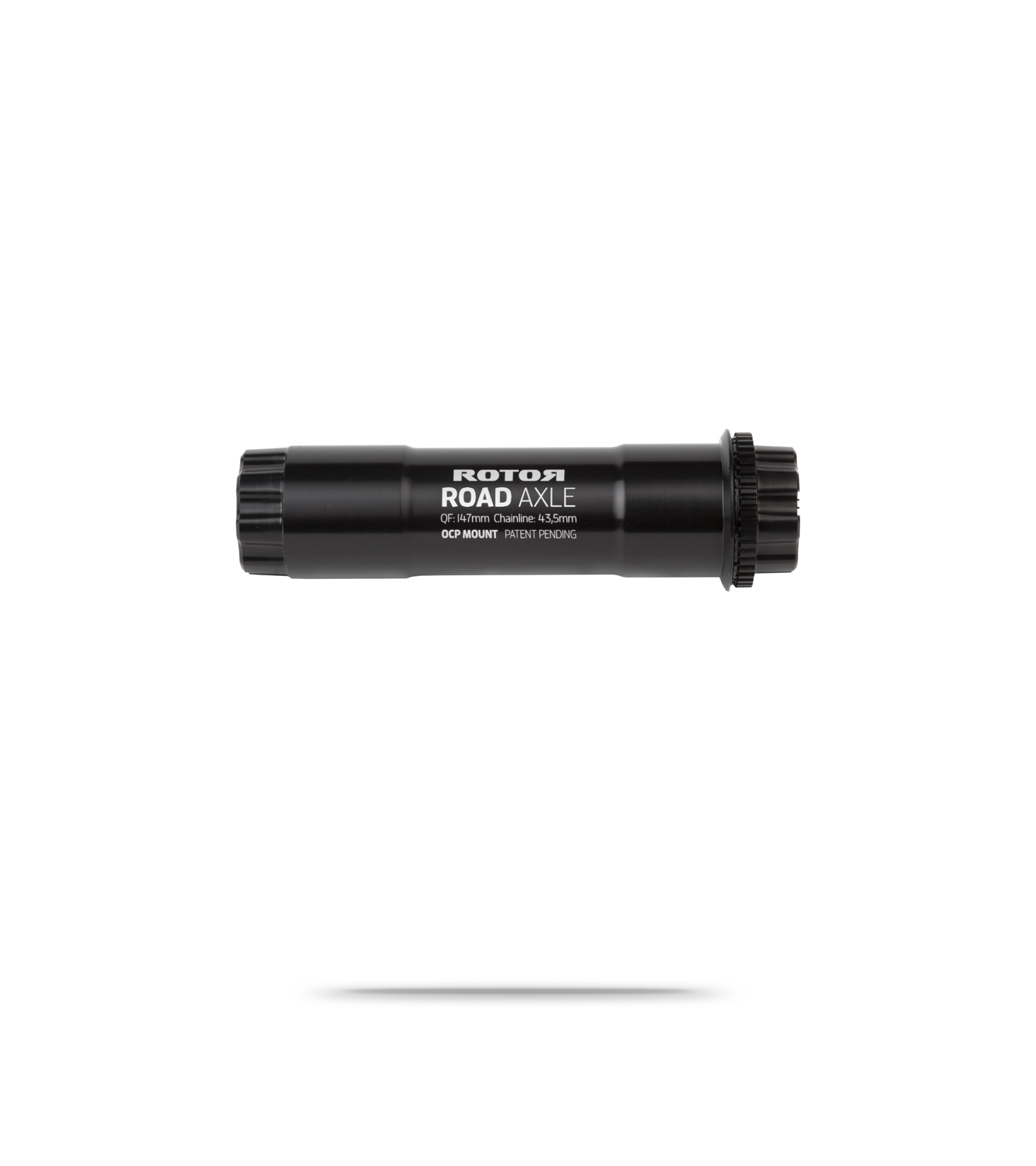

##Rotor ALDHU Road Axle
The innovative new ALDHU 3D+ crankset from Rotor is a modular system, making it easy to customise the setup for you and your bike. Named after Rotor's racing heritage and an abbreviation of Alpe d'Huez, it represents and commemorates Rotor's first iconic victory with Carlos Sastre at the Tour de France.
This ALDHU Road Axle connects the cranks and completes the ALDHU system, which is Rotor's lightest to date. With a 30mm diameter spindle and a 147mm Q-factor, this axle is compatible with most bottom bracket standards and is suitable for rim brake road bikes.
**Bottom bracket compatibility:** BB30 / BB386 / BB86 / PRESS FIT 30 / PRESS FIT 4130 / PRESS FIT 4630
Features
- Suitable for rim brake road bikes
- Axle width: 30mm
- Axle material: Aluminium 7075
- Q-factor: 147mm
- Chainline: 43.5mm
- Bottom bracket compatibility: BB30 / BB386 / BB86 / PRESS FIT 30 / PRESS FIT 4130 / PRESS FIT 4630
- Weight: 96 grams
Specifications
- Discipline Compatibility
- Road
- Spindle Interface
- 30mm
- Crank [Maker]
- Rotor
- Crank [Model]
- ALDHU Road
- Family
- ALDHU
- Intended Use
- Performance
- Product code
- 802455 / 54306942222682
Reviews
5
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
2 questions answered
Hi I know this is a slim chance but will this axle fit the older Rotor 3d+ cranks/spider?
Hi there, No this will not work with the 3d+ crank system, Many thanks Joe W
Will this work with a English threaded BB?
Hello, I can confirm that you would require a BSA30 bottom bracket to fit this spindle into an English threaded frame. Many Thanks Liam
