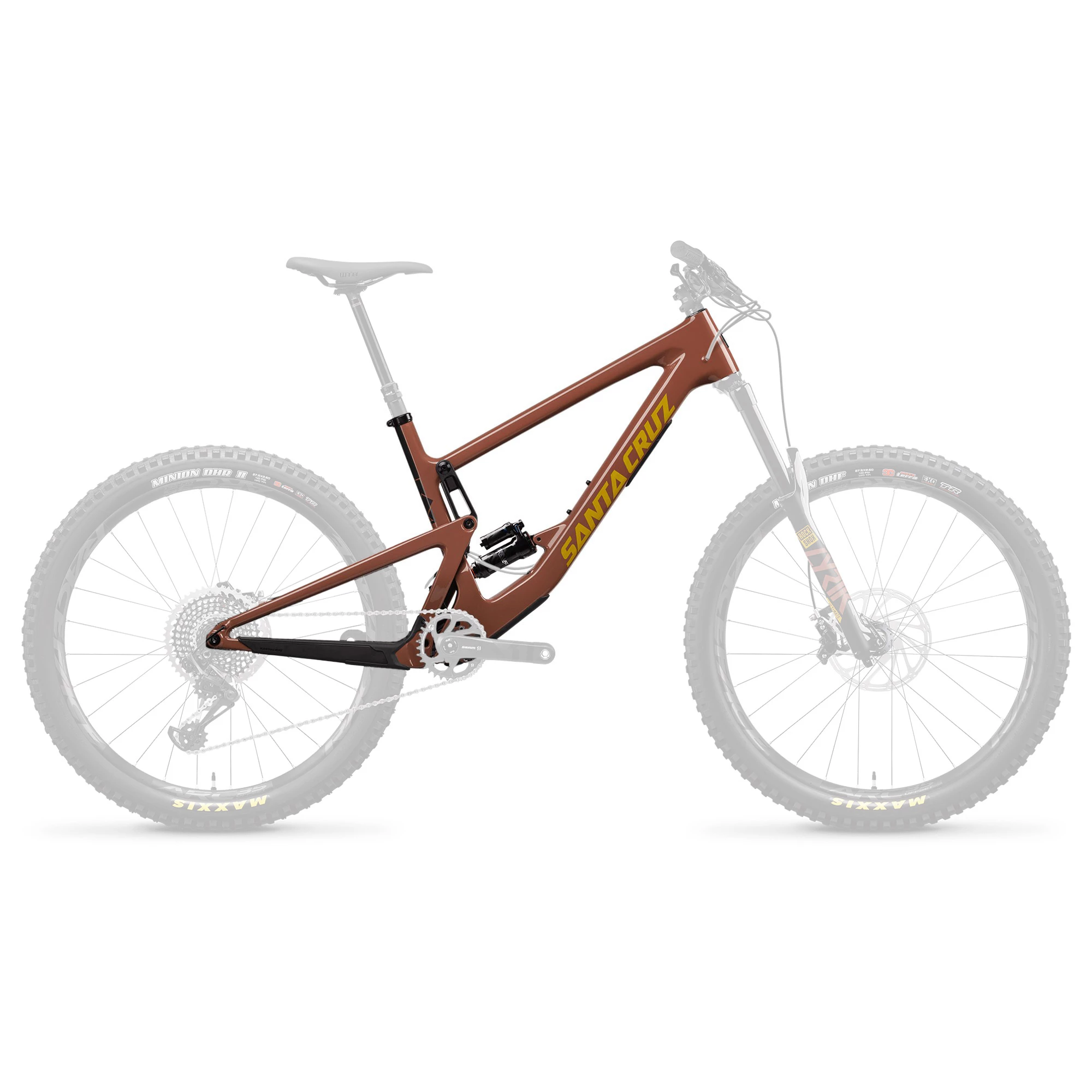

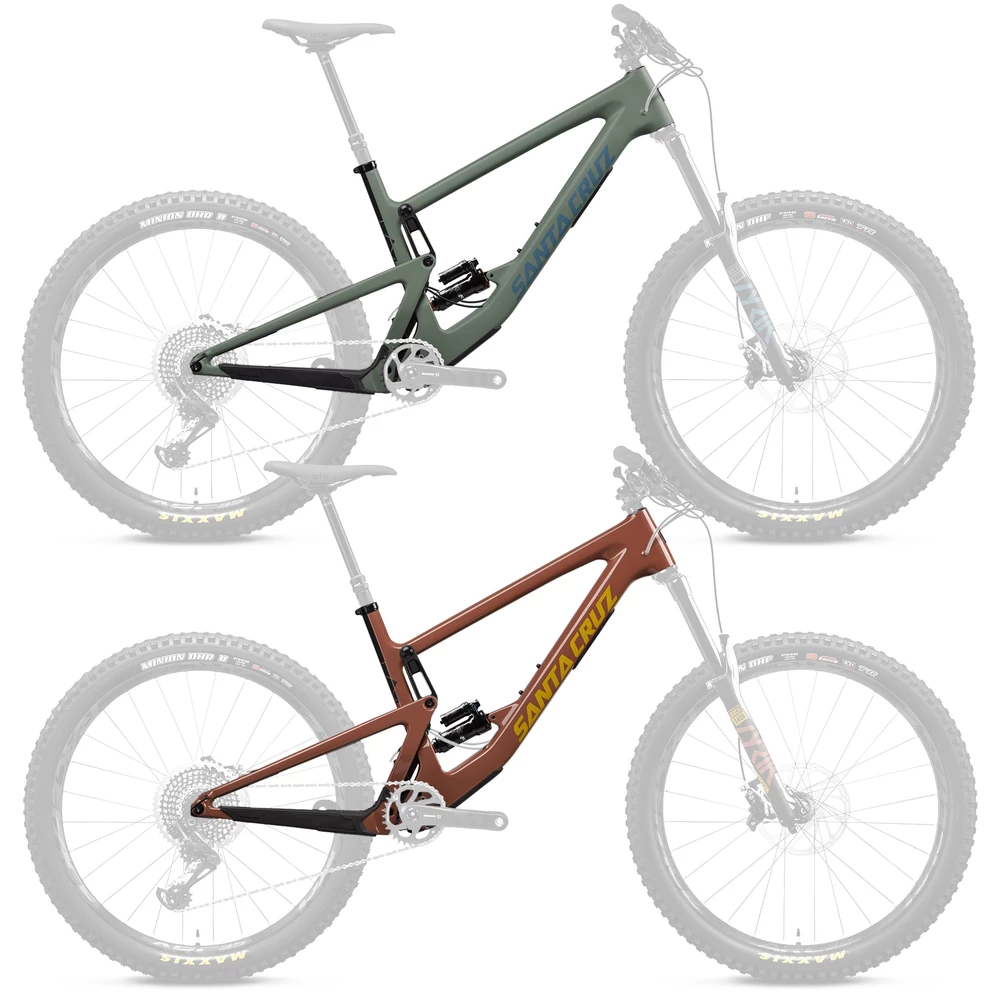

Santa Cruz Bronson Carbon CC 3 Mountain Bike Frame 2021
The Santa Cruz Bronson Carbon CC Mountain Bike Frame is a versatile trail chassis that is ready for any terrain. Balancing agility with stability, it’s the perfect off-road companion with which to unravel technical trails, attack jump lines and flow down root and rock-strewn descents on. The frame components all feature the highest grade of carbon from the Santa Cruz stable. Laid in a specific pattern within each tube, this composite configuration offers an exact amount of stiffness, resilience and compliance to result in a spritely and reactive but comfortable and accurate ride. The one-piece swing arm partners the main frame triangle and they are mounted together via a VPP lower-link setup and RockShox dampening unit. This configuration affords a progressive style of impact management, consistent mid-stroke support and accurate rear wheel tracking to grant snappy handling, efficient pedalling and heightened trail traction and precision. These positive ride traits can then be altered via the Flip Chip that is positioned neatly and discreetly in the rear linkage. This unit allows the rider to fine-tune the bottom bracket height, bottom-out resistance and shock rate in line with the forthcoming trail conditions for an ultimately personalised ride experience.
Wheel compatibility with either 27.5+ or 27.5” wheelsets and their corresponding different tyre widths presents even more versatility before bottle cage bolts inside the mainframe, a down tube protector and chainstay guard complete a thorough, multifaceted trail adventurer.
Highlights
- A multifaceted 27.5” or 27.5+ trail frameset suitable for any terrain of any severity thanks to a strong and resilient full carbon frame and big-hitting, plush suspension
- Santa Cruz CC Carbon full suspension frame with VPP lower-link mounted shock design
- RockShox Super Deluxe RCT shock, 150mm travel
- Flip Chip technology: The user-adjustable feature allows the rear suspension to be adjusted depending on the terrain to be faced
Technical Specification
Frame | Santa Cruz CC Carbon | One-piece swingarm | VPP lower-link mounted shock design | Flip Chip unit in the lower link |
Fork Compatibility | 150-170mm |
Rear Shock | RockShox Super Deluxe RCT rear shock, 150mm travel |
Wheel size compatibility | 27.5+ or 27.5” |
Tyre clearance | Up to 2.8” |
Recommended headset | IS41/52 Integrated (SHIS name |
Seatpost diameter compatibility | 31.6mm |
Eye to Eye length | 210mm |
Stroke | 55mm |
Thru-axle | 12mm rear x 148 boost |
Bottom bracket shell | Threaded BSA 73mm |
Max Chainring Size | 36t |
Brake Types | Post Mount |
Shock Mounting Bushing Front | 20x8 |
Shock Mounting Bushing Rear | 30x8 |
Chainguide compatibility | Yes |
Changeable rear derailleur hanger | Yes |
Refined cable routing for better shifting performance, simpler installation, and no cable rub | |
Shuttle guard | |
Downtube protector | Shock guard | Ribbed chainstay protector | |
Water bottle mounts inside the main frame. | |
Included in delivery | Frame including RockShox Super Deluxe RCT shock, 12mm thru-axle and seat clamp |
Manufacturer Claimed Weight | 2kg, size M |
