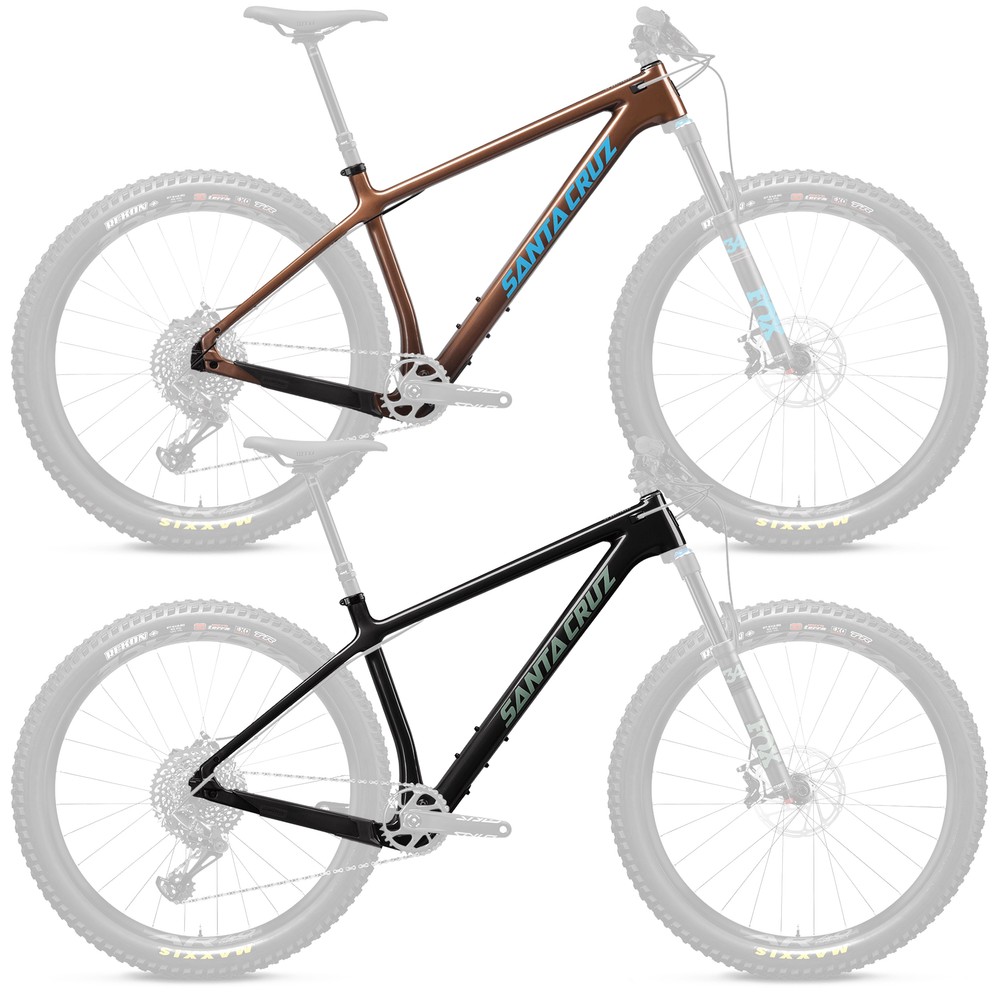

Santa Cruz Chameleon Carbon C 27.5+ Mountain Bike Frame 2020
An evolution of a design classic, the Santa Cruz Chameleon Carbon C 27.5+ Mountain Bike Frame adds a full carbon construction to the already fun-loving and versatile traits of previous iterations. The result is a chassis set for thundering down jump lines, bike-packing adventures and everything in-between.
The full carbon frame draws on all of Santa Cruz’s composite design knowhow to manipulate the material lay-up via a specific pattern to afford strength, efficiency and compliance. The resulting ride features snappy handling, trail resilience and natural comfort for sinuous singletrack and rock-strewn downhills alike. Configured for use with 27.5+ wheelsets the tyre clearance of the frame goes all the way up to 3-inches granting maximum grip across the loosest of terrain. Alternative, aftermarket dropouts are also available to facilitate the use of 29” wheels or a single-speed setup thus increasing the versatility of the Chameleon even further.
An ultimately inspirational chassis is then completed with bottle cage mounts inside the main triangle and a triple mount under the downtube for cargo carrying duties on multi-day expeditions.
Highlights
- A do-it-all, versatile 27.5+ hardtail for aggressive trail riding, jump lines, bike-packing and anything in-between
- Full Santa Cruz carbon hardtail frame is light, efficient and strong
- Suited to 130mm travel front suspension forks
- Threaded bottom bracket for convenience and ease of maintenance
- Bottle cage mounts inside the main triangle and a triple cargo mount under the downtube
- Neat, internal cable routing
- The Dropouts supplied are for 27.5+ wheels and a gear configuration but aftermarket dropout options are available to allow the use of 29" wheels or a singlespeed setup
Technical Specification
Frame | Santa Cruz Carbon C |
Fork Compatibility | 120-140mm |
Wheel Size Compatibility | 27.5+ (29-inch with aftermarket dropouts) |
Tyre Clearance | Up to 3” |
Recommended Headset | IS41/52 Integrated (SHIS name |
Seatpost Diameter Compatibility | 31.6mm |
Thru-axle | 12mm rear x 148 boost |
Bottom Bracket Shell | Threaded BSA 73mm |
Maximum Chainring Size | 34t |
Brake Types | 160mm Post Mount |
Chainguide Compatibility | Yes |
Changeable Rear Derailleur hanger | Yes |
Refined cable routing for better shifting performance, simpler installation, and no cable rub | |
Shuttle guard | |
Downtube protector | Shock guard | Ribbed chainstay protector | |
Water bottle mounts inside the main frame | |
Included in delivery | Frame, 12mm thru-axle and seat clamp |
Manufacturer Claimed Weight | 1.7kg, size M |
