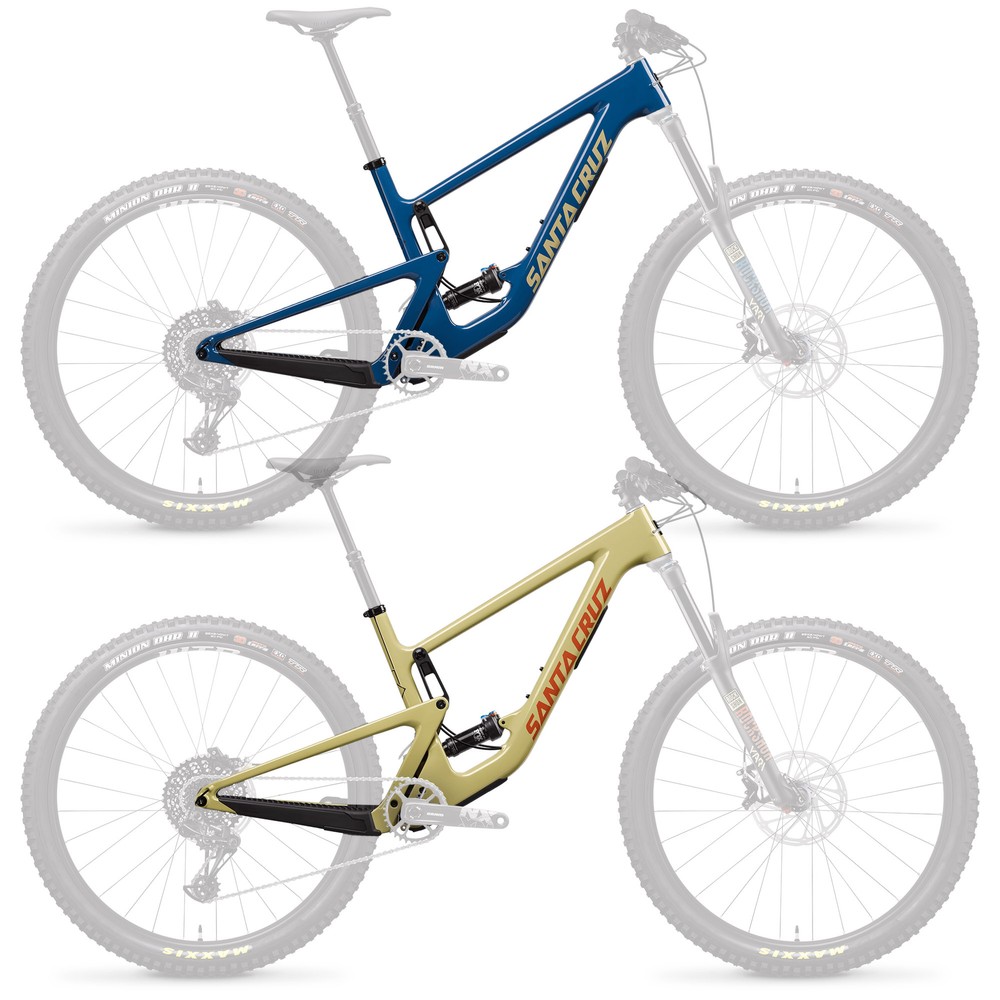

Santa Cruz Hightower Carbon CC Mountain Bike Frameset 2020

★★★★★ ★★★★★
(0)
£3,299.00

From only £82.48 per month

0% APR Representative. T&Cs Apply.

Select a colour and size to view stock availability

Find My Size
Santa Cruz
Hightower Carbon CC Mountain Bike Frameset 2020

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1199084

Santa Cruz Hightower Carbon CC 2 Mountain Bike Frameset 2020

The Santa Cruz Hightower Carbon CC mountain bike frameset is the brands most versatile chassis suitable for absolutely any style, intensity and severity of trail riding. The Hightower is more manoeuvrable and nimble that its longer travel siblings but has ample resilience and cushioning to accommodate the biggest of hits over chunky, unforgiving terrain.

The frame is constructed from Santa Cruz’s highest grade of carbon that is laid within a stringent pattern to perfectly balance weight and lateral rigidity. Exuding a ride experience that tracks well and is super reactive to all rider input this main chassis is then complemented by its one-piece, VPP lower-link-mounted rear suspension unit and integrated RockShox dampener. This configuration has been designed specifically to mop up impacts in an ultimately progressive manner but also to increase rear wheel tracking and ensure maximum pedalling efficiency.

The rider can then manipulate these already refined ride characteristics via a Flip Chip that is positioned neatly within the rear linkage. This small component adjusts the bottom bracket height and rear shock behaviour to grant a completely tunable ride experience based on the forthcoming trails.

Designed primarily around larger 29-inch wheels the Hightowers versatility is crowned by extra compatibility with 27.5-inch wheelsets should either rider preference or trail conditions dictate a swap.

This comprehensive off-road fuselage is completed with a threaded bottom bracket for convenience, water bottle mounts inside the main triangle and refined cable routing for enhanced aesthetics and ease of maintenance.

Highlights

  • A tremendously versatile 29er trail frame with full suspension for any kind of off-road riding. Nimble for sinuous downhill, hardy for the roughest of terrain and responsive for snappy climbing.
  • Santa Cruz CC carbon full suspension frame with VPP lower-link mounted shock design
  • RockShox Super Deluxe Ultimate rear shock, 140mm travel
  • Flip Chip technology: A user-adjustable feature allows the rear suspension to be adjusted depending on the terrain to be faced
  • Can also be used with 27.5+ wheels (with certain setup requirements)
  • Threaded bottom bracket for convenience and ease of maintenance

Technical Specification

Frame Santa Cruz CC Carbon | One-piece swingarm | VPP lower-link mounted shock design | Flip Chip units in the lower link
Fork Compatibility 150-170mm
Rear Shock RockShox Super Deluxe Ultimate rear shock, 140mm travel
Wheel size compatibility 29” (27.5-inch with Hi BB setting and 160mm travel fork)
Tyre clearance Up to 2.4” (2.8” with 27.5” wheels)
Recommended headset IS41/52 Integrated (SHIS name
Seatpost diameter compatibility 31.6mm
Eye to Eye length 210mm
Stroke 52.5mm
Thru-axle 12mm rear x 148 boost
Bottom bracket shell Threaded BSA 73mm
Max Chainring Size 36t
Chainline Spec Boost
Brake Types 180mm Post Mount
Shock Mounting Bushing Front 20x8
Shock Mounting Bushing Rear 30x8
Chainguide compatibility Yes
Changeable rear derailleur hanger Yes
Refined cable routing for better shifting performance, simpler installation, and no cable rub
Shuttle guard
Downtube protector | Shock guard | Ribbed chainstay protector
Water bottle mounts inside the main frame.
Included in delivery Frame including RockShox Super Deluxe Ultimate shock, 12mm thru-axle and seat clamp
Manufacturer Claimed Weight 2kg, size M

Santa Cruz Hightower Carbon CC Mountain Bike Frameset 2020 Sizing
