Product Details

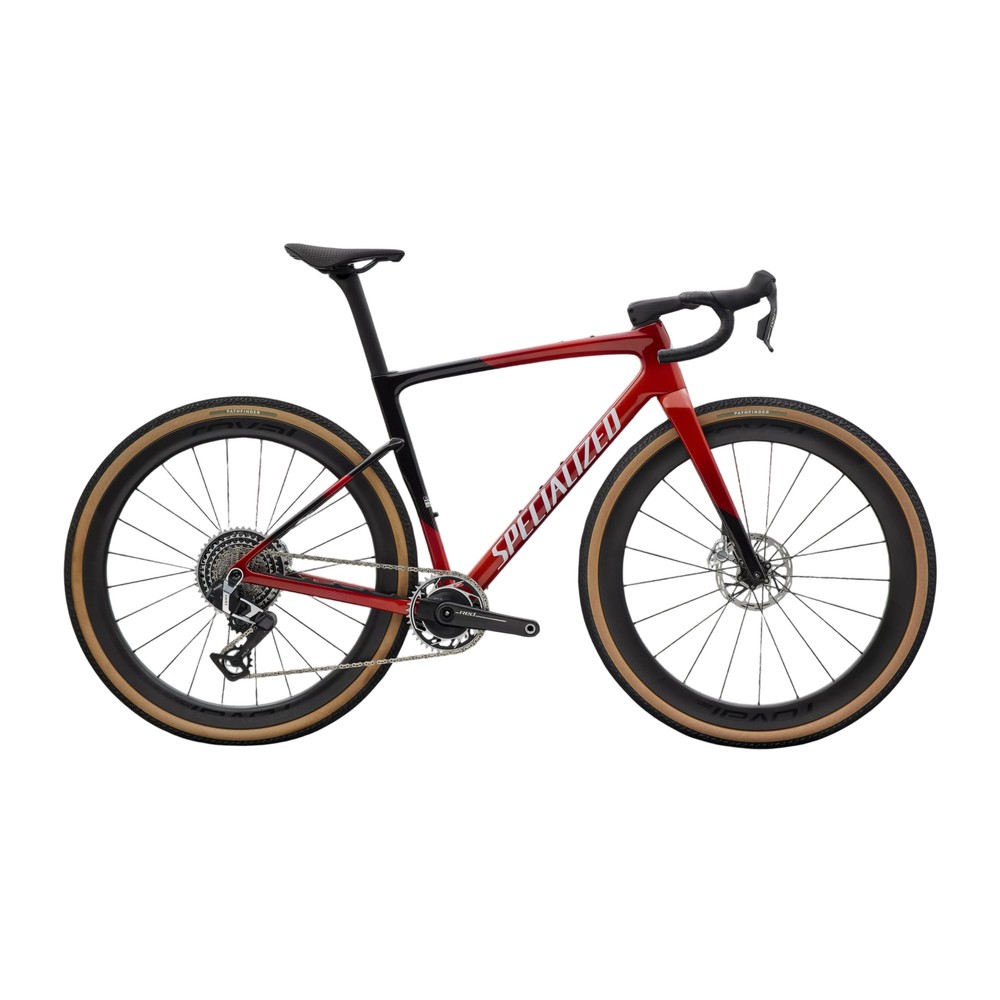

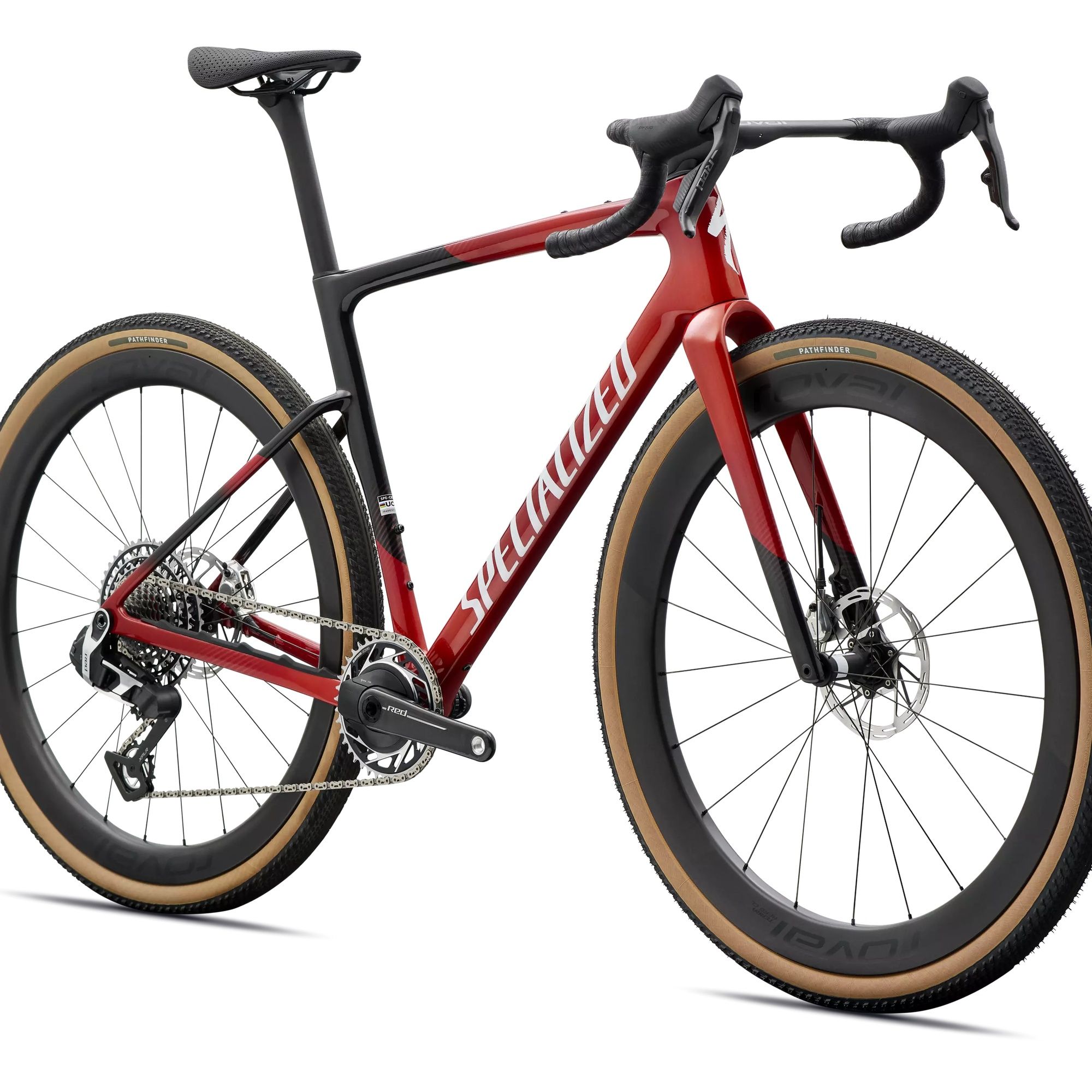

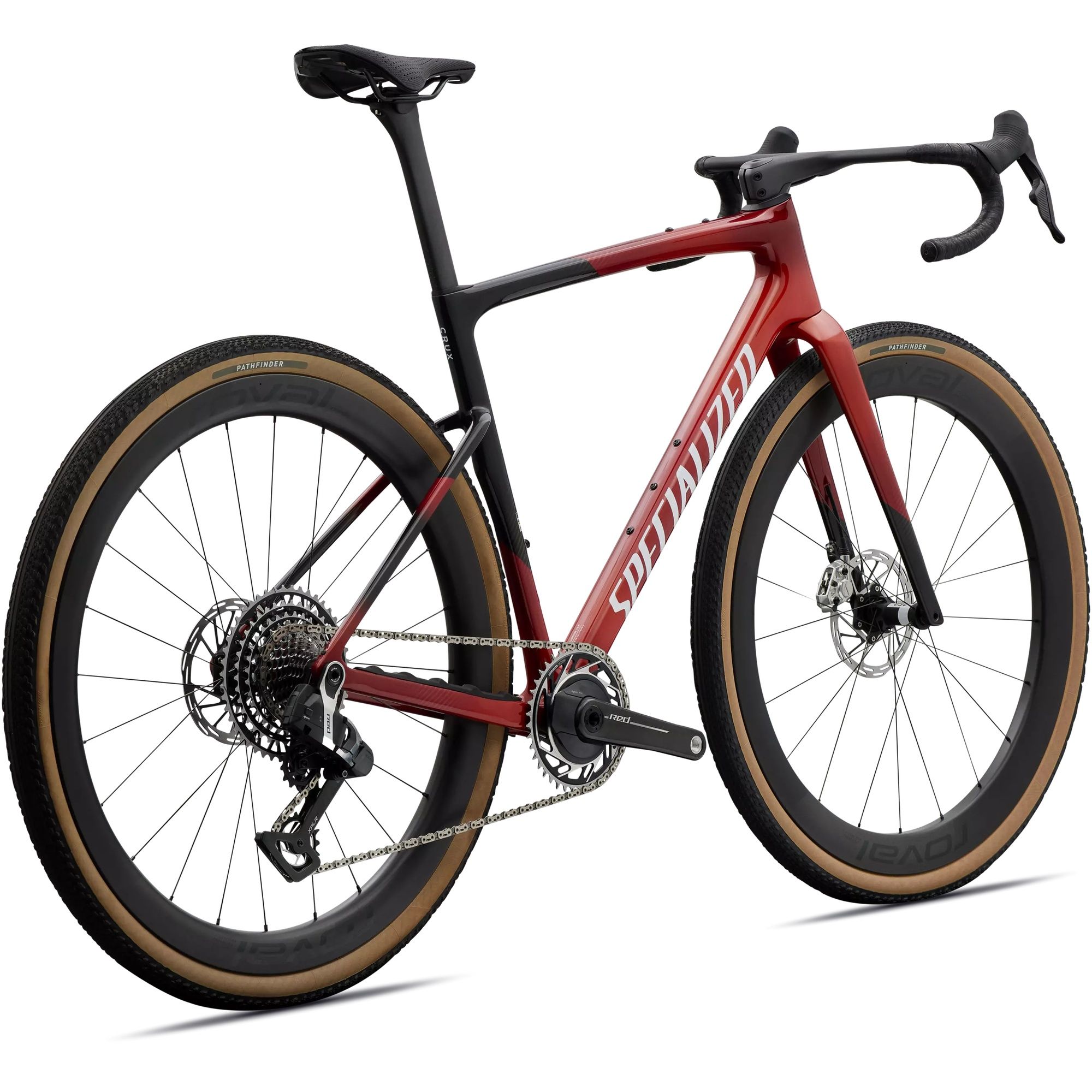

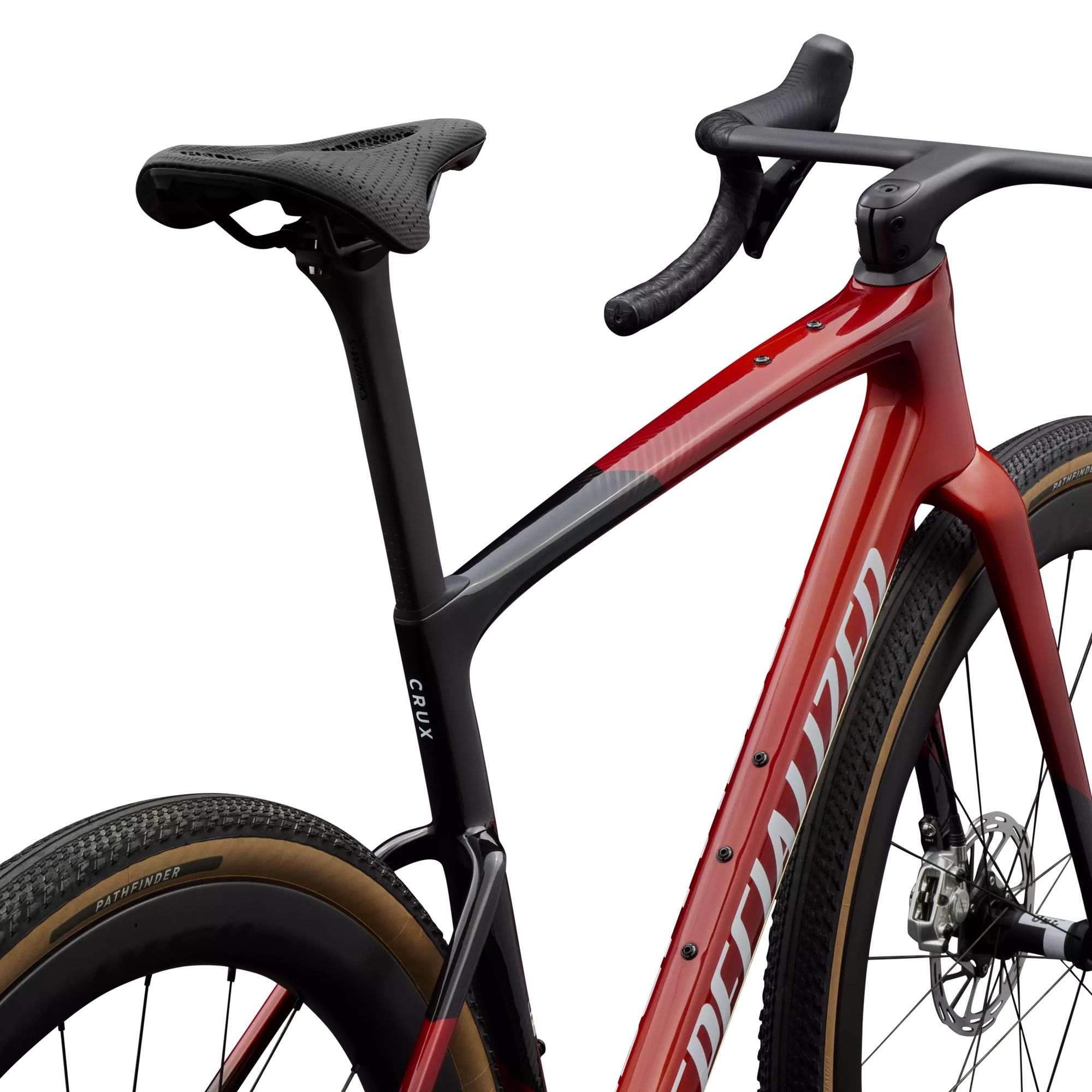

Specialized Crux 5 S-Level AXS Gravel Bike

The Crux 5 S-Level gravel bike is engineered for the competitive cyclist who seeks the perfect equilibrium between elite-tier performance and rugged durability. Utilising a FACT 10r carbon frame that tips the scales at 897 grams, this machine provides a remarkably stiff and responsive platform for explosive accelerations. At a total weight of 7.7 kilograms, it remains one of the lightest gravel bikes in its class, ensuring that every ounce of energy you expend is translated into upward momentum. This bike is built on the philosophy that true speed is found in the intersection of low mass and high efficiency, making it an ideal choice for riders who want to dominate long-distance events without the fragility of ultra-lightweight specialty builds.

Professional Aerodynamics and Integration

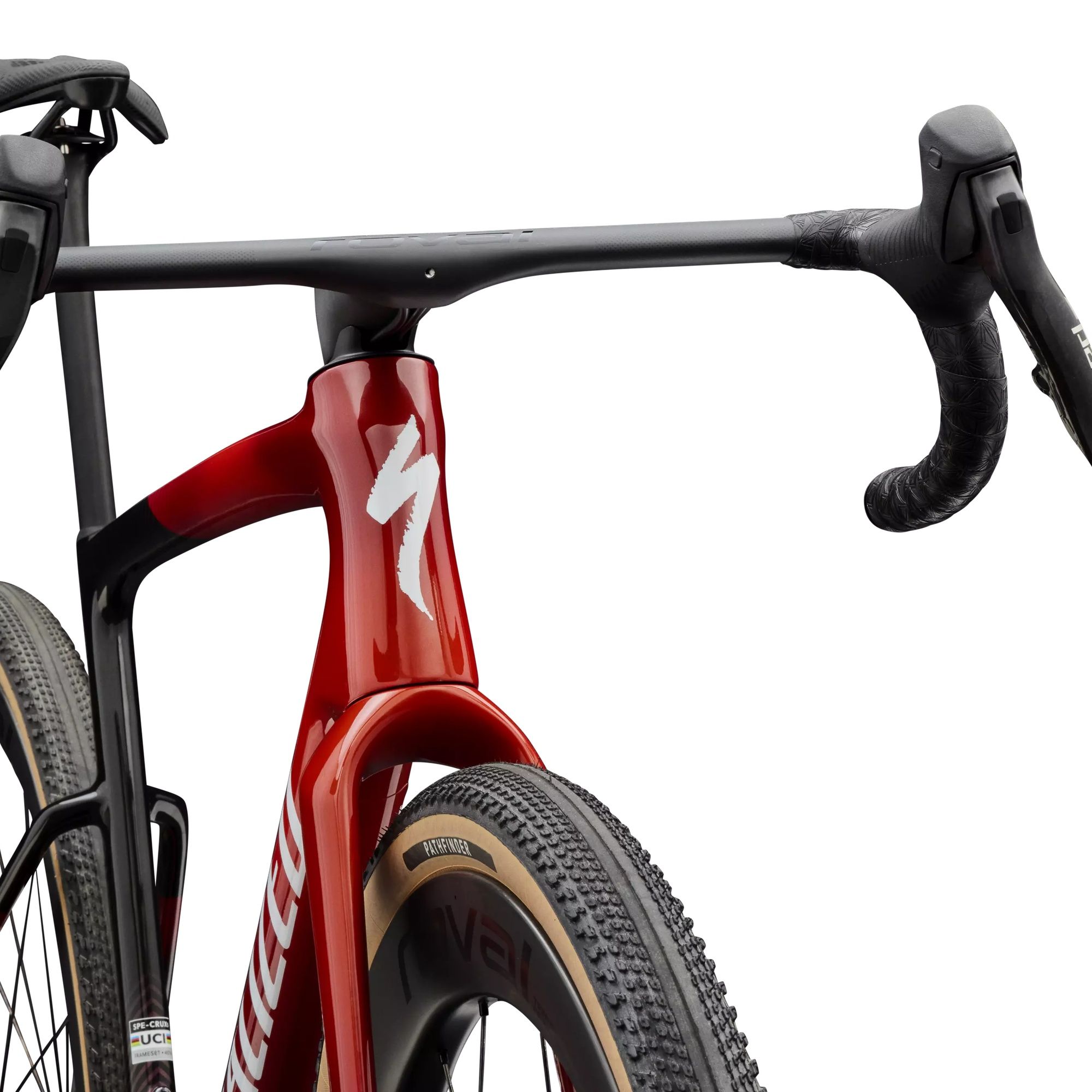

Despite its off-road pedigree, the Crux 5 S-Level borrows heavily from world-class road technology to minimise drag across varied terrain. The inclusion of the Roval Terra integrated cockpit ensures a clean frontal profile, tucking cables away from the wind and providing a streamlined aesthetic that matches its performance. Paired with Roval Terra CL wheels, the bike maintains exceptional stability in crosswinds while offering the aerodynamic benefits necessary to sustain high speeds on flat, exposed gravel sectors. These components work in unison to deliver a lower real-world time to finish, validated by professional riders who require a bike that stays fast even when the course gets grueling.

Precision Shifting and Refined Handling

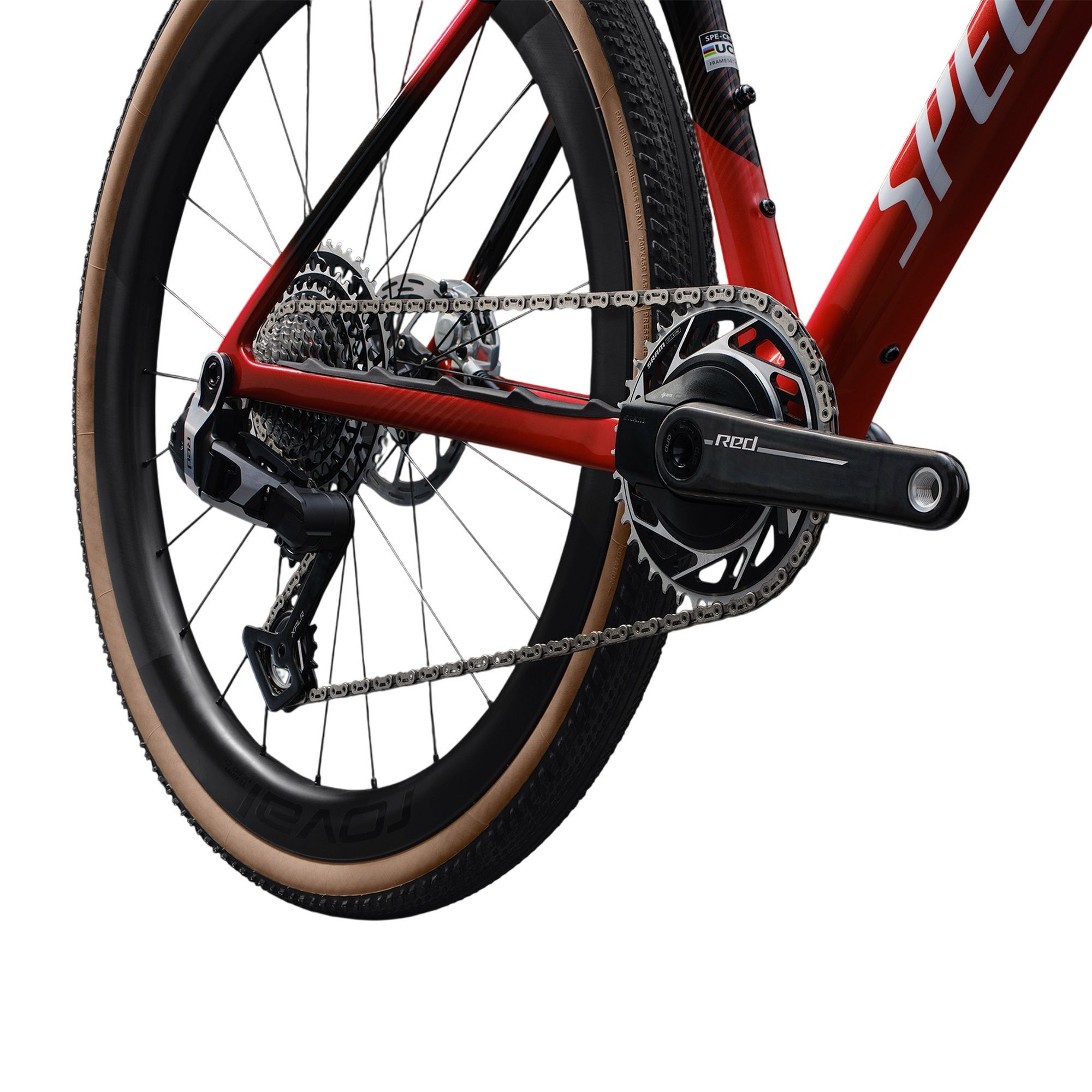

Equipped with the top-tier SRAM RED XPLR drivetrain, the Crux 5 S-Level offers a premium shifting experience that is both wireless and instantaneous. The wide-range gearing is specifically optimised for gravel racing, allowing you to find the perfect cadence whether you are navigating a technical climb or sprinting for the finish line. The handling is designed to be intuitive and sharp, mimicking the legendary Tarmac to ensure you can carve through corners with total confidence. By combining this surgical precision with high-performance componentry, the S-Level provides a race-ready package that handles the transition from smooth gravel to chunky trails with unparalleled poise.

Features

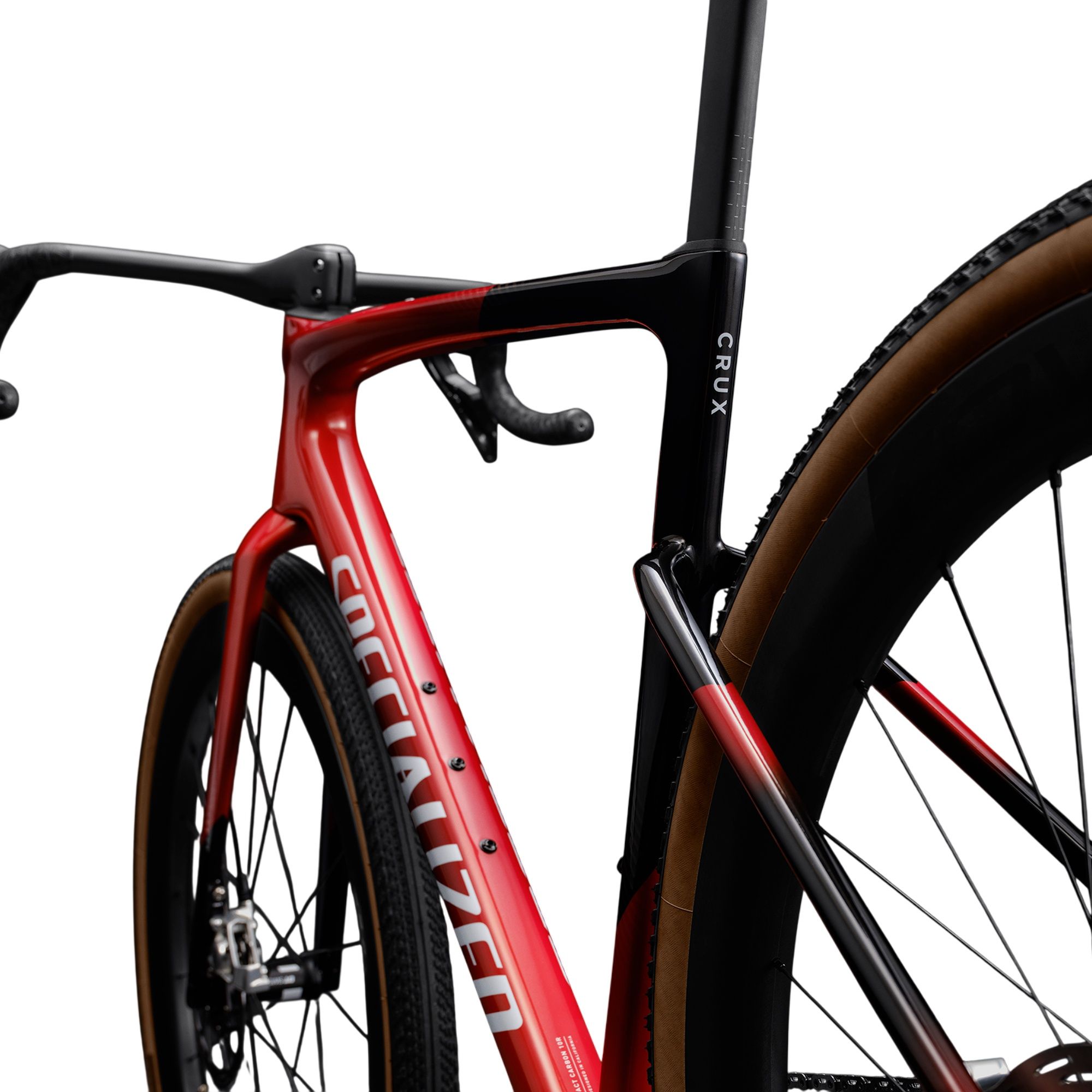

  • Frame: Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
  • Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
  • Tape: Supacaz Super Sticky Kush

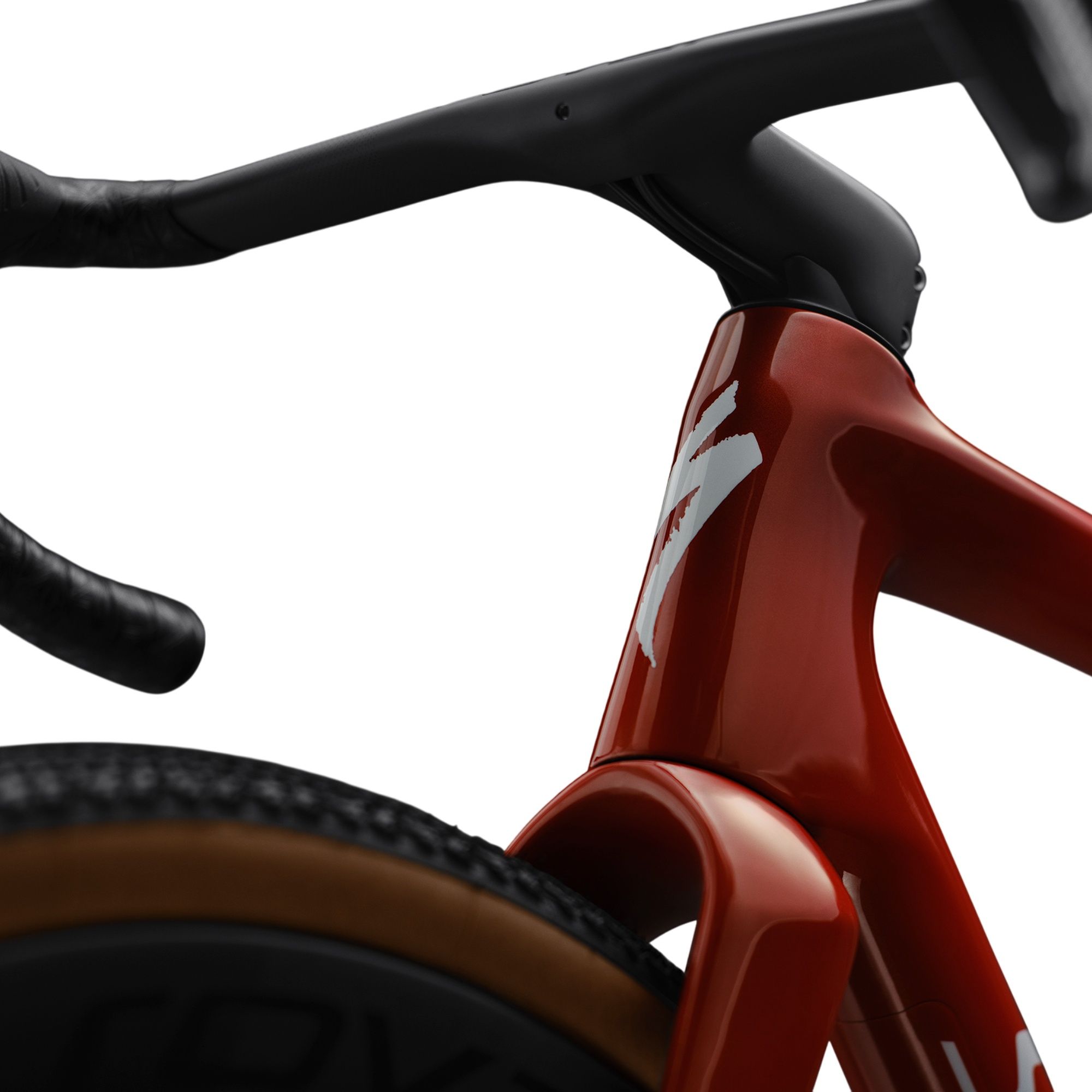

  • Handlebar/Stem: Roval Terra Cockpit, Integrated Bar/Stem
  • Front Brake: SRAM RED E1, hydraulic disc
  • Rear Brake: SRAM RED E1, hydraulic disc
  • Rear Derailleur: SRAM RED AXS XPLR E1, 13-speed
  • Shift Levers: SRAM RED AXS E1, hydraulic disc
  • Cassette: SRAM RED XPLR E1, 13-speed, 10-46t
  • Crankset: SRAM RED XPLR E1, Quarq power meter, 40t
  • Bottom Bracket: SRAM DUB BSA 68 Wide
  • Chain: SRAM RED E1
  • Front Wheel: Roval Terra Aero CL, 27mm internal width, tubeless ready, 50mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes
  • Rear Wheel: Roval Terra Aero CL, 27mm internal width, tubeless ready, 45mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Competition spokes

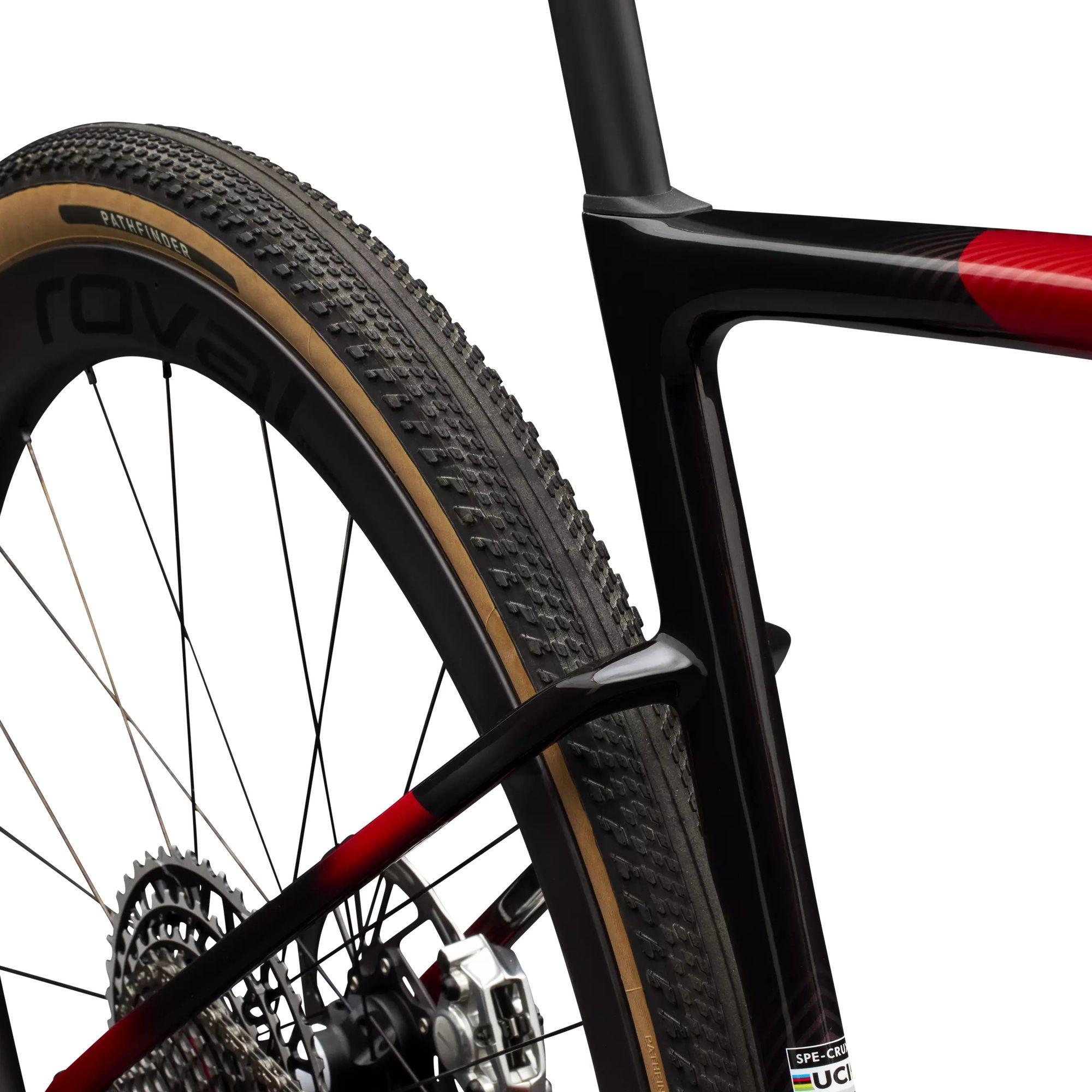

  • Front Tyre: Pathfinder 700x45, Tubeless Ready
  • Rear Tyre: Pathfinder 700x45, Tubeless Ready
  • Inner Tubes: 700x32x50mm, 60mm Presta valve
  • Seat Post; S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp
  • Seat Binder: Integrated Wedge
  • Saddle: Power Pro Mirror, Hollow Ti rails
  • Weight: 7.7 kg (Size: 56)
Specifications
Model
Crux 5 S-Level AXS
Bottom Bracket [Maker]
CeramicSpeed
Bottom Bracket Standard
BSA
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
RED E1
Cassette [Gearing]
10-46
Cassette [Maker]
SRAM
Cassette [Model]
RED XPLR E1
Chain [Maker]
SRAM
Chain [Model]
RED E1
Chainring [Gearing]
40
Crank [Maker]
SRAM
Crank [Model]
RED XPLR E1
Discipline Compatibility
Gravel
E-Bike
No
F Hub [Maker]
DT Swiss
F Hub [Model]
DT 350
Family
Crux
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
12x100mm Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Specialized
Fork [Material]
Carbon
Fork [Model]
S-Works FACT Carbon
Fork [Travel]
0 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
45c mm
Frame [Travel]
0 mm
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Roval
Handlebar [Material]
Carbon
Handlebar [Shape]
Drop
Power Meter [Maker]
Quarq
Power Meter [Model]
Quarq (integrated in SRAM RED XPLR E1 crankset)
R Hub [Maker]
DT Swiss
R Hub [Model]
DT 350
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
Red AXS XPLR E1
Saddle [3D Printed]
Yes
Saddle [Maker]
Specialized
Saddle [Material]
Carbon
Seatpost [Kind]
Rigid
Seatpost [Maker]
Specialized
Seatpost [Material]
Carbon
Seatpost [Offset]
15 mm
Shifters [Maker]
SRAM
Shifters [Model]
Red AXS E1
Shifting
Electronic
Stem [Maker]
Roval
Stem [Material]
Carbon
Sub Family
Crux 5
Suspension Configuration
Rigid
Tires [Maker]
Specialized
Tires [Width]
45 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
27 mm
Wheelset [Maker]
Roval
Wheelset [Material]
Carbon
Wheelset [Model]
Terra Aero CL
