Trek Checkpoint SL 7 AXS Gravel Bike 2025
If you're eager to explore further and push the boundaries of your rides, the Checkpoint SL 7 AXS Gen 3 is designed for you. This gravel bike is built for adventure, offering the road-smoothing benefits of IsoSpeed technology and essential upgrades like carbon wheels and SRAM's Force AXS D2 wireless drivetrain. Whether you're tackling rugged terrain or embarking on long-distance journeys, this bike is equipped to handle it all.
Trek Checkpoint SL 7 Frame & Components
The Checkpoint SL 7 AXS Gen 3 features a 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, and clearance for 50 mm tires. Its 12-speed SRAM Force XPLR AXS wireless drivetrain and hydraulic disc brakes deliver precise shifting and reliable stopping power. The bike also comes with Tubeless Ready Bontrager Aeolus Elite 35V wheels, a carbon seat post, and numerous mounts for gear, making it perfect for gravel adventures, bike-packing trips, and more. With its Gravel Endurance geometry and IsoSpeed comfort tech, this Trek bike ensures a comfortable and efficient ride, no matter how far you go.
Technical Specification
| Frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |

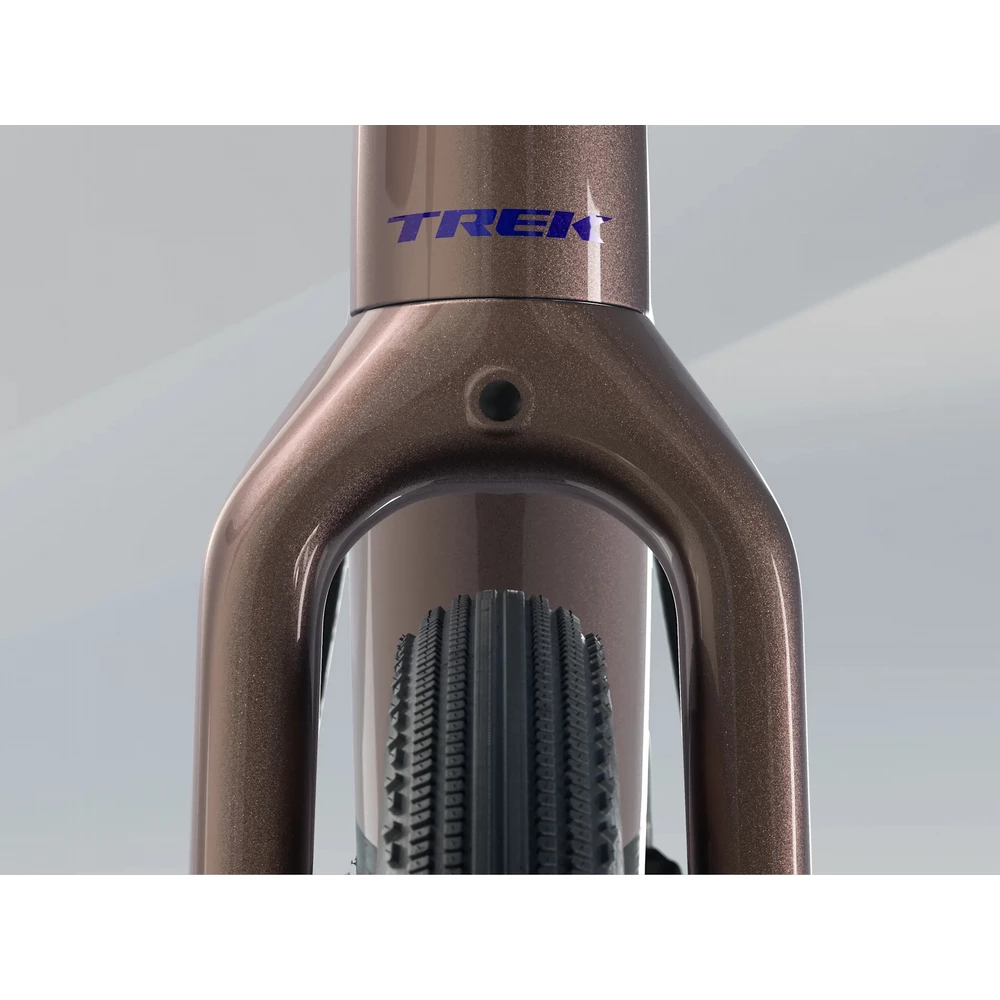

| Fork | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| Max compatible fork travel | 40mm (XS |
| Weight | ML - 9.00 kg / 19.85 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 125 kg (275 lb). |
| Battery | SRAM eTap battery pack (with charger) |
| Shifter | SRAM Force AXS D2, 12-speed |
| Rear derailleur | SRAM Force XPLR AXS D2, 44T max cog |
| Crank | SRAM Force 1 D2, 40T, DUB |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1271, 10-44, 12-speed |
| Max. chainring size | 1x |
| Wheel front | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle |
| Wheel rear | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | 50 mm without mudguards, 42 mm with mudguards |
| Saddle | Verse Short Elite, hollow magnesium rails |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar | Bontrager Pro Gravel |
| Handlebar tape | Bontrager Supertack Perf tape |
| Stem | Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree |
| Brake | SRAM Force AXS hydraulic disc |
| Brake rotor | SRAM CentreLine X, CentreLock, round edge, 160 mm |
| Rotor size | Max brake rotor sizes |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
Trek Checkpoint SL 7 AXS Gravel Bike 2025 Sizing
