Product Details

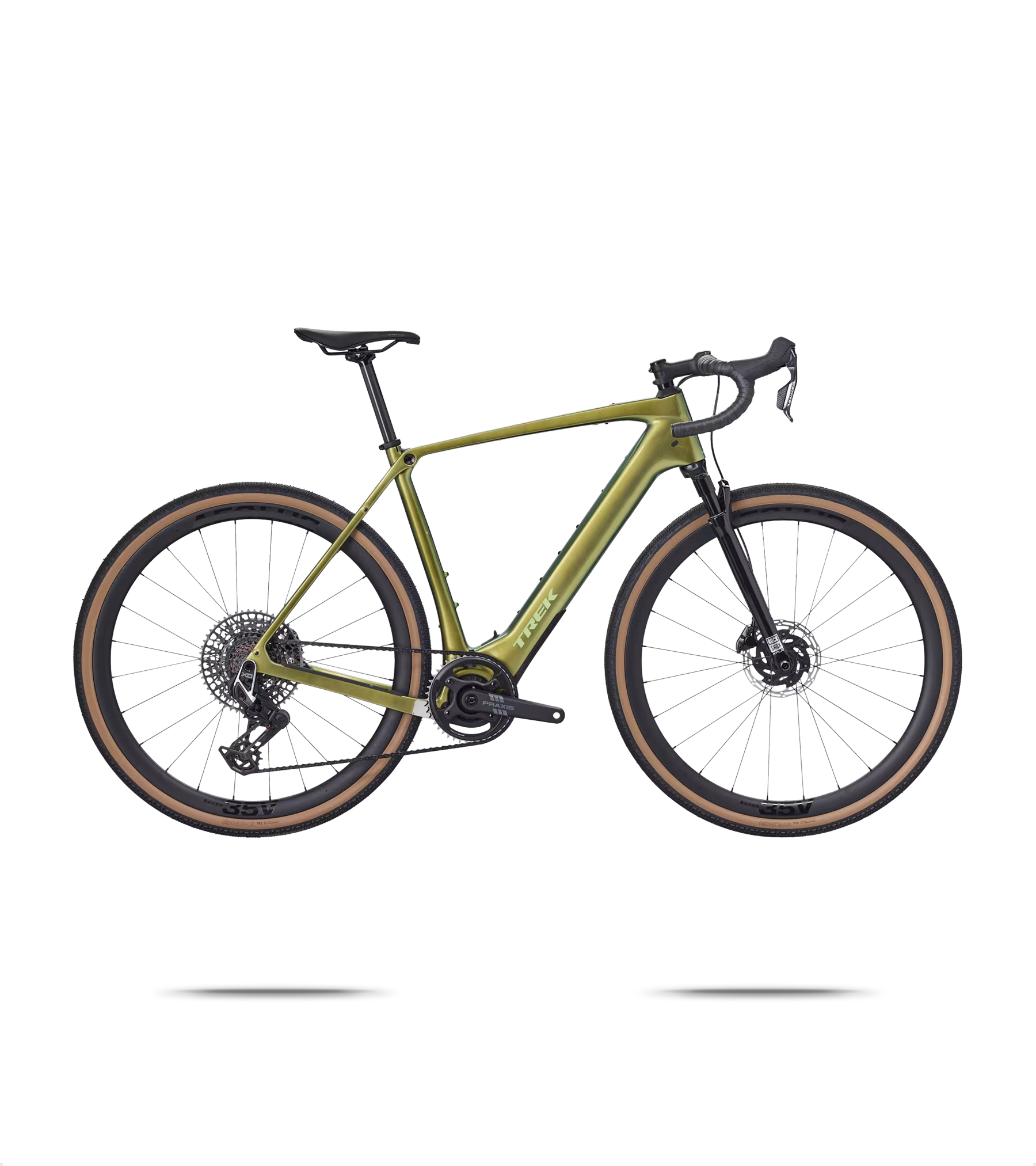

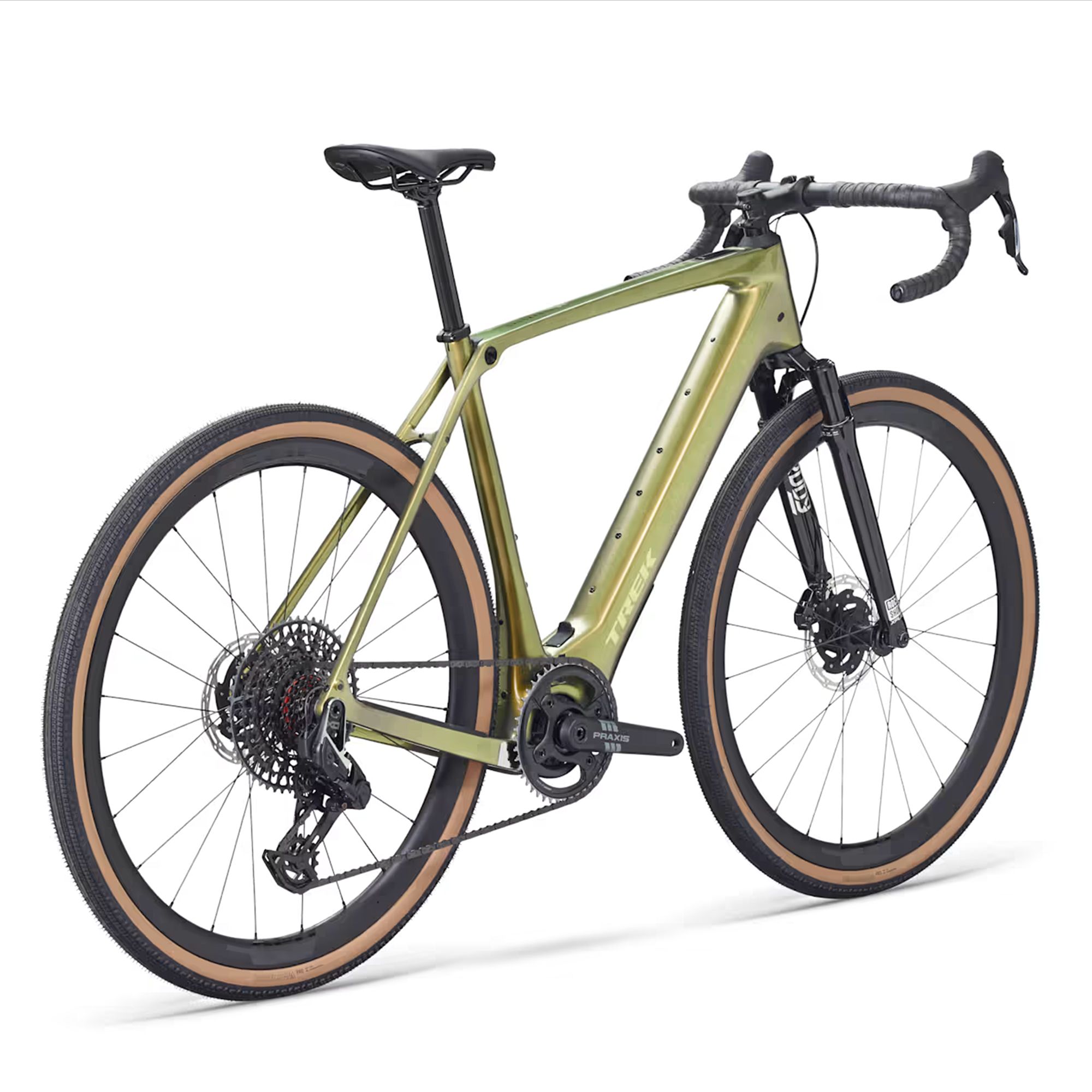

Trek Checkpoint+ SL 7 AXS Electric Gravel Bike

The Trek Checkpoint+ SL 7 AXS Electric Gravel Bike is a high-performance carbon e-gravel bike built for your most ambitious off-road adventures. Its lightweight OCLV Carbon frame is paired with the smooth, natural-feeling boost of the TQ HPR60 motor, helping you conquer longer distances and steeper climbs with ease.

Trek's smooth performance

A 40 mm RockShox Rudy XPLR suspension fork enhances control and comfort over rough terrain, while the SRAM Force AXS E1 13-speed wireless drivetrain ensures precise, effortless shifting. Bontrager Aeolus Elite 35V OCLV Carbon wheels and a carbon seatpost reduce road buzz and help keep the overall weight low, making this an ideal companion for riders pushing the boundaries of gravel exploration.

Features
  • Frame: 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

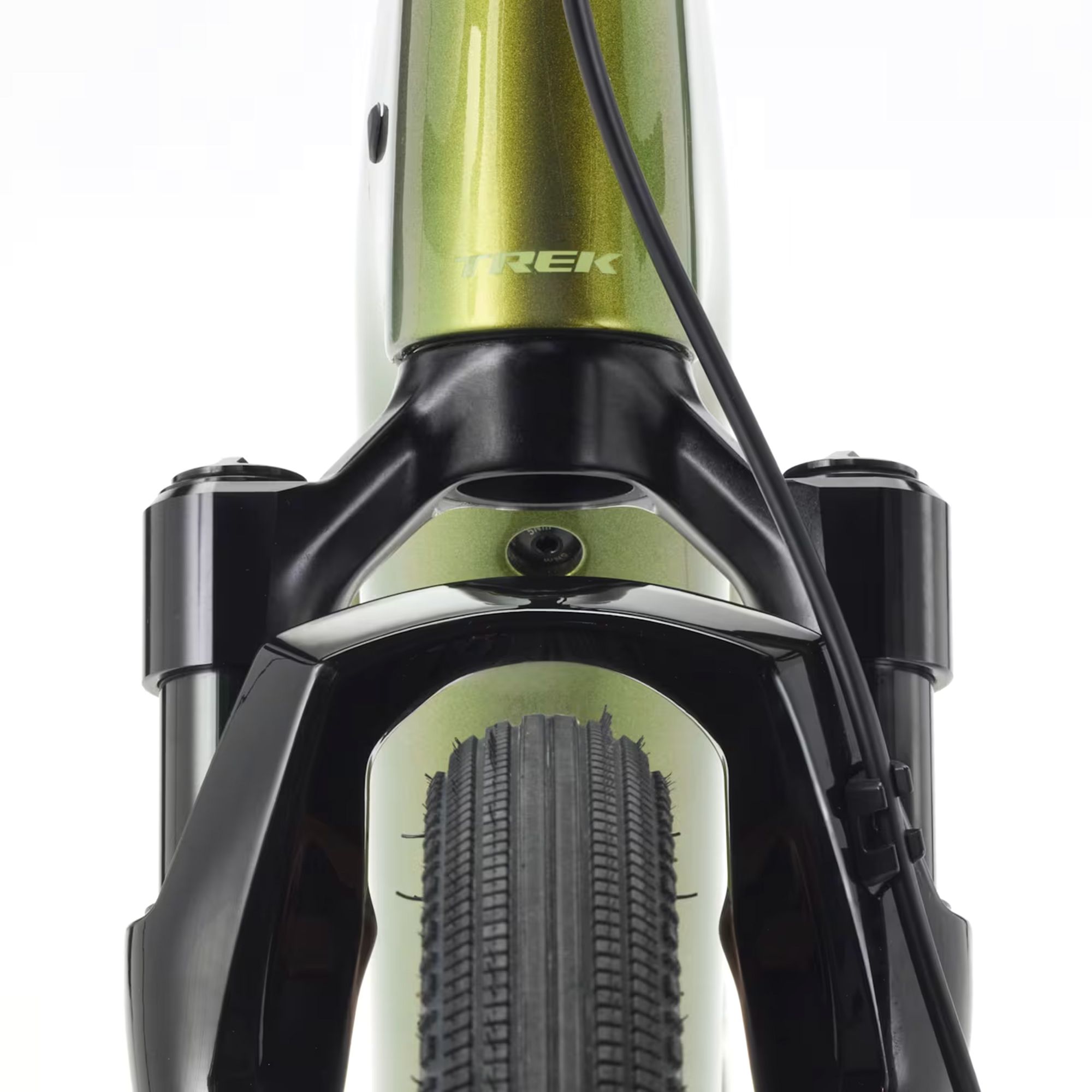

  • Fork: RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel
  • Max compatible fork travel: 40 mm (XS: compatible with rigid fork only)
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
  • Battery: TQ 360Wh
  • Charger: TQ 4A charger

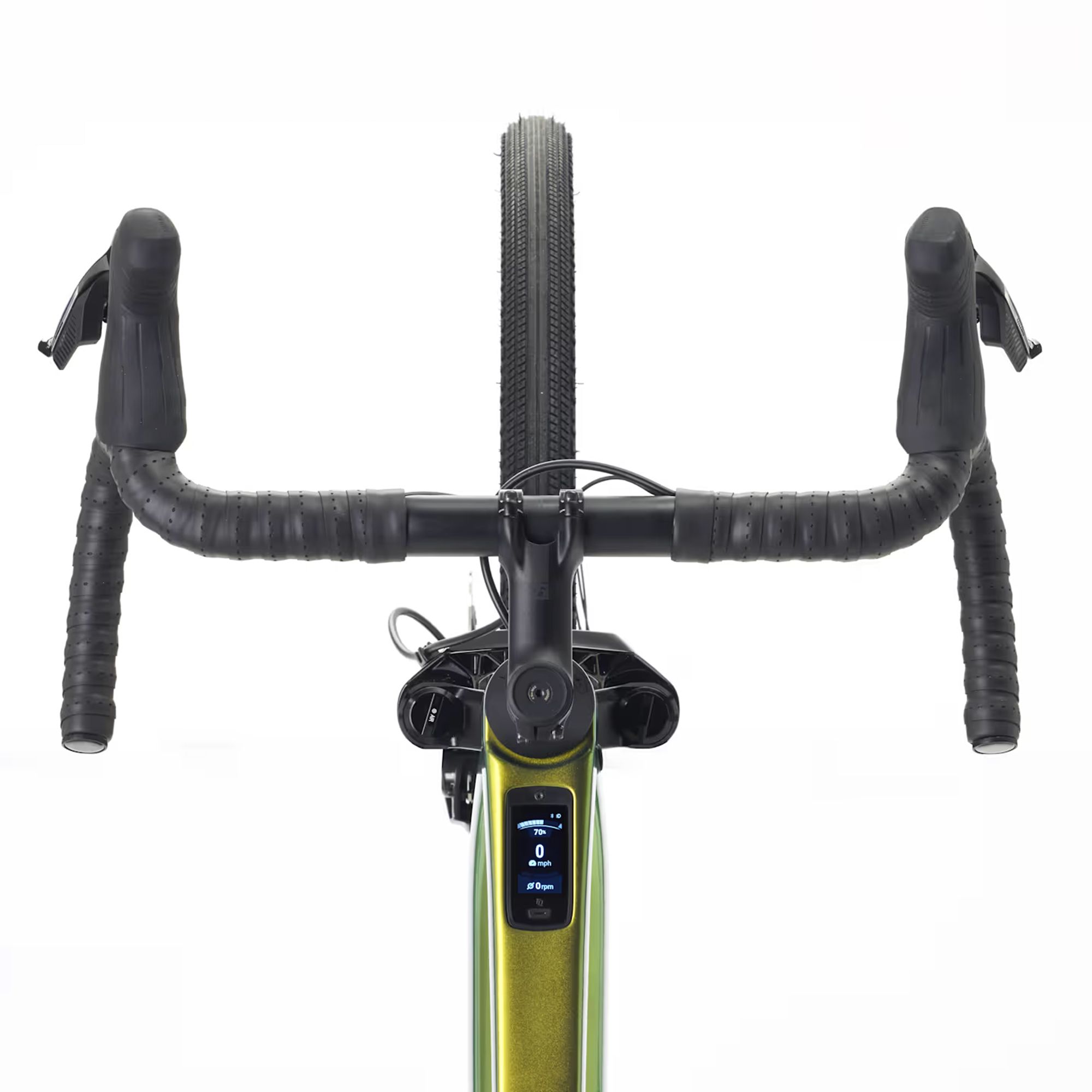

  • Controller: TQ color LED display with Bluetooth & ANT+ connectivity

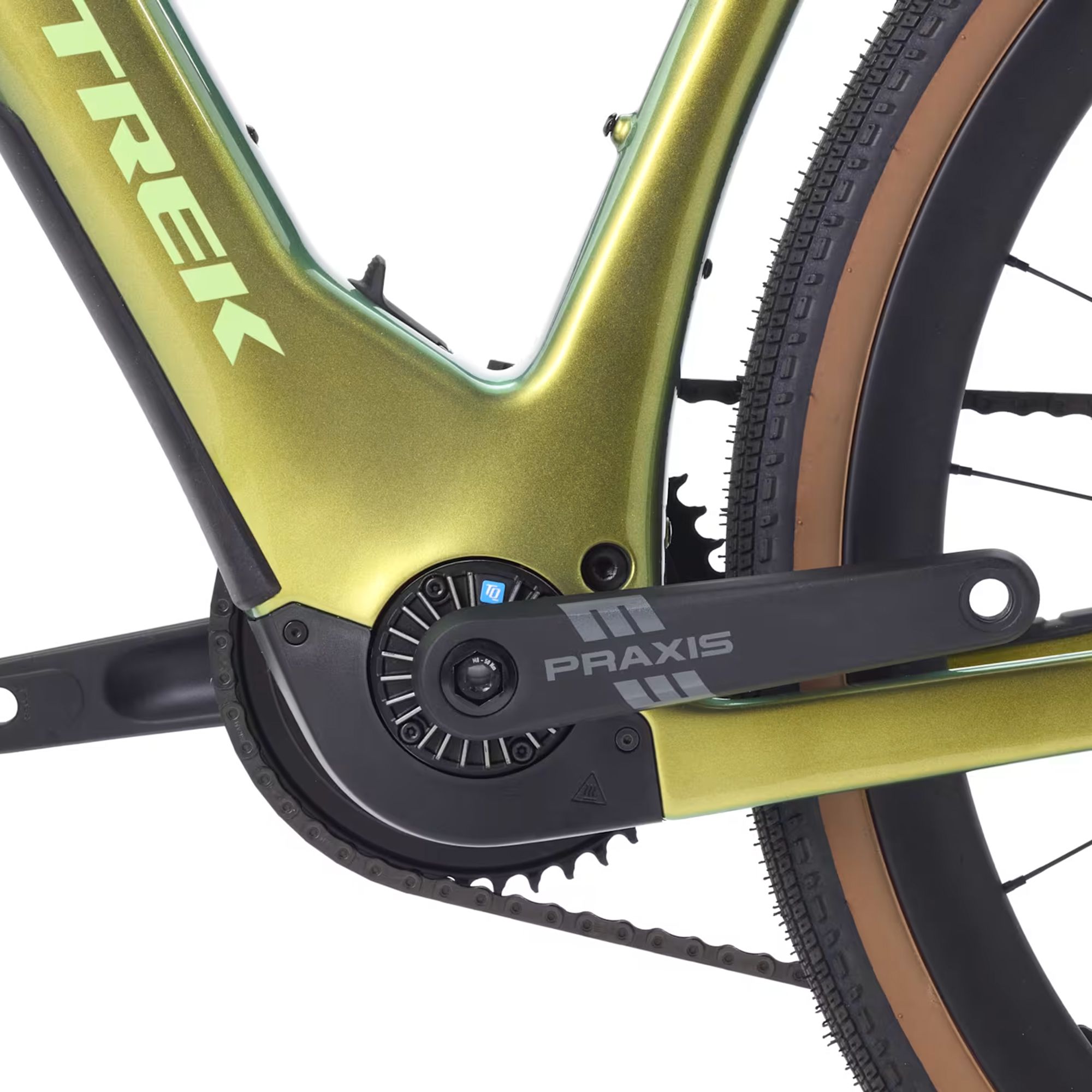

  • Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
  • Rear derailleur: SRAM X0 Eagle AXS, T-Type
  • Crank:
  • Size - S: Praxis Alloy, 165 mm length
  • Size - M, ML: Praxis Alloy, 170 mm length
  • Size - L, XL: Praxis Alloy, 172.5 mm length
  • Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
  • Chain: SRAM XO Eagle, T-Type, 12-speed
  • Max chainring size: 1x: 44T
  • Wheel front: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
  • Wheel rear: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
  • Hub front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Skewer rear: Bontrager Switch chamfered thru axle, removable lever
  • Tyre: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre part: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip: Bontrager TLR
  • Max tyre size: 50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
  • Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
  • Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar:
  • Size - S: Bontrager Pro Gravel, 40 cm width
  • Size - M, ML: Bontrager Pro Gravel, 42 cm width
  • Size - L: Bontrager Pro Gravel, 44 cm width
  • Size - XL: Bontrager Pro Gravel, 46 cm width
  • Handlebar tape: Bontrager Supertack Perf tape
  • Stem:
  • Size - S, M: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
  • Size - ML, L: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
  • Size - XL: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Highlights
  • 500 Series OCLV Carbon Frame and Carbon Fork
  • SRAM Eagle AXS Groupset
  • RockShox Rudy XPLR Suspension Fork
Specifications
Model
Checkpoint+ SL 7 AXS
Battery [Capacity]
360 Wh
Battery [Maker]
tq
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Paceline X
Cassette [Gearing]
10-52
Cassette [Maker]
SRAM
Cassette [Model]
Eagle XS-1295
Chain [Maker]
SRAM
Chain [Model]
X0 Eagle
Chainring [Gearing]
44
Crank [Maker]
praxis
Discipline Compatibility
Gravel
E-Bike
Yes
F Hub [Maker]
Bontrager
Family
Checkpoint+
Fenders Mounts
Yes
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
RockShox
Fork [Material]
Aluminium
Fork [Model]
Rudy XPLR
Fork [Rake]
45 mm
Fork [Travel]
40 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frame [Tire Clearance]
50c mm
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Bontrager
Handlebar [Material]
Carbon
Handlebar [Shape]
Gravel Drop
Motor [Kind]
Mid-Drive
Motor [Maker]
tq
Motor [Power]
250 W
Motor [Torque]
60 Nm
R Hub [Maker]
Bontrager
Rack Mounts
Yes
RD [Maker]
SRAM
RD [Model]
X0 Eagle AXS
Saddle [Maker]
Bontrager
Saddle [Material]
Aluminium
Saddle [Width]
145 mm
Seatpost [Diameter]
27.2
Seatpost [Kind]
Rigid
Seatpost [Length]
330 mm
Seatpost [Maker]
Bontrager
Seatpost [Material]
Carbon
Seatpost [Offset]
8 mm
Shifters [Maker]
SRAM
Shifters [Model]
Force AXS E1
Shifting
Electronic
Stem [Clamp Diameter]
31.8
Stem [Maker]
Bontrager
Stem [Material]
Aluminium
Sub Family
Checkpoint SL
Suspension Configuration
Hardtail
Tires [Maker]
Bontrager
Tires [Width]
42 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
Bontrager
Wheelset [Material]
Carbon
Wheelset [Model]
Aeolus Elite 35V
Product code
1940538 / 54293823324506
Size Guide
SizeMLXL
Rider Height (Inches)5'1" - 5'5"5'5" - 5'8.9"5'8.9" - 6'1.2"
Inseam (Inches)28.3" - 30.7"30.3" - 32.7"32.3" - 34.6"
Rider Height (Cm)164 - 177174 - 187185 - 197
Inseam (Cm)77 - 8382 - 8887 - 93
Seat Tube (ctr-top)500550600
Seat Tube (ctr-ctr)---
Effective Top Tube595697622
Actual Top Tube ---
Seat Angle (°)737373
Head Tube Angle (°)69.57070.5
Head Tube Length165195230
Fork Rake444444
Chainstay Length487487487
Wheelbase114611501164
Stack623652688
Reach405408412
Trek Allant+ 8 2020 Size Guide

All measurements in mm unless otherwise stated.
