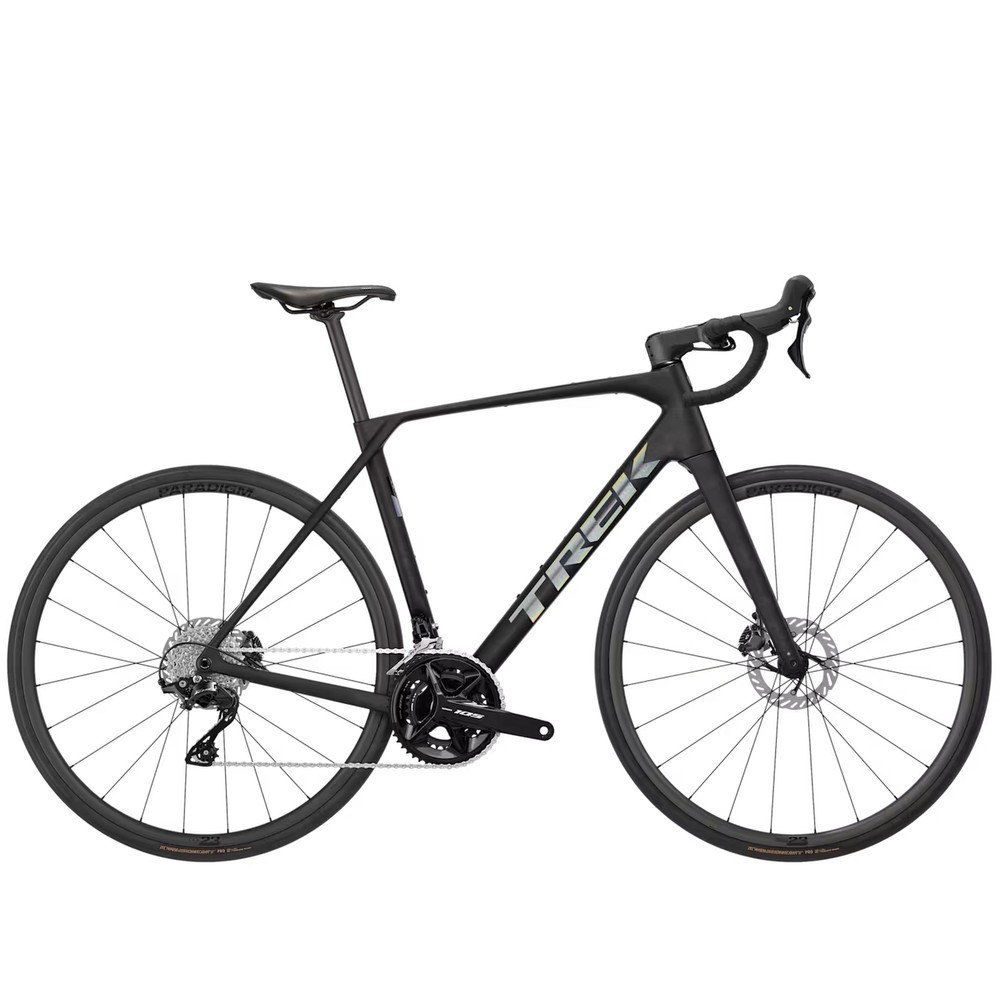

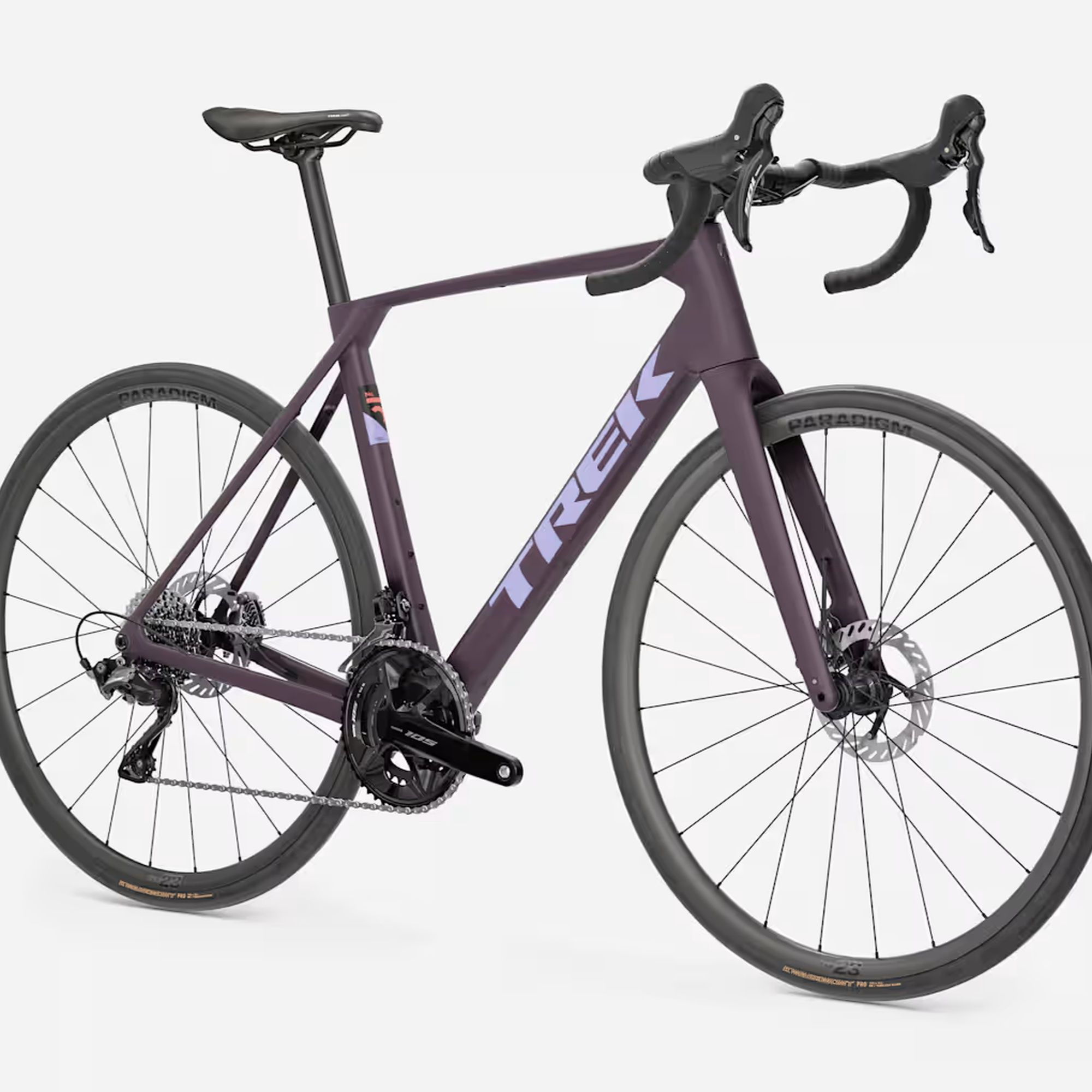

Trek Domane SL5 105 Road Bike 2027
Engineered for cyclists who want exceptional road compliance and reliable performance without unnecessary complexity, the Domane SL 5 105 Road Bike offers an accessible gateway into carbon endurance riding. Built from Trek's proven 500 Series OCLV Carbon, this complete package weighs in at 8.84 kg in size ML while delivering a smooth, efficient, and responsive ride. Driven by a mechanical 12-speed Shimano 105 drivetrain paired with robust Bontrager Paradigm 23 tubeless-ready rims, it delivers crisp, predictable gear changes and long-haul dependability for big training days and long weekend epics.
Endurance Ergonomics and All-Road Capability

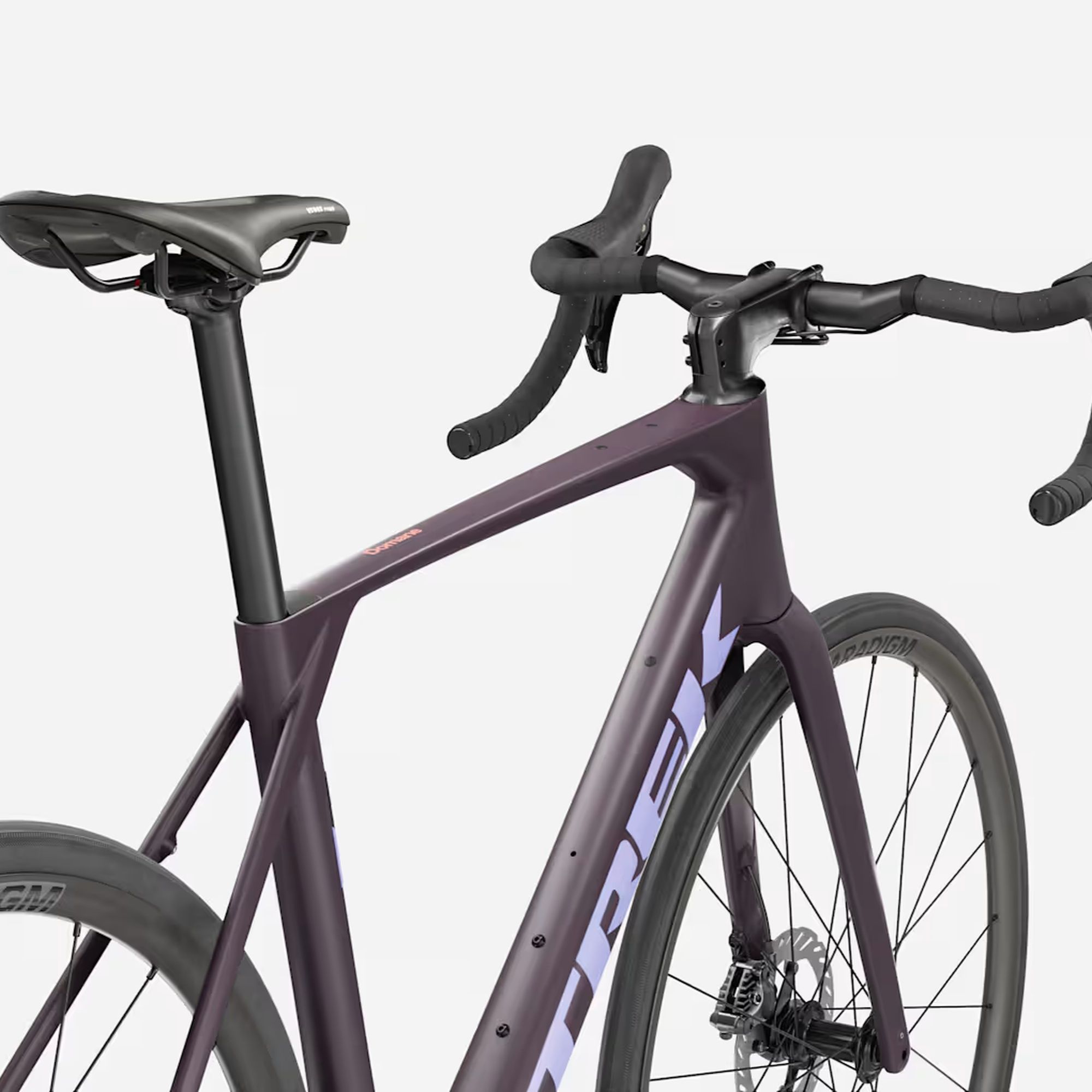

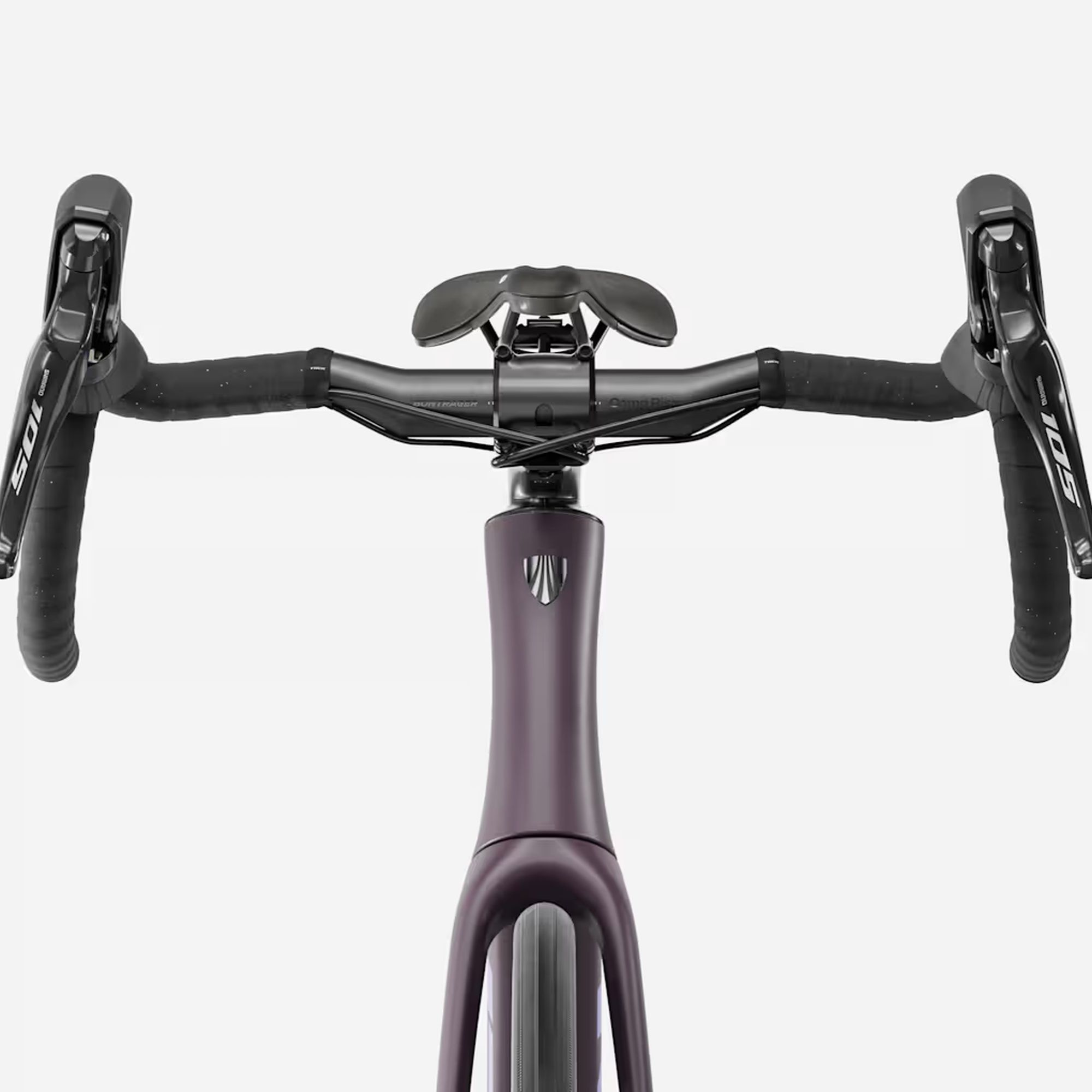

Designed to keep fatigue at bay over hundreds of miles, this chassis pairs vibration-absorbing carbon construction with comfortable, rider-focused geometry. The alloy Bontrager Comp Riser handlebar features a subtle 20 mm rise to promote a natural, upright riding posture, while the Verse Short Comp saddle provides targeted support for long hours in the saddle. Outfitted with supple 35 mm Bontrager Kwaremont Pro tubeless-ready tyres and generous frame clearance for up to 40 mm rubber, you gain total freedom to roll off smooth asphalt onto rough chip-seal or light gravel detours with absolute stability.
Precision Engineering for Long-Haul Reliability

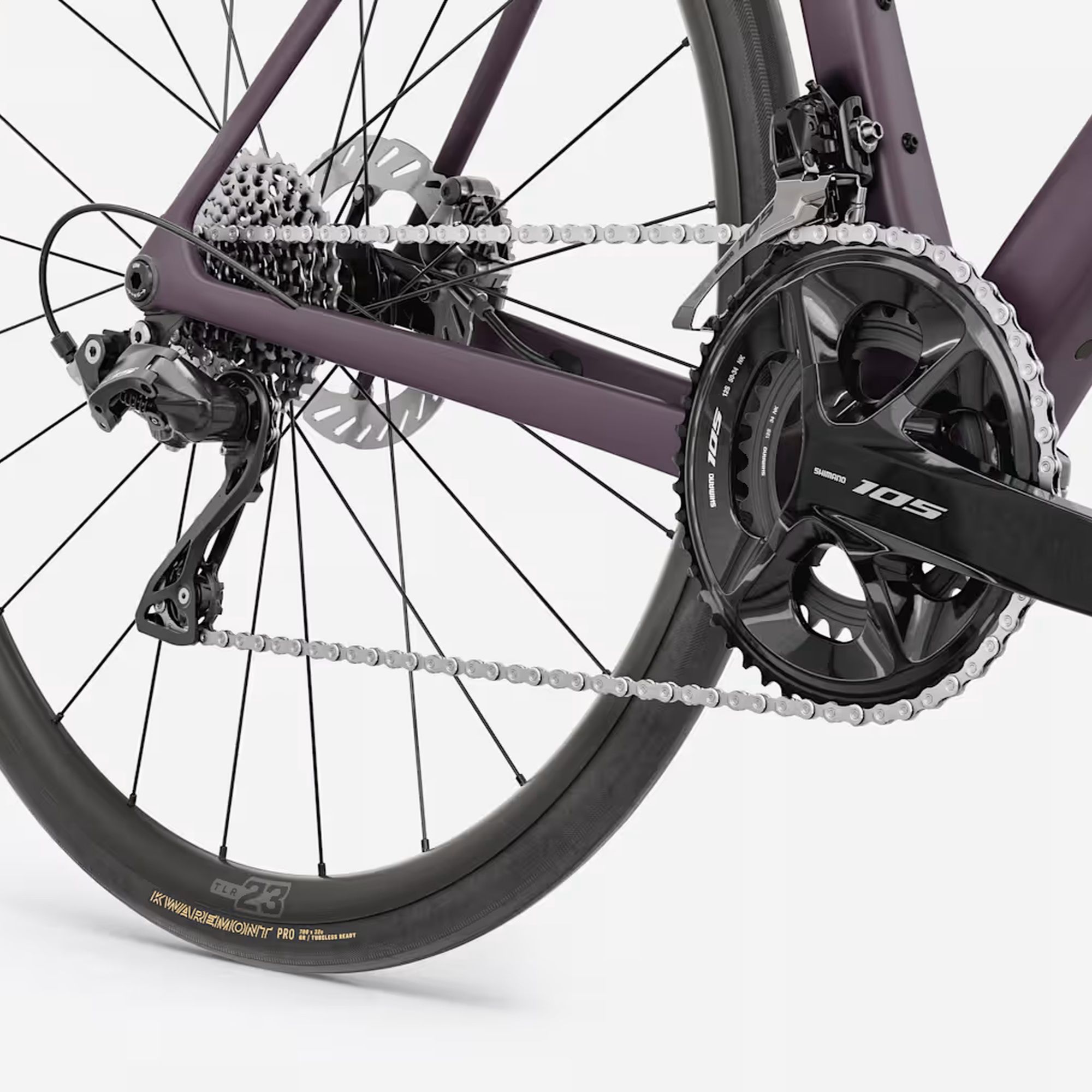

Every detail of the Domane SL 5 is focused on functional performance, ease of maintenance, and frame longevity. A threaded Praxis T47 bottom bracket delivers creak-free power transfer under heavy pedalling, while an integrated chain keeper and Universal Derailleur Hanger protect your drivetrain and simplify future upgrades. Completed with powerful Shimano CL700 CentreLock hydraulic disc brakes for controlled stopping power on steep descents and integrated frame bag and fender mounts, this complete bike represents a versatile, high-value investment for modern all-road riding.
Features
- Frame: 500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
- Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
- Weight: ML - 8.84 kg / 19.49 lbs (with TLR sealant, no tubes)
- Shifter: Shimano 105 R7120, 12-speed
- Cranks: Size: M, ML Shimano 105 R7100, 50/34, 165 mm length, Size: L, XL Shimano 105 R7100, 50/34, 170 mm length
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Cassette: Shimano 105 7101, 11-34, 12-speed
- Chain: Shimano SLX M7100, 12-speed
- Max Chainring Size: 1x: 48T, 2x: 52T
- Hub Front: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
- Hub Rear: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
- Rim: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
- Spokes: 14 g stainless steel, black
- Tyre: Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35 mm
- Max Tyre Size: 40 mm
- Saddle: Verse Short Comp, steel rails, 145 mm width
- Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
- Handlebar: Size: XS- Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 36 cm width, Size: S- Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 38 cm width, Size: M, ML- Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 40 cm width, Size: L, XL- Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 42 cm width
- Stem: Size: XS- Trek RCS Pro, -7-degree, 80 mm length, Size: S Trek RCS, -7 degree, 90 mm length, Size: M- Trek RCS, -7 degree, 100 mm length, Size: ML, L- Trek RCS, -7 degree, 110 mm length, Size: XL- Trek RCS, -7 degree, 120 mm length
- Brake Rotor: Shimano CL700, CentreLock, 160 mm
- Rotor Size: Max brake rotor sizes: 180mm front, 160 rear
Specifications
- Gender
- Unisex
- Product code
- 2047457 / 54478386790746
Size Guide
| Frame Size | XS | S | M | ML | L | Xl |
|---|---|---|---|---|---|---|
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat Tube | 44.4 | 47.6 | 50.0 | 53.3 | 55.3 | 59.3 |
| Seat tube angle | 73.5° | 73.7° | 73.5° | 73.3° | 73.3° | 73.3° |
| Head tube length | 10.6 | 13.9 | 15.9 | 17.0 | 19.2 | 22.6 |
| Head angle | 71.3° | 71.1° | 71.2° | 71.9° | 72.0° | 72.1° |
| Effective top tube | 52.0 | 53.0 | 54.1 | 55.3 | 56.2 | 57.5 |
| Bottom bracket drop | 8.0 | 8.0 | 8.0 | 7.8 | 7.8 | 7.5 |
| Chainstay length | 42.0 | 42.0 | 42.0 | 42.0 | 42.0 | 42.0 |
| Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| Trail | 6.2 | 6.3 | 6.3 | 6.3 | 6.3 | 6.2 |
| Wheelbase | 98.7 | 100.2 | 101.1 | 101.0 | 101.9 | 103.3 |
| Standover | 72.1 | 75.3 | 77.5 | 80.5 | 82.6 | 86.3 |
| Frame reach | 36.8 | 37.1 | 37.4 | 37.7 | 38.0 | 38.4 |
| Frame stack | 52.4 | 55.5 | 57.5 | 59.6 | 61.8 | 64.8 |
| Front centre | 58.0 | 59.5 | 60.4 | 60.2 | 61.1 | 62.4 |
