Product Details

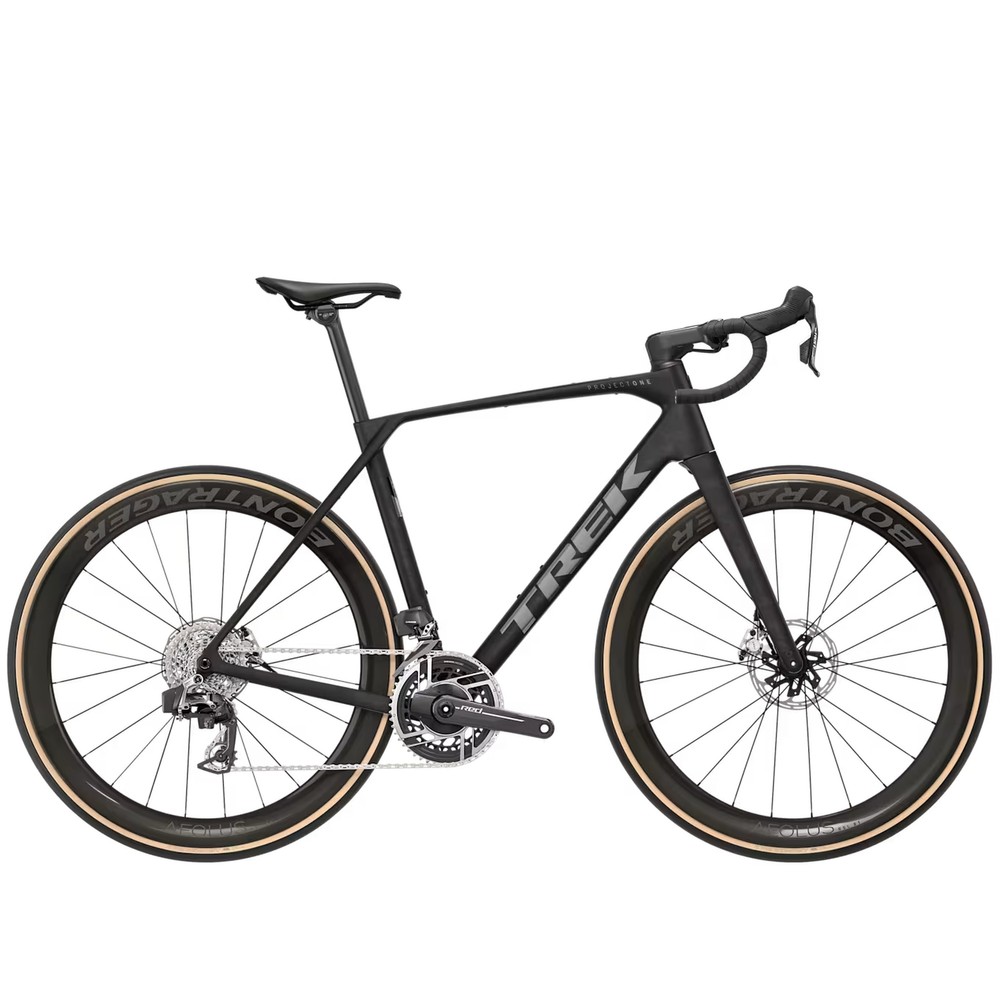

Trek Domane SLR 9 RED AXS Gen 5 Road Bike 2027
Built for cyclists who demand absolute top-tier performance without sacrificing comfort, the Domane SLR 9 RED AXS Gen 5 Road Bike is Trek's ultimate ultra-light endurance road machine. At its core is the highest-level 900 Series OCLV Carbon frame, dropping overall weight to a mere 7.29 kg. Paired with a wireless 2x12 SRAM RED AXS E1 drivetrain, an integrated power meter, and 51 mm deep Bontrager Aeolus RSL 51 carbon wheels, this build delivers instant wireless shifting, deep data tracking, and exceptional aerodynamic efficiency across flat sprints and steep climbs alike.
Pro-Level Precision and Endurance
Combining race-proven efficiency with long-distance compliance, this platform cushions harsh road feedback via an advanced carbon layup and modern cockpit geometry. The Bontrager Pro Riser carbon handlebar and Verse Short Pro saddle relieve key pressure points, ensuring you remain fresh during all-day epics. Supple 35 mm Bontrager Kwaremont RSL tubeless-ready tyres wrapped over lightweight Pirelli TPU inner tubes provide superior traction and low rolling resistance, while generous clearance for up to 40 mm tyres lets you confidently tackle coarse tarmac and gravel connectors.
The Ultimate Turnkey Race Machine
Every detail of this flagship build is optimized for peak power delivery and long-term reliability. A robust threaded SRAM DUB T47 bottom bracket minimizes flex under heavy effort, while the Universal Derailleur Hanger provides a resilient, future-proof drivetrain setup. Featuring precise SRAM Paceline X rotors for dependable stopping control and integrated frame bag and fender mounts for added functionality, the Domane SLR 9 RED AXS offers an unmatched turn-key package for competitive endurance riders seeking unrelenting speed.
Features
- Frame: 900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
- Fork: Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
- Weight: ML - 7.29 kg / 16.08 lbs (with tubes)
- Battery: SRAM AXS battery pack (with charger)

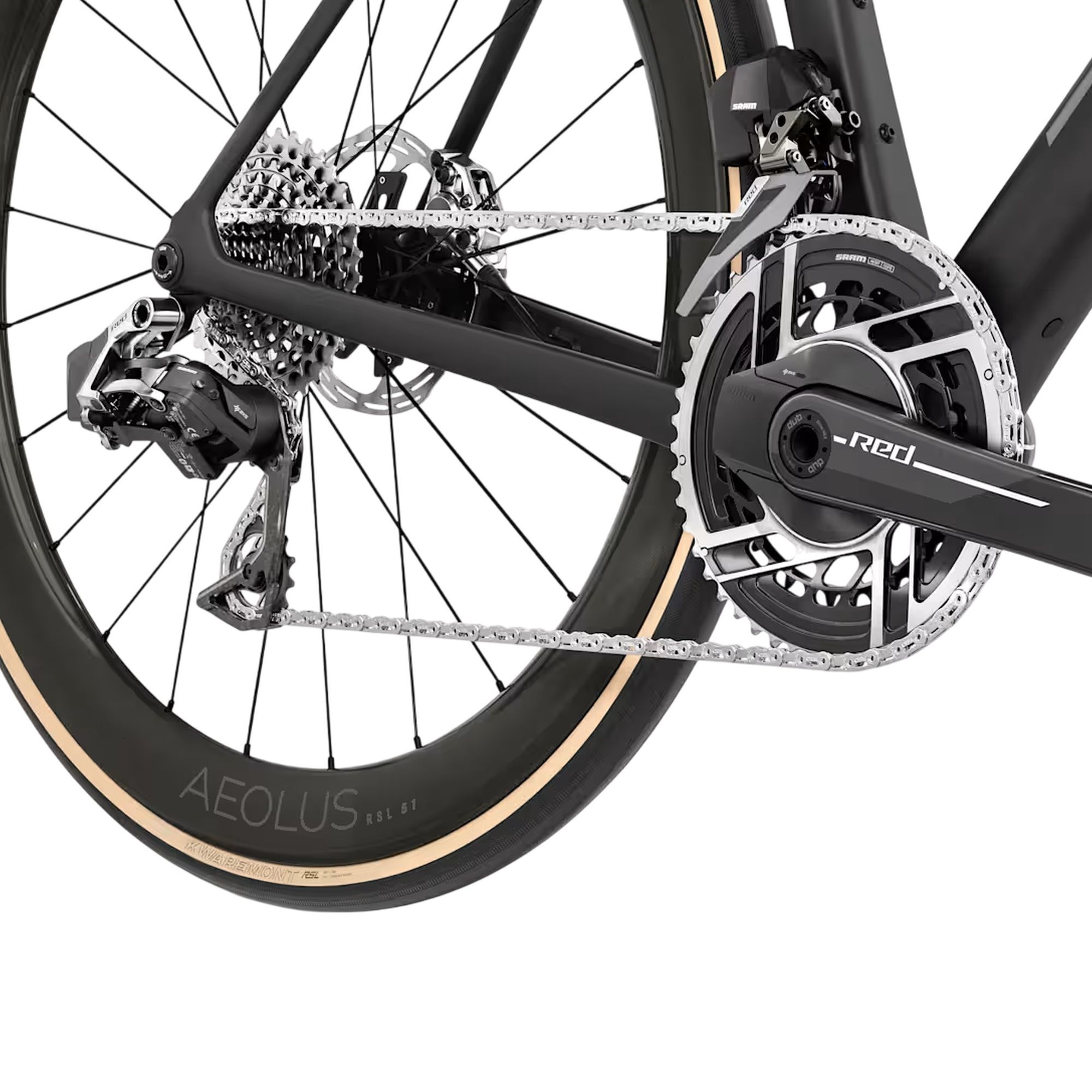

- Shifter: SRAM RED AXS E1
- Front Derailleur: SRAM RED AXS E1, braze-on
- Rear Derailleur: SRAM RED AXS E1, 36T max cog
- Cranks: Size: XS, S- SRAM RED AXS E1, power meter, 48/35, DUB, 160 mm length, Size: M, ML- SRAM RED AXS E1, power meter, 48/35, DUB, 165 mm length, Size: L, XL- SRAM RED AXS E1, power meter, 48/35, DUB, 170 mm length
- Bottom Bracket: SRAM DUB, T47 threaded, internal bearing
- Cassette: SRAM RED XG-1290 E1, 10-36, 12-speed
- Chain: SRAM RED E1, 12/13-speed
- Wheel Front: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
- Wheel Rear: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru axle
- Skewer Front: Bontrager Switch chamfered thru axle
- Skewer Rear: Bontrager Switch chamfered thru axle, removable lever
- Tyre: Bontrager Kwaremont RSL, Tubeless Ready, GR puncture protection, aramid bead, 320 tpi, 700x35mm
- Inner Tube: Pirelli P Zero SmarTube, TPU
- Max Tyre Size: 40 mm
- Saddle: Verse Short Pro, carbon rails, 145 mm width
- Seatpost: Bontrager RSL carbon, 27.2 mm, 5 mm offset

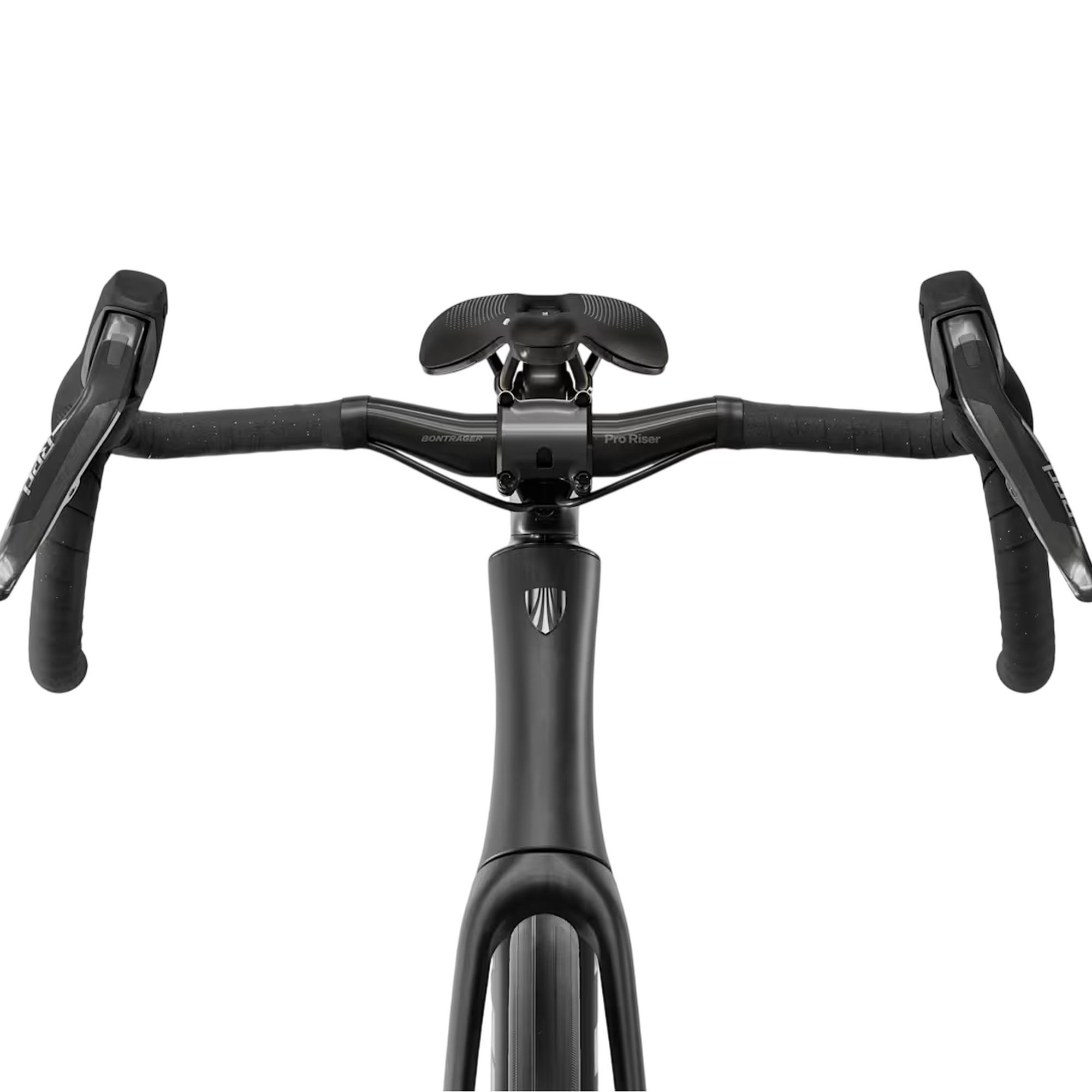

- Handlebar: Size: XS- Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 36cm width, Size: S- Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 38cm width, Size: M, ML- Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 40cm width, Size: L, XL- Bontrager Pro Riser, carbon, 20mm rise, 31.8, 70mm reach, 42cm width
- Handlebar Tape: Trek gel cork
- Stem: Size: XS- Trek RCS, -7 degree, 80 mm length, Size: S- Trek RCS, -7 degree, 90 mm length, Size: M- Trek RCS, -7 degree, 100 mm length, Size: M- Trek RCS, -7 degree, 100 mm length, Size: ML, L- Trek RCS, -7 degree, 110 mm length, Size: XL- Trek RCS, -7 degree, 120 mm length
- Brake Rotor: SRAM Paceline X, rounded, CentreLock, 160 mm
Specifications
- Gender
- Unisex
- Product code
- 2047642 / 54394838352218
Size Guide
| Frame Size | XS | S | M | ML | L | Xl |
|---|---|---|---|---|---|---|
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat Tube | 44.4 | 47.6 | 50.0 | 53.3 | 55.3 | 59.3 |
| Seat tube angle | 73.5° | 73.7° | 73.5° | 73.3° | 73.3° | 73.3° |
| Head tube length | 10.6 | 13.9 | 15.9 | 17.0 | 19.2 | 22.6 |
| Head angle | 71.3° | 71.1° | 71.2° | 71.9° | 72.0° | 72.1° |
| Effective top tube | 52.0 | 53.0 | 54.1 | 55.3 | 56.2 | 57.5 |
| Bottom bracket drop | 8.0 | 8.0 | 8.0 | 7.8 | 7.8 | 7.5 |
| Chainstay length | 42.0 | 42.0 | 42.0 | 42.0 | 42.0 | 42.0 |
| Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 |
| Trail | 6.2 | 6.3 | 6.3 | 6.3 | 6.3 | 6.2 |
| Wheelbase | 98.7 | 100.2 | 101.1 | 101.0 | 101.9 | 103.3 |
| Standover | 72.1 | 75.3 | 77.5 | 80.5 | 82.6 | 86.3 |
| Frame reach | 36.8 | 37.1 | 37.4 | 37.7 | 38.0 | 38.4 |
| Frame stack | 52.4 | 55.5 | 57.5 | 59.6 | 61.8 | 64.8 |
| Front centre | 58.0 | 59.5 | 60.4 | 60.2 | 61.1 | 62.4 |
