Is there a place for a Garmin computer mount
No answers yet.
Sale
Final Few
Sale
Final Few
Product Details

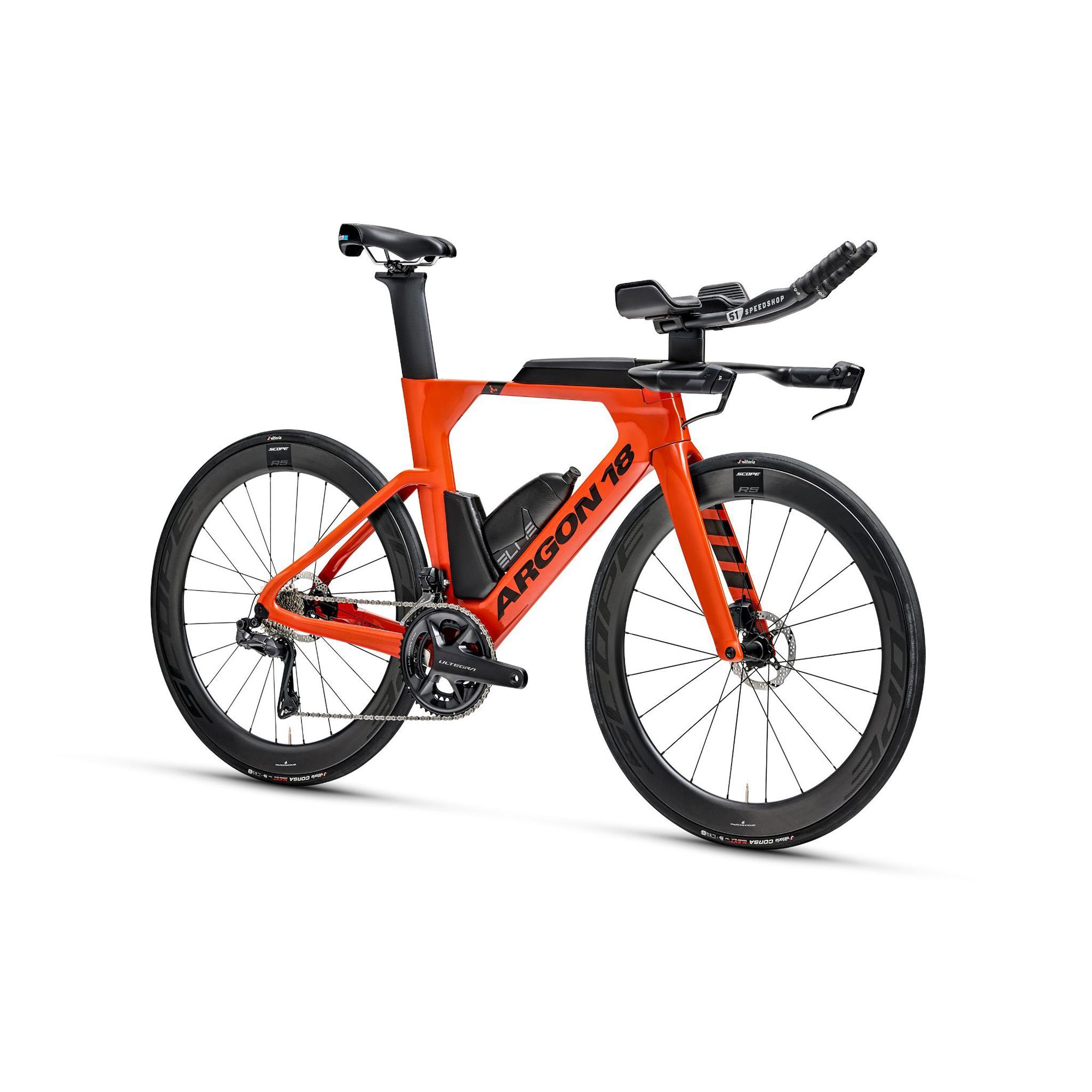

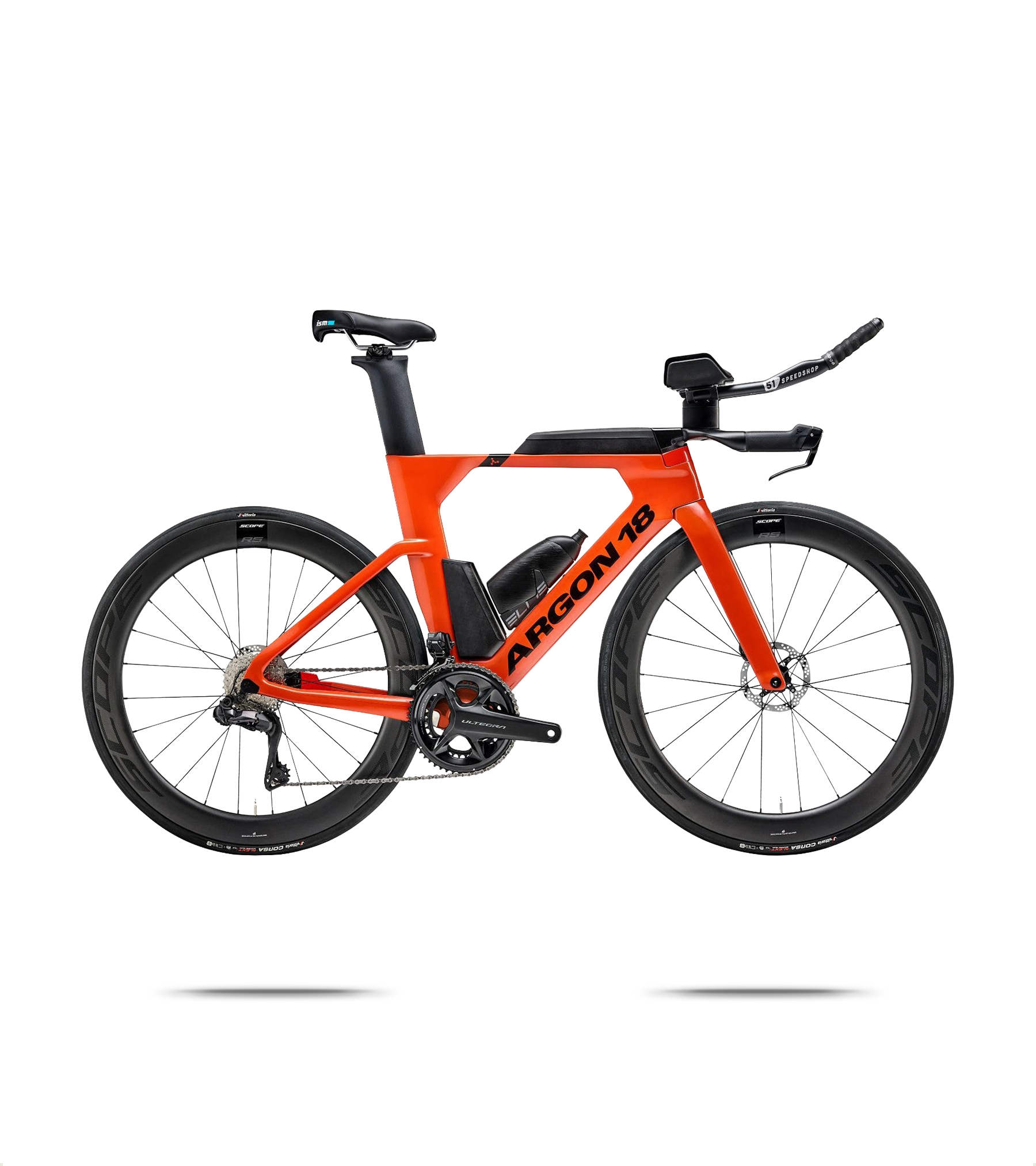

Argon 18 E117 Ultegra Di2 Triathlon Bike
Introducing the newly redesigned Argon 18 E117 Ultegra Di2 Triathlon Bike, meticulously crafted for dedicated triathletes and time trial riders striving to achieve personal bests. The E117 is a fully equipped, race-ready performance bike that combines exceptional value with advanced innovation inspired by Argon 18’s pro-level designs.
3D System: Argon 18’s 3D Technology provides an ideal fit window without compromising safety, steerer stiffness, or the bike’s sleek aesthetics.
Argon Fit System: Featuring size-specific geometries, Argon 18’s fit system guarantees optimal performance and positioning for every rider, ensuring no one is overlooked.
Triathlon and TT Geometry: Purpose-built for aerodynamic excellence, the triathlon and time trial geometry positions the rider further forward, facilitating an aggressive aero stance for superior efficiency.
Features
- Frame: E117
- Fork: E117
- Headset: E117
- Integrated Cables: Yes
- Wheels: Scope R5 Wheelset
- Tyres: Vittoria Corsa N.EXT TLR 28mm
- Tyre Clearance: 30C (32mm)
- Bottom Bracket: Shimano SM-BB72
- Front Derailleur: Shimano Ultegra Di2 R8150
- Rear Derailleur: Shimano Ultegra Di2 R8150
- Crankset: Shimano Ultegra R8100 52/36
- Chain: Shimano Ultegra CN-M8100 12S
- Cassette: Shimano Ultegra CS-R8100 11-30
- Brakes: Argon 18 Integrated Brake System
- Brake Levers: Argon 18 Integrated Brake System
- Rotors: TRP TR140-25 / F:140mm R:140mm
- Shifters: Shimano SW-R9150 Sprint/Bar Shifters
- Handlebar: Argon 18 Integrated Cockpit
- Stem: Argon 18 Integrated Cockpit
- Bar Tape: Prologo Plaintouch black
- Saddle: ISM PR1.0
- Seatpost: E-117T Disc
- Extensions: 51 Speedshop Custom Extensions
Highlights
- Shimano Ultegra Di2 Groupset
- Scope R5 Wheelset
- 3D System
- Argon Fit System
- Triathlon and TT Geometry
Specifications
- Model
- E117 Ultegra Di2
- Bottom Bracket [Maker]
- Shimano
- Bottom Bracket Standard
- BB86/BB92
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Argon 18
- Brakes [Model]
- Integrated Brake System
- Cassette [Gearing]
- 11-30
- Cassette [Maker]
- Shimano
- Cassette [Model]
- Ultegra CS-R8100
- Chain [Maker]
- Shimano
- Chain [Model]
- Ultegra CN-M8100
- Chainring [Gearing]
- 52–36
- Crank [Maker]
- Shimano
- Crank [Model]
- Ultegra R8100
- Discipline Compatibility
- Triathlon, TT
- E-Bike
- No
- Family
- E117
- FD [Maker]
- Shimano
- FD [Model]
- Ultegra Di2 R8150
- Fenders Mounts
- No
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Material]
- Carbon
- Fork [Wheel Size]
- 700c
- Frame [Material]
- Carbon
- Frame [Tire Clearance]
- 30c mm
- Frame [Travel]
- 0 mm
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Aero
- Handlebar [Maker]
- Argon 18
- Handlebar [Shape]
- Aero bar
- Headset [Maker]
- Argon 18
- Rack Mounts
- No
- RD [Maker]
- Shimano
- RD [Model]
- Ultegra Di2 R8150
- Saddle [Maker]
- ISM
- Seatpost [Kind]
- Rigid
- Seatpost [Material]
- Aluminium
- Shifters [Maker]
- Shimano
- Shifters [Model]
- SW-R9150
- Shifting
- Electronic
- Stem [Maker]
- Argon 18
- Suspension Configuration
- Rigid
- Tires [Maker]
- Vittoria
- Tires [Width]
- 28 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Maker]
- Scope
- Wheelset [Material]
- Carbon
- Wheelset [Model]
- R5

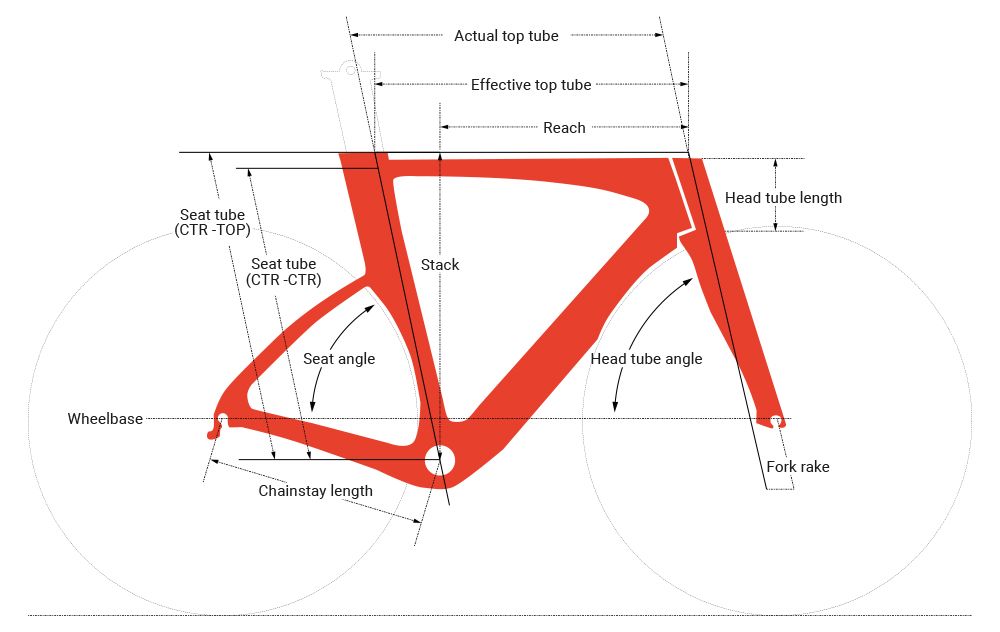

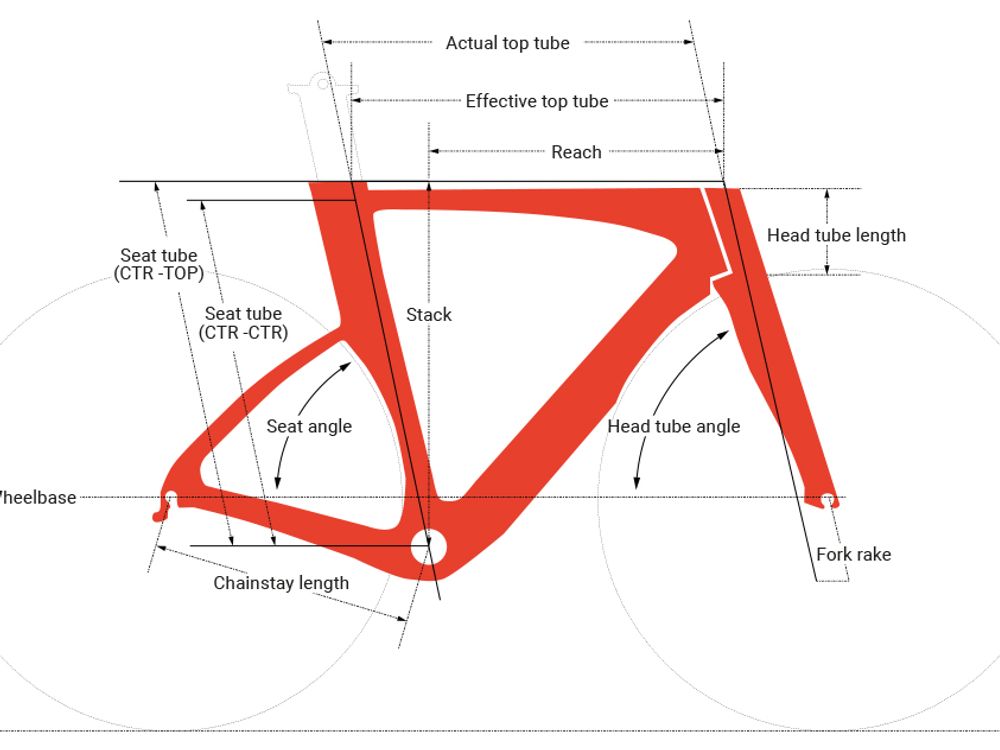

Size Guide
| — | XS | S | M | L |
|---|---|---|---|---|
| Seat Tube (ctr-top) | 461 | 500 | 516 | 546 |
| Seat Tube (ctr-ctr) | - | - | - | - |
| Effective Top Tube | 492 | 504 | 517 | 528 |
| Actual Top Tube | - | - | - | - |
| Seat Angle (°) | 78 | 78 | 78 | 78 |
| Head Tube Angle (°) | 72 | 72 | 72 | 72 |
| Head Tube Length | 49 | 60 | 76 | 104 |
| Fork Rake | - | - | - | - |
| Chainstay Length | 413 | 413 | 413 | 413 |
| Wheelbase | 977 | 990 | 1005 | 1019 |
| Stack Min. | 536 | 547 | 562 | 588 |
| Stack Max. | 636 | 647 | 662 | 688 |
| Reach Min. | 433 | 443 | 453 | 458 |
| Reach Max. | 515 | 525 | 535 | 540 |
* All measurements in mm unless otherwise stated.
Reviews
No reviews yet. Be the first to review this product.
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
2 questions, 1 answered
What size are the cranks?
Hi there, Crank length varies by frame size: 165 mm on XXS and XS, 170 mm on S and M, and 172.5 mm on L and XL. They're Shimano Ultegra R8100 cranks. Many thanks Joe W
