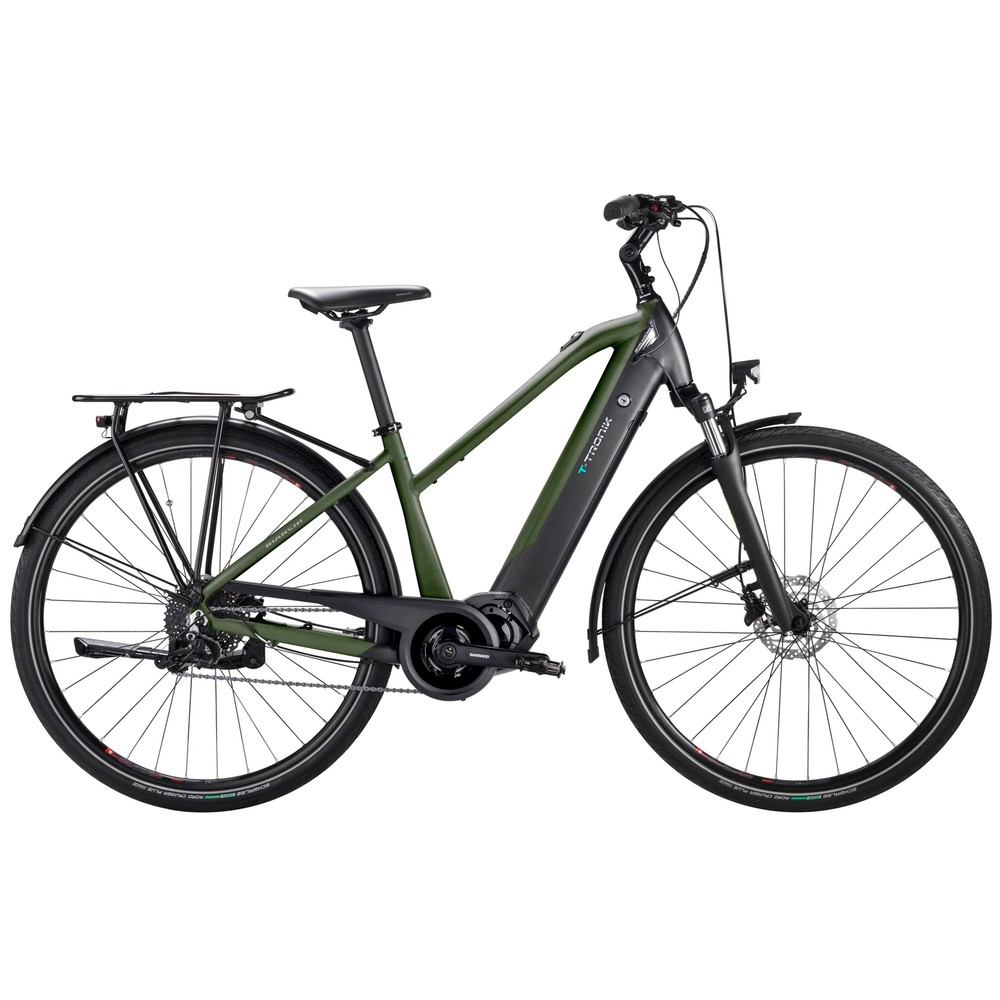

Bianchi T-Tronik T-Type Step Thru Electric Hybrid Bike 2022

£1,999.00
MSP £2,230.00 Save 10%

Select a colour and size to view stock availability

Bianchi
T-Tronik T-Type Step Thru Electric Hybrid Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1485088

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

Bianchi T-Tronik T-Type Step-Thru Electric Hybrid Bike 2022

A versatile tourer, the Bianchi T-Tronik T-Type Step-Thru Electric Hybrid Bike combines electric assistance with a minimalist look and good functionality. The 417Wh Phylion integrated battery has a range of up to 60 miles and the Shimano E6100 250W motor a maximum speed of 15.5 mph / 25 km/h, making the system perfect for daily commutes or exploring further afield. There are three assistance levels to choose from allowing you to adapt to different terrain.

The step-thru frame makes mounting and dismounting a breeze for smaller riders, and the frame is paired with a front suspension Suntour fork for more comfortable riding. With a 1x9-speed Sunrace setup, there are plenty of gears to choose from, while hydraulic brakes offer reliable stopping power when it's time to slow down.

Browse our range of Bianchi electric hybrid bikes today.

Highlights

  • Shimano E6100 250W motor offers 60Nm of torque across three assistance modes
  • 417Wh Phylion integrated battery provides up to 60 miles of range
  • Suntour front fork has 63mm of travel
  • Radius hydraulic disc brakes with 160mm rotor
  • SunRace 1x9-speed drivetrain

Battery Specification

  • Maximum Assist: 60Nm / 25 km/h
  • Range: 60 miles (depending on rider weight, conditions and assist level)
  • Battery Power: 417Wh

Technical Specification

Frame Bianchi T-Tronik T-Type Frame 28" Tourer step-through, suspended fork geometry, alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size - 43/47
Fork Suntour SF15-NEX-E25-DS-700C-63 post mount disc brake, 1.1/8", travel 63mm, compatible with mudguard, OLD 100mm, quick release type
Headset FSA 1.1/8" 44H-N10P
Bottom Bracket Included with motor unit
Stem Velomann, 28.6mm steerer ID clamp, 31.8mm
Handlebar Velomann 31.8mm, 680mm width, 20mm rise, 15° sweep
Grips Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black, 22mm diameter
Front Brake Radius BH-M960, 900mm hose length, direct mount with adapter, Radius rotor RT900, 160mm, Center Lock
Rear Brake Radius BH-M960, 1700mm hose length, direct mount, with J-kit, with adapter, Radius rotor RT900, 160mm, Center Lock
Brake Levers Radius, hydraulic
Rear Derailleur SunRace, 9-speed, maximum 42T
Shift Levers SRAM X5, 1x9-speed
Chain KMC e9s EPT, 9-speed
Cassette SunRace, 9-speed
Crankset Shimano FC-E6100, 170mm crank length, 38T, for chain line 46.5mm
Front Wheel Velomann 29", 23-622, 32-hole black
Rear Wheel Velomann 29", 23-622, 32-hole black
Front Tyre Chaoyang E-Liner City 700x45c, 60tpi, clincher
Rear Tyre Chaoyang E-Liner City 700x45c, 60tpi, clincher
Saddle Selle Royal, Essenza
Seatpost Velomann, length 350mm, diameter 31,6mm, Al2014 shaft and alloy head
Pedals Available to be purchased separately
Accessories SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard / Ursus R81 WAVE REAR, 28" kickstand, 40mm fixing plate (load 35kg) / Racktime rear carrier, RT Eco 2.0, 28", black with round stay 350mm / Herrmans Mr GO front light / Axa Juno rear light
Range 60 miles (depending on rider weight, conditions and assist level)
Motor Shimano E6100 250W, torque 60Nm
Battery 417Wh Phylion integrated battery
Electric assisted speed limit 15.5 mph / 25 km/h

Built, Checked, Tuned and Tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team.


Bianchi T-Tronik T-Type Step Thru Electric Hybrid Bike 2022 Sizing
