Description

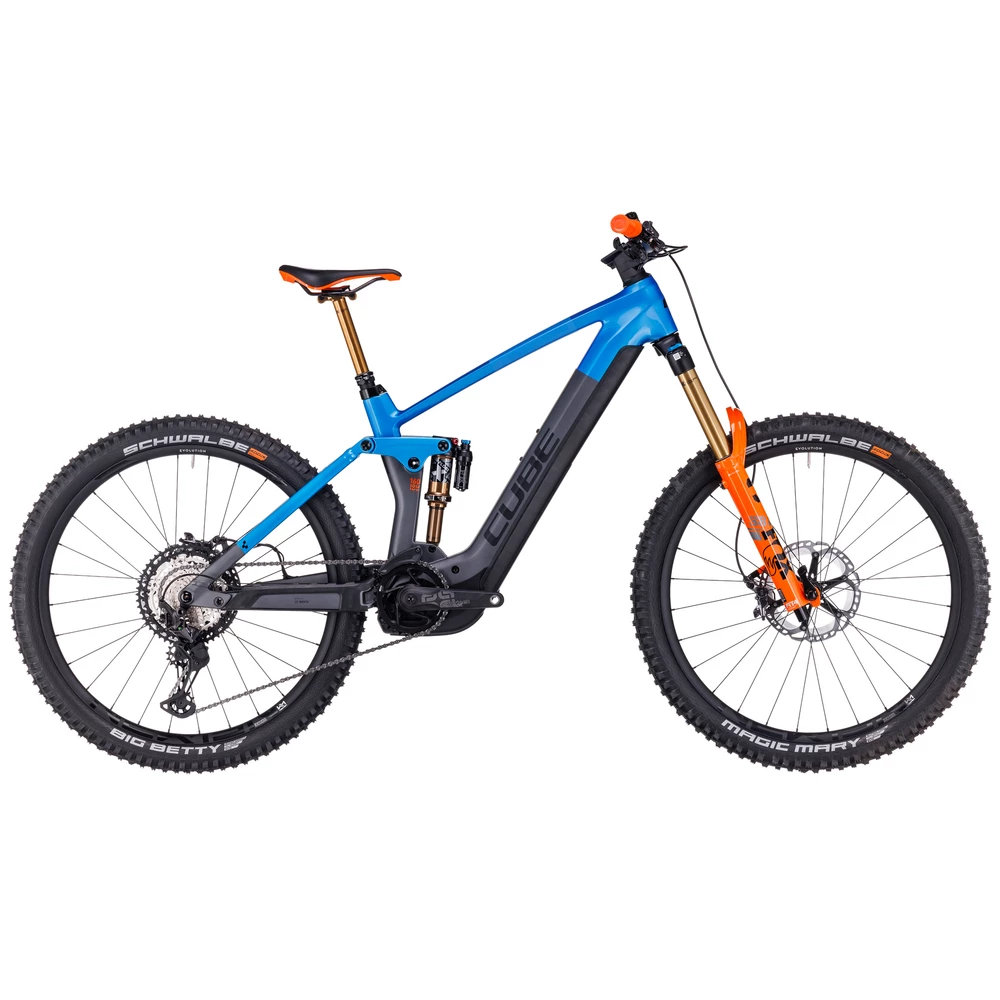

CUBE Stereo Hybrid 160 HPC Actionteam 750 27.5 Electric Mountain Bike
Inspired by the challenge of enduro, the CUBE Stereo Hybrid 160 HPC Actionteam 750 27.5 Electric Mountain Bike packs a powerful punch for long days out in the mountains. At its heart is Bosch's proven fourth-generation CX drive unit and a high-capacity 750Wh battery for the best possible range. There's a Fox 38 Float Factory fork and Float X Factory shock, with 170mm and 160mm travel respectively, to soak up the hits, large and small. The Stereo Hybrid 160 HPC's carbon main frame is paired with an aluminium rear triangle.
Practicality is key so, for example, there's room for a bottle cage, and the battery cover has push-button access. On the handling front there's Agile Trail, race-inspired geometry, a Boost 148 rear end and 1.5in head tube for on-demand cut-and-paste line choices, no matter how rowdy the trail. With a trunnion shock mount, oversize linkage bearings and internal cable routing, you can be assured of minimal maintenance downtime and maximum trail funtime.
Shimano's legendarily slick-shifting, reliable XT 1x12 transmission delivers your power to the trail via a light, tough Newmen Evolution wheelset shod with Schwalbe's tough, grippy Magic Mary SuperTrail and Big Betty SuperGravity 2.4" tyres. And the remote dropper post and strong, dependable Shimano XT hydraulic disc brakes mean it's you calling the shots, not the trail.
Highlights
- Light but strong C:62 carbon front frame, aluminum rear frame with 160mm travel
- Fox 38 Float Factory FIT4 170mm travel fork
- Progressive 4-Link suspension system
- Full integration of motor, battery and cables
- CUBE Agile Trail Geometry is vibrant and stable
- Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System motor
- Bosch PowerTube 750Wh battery
- Shimano Deore XT 1x12-speed drivetrain and hydraulic disc brakes
- Newmen Evolution SL E.G. 30 tubeless-ready wheels and Schwalbe Magic Mary/Big Betty 2.4" tyres
Battery Specification
- Battery Power: 750Wh
- Battery Weight: 4.3kg
- Charging time: 50% charge approximately 2.3 hours / 100% charge approximately 6 hours
- Range: 107km (mode dependent)
Technical Specification
| Frame | CUBE C |
| Fork | Fox 38 Float Factory FIT4, 3-position with low speed compression adjust, tapered, 15x110mm, E-Bike Tune, 170mm, Kashima coated |
| Shock | Fox Float X Factory, 205x65mm, adjustable LSC with 2-position Lever, Trunnion Mount, Kashima coated |
| Shock Hardware | Top 54mm Trunnion Mount, Bottom 22.2x8mm |
| Headset | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Stem | CUBE Performance E-MTB, 31.8mm |
| Handlebar | Newmen Evolution SL 318.25, 760mm |
| Grips | ACID Disrupt, soft compound |
| Front Brake | Shimano XT BR-M8120, hydraulic disc / 203mm rotor |
| Rear Brake | Shimano XT BR-M8120, hydraulic disc / 203mm rotor |
| Brake Levers | Shimano XT |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-speed |
| Shift Levers | Shimano XT SL-M8100-IR, Direct Attach |
| Chain | Shimano XT CN-M8100 |
| Cassette | Shimano XT CS-M8100, 10-51T |
| Crankset | e*thirteen Plus Crank, 165mm, 36T |
| Front Wheel | Newmen Evolution SL E.G. 30, 28H, disc, 15x110mm, 27.5", tubeless-ready |
| Rear Wheel | Newmen Evolution SL E.G. 30, 28H, disc, 12x148mm, 27.5", tubeless-ready |
| Front Tyre | Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4" |
| Rear Tyre | Schwalbe Big Betty, Addix Soft, Super Gravity, Tubeless Easy, 2.4" |
| Saddle | Natural Fit Venec |
| Seatpost | Fox Transfer Factory 31.6mm, Kashima coated |
| Pedals | Available to be purchased separately |
| Manufacturer Claimed Weight | 24.3kg (small) |
| Electric Assisted Speed Limit | 15.5mph / 25kph |
| Range | 107km (mode dependent) |
| Motor | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| Ui/Remote | Bosch Kiox |
| Battery | Bosch PowerTube 750Wh |
| Charger | Bosch 4A |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
