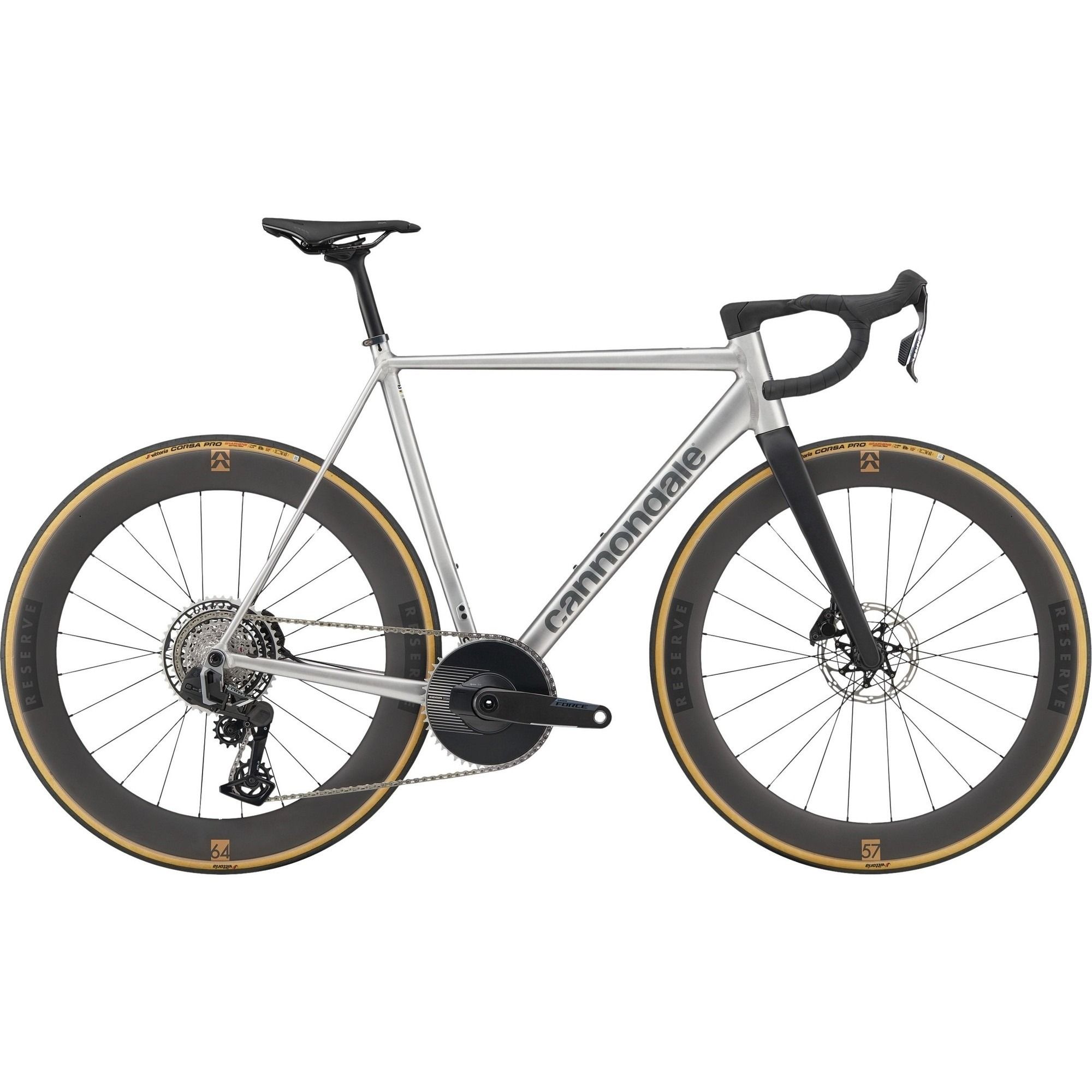

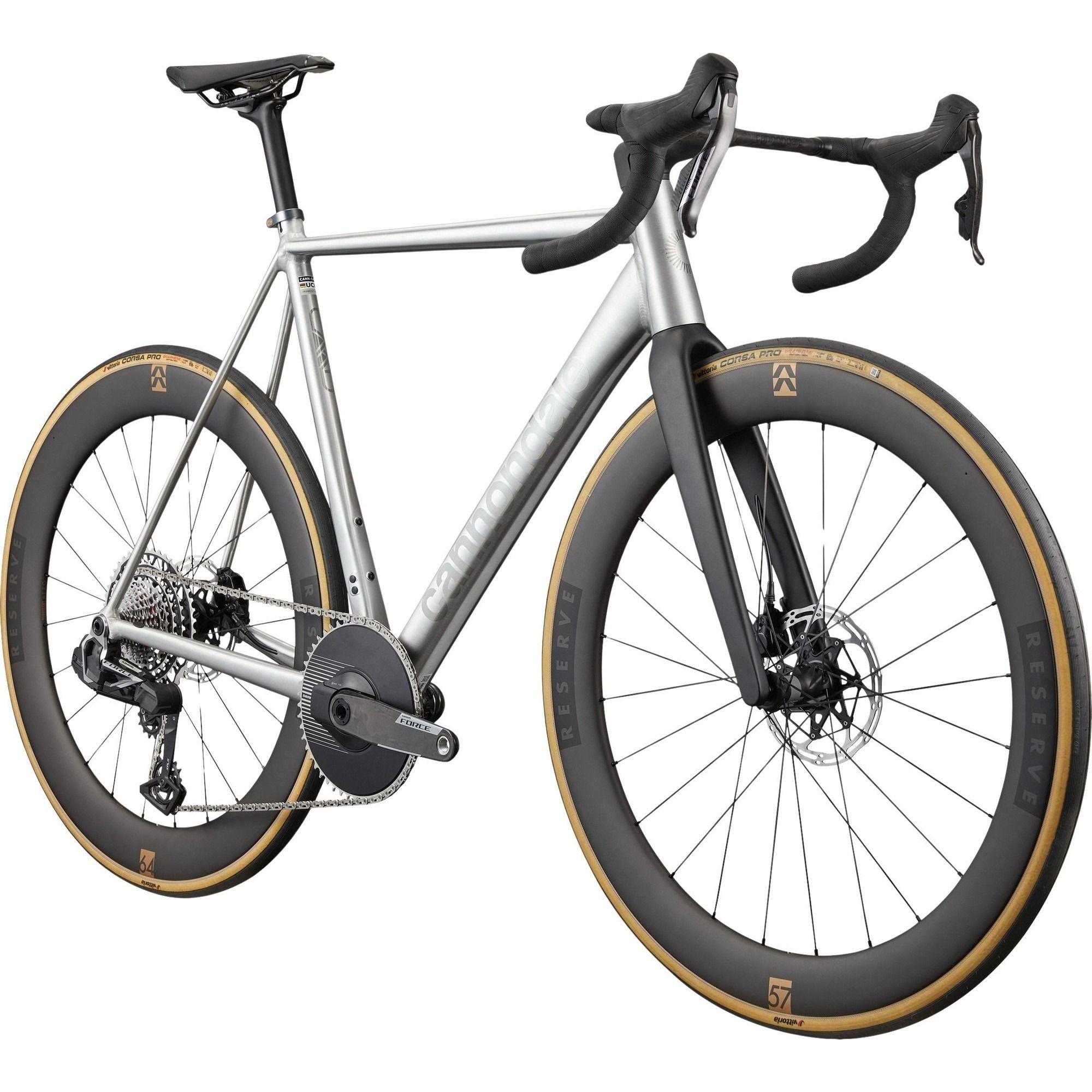

Cannondale CAAD14 1 Force Aluminium Road Bike
At the heart of the CAAD14 1 road bike sits Cannondale’s SmartForm C1 Premium Alloy frame, engineered to prove that aluminium road bikes can still dominate the tarmac. Light, stiff and beautifully finished with smooth welds and clean lines, it delivers razor-sharp handling and immediate power transfer when you stamp on the pedals.
Paired with a full carbon Delta Steerer fork and fully integrated cable routing, the front end slices through the wind while maintaining precise steering. The result? A road race bike that feels lively on climbs, stable on descents and rapid in a bunch sprint.
SRAM Force AXS XPLR 13-Speed – Wireless Precision with Power
Equipped with SRAM Force AXS XPLR 13-speed, this bike brings cutting-edge wireless electronic shifting to the road. Crisp, accurate and effortless under load, it ensures seamless gear changes whether you’re attacking off the front or grinding up a steep ascent.
The 1x crankset with integrated power meter gives you real-time performance data, perfect for structured training and race-day pacing. Combined with hydraulic disc brakes, you get confident stopping power in all British weather conditions—wet roads included.
Aero Advantage – SystemBar R-One & Reserve Carbon Wheels
Speed isn’t just about watts; it’s about aerodynamics. The Cannondale SystemBar R-One is a fully integrated carbon cockpit designed to reduce drag and keep cables hidden from the wind. It’s stiff, sleek and built for serious pace.
Rolling on Reserve 57|64 carbon wheels with DT Swiss 370 hubs, the CAAD14 1 is primed for breakaways, fast chaingangs and all-out sprint finishes. Deep-section rims maintain momentum at high speeds while remaining responsive when accelerating out of corners.
Pure Road Feel – Built for the Competitive Rider
The CAAD14 lineage is all about connection to the road. This bike delivers that unmistakable feedback and responsiveness that passionate cyclists crave. It’s ideal for road racing, fast club rides and riders upgrading to a premium aluminium race bike with electronic shifting and aero performance.
If you want a road bike that combines advanced aluminium engineering, wireless 13-speed technology and aerodynamic race components, the Cannondale CAAD14 1 Road Bike in Raw isn’t just an option—it’s the one to beat.
Features
- Frame: CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH
- Fork: CAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44–54cm), 45mm offset (56–61cm)
- Rear Shock: Null
- Rims: Reserve 57|64 Carbon, Turbulent Aero, tubeless ready
- Hubs: (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
- Spokes: DT Swiss Competition
- Tires: Vittoria Corsa PRO TLR, 700x29c, wide rim, tubeless ready
- Pedals: Not included

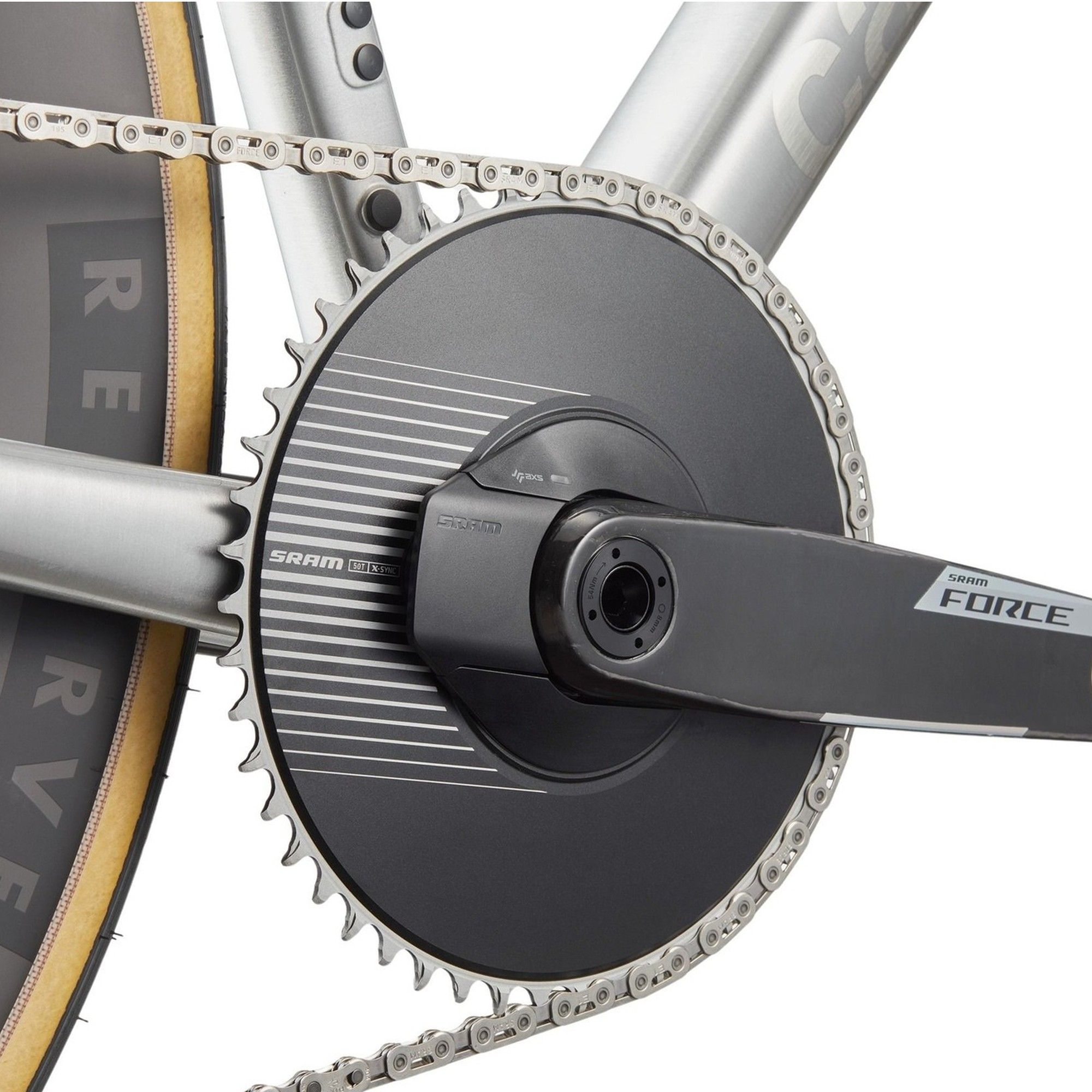

- Crank: SRAM Force AXS Power Meter, 50T Aero: 165mm (48–51cm), 170mm (54–56cm), 172.5mm (58–61cm)
- Bottom Bracket: SRAM DUB BSA Road 68 Wide
- Chain: SRAM Force, 13-speed
- Rear Cogs: SRAM Force XPLR, 10–46, 13-speed
- Front Derailleur: Null

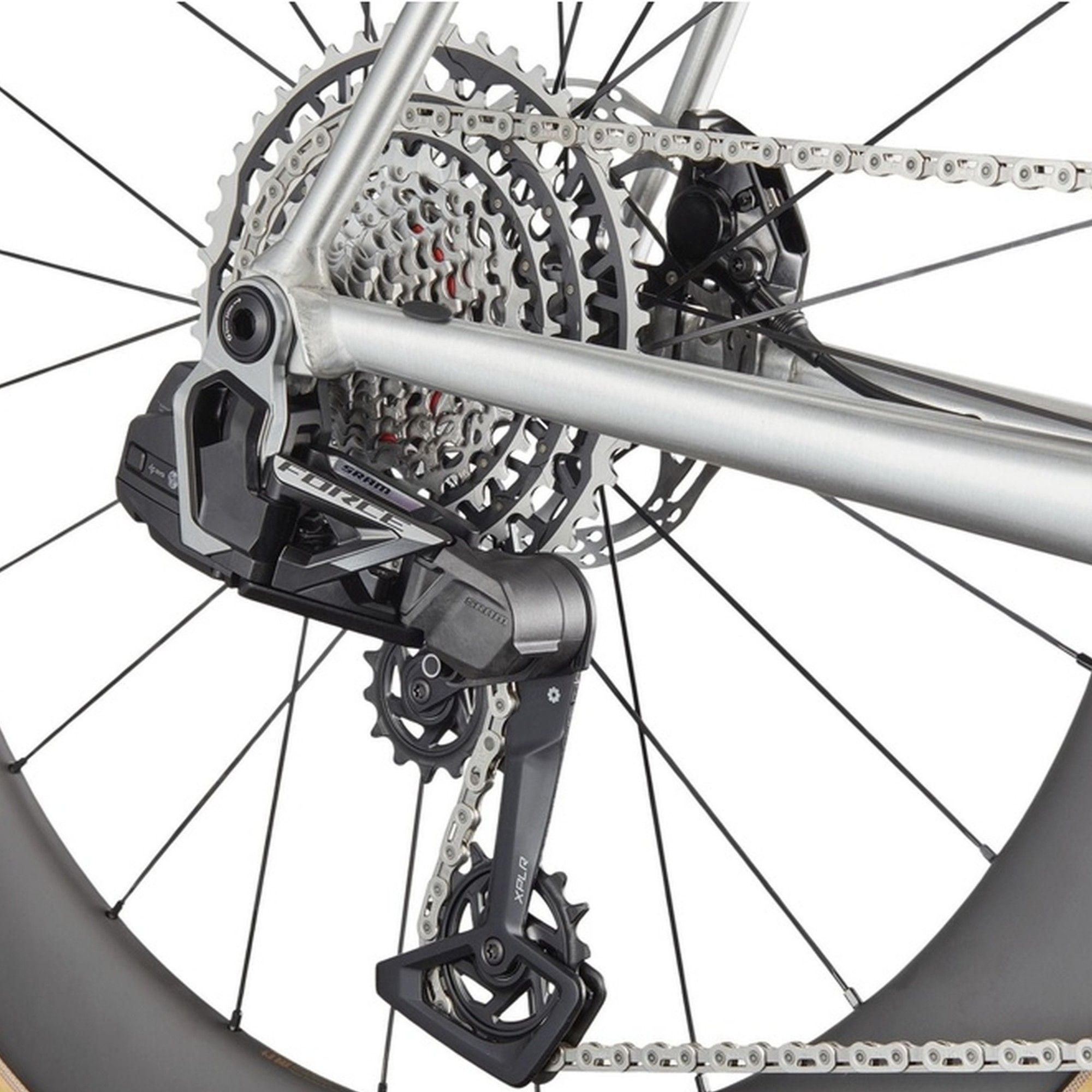

- Rear Derailleur: SRAM Force XPLR AXS, 13-speed
- Shifters: SRAM Force AXS, 13-speed
- Handlebar: Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing: 90x380mm (48–51cm), 100x380mm (54–56cm), 110x400mm (58–61cm)
- Grips: Cannondale Bar Tape, 3.5mm
- Stem: Cannondale SystemBar R-One - low drag, full carbon integrated bar/stem, internal routing
- Headset: Integrated, 1-1/8" – 1.5"
- Brakes: SRAM Force AXS hydraulic disc, 160/160mm Centerline centerlock rotors
- Brake Levers: SRAM Force AXS hydraulic disc
- Saddle: Prologo Dimension STN NDR
- Seatpost: Cannondale SAVE Carbon, 27.2x350mm, 11mm offset
- Speeds: 13
- Extras: Fillmore tubeless valves, SRAM AXS charger, SystemBar R-One Garmin/Wahoo computer mount
- Color: Raw
Specifications
- Model
- CAAD14 1 Force
- Bottom Bracket [Maker]
- SRAM
- Bottom Bracket Standard
- BSA
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- SRAM
- Brakes [Model]
- Force AXS
- Cassette [Gearing]
- 10-46
- Cassette [Maker]
- SRAM
- Cassette [Model]
- Force XPLR
- Chain [Maker]
- SRAM
- Chain [Model]
- Force
- Chainring [Gearing]
- 50
- Crank [Maker]
- SRAM
- Crank [Model]
- Force AXS
- E-Bike
- No
- F Hub [Maker]
- DT Swiss
- F Hub [Model]
- DT Swiss 370
- Family
- CAAD14
- Fork [Axle Type]
- 12x100mm
- Fork [Brake Type]
- Disc
- Fork [Material]
- Carbon
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Aluminium
- Frameset
- No
- Gearing [Configuration]
- 1x
- Gearing [Kind]
- Conventional
- Gender
- Men's
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Cannondale
- Handlebar [Material]
- Carbon
- Handlebar [Shape]
- Drop bar
- Headset [SHIS]
- 1-1/8" - 1-1/2"
- Power Meter [Maker]
- SRAM
- Power Meter [Model]
- Force AXS Power Meter
- R Hub [Maker]
- DT Swiss
- R Hub [Model]
- DT Swiss 370
- RD [Maker]
- SRAM
- RD [Model]
- Force XPLR AXS
- Saddle [Maker]
- Prologo
- Seatpost [Diameter]
- 27.2
- Seatpost [Maker]
- Cannondale
- Seatpost [Material]
- Carbon
- Shifters [Maker]
- SRAM
- Shifters [Model]
- Force AXS
- Shifting
- Electronic
- Stem [Maker]
- Cannondale
- Stem [Material]
- Carbon
- Suspension Configuration
- Rigid
- Tires [Maker]
- Vittoria
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Maker]
- Reserve
- Wheelset [Material]
- Carbon
- Wheelset [Model]
- 57|64
- Product code
- 2008348 / 54293365653850
Size Guide
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A. Seat Tube Length (cm) | 49 | 52.5 | 55.5 | 58 | 60 | 62 |
| B. Top Tube Horizontal (cm) | 52.1 | 53.3 | 54.8 | 56.4 | 58.1 | 60.4 |
| C. Top Tube Actual (cm) | 51.2 | 52.9 | 54.6 | 56.3 | 57.8 | 59.8 |
| D. Head Tube Angle | 71.2 | 71.2 | 71.2 | 73 | 73 | 73 |
| E. Seat Tube Angle | 74.1 | 73.7 | 73.3 | 72.9 | 72.5 | 72.1 |
| F. Standover (cm) | 73.2 | 76.1 | 78.5 | 80.9 | 82.8 | 85.1 |
| G. Head Tube Length (cm) | 9.8 | 11.7 | 13.8 | 15.1 | 17.2 | 20.3 |
| H. Wheelbase (cm) | 99 | 100.1 | 101.2 | 99.8 | 101.1 | 102.9 |
| I. Front Centre (cm) | 58.7 | 59.6 | 60.8 | 59.3 | 60.5 | 62.3 |
| J. Chaninstay Length (cm) | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 |
| K. Bottom Bracket Drop (cm) | 7.4 | 7.2 | 7.2 | 6.9 | 6.9 | 6.9 |
| L. Bottom Bracket Height (cm) | 26.8 | 27.1 | 27.1 | 27.3 | 27.3 | 27.3 |
| M. Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 |
| N. Trail (cm) | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| O. Stack (cm) | 50.5 | 52 | 54 | 56 | 58 | 61 |
| P. Reach (cm) | 37.7 | 38.1 | 38.6 | 39.2 | 39.8 | 40.7 |
