Product Details

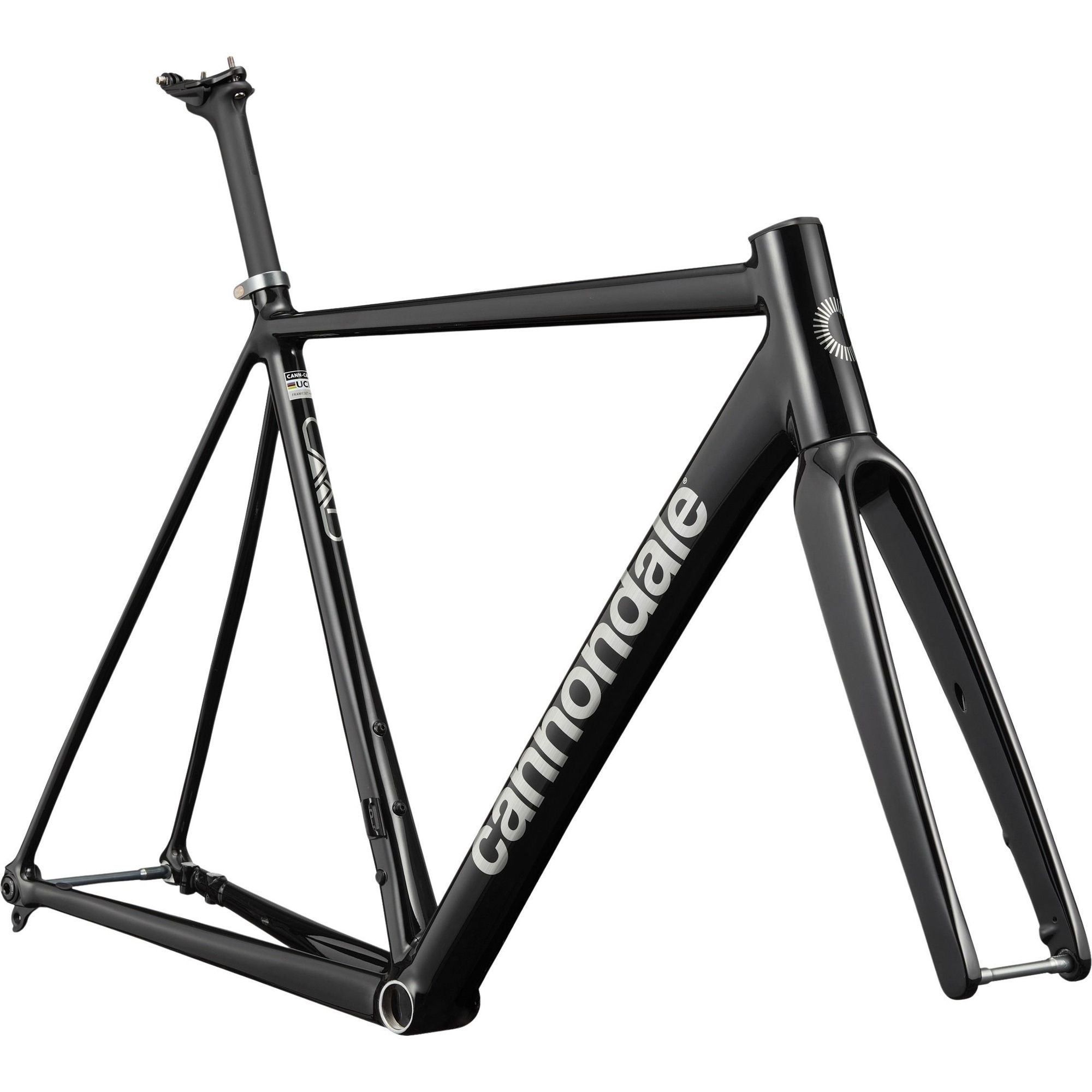

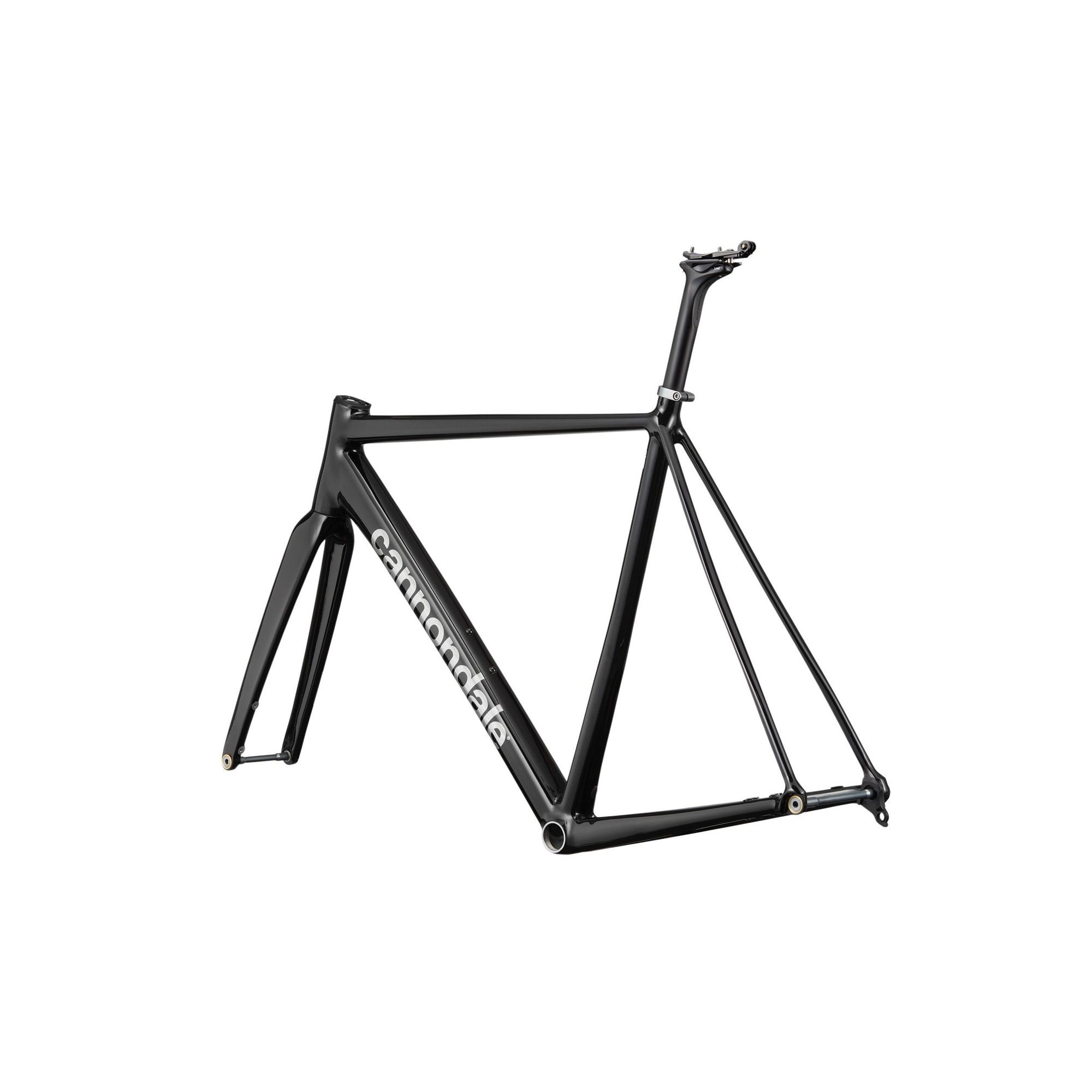

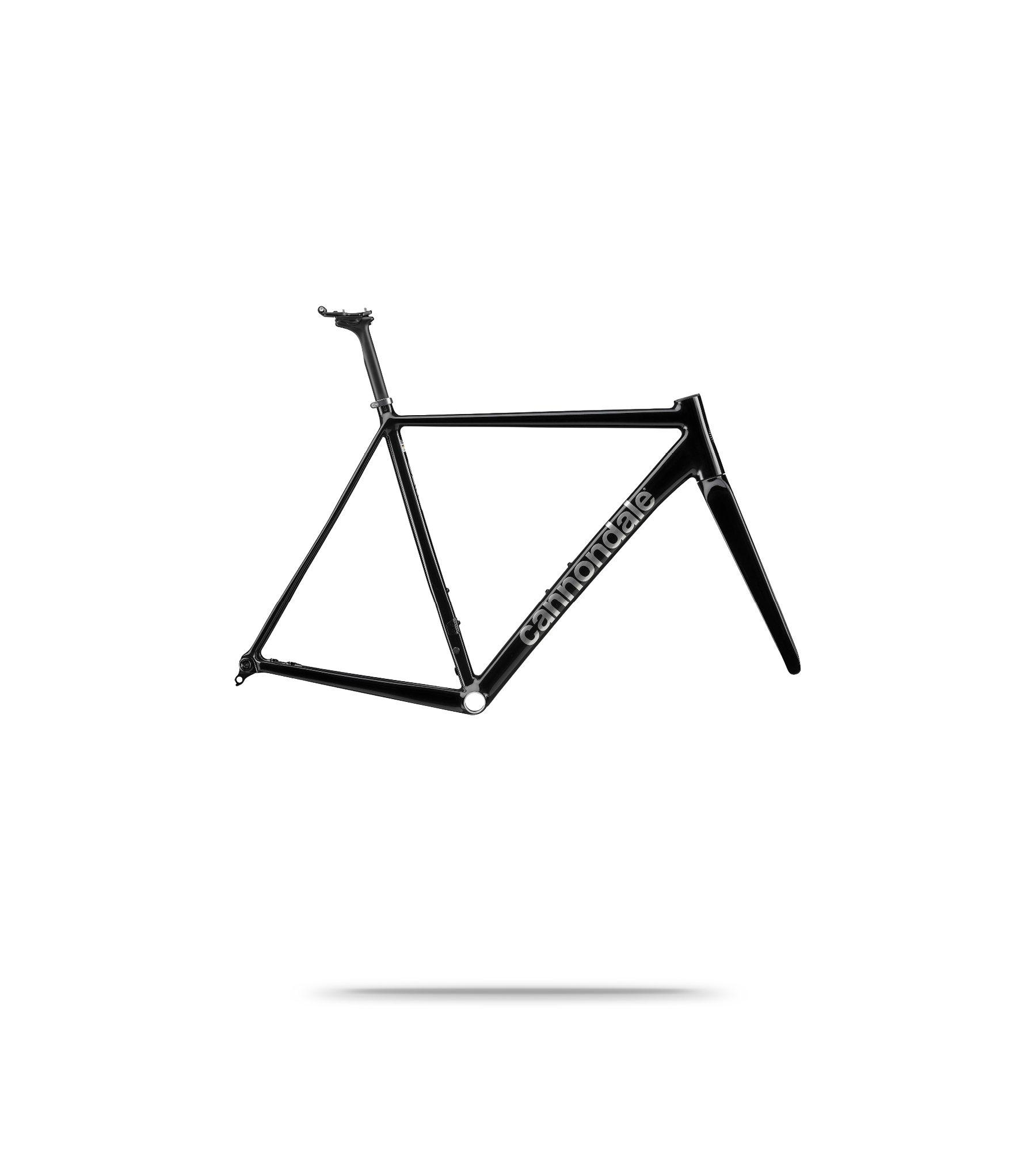

Cannondale CAAD 14 Frameset
At the heart of the CAAD14 is Cannondale’s SmartForm C1 Premium Alloy frame, a benchmark in high-performance aluminium road bike engineering. Designed to be lightweight yet impressively stiff, it transfers your power directly to the road for explosive acceleration and sharp climbing response.
For riders who love the lively, connected feel of aluminium, this frame offers razor-sharp handling and confident cornering, ideal for road racing, fast sportives and hard-charging club rides.
Full Carbon Fork – Aerodynamic and Precise
The full carbon Delta Steerer fork enhances front-end stiffness while reducing overall weight. With clean internal cable routing and a minimal frontal profile, it improves aerodynamic efficiency and gives the bike a sleek, modern finish.
The result is responsive steering and stable high-speed control, whether you’re descending technical roads or pushing the pace on the flat.
SAVE Carbon Seatpost – Comfort Without Compromise
Performance isn’t just about speed; it’s also about endurance. The Cannondale SAVE Carbon seatpost is engineered to absorb road vibrations, smoothing out rough tarmac and reducing rider fatigue.
This means you can ride harder for longer, maintaining efficiency and comfort on extended training sessions or challenging sportives, without sacrificing the bike’s race-ready feel.
Why Choose the Cannondale CAAD14?
The Cannondale CAAD14 Road Bike proves that a premium aluminium road bike can rival carbon alternatives in speed and handling. With advanced frame technology, aerodynamic integration and built-in comfort features, it’s a smart investment for cyclists who demand performance, durability and value in equal measure.
If you want a fast, responsive road bike built for British roads and competitive ambitions, the CAAD14 is ready to deliver every watt.
Features
- Frame: CAAD14, SmartForm C1 Premium Alloy, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, UDH
- Fork: CAAD14, full carbon, 1-1/8" to 1-1/2" Delta Steerer, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 55mm offset (44–54cm), 45mm offset (56–61cm)
- Headset: Integrated, 1-1/8" – 1.5"
- Seatpost: Cannondale SAVE Carbon, 27.2x350mm, 11mm offset
Specifications
- Model
- CAAD14
- Bottom Bracket Standard
- BSA
- Brakes [Kind]
- Hydraulic Disc
- E-Bike
- No
- Family
- CAAD14
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cannondale
- Fork [Material]
- Carbon
- Fork [Rake]
- 55 mm
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Aluminium
- Frameset
- Yes
- Gearing [Kind]
- Conventional
- Gender
- Men's
- Headset [SHIS]
- 1-1/8" – 1.5"
- Headset [Upper Headset Fit]
- Integrated
- Seatpost [Diameter]
- 27.2
- Seatpost [Length]
- 350 mm
- Seatpost [Maker]
- Cannondale
- Seatpost [Material]
- Carbon
- Seatpost [Offset]
- 11 mm
- Suspension Configuration
- Rigid
- Product code
- 2008362 / 54293362835802
Size Guide
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| A. Seat Tube Length (cm) | 49 | 52.5 | 55.5 | 58 | 60 | 62 |
| B. Top Tube Horizontal (cm) | 52.1 | 53.3 | 54.8 | 56.4 | 58.1 | 60.4 |
| C. Top Tube Actual (cm) | 51.2 | 52.9 | 54.6 | 56.3 | 57.8 | 59.8 |
| D. Head Tube Angle | 71.2 | 71.2 | 71.2 | 73 | 73 | 73 |
| E. Seat Tube Angle | 74.1 | 73.7 | 73.3 | 72.9 | 72.5 | 72.1 |
| F. Standover (cm) | 73.2 | 76.1 | 78.5 | 80.9 | 82.8 | 85.1 |
| G. Head Tube Length (cm) | 9.8 | 11.7 | 13.8 | 15.1 | 17.2 | 20.3 |
| H. Wheelbase (cm) | 99 | 100.1 | 101.2 | 99.8 | 101.1 | 102.9 |
| I. Front Centre (cm) | 58.7 | 59.6 | 60.8 | 59.3 | 60.5 | 62.3 |
| J. Chaninstay Length (cm) | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 |
| K. Bottom Bracket Drop (cm) | 7.4 | 7.2 | 7.2 | 6.9 | 6.9 | 6.9 |
| L. Bottom Bracket Height (cm) | 26.8 | 27.1 | 27.1 | 27.3 | 27.3 | 27.3 |
| M. Fork Rake (cm) | 5.5 | 5.5 | 5.5 | 4.5 | 4.5 | 4.5 |
| N. Trail (cm) | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| O. Stack (cm) | 50.5 | 52 | 54 | 56 | 58 | 61 |
| P. Reach (cm) | 37.7 | 38.1 | 38.6 | 39.2 | 39.8 | 40.7 |
