Product Details

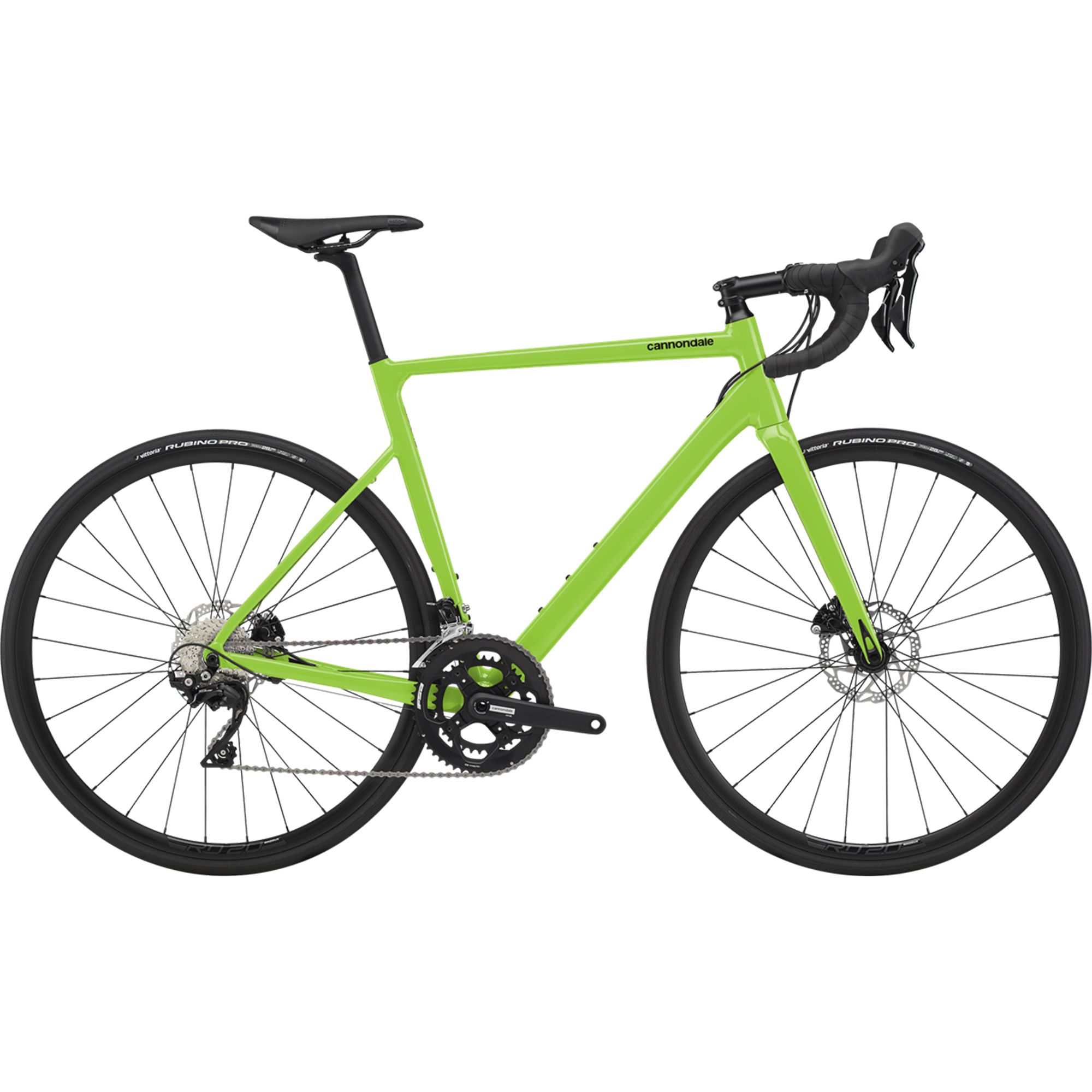

Cannondale Caad13 105 Disc Road Bike
The Shimano 105 equipped Cannondale Caad13 Disc Road Bike is the pinnacle of their aluminium range. It is versatile enough to be used for anything from crit racing to long sportives to all-weather commuting.
The frame benefits from SAVE technology that works to protect the ride from fatiguing road vibrations for a smoother and less tiring ride along with aero-optimised tube shapes for less drag and more speed. Clearance for 30mm wide tyres and removable mudguard mounts increase the bike’s versatility without spoiling the sleek lines and the Speed Release thru-axles make wheel removal easier.
Shimano’s stalwart 105 mechanical groupset is the ideal partner for this bike, bringing with it smooth, accurate shifting and reliable, confidence-inspiring braking. The DT Swiss / Formula wheelset is an alloy, shallow rimmed option that can happily be used in all weather conditions and will work well with tubeless tyres if so desired.
Cannondale CAAD13 Disc 105 Highlights
- Cannondale SmartForm C1 Premium Alloy frame with Speed Release thru-axle
- Cannondale Full Carbon fork with Speed Release thru-axle
- Shimano 105 11-speed mechanical groupset
- Shimano 105 hydraulic disc brakes
- DT Swiss 470 / Formula wheelset with Vittoria Rubino Pro tyres
Features
- Frame: Cannondale SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing with Switchplate, SAVE, BB30a, Di2 ready
- Fork: Cannondale Full Carbon, SAVE, 1-1/8” to 1-1/4” steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (48, 51 and 54cm sizes) 45mm offset (56 and 58cm sizes)
- Headset: CAAD13 Integrated, 1-1/8” - 1-1/4”
- Bottom Bracket: Cannondale BB30 with 24mm adapter
- Stem: Cannondale 3, 6061 Alloy, 31.8, 7° degree
- Handlebar: Cannondale 3, 6061 alloy, Compact
- Bar Tape: Cannondale Bar Tape, 3.5mm
- Front Brake: Shimano 105 hydraulic disc brake, 160mm RT64 disc rotor
- Rear Brake: Shimano 105 hydraulic disc brake, 160mm RT64 disc rotor
- Brake Levers: Shimano 105, hydraulic disc brake
- Front Derailleur: Shimano 105, braze-on
- Rear Derailleur: Shimano 105 GS, 11-speed
- Shift Levers: Shimano 105, 11-speed
- Chain: Shimano HG601, 11-speed
- Cassette: Shimano 105, 11-30, 11-speed
- Crankset: Shimano RS 510, 52/36
- Front Wheel: DT Swiss 470, 28h rim, Formula CL-712, 12x100mm Center Lock hub, Stainless Steel, 14g x 28 spokes, tubeless-ready
- Rear Wheel: DT Swiss 470, 28h rim, Formula RXC-400, 12x142mm Center Lock hub, Stainless Steel, 14g x 28 spokes, tubeless-ready
- Front Tyre: Vittoria Rubino Pro, 700 x 25c, clincher
- Rear Tyre: Vittoria Rubino Pro, 700 x 25c, clincher
- Saddle: Fizik Aliante Delta S-Alloy rails
- Seatpost: HollowGram 27 KNØT, Alloy, 2 bolt clamp, 330mm, 15mm offset
- Pedals: Available to be purchased separately
- Accessories: Cannondale removable mudguard bridge
Highlights
- Cannondale SmartForm C1 Premium Alloy frame with Speed Release thru-axle
- Cannondale Full Carbon fork with Speed Release thru-axle
- Shimano 105 11-speed mechanical groupset
- Shimano 105 hydraulic disc brakes
- DT Swiss 470 / Formula wheelset with Vittoria Rubino Pro tyres
Specifications
- Model
- CAAD13 Disc 105
- Bottom Bracket [Maker]
- Cannondale
- Bottom Bracket Standard
- BB30
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- Shimano
- Brakes [Model]
- 105
- Cassette [Gearing]
- 11-30
- Cassette [Maker]
- Shimano
- Cassette [Model]
- 105
- Chain [Maker]
- Shimano
- Chain [Model]
- HG601
- Chainring [Gearing]
- 50/34
- Crank [Maker]
- Cannondale
- Crank [Model]
- 1 BB30a
- E-Bike
- No
- F Hub [Maker]
- Formula
- F Hub [Model]
- CL-712
- Family
- CAAD13
- FD [Maker]
- Shimano
- FD [Model]
- 105
- Fenders Mounts
- Yes
- Fork [Axle Type]
- 12x100mm Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cannondale
- Fork [Material]
- Carbon
- Fork [Model]
- CAAD13 Full Carbon
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- Brand-Specific
- Frame [Material]
- Aluminium
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Cannondale
- Handlebar [Material]
- Aluminium
- Headset [Maker]
- Cannondale
- R Hub [Maker]
- Formula
- R Hub [Model]
- RXC-400
- Rack Mounts
- No
- RD [Maker]
- Shimano
- RD [Model]
- 105
- Saddle [Maker]
- Fizik
- Saddle [Material]
- Aluminium
- Seatpost [Kind]
- Rigid
- Seatpost [Maker]
- Cannondale
- Seatpost [Material]
- Aluminium
- Shifters [Maker]
- Shimano
- Shifters [Model]
- 105
- Shifting
- Mechanical
- Stem [Clamp Diameter]
- 31.8
- Stem [Maker]
- Cannondale
- Stem [Material]
- Aluminium
- Suspension Configuration
- Rigid
- Tires [Maker]
- Vittoria
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Clincher
- Wheelset [Maker]
- DT Swiss
- Wheelset [Material]
- Aluminium
- Wheelset [Model]
- R470 DB
- Product code
- 1777263 / 54295516381530
Size Guide
| Size | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Rider Height (cm) | 154-165 | 160 - 170 | 165 – 175 | 170 – 180 | 177 - 185 | 182 - 193 | 187 - 198 |
| Rider Height (ft in) | 5'1"-5'5" | 5'3"- 5'7" | 5'5" - 5'9" | 5'7" - 5'11" | 5'10" - 6'1" | 6'0" - 6'4" | 6'2" - 6'6" |
| Seat Tube (ctr-top) | 400 | 438 | 477 | 515 | 534 | 567 | 600 |
| Seat Tube (ctr-ctr) | — | - | - | - | — | — | — |
| Effective Top Tube | 512 | 520 | 528 | 546 | 562 | 578 | 603 |
| Actual Top Tube | 469 | 479 | 489 | 509 | 523 | 541 | 564 |
| Seat Angle (°) | 74.3 | 74.3 | 74.3 | 73.7 | 73.3 | 72.9 | 72.3 |
| Head Tube Angle (°) | 70.9 | 71.2 | 71.2 | 71.2 | 73.0 | 73.0 | 73.0 |
| Head Tube Length | 100 | 114 | 130 | 154 | 165 | 188 | 220 |
| Fork Rake | 55 | 55 | 55 | 55 | 45 | 45 | 45 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 981 | 987 | 996 | 1010 | 994 | 1007 | 1024 |
| Stack | 505 | 520 | 535 | 555 | 575 | 595 | 625 |
| Reach | 370 | 374 | 378 | 384 | 389 | 395 | 403 |
All measurement in mm unless otherwise stated.
Reviews
4.9
Value of Product
Quality of Product
Verified purchaser
Bought a bike through a cycle scheme, super smooth process, amazing bikes, good discounts.
Shipping & Returns
Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.
Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.
Q & A
2 questions answered
Can I fit a rear mounted rack?
Hi there, No this cannot fit a Rack, Many thanks Joe W
What crankset and BB come with this bike? The photos and written specifications don't appear to match up? Cannondale/FSA or Shimano? Thanks,
Hi there, This will come with standard BB30 Bearings Many thanks Joe W
