Product Details

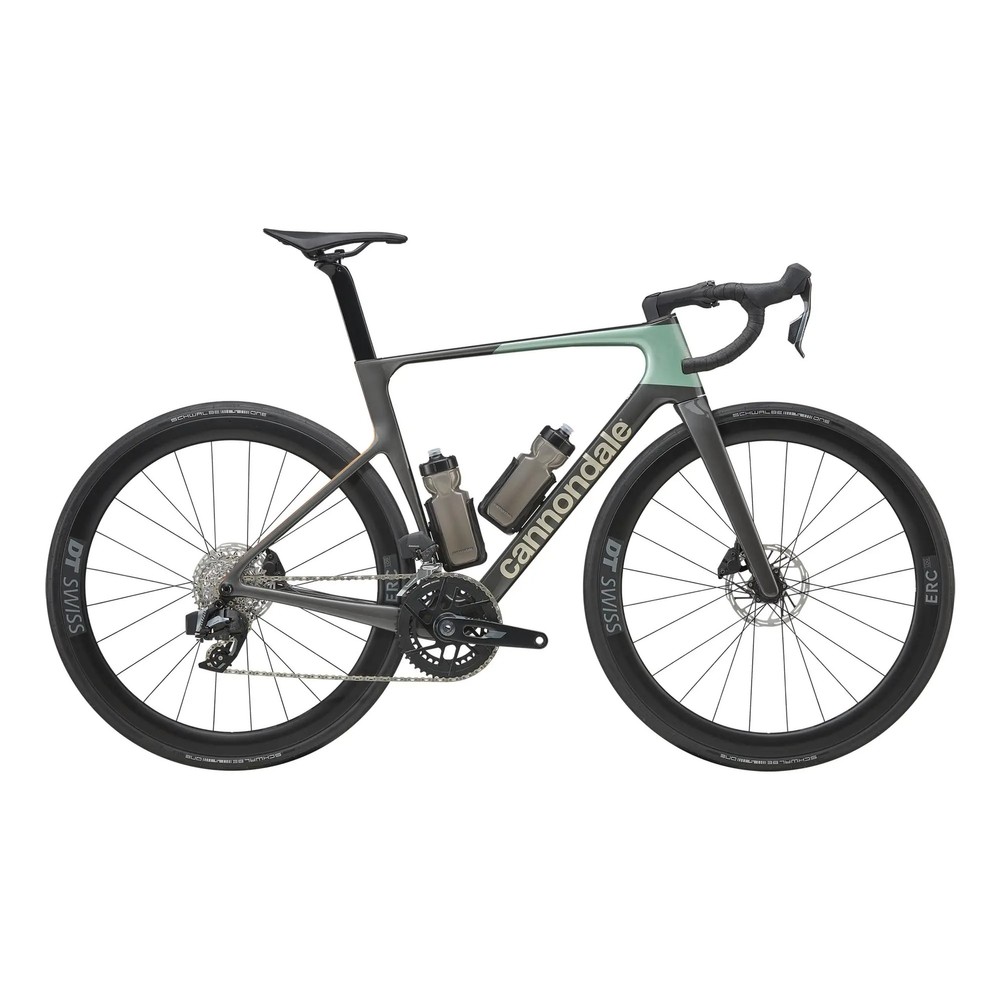

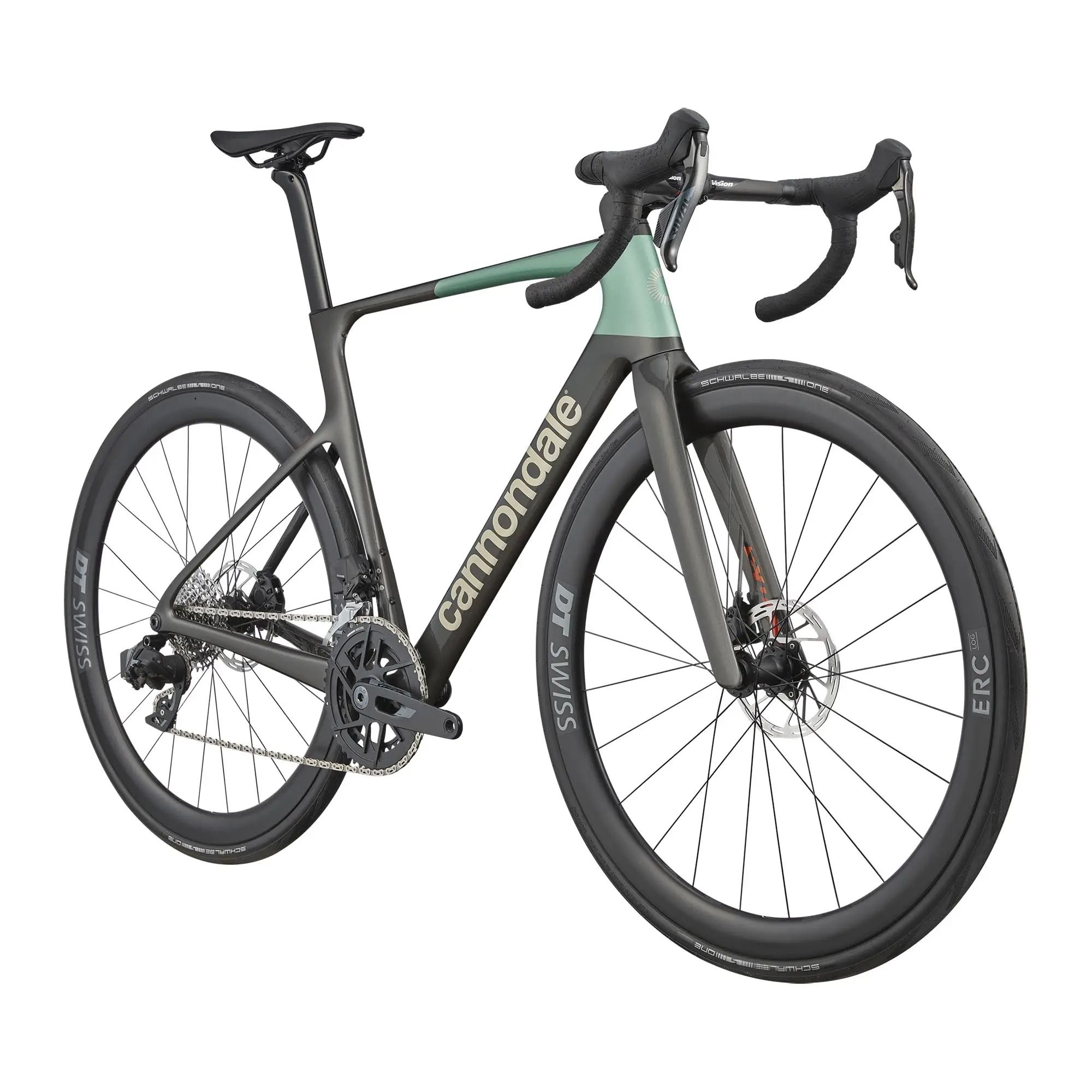

Cannondale SuperSix EVO 4 Rival Road Bike 2026
Thanks to the Gen 5 SuperSix EVO carbon frameset, the Cannondale SuperSix EVO 4 Rival Road Bike offers the perfect blend of low weight, stiffness, and comfort. Its low-drag, race-inspired geometry ensures maximum efficiency and responsive handling, giving cyclists the confidence to push harder on climbs, descents, and corners alike.
Versatile, High-Performance Wheels
Paired with the DT Swiss ERC LOG 45 carbon wheelset, the SuperSix EVO 4 features 45mm deep, lightweight, all-around race wheels designed for speed, stability, and reliability. Whether attacking flats, climbing steep gradients, or sprinting to the line, these wheels enhance every aspect of your ride.
Reliable Electronics and Ergonomic Cockpit

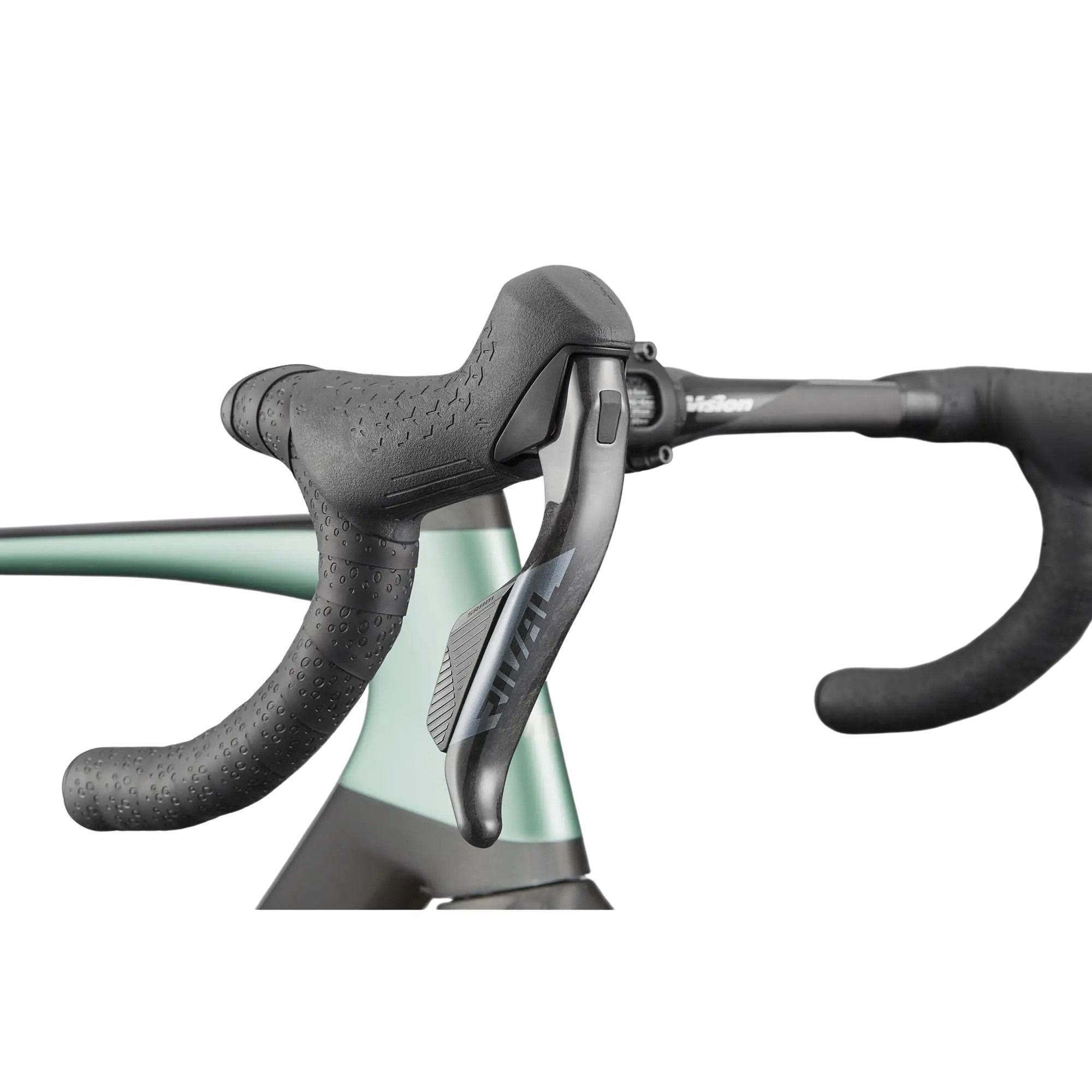

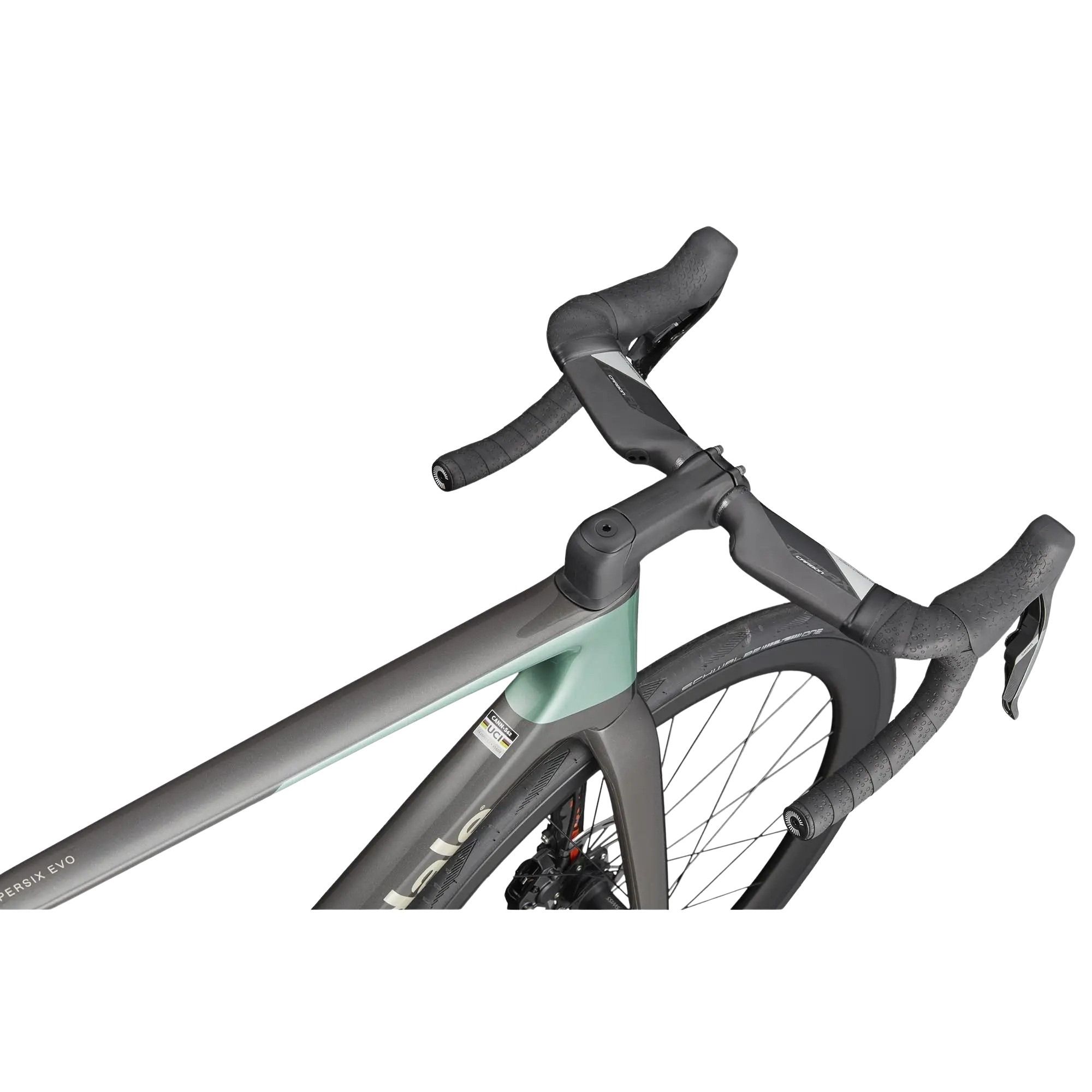

The SRAM Rival AXS wireless electronic groupset delivers precise, reliable, and programmable shifting, ensuring smooth gear changes under any conditions. Combined with the Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem, the bike offers an ergonomic, low-drag cockpit with hidden cables for a clean, race-ready look. The Fizik Vento Antares R7 saddle provides pressure-relieving comfort, keeping you efficient and supported on long rides.
Features
- Frame: SuperSix EVO Carbon, Gen 5, integrated cable routing, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, UDH
- Fork: SuperSix EVO Carbon, Gen 5, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
- Rims: DT Swiss ERC LOG 45, carbon, 22mm inner width, 45mm depth, 24h, tubeless ready
- Hubs: (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
- Spokes: DT Swiss Competition
- Tyres: Schwalbe One TLR, 700x28c, tubeless ready (note: some bikes may ship with 30c tires due to regional availability)
- Pedals: Not included

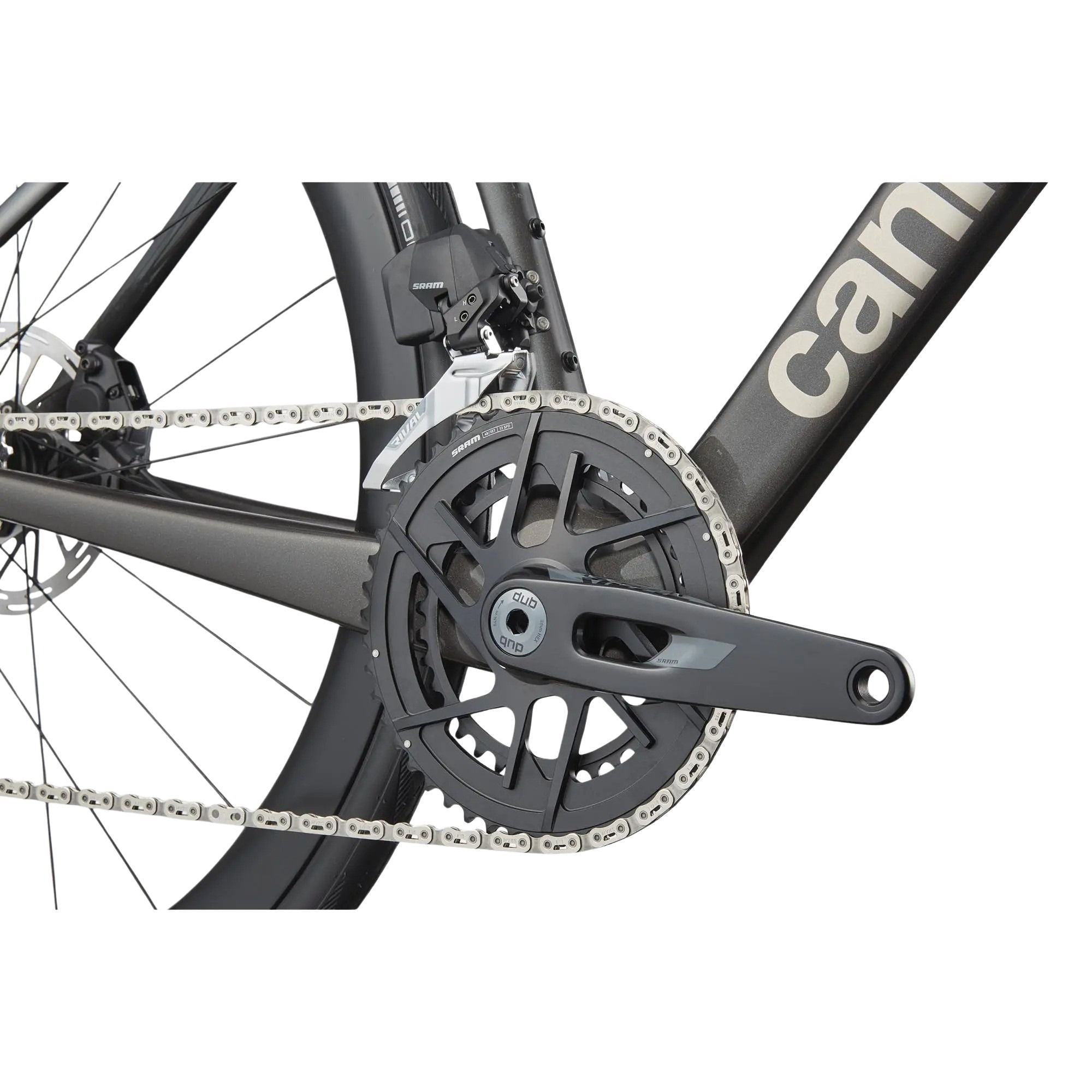

- Crank: SRAM Rival AXS, 48/35: 165mm (44-50cm), 170mm (52-56cm), 172.5 (58-61cm)
- Bottom Bracket: SRAM DUB BSA
- Chain: SRAM Rival, 12-speed
- Rear Cogs: SRAM Rival XG-1250, 10-36, 12-speed
- Front Derailleur: SRAM Rival AXS
- Rear Derailleur: SRAM Rival AXS, 12-speed
- Shifters: SRAM Rival AXS, 2x12-speed
- Handlebar: Vision Trimax Carbon Aero: 380mm (44-56), 400mm (58-61)
- Grips: Cannondale Bar Tape, 3.5mm
- Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
- Headset: Integrated, 1-1/8" - 1-1/4"
- Brakes: SRAM Rival AXS hydraulic disc, 160/160mm PaceLine centerlock rotors
- Brake Levers: SRAM Rival AXS hydraulic disc
- Saddle: Fizik Vento Antares R7, 140mm
- Seatpost: Cannondale C1 Aero 40 Carbon V2, 365mm, 0mm offset (44-54cm), 15mm offset (56-61cm)
- Speeds: 24
- Extras: Tubeless valves, SRAM AXS charger, Conceal Stem accessory mount
Highlights
- Lightweight, low-drag Gen 5 SuperSix EVO carbon frameset – the ideal blend of speed, handling and comfort
- DT Swiss ERC LOG 45 carbon road wheelset - 45mm deep, light, fast, all-around race wheels
- SRAM's workhorse Rival AXS group - precise, reliable wireless electronic shifting
- Vision Trimax Carbon Aero handlebars and Cannondale C1 Conceal stem - ergonomic, low-drag cockpit with hidden cables
- Fizik Vento Antares R7 saddle - ergonomic comfort with pressure-relieving cutout
Specifications
- Model
- SuperSix EVO 4 Rival
- Bottom Bracket [Maker]
- SRAM
- Bottom Bracket Standard
- BSA
- Brakes [Kind]
- Hydraulic Disc
- Brakes [Maker]
- SRAM
- Brakes [Model]
- SRAM Rival AXS
- Cassette [Gearing]
- 10-36
- Cassette [Maker]
- SRAM
- Cassette [Model]
- SRAM Rival XG-1250
- Chain [Maker]
- SRAM
- Chain [Model]
- SRAM Rival 12-speed
- Chainring [Gearing]
- 48/35
- Crank [Maker]
- SRAM
- Crank [Model]
- SRAM Rival AXS
- Discipline Compatibility
- Road
- E-Bike
- No
- F Hub [Maker]
- DT Swiss
- F Hub [Model]
- DT Swiss 370 12x100mm centerlock
- Family
- SuperSix EVO
- FD [Maker]
- SRAM
- FD [Model]
- SRAM Rival AXS
- Fenders Mounts
- No
- Fork [Axle Diameter]
- 12 mm
- Fork [Axle Type]
- Thru-Axle
- Fork [Brake Type]
- Disc
- Fork [Maker]
- Cannondale
- Fork [Material]
- Carbon
- Fork [Model]
- SuperSix EVO Carbon Gen 5
- Fork [Rake]
- 55 mm
- Fork [Wheel Size]
- 700c
- Frame [Hanger Standard]
- UDH
- Frame [Material]
- Carbon
- Frameset
- No
- Gearing [Configuration]
- 2x
- Gearing [Kind]
- Conventional
- Gender
- Unisex
- Handlebar [Kind]
- Drop
- Handlebar [Maker]
- Vision
- Handlebar [Material]
- Carbon
- Handlebar [Shape]
- Aero Drop
- Handlebar [Width]
- 380 mm
- Headset [Maker]
- Cannondale
- Headset [SHIS]
- 1-1/8" - 1-1/4"
- R Hub [Maker]
- DT Swiss
- R Hub [Model]
- DT Swiss 370 LN Ratchet System 12x142mm centerlock
- Rack Mounts
- No
- RD [Maker]
- SRAM
- RD [Model]
- SRAM Rival AXS
- Saddle [Maker]
- Fizik
- Saddle [Material]
- Composite
- Saddle [Width]
- 140 mm
- Seatpost [Kind]
- Aero
- Seatpost [Length]
- 365 mm
- Seatpost [Maker]
- Cannondale
- Seatpost [Material]
- Carbon
- Seatpost [Offset]
- 0 mm
- Shifters [Maker]
- SRAM
- Shifters [Model]
- SRAM Rival AXS
- Shifting
- Electronic
- Stem [Angle]
- -6 degree
- Stem [Clamp Diameter]
- 31.8
- Stem [Length]
- 90 mm
- Stem [Maker]
- Cannondale
- Stem [Material]
- Aluminium
- Sub Family
- Supersix EVO 4
- Suspension Configuration
- Rigid
- Tires [Maker]
- Schwalbe
- Tires [Width]
- 28 mm
- Wheels [Configuration]
- Front+Rear
- Wheels [Kinds]
- Tubeless Ready
- Wheelset [Inner Width]
- 22 mm
- Wheelset [Maker]
- DT Swiss
- Wheelset [Material]
- Carbon
- Wheelset [Model]
- DT Swiss ERC LOG 45
- Product code
- 2007002 / 54293394030938
Size Guide
| Size | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Rider Height (cm) | 154-165 | 160 - 170 | 165 – 175 | 170 – 180 | 177 - 185 | 182 - 193 | 187 - 198 |
| Rider Height (ft in) | 5'1"-5'5" | 5'3"- 5'7" | 5'5" - 5'9" | 5'7" - 5'11" | 5'10" - 6'1" | 6'0" - 6'4" | 6'2" - 6'6" |
| Seat Tube (ctr-top) | 400 | 438 | 477 | 515 | 534 | 567 | 600 |
| Seat Tube (ctr-ctr) | — | - | - | - | — | — | — |
| Effective Top Tube | 512 | 520 | 528 | 546 | 562 | 578 | 603 |
| Actual Top Tube | 469 | 479 | 489 | 509 | 523 | 541 | 564 |
| Seat Angle (°) | 74.3 | 74.3 | 74.3 | 73.7 | 73.3 | 72.9 | 72.3 |
| Head Tube Angle (°) | 70.9 | 71.2 | 71.2 | 71.2 | 73.0 | 73.0 | 73.0 |
| Head Tube Length | 100 | 114 | 130 | 154 | 165 | 188 | 220 |
| Fork Rake | 55 | 55 | 55 | 55 | 45 | 45 | 45 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 981 | 987 | 996 | 1010 | 994 | 1007 | 1024 |
| Stack | 505 | 520 | 535 | 555 | 575 | 595 | 625 |
| Reach | 370 | 374 | 378 | 384 | 389 | 395 | 403 |
All measurement in mm unless otherwise stated.
