Product Details

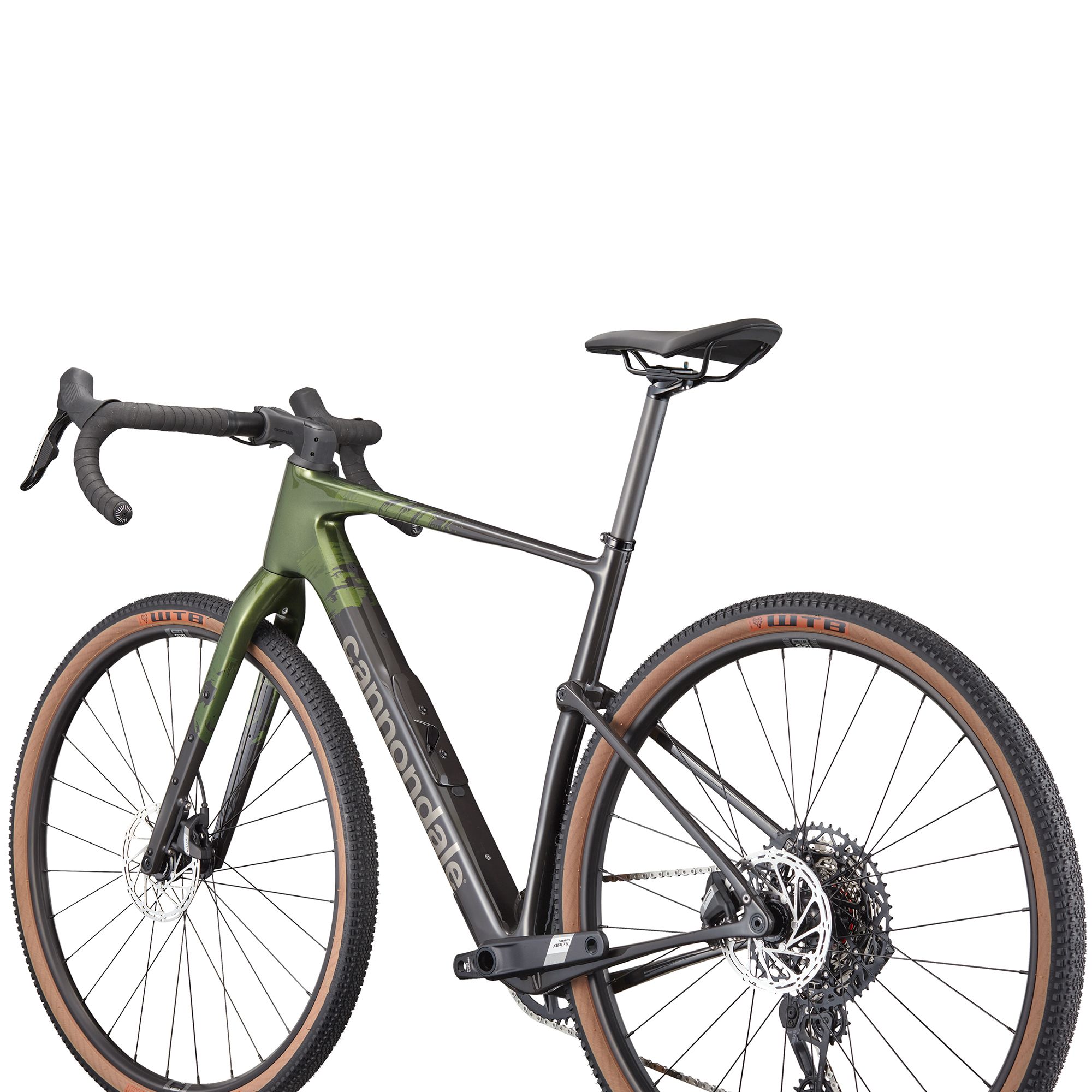

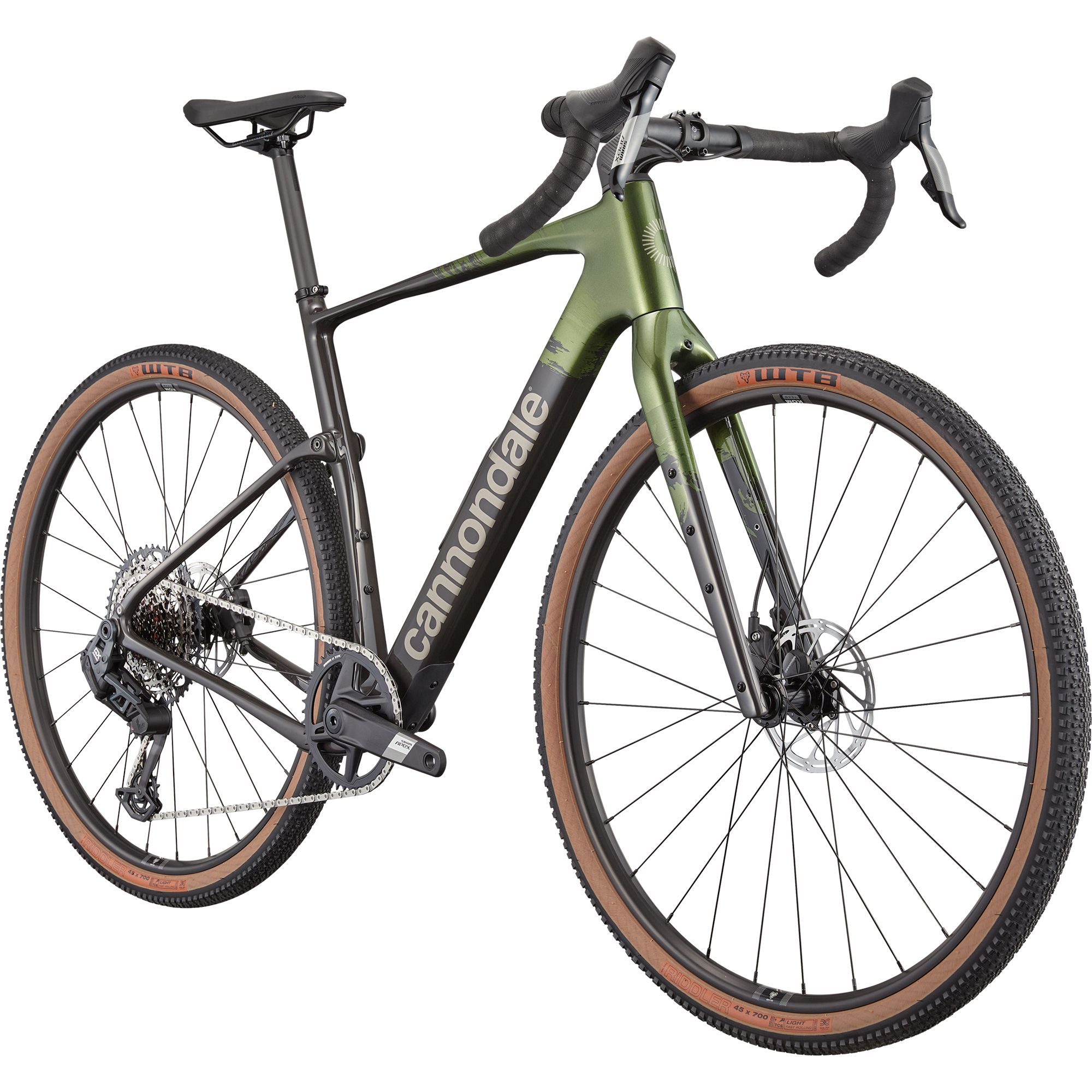

Cannondale Topstone Carbon 2 AXS 1x Gravel Bike

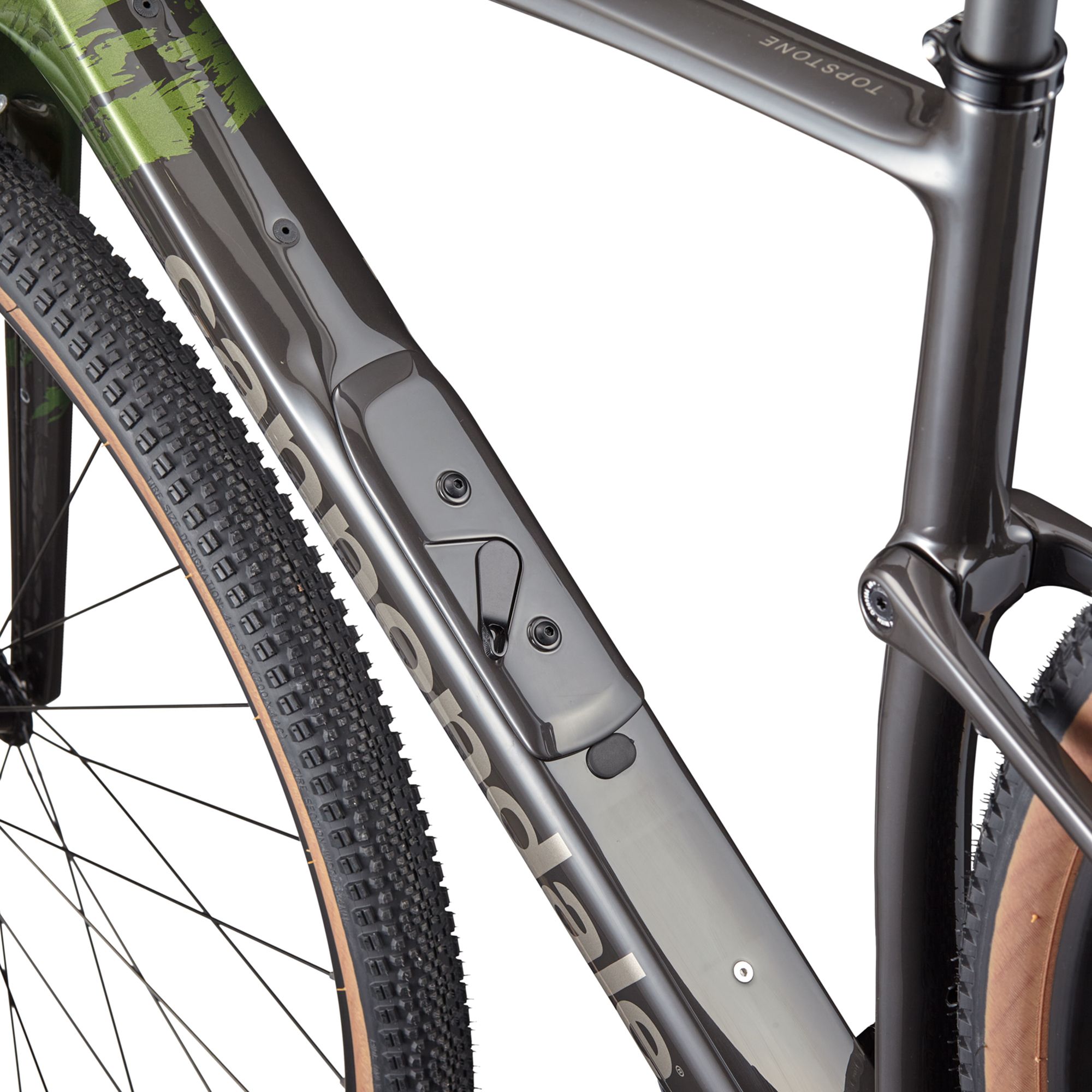

The Cannondale Topstone Carbon 2 AXS 1x Gravel Bike is the ultimate all-rounder, built for adventure with the versatility to go anywhere, carry everything, and keep going. Its lightweight full carbon frameset features Kingpin rear suspension, Proportional Response size-specific construction, and StashPort downtube storage for added practicality.

A mix of SRAM’s workhorse Apex AXS and GX AXS wireless electronic components delivers a wide-range, single-chainring 12-speed drivetrain for smooth and precise shifting.

The WTB KOM Team wheelset, paired with Shimano hubs and WTB Riddler 45c gravel tyres, ensures a fast and reliable ride. Cannondale’s 2 carbon seatpost and 2 ShortDrop flared bar create a comfortable cockpit for long-distance adventures. The Cannondale Wheel Sensor provides hyper-accurate speed, distance, and route data, along with service reminders via the Cannondale App.

Features
  • Frame: Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
  • Fork: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
  • Headset: Acros IS52/40 ICR

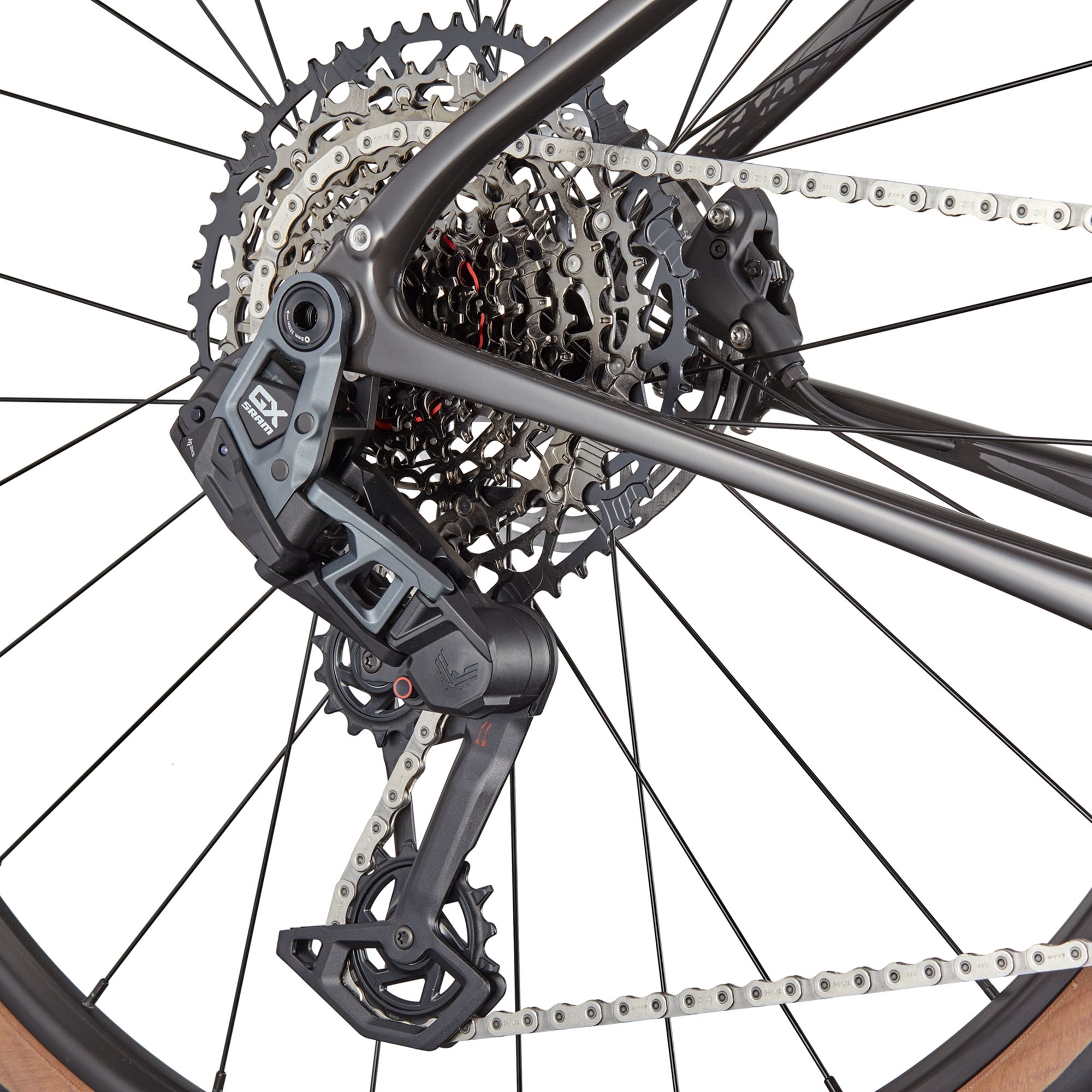

  • Rear Derailleur: SRAM GX Eagle, T-Type
  • Shifters: SRAM Apex AXS, 12-speed
  • Chain: SRAM GX Eagle Transmission, 12-speed

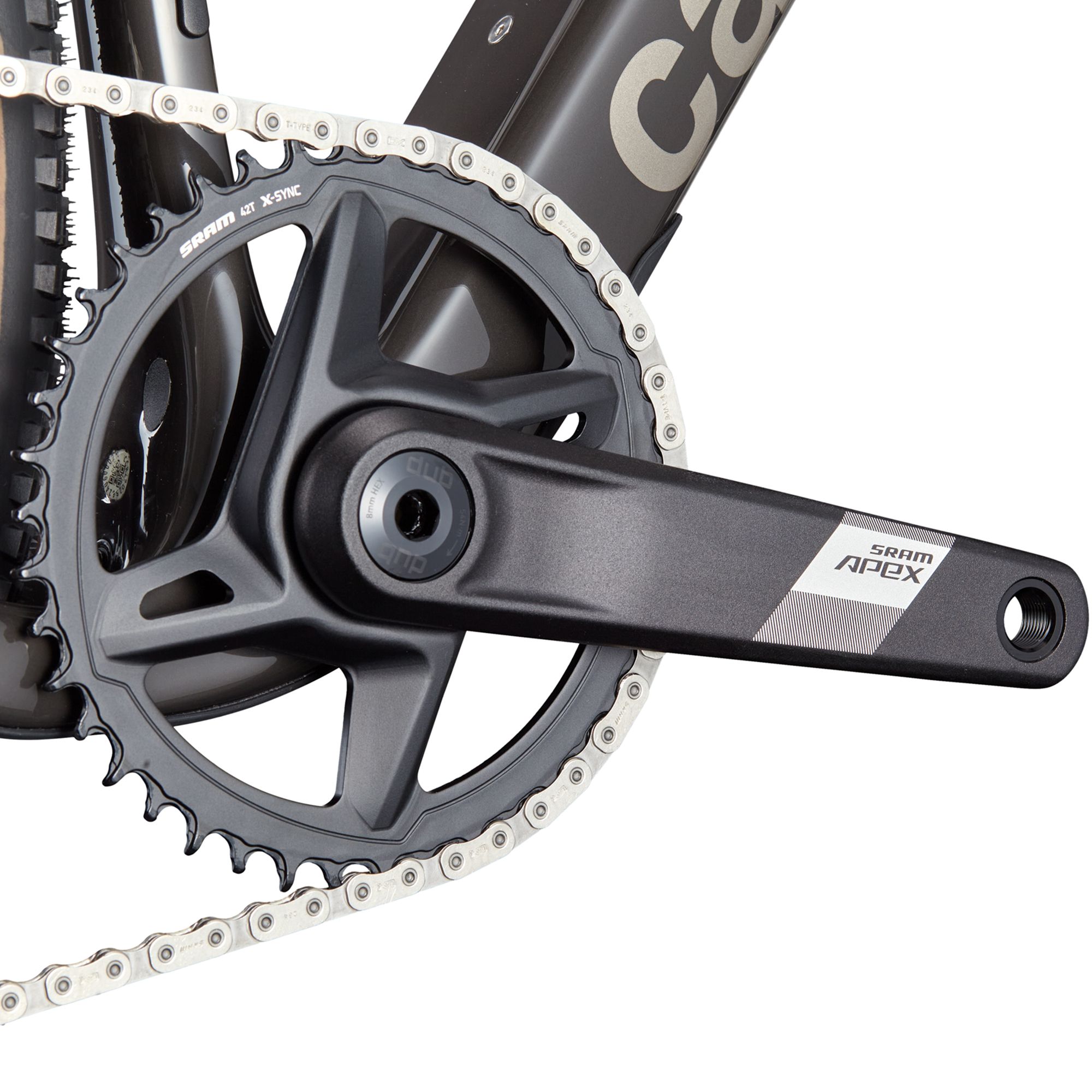

  • Crank: SRAM Apex DUB Wide, 42T
  • Rear Cogs: SRAM XS-1270, 10-52, T-Type, 12-speed
  • Brakes: SRAM Apex hydraulic disc, 160/160mm CenterLine centerlock rotors
  • Brake Levers: SRAM Apex AXS hydraulic disc
  • Hubs: Front - Formula cartridge bearing, 12x100mm centerlock / Rear - Formula cartridge bearing, 12x142mm centerlock
  • Rims: WTB KOM Team i25 TCS, 28h, tubeless ready
  • Spokes: Stainless Steel, 14g
  • Tyres: WTB Riddler TCS Light, 700x45c, tubeless ready

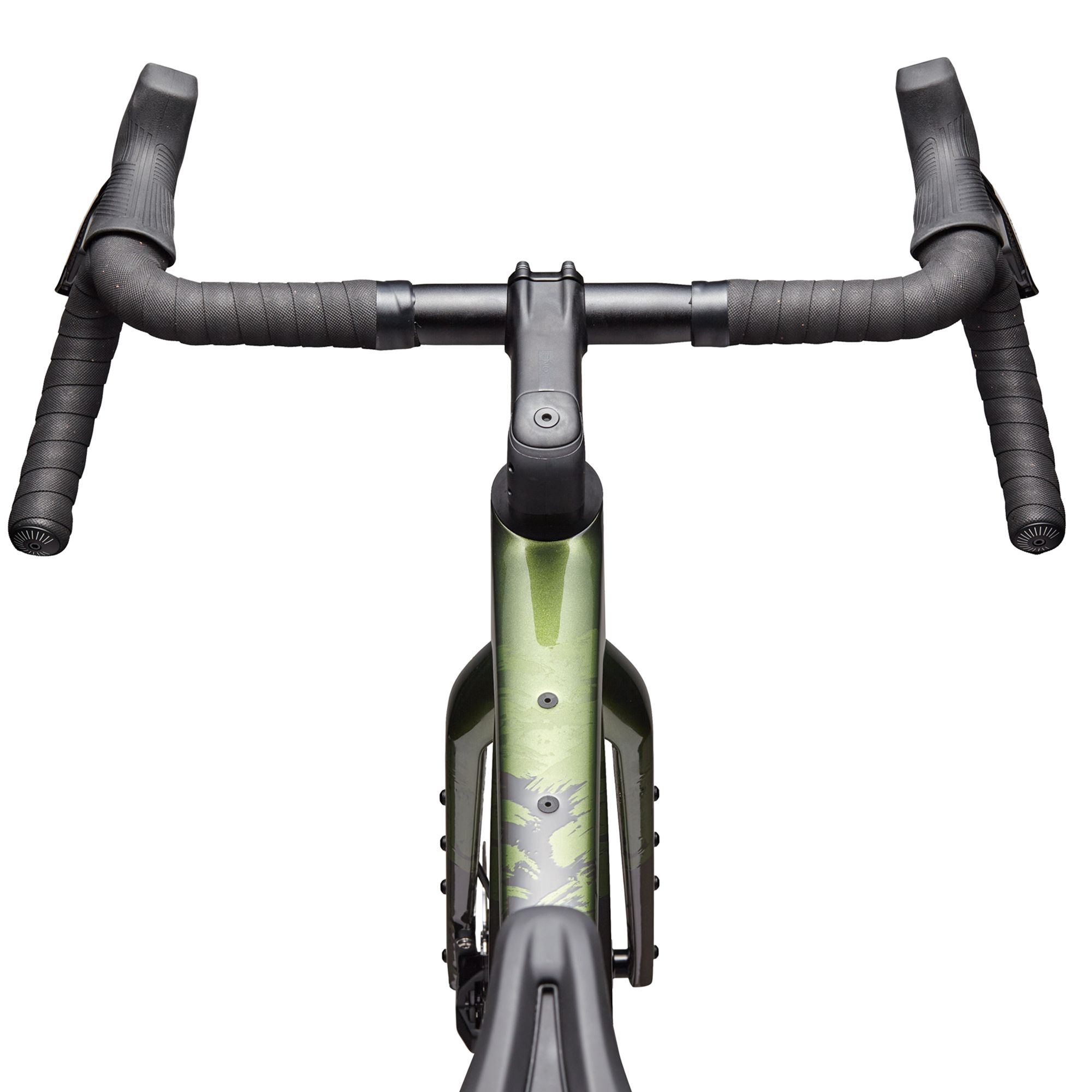

  • Handlebar: Cannondale 2 ShortDrop, 7050 alloy, 12° flare drop
  • Grips: Cannondale KnurlCork, 2.7mm
  • Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°
  • Saddle: Fizik Terra Argo X7
  • Seatpost: Cannondale 2 Carbon, 27.2x350mm (47-58), 400mm (61)
  • Extras: Large StashBag downtube storage bag, tubeless valve stems, SRAM AXS charger
Highlights
  • Topstone Carbon, Kingpin suspension system frame
  • Sram Apex/GX Grouspet
  • WTB KOM Team i25 Wheelset
  • Fizik Terra Argo X7 Saddle
Specifications
Model
Topstone Carbon 2 AXS 1x
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
BSA
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Apex
Cassette [Gearing]
10-52
Cassette [Maker]
SRAM
Cassette [Model]
XS-1270
Chain [Maker]
SRAM
Chain [Model]
GX Eagle Transmission
Chainring [Gearing]
42
Crank [Maker]
SRAM
Crank [Model]
Apex DUB Wide
Discipline Compatibility
Gravel
E-Bike
No
F Hub [Maker]
Shimano
F Hub [Model]
TC500
Family
Topstone
Fenders Mounts
Yes
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cannondale
Fork [Material]
Carbon
Fork [Model]
Topstone Carbon
Fork [Rake]
55 mm
Fork [Wheel Size]
700c
Frame [Hanger Standard]
UDH
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Flare]
12 degree
Handlebar [Kind]
Drop
Handlebar [Maker]
Cannondale
Handlebar [Material]
Aluminium
Handlebar [Shape]
ShortDrop flared
Headset [Maker]
Acros
Headset [SHIS]
IS52/40
R Hub [Maker]
Shimano
R Hub [Model]
TC500
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
GX Eagle AXS
Saddle [3D Printed]
No
Saddle [Maker]
Fizik
Seatpost [Diameter]
27.2
Seatpost [Kind]
Rigid
Seatpost [Length]
350 mm
Seatpost [Maker]
Cannondale
Seatpost [Material]
Carbon
Shifters [Maker]
SRAM
Shifters [Model]
Apex AXS
Shifting
Electronic
Stem [Angle]
-6 degree
Stem [Clamp Diameter]
31.8
Stem [Maker]
Cannondale
Stem [Material]
Aluminium
Sub Family
Topstone Carbon
Suspension Configuration
Rigid
Tires [Maker]
WTB
Tires [Width]
45 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Inner Width]
25 mm
Wheelset [Maker]
WTB
Wheelset [Material]
Aluminium
Wheelset [Model]
KOM Team i25 TCS
Product code
1901105 / 54294090416474
Size Guide
Cannondale Topstone Alloy Bikes and Framesets Size Guide 2022

All measurements in mm unless otherwise stated.

Reviews
Rating 5 out of 5
5
Value of Product
5
Quality of Product
5
Rating 5 out of 5
Anonymous,
Verified purchaser
Rating 5 out of 5
Manchester Riderz,
Verified purchaser

I’ve been a Topstone fan since day one, and this is my third one. I really wanted the new 2025 Lefty, but the price was just too high for us mere mortals! I ended up getting the Carbon 2 AXS and "frankensteined" it by adding an Oliver fork and some DT Swiss wheels. I’m absolutely loving the ride so far. I’m still getting used to the electronic shifting (it’s a big jump from mechanical!), and I haven't given the AXS a proper workout in the rough stuff yet, but the bike feels solid. Add me on Strava Manchester Riderz

Shipping & Returns

Free UK delivery on orders over £50. Orders are dispatched within 1-2 working days and typically arrive 1-2 working days later.

Return unused items in their original packaging within 30 days of delivery. Return postage is £3.50.

Payment & deliveryReturns & exchanges
Q & A

1 question answered

  1. Hi is this UDH compatible?

    Asked by Marky (Reading) —

    1. Hi Marky, Yes. The frame uses a UDH, Many thanks Joe W

      Joe W
