Cervelo Aspero 5 Frameset 2027

£5,000.00

Delivery

Select size to see delivery options

Collect in Store

Cycle to Work – Save up to 42%

Spread the cost of your new bike and save up to 42% through the Cycle to Work scheme. We accept all major providers including Cyclescheme, Green Commute Initiative, Bike2Work and more.
We do not accept Halfords Cycle2Work or Evans Cycles Ride-to-Work Scheme vouchers.
Check with your employer for eligibility.

Free Delivery on all bikes

Complimentary standard delivery on all bikes to UK mainland addresses. Orders typically arrive within 2–5 working days. A signature is required on delivery. When you receive your bike all you'll need to do is unpack it, attach your pedals, turn the handlebars and ride.

Premier Delivery

Upgrade to Premier Delivery at checkout for a nominated day, extended assembly and in-home handover by a trained technician. Available on eligible bikes across UK mainland.

Built, checked, tuned & tested

All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.

All bikes collected from our shop, are built, tested and ready to ride.

Pedals & accessories

Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.

If you require any assistance please contact our Customer Care team

You May Also Need

Cervelo
Aspero-5 Limited Edition Frameset
£3,500.00
£5,250.00
Specialized
S-Works Crux 5 Gravel Frameset
£5,249.00
Cervelo
Aspero-5 Frameset 2026
£3,500.00
£5,000.00

Product Details

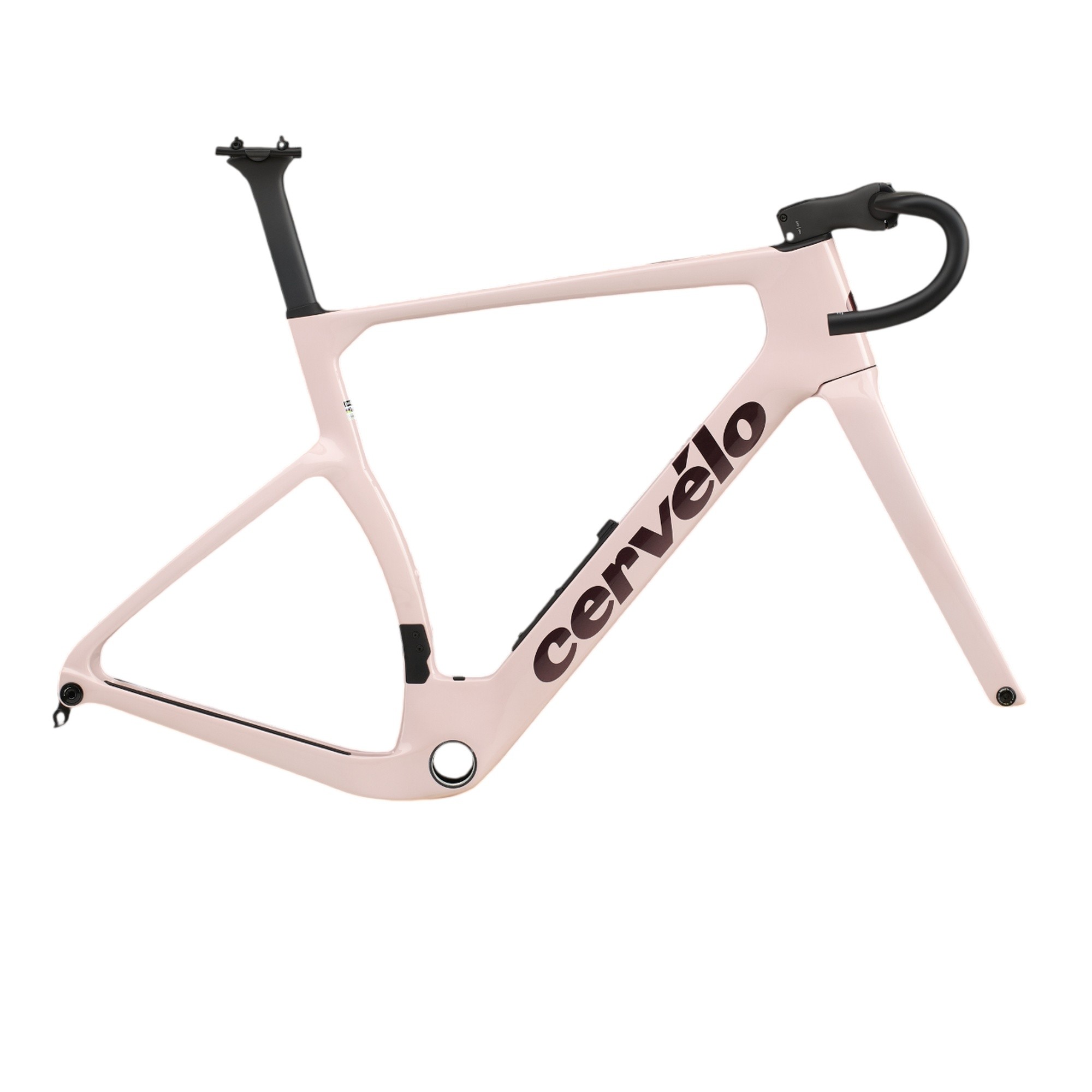

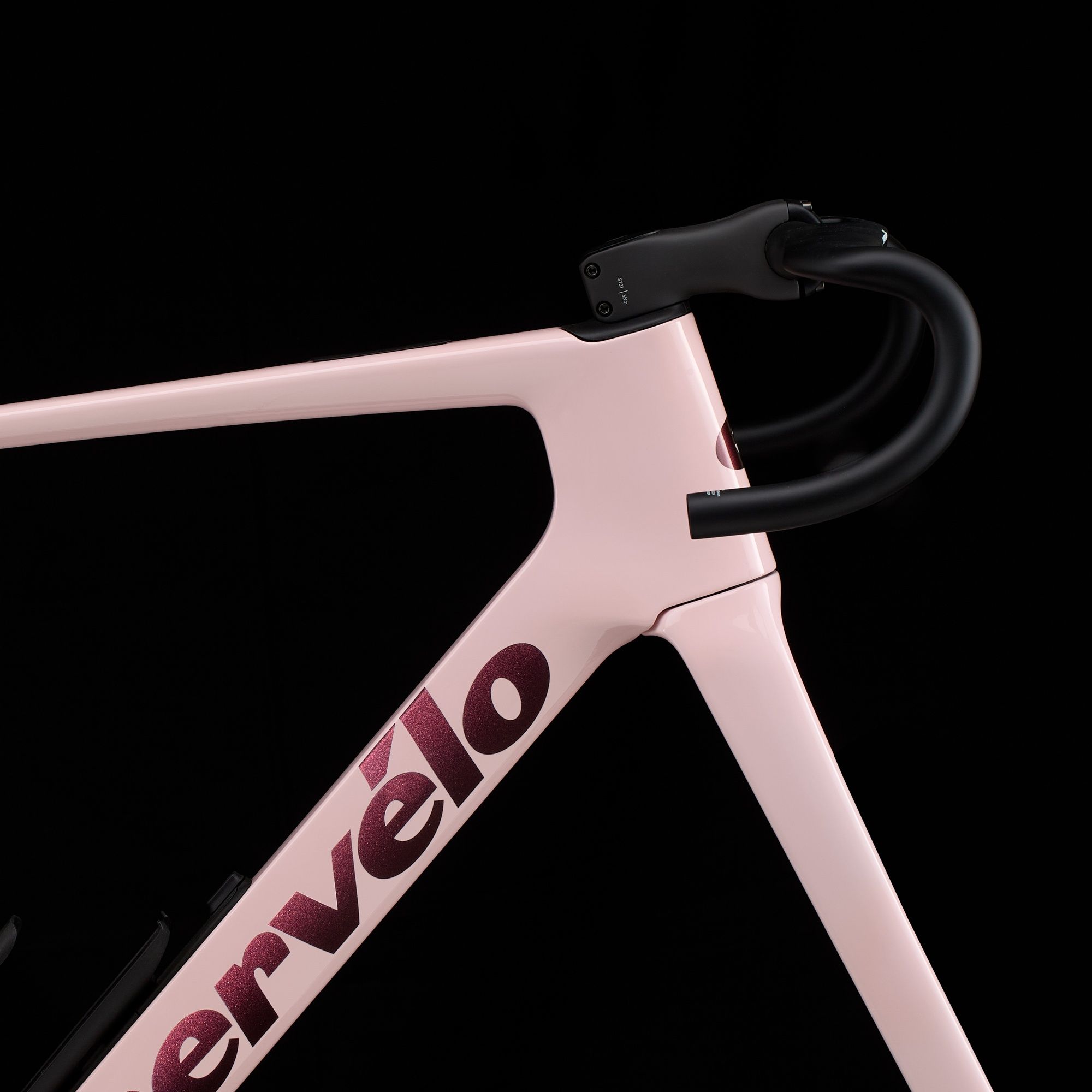

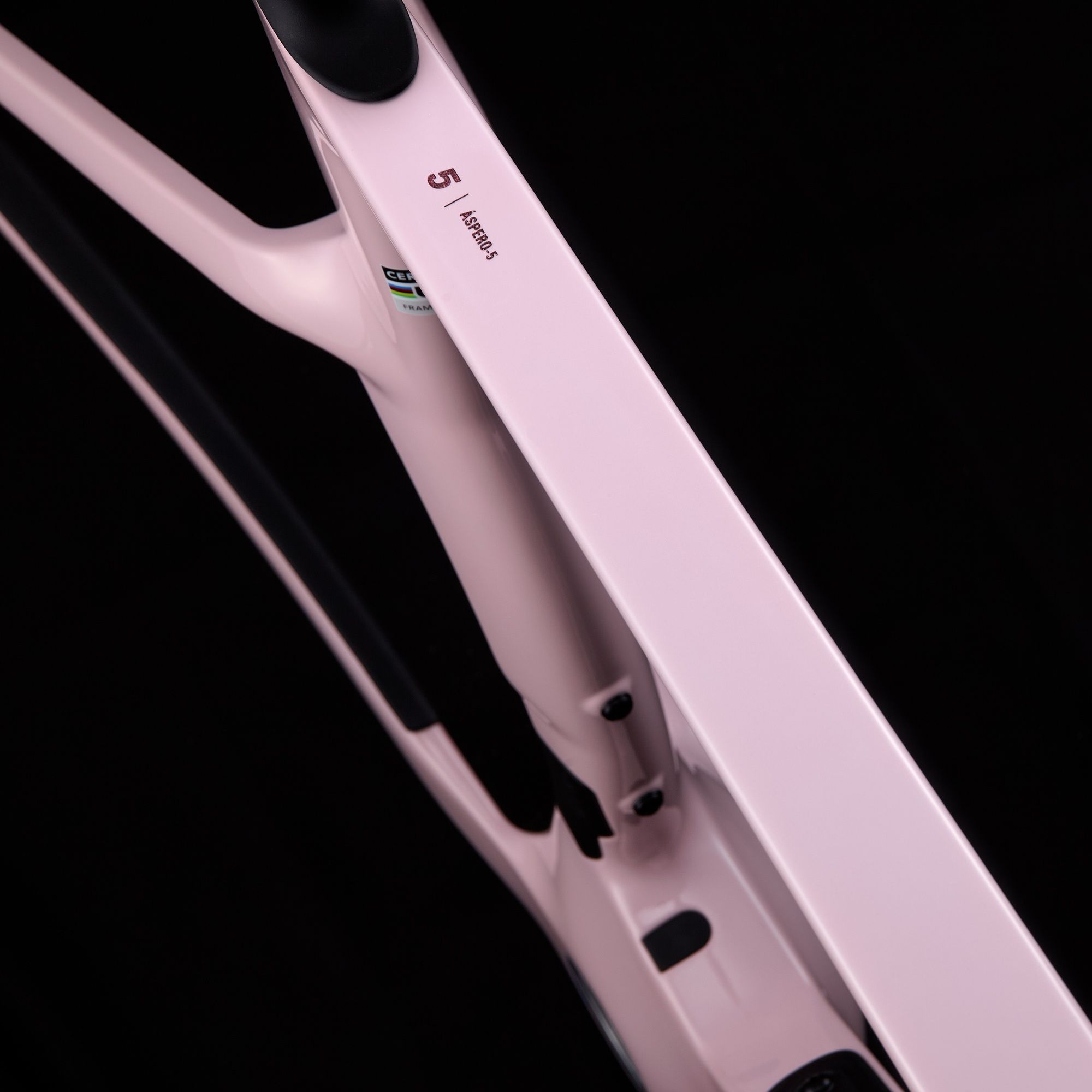

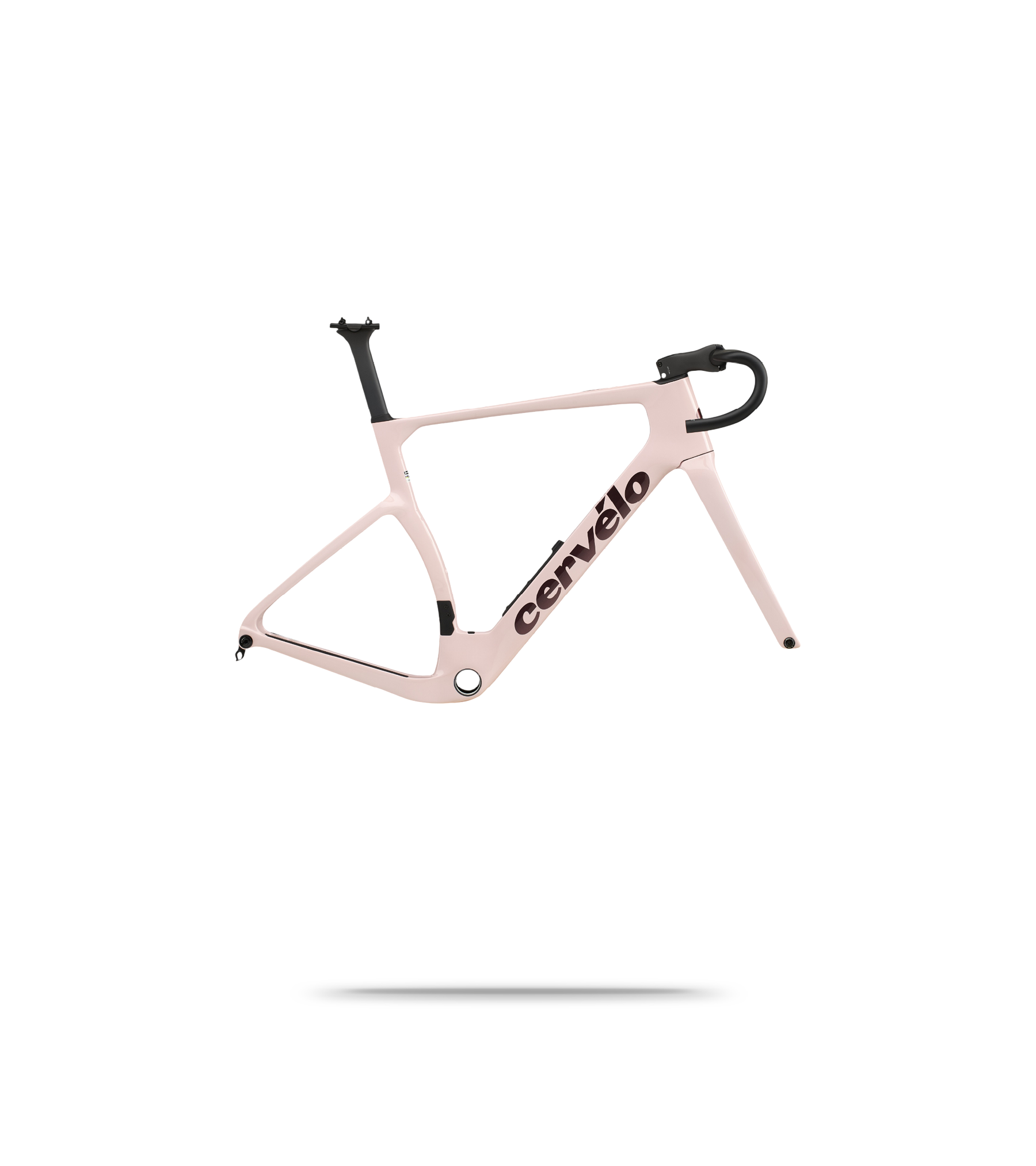

Cervelo Aspero-5 Frameset 2027

The Cervelo Aspero-5 Frameset 2025 provides a no-compromise base for a custom gravel race build. Its aero-optimised carbon layup, in-frame storage and fully integrated routing deliver cutting-edge speed and utility. Geometry mirrors Cervélo’s Soloist for a fast but stable ride, while key design features like the revised fork and wide clearance enable high-performance setup flexibility.

Features

Claimed Frame Weight: 1025 g
Claimed Fork Weight: 420 g
System Weight: 2026 g (incl. bar, seatpost, stem, storage door)
Tyre Clearance: Up to 45 mm front and rear
Bottom Bracket: Threaded T47A
Storage: Integrated downtube compartment
UDH and Transmission-compatible
Large chainrings up to 52T
Compatible with dual-sided power meters
Cockpit Support: Fully and semi-internal routing supported (ST31/ST36)

Highlights

Cervelo All-Carbon
Threaded T47A Bottom Bracket
UDH and Transmission compatible

Specifications

Model: Aspero 5 Frameset
Bottom Bracket Standard: T47
Discipline Compatibility: Gravel
E-Bike: No
Family: Aspero
Fork [Brake Type]: Disc
Fork [Material]: Carbon
Frame [Hanger Standard]: UDH
Frame [Material]: Carbon
Frame [Tire Clearance]: 45c mm
Frameset: Yes
Gearing [Kind]: Conventional
Gender: Unisex
Sub Family: Aspero 5
Suspension Configuration: Rigid
Product code: 2046812 / 54343846723930

Size Guide

Size	48	51	54	56	58	61
Frame Reach (mm)	368.7	376.5	383.3	391.1	400.3	408.3
Stack (mm)	496.1	520.2	544.6	567.5	590.7	610.7
Head Tube Angle	71	72	73	73	73	73
Front Center (mm)	574	576	578	595	611	628
Bottom Bracket Drop (mm)	76.5	76.5	74	74	71.5	71.5
Head Tube Length (mm)	86	106	130	156	184	211
Top Tube Length (mm)	516	532	548	565	581	598
Seat Tube Angle	74.5	74	73.5	73	73	73
Standover Height (mm)	708	748	774	798	824	848
Trail (mm)	57.3	57.3	57.3	57.3	57.3	57.3
Fork Offset (mm)	57.5	51.5	45.5	45.5	45.5	45.5
Wheelbase (mm)	972	974	977	994	1011	1028
Chainstay Length (mm)	410	410	410	410	410	410
