Product Details

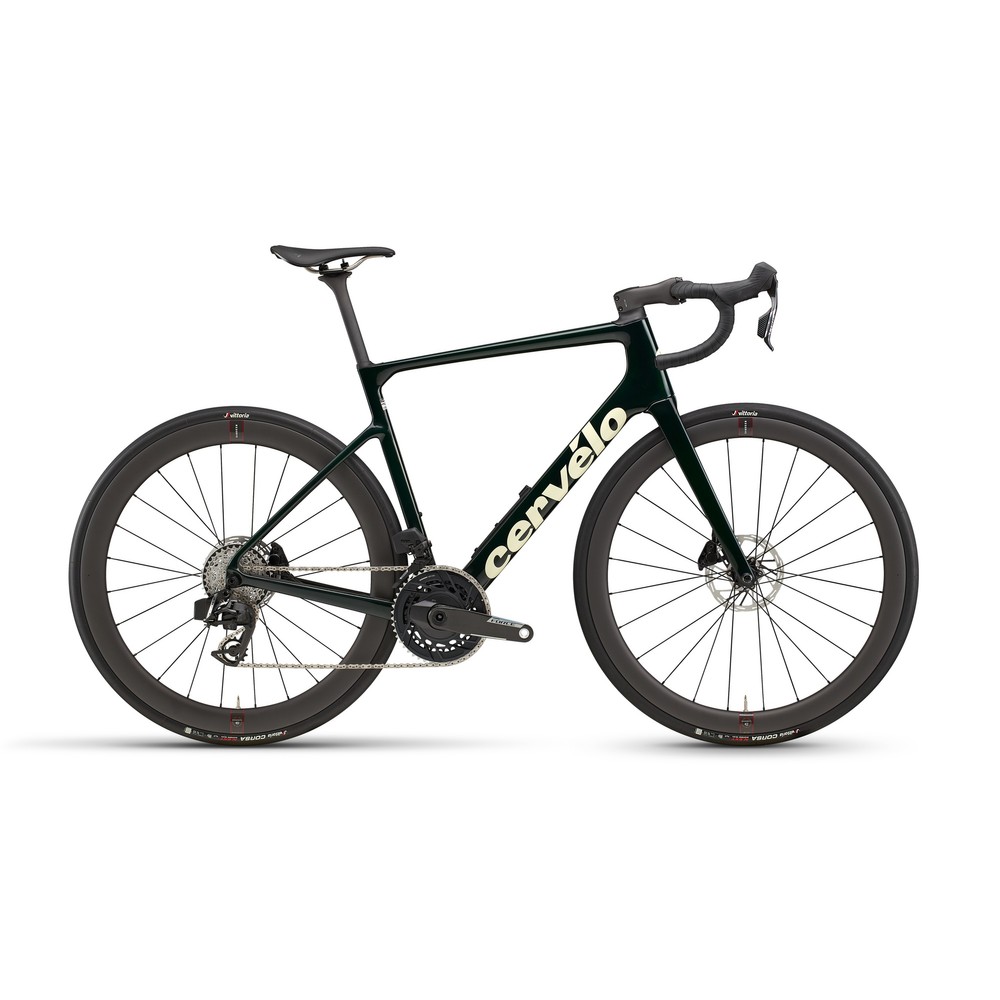

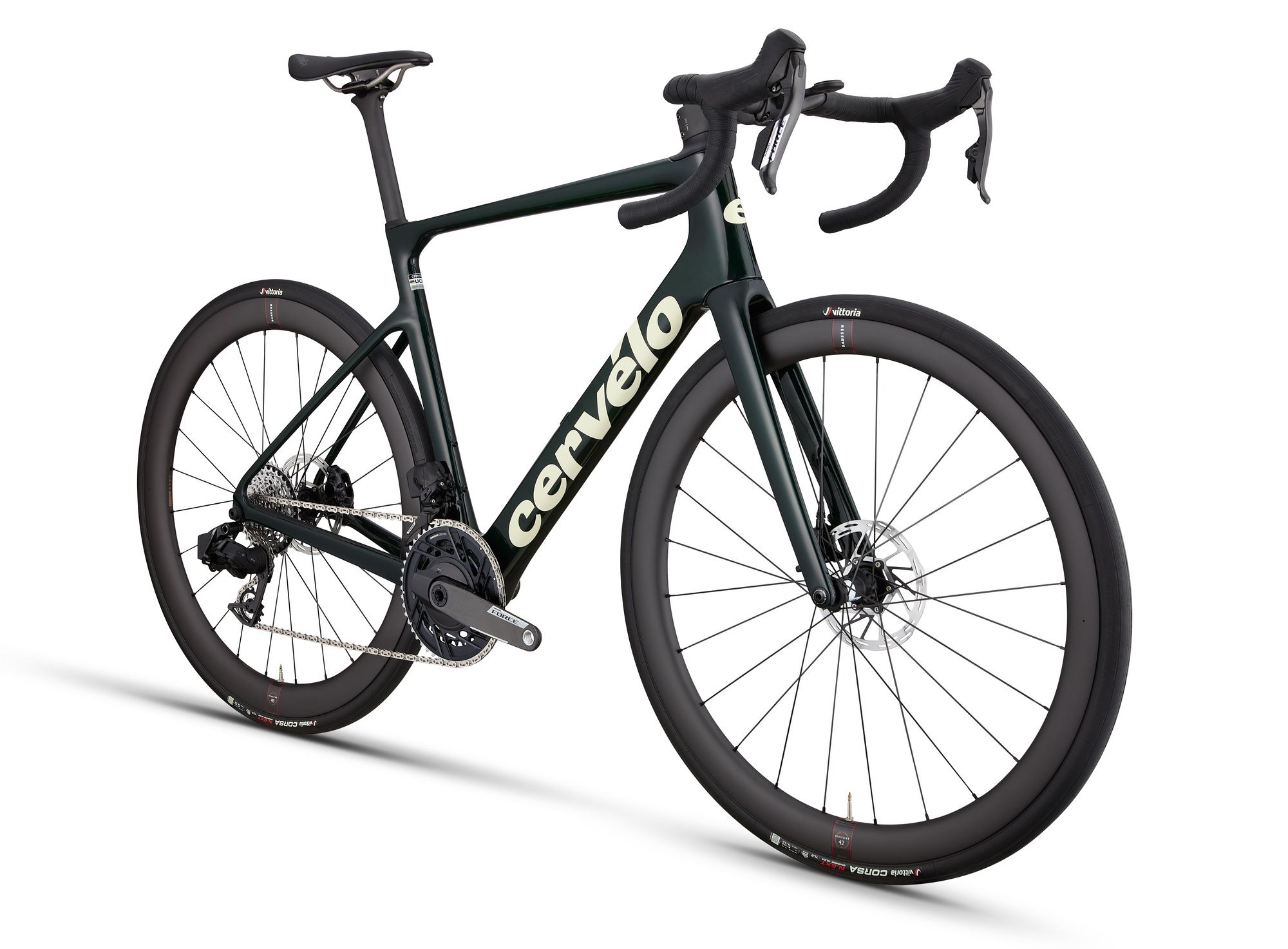

Cervelo Caledonia-5 Force AXS Bike

Performance, comfort and speed for endurance cyclists - the Cervelo Caledonia-5 Force AXS Road Bike has all the right attributes to handle any epic ride you throw its way. Lung-busting fast-rides on a weekday evening - check; epic all-day weekend group rides that push speed and distance limits - check; Multi-stage, ultra-distance racing - check: whatever endurance rides and races you have planned, the Caledonia-5 is a bike that lets you rise to the challenge.

Dropped seat stays provide long-ride comfort from the first pedal stroke to the last, and there's clearance for tyres up to 36mm, ensuring you enjoy a plush ride - ideal when facing rougher roads or exploring smoother gravel byways. Aerodynamics, geometry, and frame stiffness have been tuned to optimise comfort, save energy, and maximise power output, making it perfect for battling all-day headwinds and conserving energy for the last miles of a race. As a bike tuned to endurance-testing rides, it comes with onboard storage, keeping spares safely tucked away in the downtube, ready and easily accessible when needed. And there are even fender mounts, giving you a bike that can be ridden and raced year-round without a fuss.

Features
  • Frame: Caledonia-5 full carbon
  • Fork: Cervélo All-Carbon, Tapered Caledonia-5 Fork
  • Headset: FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
  • Front Axle: Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length
  • Rear Axle: Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length
  • Bottom Bracket: SRAM DUB, BBright
  • Handlebar: Cervélo HB13 Carbon, 31.8mm clamp
  • Stem: Cervélo ST31 Carbon
  • Bar Tape: Cervelo
  • Front Brake: SRAM Force Hydraulic disc - SRAM Paceline Centerlock disc
  • Rear Brake: SRAM Force Hydraulic disc - SRAM Paceline Centerlock disc
  • Brake and Shift Levers: SRAM Force AXS E1
  • Rear Derailleur: SRAM Force AXS E1
  • Front Derailleur: SRAM Force AXS E1
  • Chain: SRAM Force E1
  • Cassette: SRAM Force E1, 10-36T, 12-Speed
  • Crankset: SRAM Force AXS E1, 48/35T, DUB, with a power meter
  • Front Wheel: Reserve 42TA, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible
  • Rear Wheel: Reserve 49TA, DT Swiss 350, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
  • Tyres: Vittoria Corsa N.EXT TLR G2.0 700x30c
  • Saddle: Selle Italia NOVUS BOOST EVO SuperFlow Carbon
  • Seatpost: Cervélo SP24 Carbon
  • Pedals: Available to be purchased separately
  • Accessories: Cervélo Removable Fender Mounts, Cervélo Front Computer/Accessory Mount 810, Cervélo Rear Accessory
  • Mount, Cervélo In-Frame Storage Rolls - Inner Tube Storage, Cervélo In-Frame Storage Rolls - Flat Kit Storage, Arundel Mandible Water Bottle Cage, Matte UD Carbon finish (2 qty)
Specifications
Model
Caledonia-5 Force AXS
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
BBRight
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Force
Cassette [Gearing]
10-36
Cassette [Maker]
SRAM
Cassette [Model]
Force E1
Chain [Maker]
SRAM
Chain [Model]
Force E1
Chainring [Gearing]
48/35
Crank [Maker]
SRAM
Crank [Model]
Force AXS E1
Discipline Compatibility
Road
E-Bike
No
F Hub [Maker]
DT Swiss
F Hub [Model]
350
Family
Caledonia-5
FD [Maker]
SRAM
FD [Model]
Force AXS E1
Fenders Mounts
Yes
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cervelo
Fork [Material]
Carbon
Fork [Model]
Caledonia-5
Fork [Wheel Size]
700c
Frame [Material]
Carbon
Frame [Tire Clearance]
36 mm
Frame [Travel]
0 mm
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Material]
Carbon
Handlebar [Shape]
Drop bar
Headset [Maker]
FSA
Headset [SHIS]
IS2
Headset [Upper Headset Fit]
IS 1-1/4
Power Meter [Maker]
SRAM
Power Meter [Model]
Force AXS E1
R Hub [Maker]
DT Swiss
R Hub [Model]
350
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
Force AXS E1
Saddle [Maker]
Selle Italia
Saddle [Material]
Carbon
Seatpost [Kind]
Rigid
Seatpost [Maker]
Cervelo
Seatpost [Material]
Carbon
Seatpost [Offset]
0 mm
Shifters [Maker]
SRAM
Shifters [Model]
Force AXS E1
Shifting
Electronic
Stem [Clamp Diameter]
31.8
Stem [Maker]
Cervelo
Stem [Material]
Carbon
Suspension Configuration
Rigid
Tires [Maker]
Vittoria
Tires [Width]
30 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
Reserve
Wheelset [Material]
Carbon
Product code
1938889 / 54293822407002
Size Guide
Size485154565861
Rider Height (cm)152 - 161159 - 168168 - 174174 - 180180 - 185185 - 192.5
Rider Height (ft. in.)5'0" - 5'3.5"5'2.5" - 5'6"5'6" - 5'8.5"5'8.5" - 5'11"5'11 - 6'1"6'1" - 6'4"
Seat Tube (ctr-top)430478508534557580
Seat Tube (ctr-ctr)------
Effective Top Tube502522543565581598
Actual Top Tube ------
Seat Angle (°)74.57473.5737373
Head Tube Angle (°)70.571.572727272
Head Tube Length89.5109.9136162.3191.2217.5
Fork Rake595350505050
Chainstay Length415415415415415415
Wheelbase982.2984.5995.21012.31030.71047/8
Stack505530555580605630
Reach360369378387396405
Stem Length8090100100110110
Handlebar Width380400420420440440
Cervelo Caledonia-5 Size Guide 2022

All measurements in mm unless otherwise stated.
