Product Details

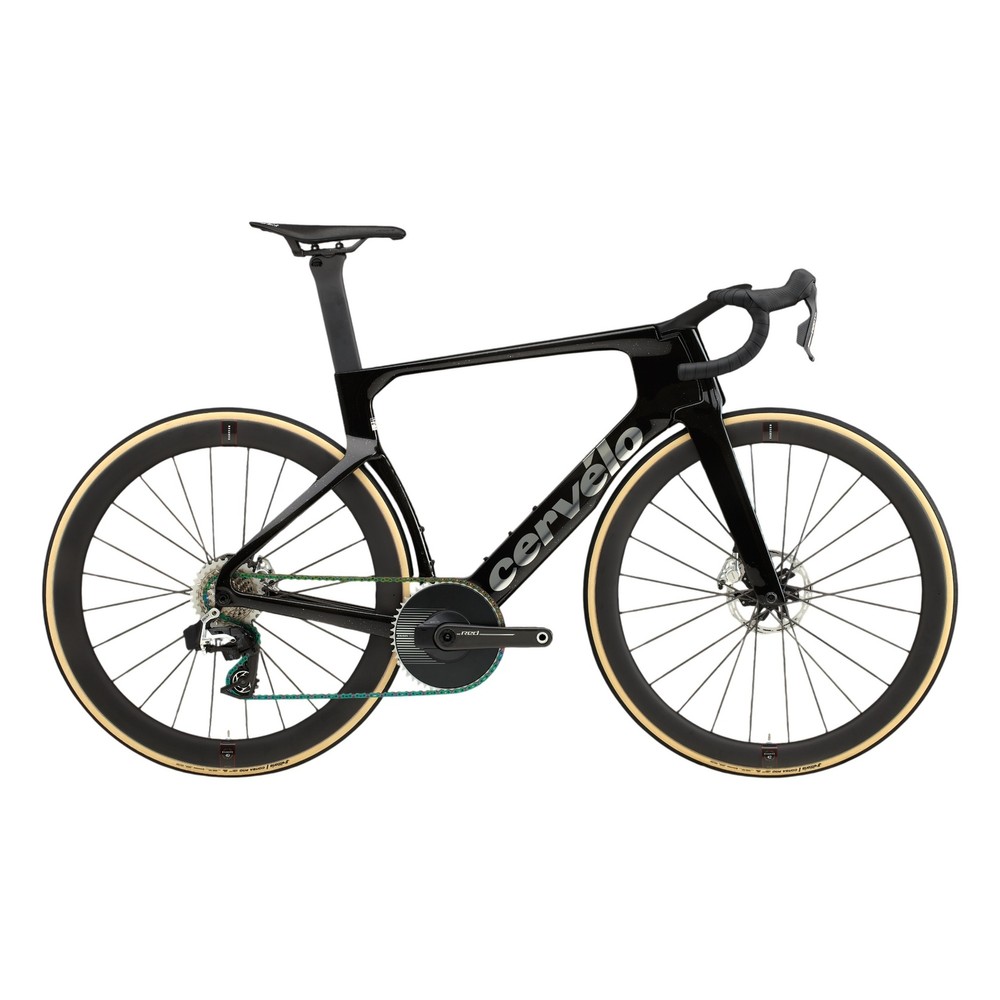

Cervelo S5 Red AXS 1 Road Bike 2027

The Cervelo S5 Red AXS 1 Road Bike is the definitive choice for riders who refuse to compromise on pure, unadulterated speed. Engineered with TrueAero tube profiles and an iconic integrated bayonet fork configuration, this machine slices through the wind with unmatched efficiency. This specific iteration takes aerodynamic dominance a step further by embracing a high-performance, single-chainring configuration inspired by professional TVL race setups. By eliminating the front derailleur, the bike achieves an even cleaner frontal profile, reducing turbulent airflow while delivering an incredibly focused, lightweight ride tailored for flat-out sprinters and breakaway specialists alike.

Pure Performance and Uncompromising Componentry

At the heart of this premium build is the ultra-efficient SRAM Red AXS E1 drivetrain, configured in a versatile 13-speed XPLR setup. A 50T Aero single chainring, equipped with an integrated power meter, pairs seamlessly with a wide 10-46T cassette to ensure you always find the perfect cadence without the weight penalty or mechanical complexity of traditional dual-ring systems. Stopping power is equally elite, utilizing SRAM Force hydraulic brakes with Paceline X rotors for precise control through tight corners and technical descents. Every touchpoint, from the one-piece Cervélo HB19 carbon cockpit to the premium Fizik Arione saddle, is selected to maximize stiffness, control, and ergonomic comfort during your hardest efforts.

Next-Generation Acceleration and Rotational Efficiency

What truly elevates this build is the revolutionary Reserve 42TA and 49TA tubeless-compatible carbon wheelset, laced to ultra-smooth DT Swiss 180 DICUT hubs. Featuring cutting-edge carbon-spoke technology, this wheel upgrade sheds a staggering 469 grams of rotational mass compared to standard configurations, allowing you to accelerate instantly out of corners and conquer rolling hills with minimal effort. Wrapped in supple, high-traction Vittoria Corsa Pro TLR 29mm tyres, this setup delivers a perfect blend of low rolling resistance, aerodynamic integration, and vibration dampening, ensuring that every watt you produce is converted directly into forward momentum.

Features
  • Frame: Cervelo S5 All-Carbon, TrueAero tube profiles, integrated head tube to fork configuration, integrated headset 1” x 1-3/8”, 12x142mm ( M12x1.0mm, 169mm length thru-axle)
  • Fork: Cervelo All-Carbon, tapered Bayonet S5 fork, external head tube nose section, 12x100mm thru-axle (M12x1.5mm, 122mm length)
  • Headset: FSA SL IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
  • Bottom Bracket: SRAM DUB Ceramic, BBright
  • Handlebar and Stem: Cervélo HB19 Carbon one-piece cockpit
  • Bar Tape: Cervelo bar tape
  • Front Brake: SRAM Force hydraulic disc, with 160mm SRAM Paceline X Centerlock Disc
  • Rear Brake: SRAM Force hydraulic disc, with 160mm SRAM Paceline X Centerlock Disc
  • Brake and Shift Levers: SRAM Red AXS E1
  • Rear Derailleur: SRAM Red XPLR AXS E1
  • Chain: SRAM Red E1
  • Cassette: SRAM Red XPLR E1, 10-46T, 13-Speed
  • Crankset: SRAM Red 1 AXS E1, 50T Aero, DUB, with power meter
  • Front Wheel: Reserve 42TA, DT Swiss 180 DICUT
  • Rear Wheel: Reserve 49TA, DT Swiss 180 DICUT, 12x142mm, XDR freehub 24H, center lock, tubeless compatible
  • Front Tyre: Vittoria Corsa Pro TLR G2.0 700x29mm
  • Rear Tyre: Vittoria Corsa Pro TLR G2.0 700x29mm
  • Saddle: Fizik Arione Saddle
  • Seatpost: Cervélo SP34 Carbon
  • Pedals: Available to be purchased separately
  • Accessories: Cervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory Mount
Specifications
Model
S5 Red AXS 1
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
BBRight
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Force hydraulic disc / Paceline X Centerlock
Cassette [Gearing]
10-46
Cassette [Maker]
SRAM
Cassette [Model]
RED XPLR E1
Chain [Maker]
SRAM
Chain [Model]
RED E1
Chainring [Gearing]
50
Crank [Maker]
SRAM
Crank [Model]
Red 1 AXS E1
Discipline Compatibility
Road
E-Bike
No
F Hub [Maker]
DT Swiss
F Hub [Model]
180 DICUT
Family
S5
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cervelo
Fork [Material]
Carbon
Fork [Model]
Bayonet S5
Fork [Wheel Size]
700c
Frame [Hanger Standard]
Brand-Specific
Frame [Material]
Carbon
Frameset
No
Gearing [Configuration]
1x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Drop
Handlebar [Maker]
Cervelo
Handlebar [Material]
Carbon
Handlebar [Shape]
Drop bar
Headset [Maker]
FSA
Headset [SHIS]
sl-is2
Headset [Upper Headset Fit]
IS2
Power Meter [Maker]
SRAM
Power Meter [Model]
Red 1 AXS E1
R Hub [Maker]
DT Swiss
R Hub [Model]
180 DICUT
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
Red XPLR AXS E1
Saddle [Maker]
Fizik
Seatpost [Kind]
Aero
Seatpost [Maker]
Cervelo
Seatpost [Material]
Carbon
Shifters [Maker]
SRAM
Shifters [Model]
Red AXS E1
Shifting
Electronic
Sub Family
S5
Suspension Configuration
Rigid
Tires [Maker]
Vittoria
Tires [Width]
29 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
Reserve
Wheelset [Material]
Carbon
Wheelset [Model]
Reserve 42TA/49TA
Product code
2047279 / 54376680522074
Size Guide
Size485154565861
Rider Height (cm)152 - 161159 - 168168 - 174174 - 180180 - 185185 - 192.5
Rider Height (inches)5'0" - 5'3.5"5'2.5" - 5'6"5'6" - 5'8.5"5'8.5" - 5'11"5'11" - 6'1"6'1' - 6'4"
Seat Tube (ctr-top)480510540560580610
Seat Tube (ctr-ctr)------
Effective Top Tube515532548563581597
Actual Top Tube ------
Seat Angle (°)737373737373
Head Tube Angle (°)71727273.573.573.5
Head Tube Length103124147171199225
Fork Rake585246434343
Chainstay Length405405405405405405
Wheelbase9699719739819991016
Stack505530555580605630
Reach360369378387396405
Cervelo S-Series Disc Road Bike Size Guide 2022

All measurements in mm unless otherwise stated.
