Product Details

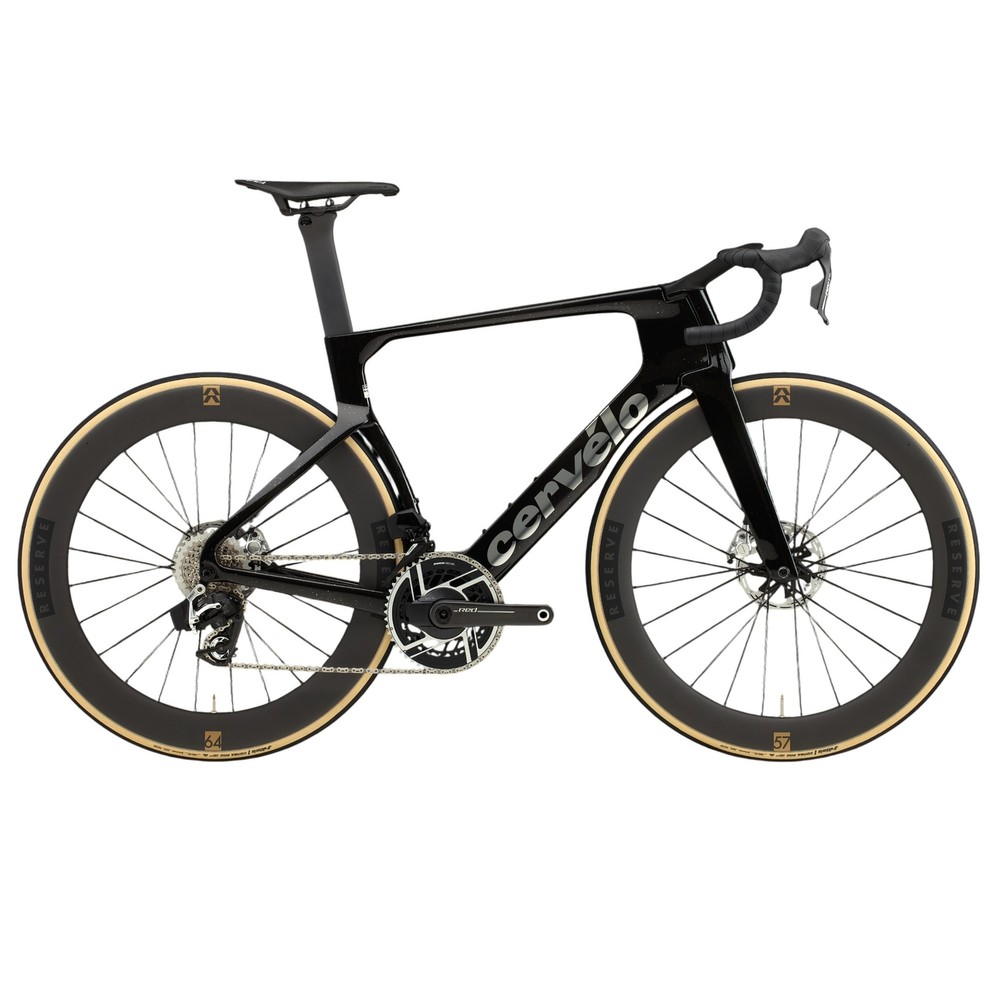

Cervelo S5 Red AXS Road Bike 2027

Cervelo's race-ready weapon, the S5, has been re-engineered, making their fastest bike even faster. The Cervelo S5 Red AXS Road Bike builds upon the legacy of the race-winning S5, and sees the front end and forks redesigned to feature deeper chord profiles, boosting aerodynamic efficiency. An updated one-piece stem and bars create smoother airflow, while the sleek integration of asymmetric seat tube and rear wheel profiles has also led to aero gains. The result?  This latest iteration of S5 is some 6 watts faster than its predecessor, keeping some extra watts ready for launching a race-winning break or a final kick for the finish line.

Not just faster, it's lighter too, with a weight saving of 124 grams, giving you some extra help on steep pitches and steady high-speed climbs. While it’s faster and leaner, the S5 still delivers the precise handling, stability, and razor-sharp responsiveness that riders love. This is the S5, reimagined for those who love the thrills and challenges of riding at speed.

Cervelo x Reserve 57/64 Turbulent Aero

Co-developed by Cervelo and Reserve, the 57/64 Turbulent Aero wheelset has been tuned to work perfectly with this latest iteration of the S5 frame and forks. The asymmetry of the rear wheel matches the seat tube, ensuring smooth and efficient airflow over both. Meanwhile, the added depth of the front rim helps smooth airflow over the wheel in high yaw scenarios. Some 3 watts faster than its predecessor wheelset, the 57/64 still tips the scales at the same weight.

Cervelo HB19 Carbon one-piece cockpit

The distinctive V-shaped bar and stem remain, but it's now a one-piece setup. The “Plus-Four” concept gives a handlebar design where the width at the hoods is 4cm narrower than at the drops - for example, 38cm at the hoods and 42cm at the drops. This innovative setup promotes a more aerodynamic riding position when your hands are on the hoods, while still offering enhanced control and stability in the drops for sprinting and descending. All handlebar sizes comply fully with UCI regulations, including the most recent updates

HB19 Carbon one-piece cockpit sizing:

  • Frame size 48cm: Bar width: 36cm /Stem length: 80mm
  • Frame size 51cm: Bar width: 38cm /Stem length: 90mm
  • Frame size 54cm: Bar width: 40cm /Stem length: 100mm
  • Frame size 56cm: Bar width: 40cm /Stem length: 100mm
  • Frame size 58cm: Bar width: 40cm /Stem length: 110mm
  • Frame size 61cm: Bar width: 40cm /Stem length: 120mm
Features
  • Frame: Cervelo S5 All-Carbon, TrueAero tube profiles, integrated head tube to fork configuration, integrated headset 1” x 1-3/8”, 12x142mm ( M12x1.0mm, 169mm length thru-axle)
  • Fork: Cervelo All-Carbon, tapered Bayonet S5 fork, external head tube nose section, 12x100mm thru-axle (M12x1.5mm, 122mm length)
  • Headset: FSA SL IS2 1-1/8, 36° x 45° / 1-3/8, 36° x 45°
  • Bottom Bracket: SRAM DUB Ceramic, BBright
  • Handlebar and Stem: Cervélo HB19 Carbon one-piece cockpit
  • Bar Tape: Cervelo bar tape
  • Front Brake: SRAM Red hydraulic disc, with 160mm SRAM Paceline X Centerlock Disc
  • Rear Brake: SRAM Red hydraulic disc, with 160mm SRAM Paceline X Centerlock Disc
  • Brake and Shift Levers: SRAM Red AXS E1
  • Front Derailleur: SRAM Red AXS E1
  • Rear Derailleur: SRAM Red AXS E1
  • Chain: SRAM Red E1
  • Cassette: SRAM Red E1, 10-33T, 12-Speed
  • Crankset: SRAM Red AXS E1, 50/37T, DUB, with power meter
  • Front Wheel: Reserve 57TA, DT Swiss 180 DICUT, 12x100mm, 24H, centerlock, tubeless compatible
  • Rear Wheel: Reserve 64TA, DT Swiss 180 DICUT, 12x142mm, XDR freehub 24H, center lock, tubeless compatible
  • Front Tyre: Vittoria Corsa Pro TLR G2.0 700x29mm
  • Rear Tyre: Vittoria Corsa Pro TLR G2.0 700x29mm
  • Saddle: Fizik Arione Saddle
  • Seatpost: Cervélo SP34 Carbon
  • Pedals: Available to be purchased separately
  • Accessories: Cervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory Mount
Specifications
Model
S5
Bottom Bracket [Maker]
SRAM
Bottom Bracket Standard
BBRight
Brakes [Kind]
Hydraulic Disc
Brakes [Maker]
SRAM
Brakes [Model]
Red Paceline X Centerlock
Cassette [Gearing]
10-33
Cassette [Maker]
SRAM
Cassette [Model]
RED E1
Chain [Maker]
SRAM
Chain [Model]
RED E1
Chainring [Gearing]
50–37
Crank [Maker]
SRAM
Crank [Model]
Red AXS E1
Discipline Compatibility
Road
E-Bike
No
F Hub [Maker]
DT Swiss
F Hub [Model]
180 DICUT
Family
S5
FD [Maker]
SRAM
FD [Model]
Red AXS E1
Fenders Mounts
No
Fork [Axle Diameter]
12 mm
Fork [Axle Type]
Thru-Axle
Fork [Brake Type]
Disc
Fork [Maker]
Cervelo
Fork [Material]
Carbon
Fork [Model]
Bayonet S5
Fork [Wheel Size]
700c
Frame [Material]
Carbon
Frame [Tire Clearance]
29 mm
Frameset
No
Gearing [Configuration]
2x
Gearing [Kind]
Conventional
Gender
Unisex
Handlebar [Kind]
Aero
Handlebar [Maker]
Cervelo
Handlebar [Material]
Carbon
Handlebar [Shape]
Aero bar
Handlebar [Width]
40 mm
Headset [Maker]
FSA
Headset [SHIS]
IS2
Power Meter [Maker]
SRAM
Power Meter [Model]
Red AXS E1
R Hub [Maker]
DT Swiss
R Hub [Model]
180 DICUT
Rack Mounts
No
RD [Maker]
SRAM
RD [Model]
Red AXS E1
Saddle [Maker]
Fizik
Seatpost [Maker]
Cervelo
Seatpost [Material]
Carbon
Shifters [Maker]
SRAM
Shifters [Model]
Red AXS E1
Shifting
Electronic
Sub Family
S5
Suspension Configuration
Rigid
Tires [Maker]
Vittoria
Tires [Width]
29 mm
Wheels [Configuration]
Front+Rear
Wheels [Kinds]
Tubeless Ready
Wheelset [Maker]
Reserve
Wheelset [Material]
Carbon
Wheelset [Model]
57TA/64TA
Product code
2047218 / 54376051442010
Size Guide
Size485154565861
Rider Height (cm)152 - 161159 - 168168 - 174174 - 180180 - 185185 - 192.5
Rider Height (inches)5'0" - 5'3.5"5'2.5" - 5'6"5'6" - 5'8.5"5'8.5" - 5'11"5'11" - 6'1"6'1' - 6'4"
Seat Tube (ctr-top)480510540560580610
Seat Tube (ctr-ctr)------
Effective Top Tube515532548563581597
Actual Top Tube ------
Seat Angle (°)737373737373
Head Tube Angle (°)71727273.573.573.5
Head Tube Length103124147171199225
Fork Rake585246434343
Chainstay Length405405405405405405
Wheelbase9699719739819991016
Stack505530555580605630
Reach360369378387396405
Cervelo S-Series Disc Road Bike Size Guide 2022

All measurements in mm unless otherwise stated.
