ENVE Fray Road Frameset

£5,500.00
Find My Size

Check to see if we have it in stock - just select your colour and size.

ENVE
Fray Road Frameset

We're sorry, but unfortunately, we're unable to ship this item to your country

0% Finance available on selected bikes.

View the full list of bikes here.

Product ID: 1821813

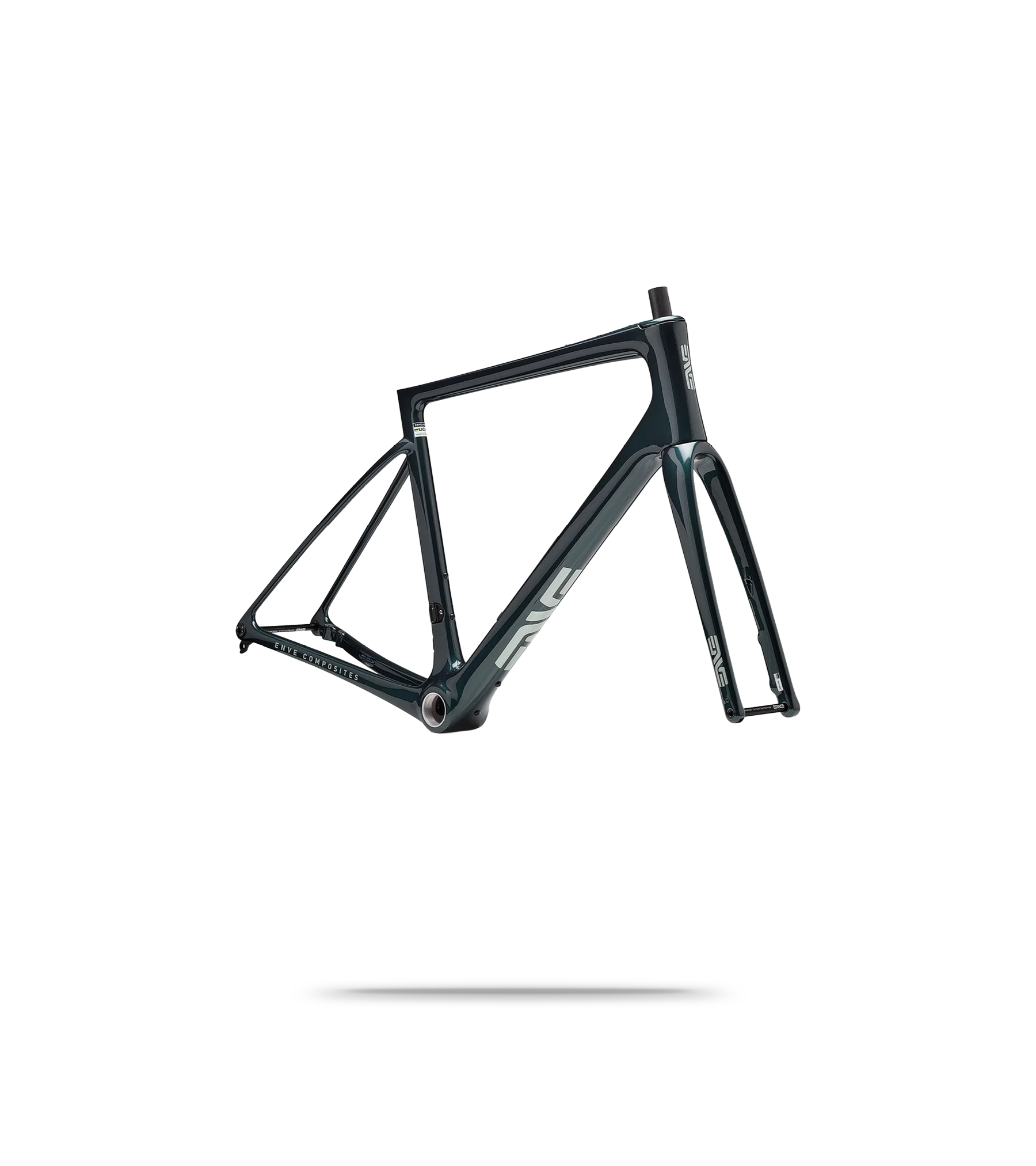

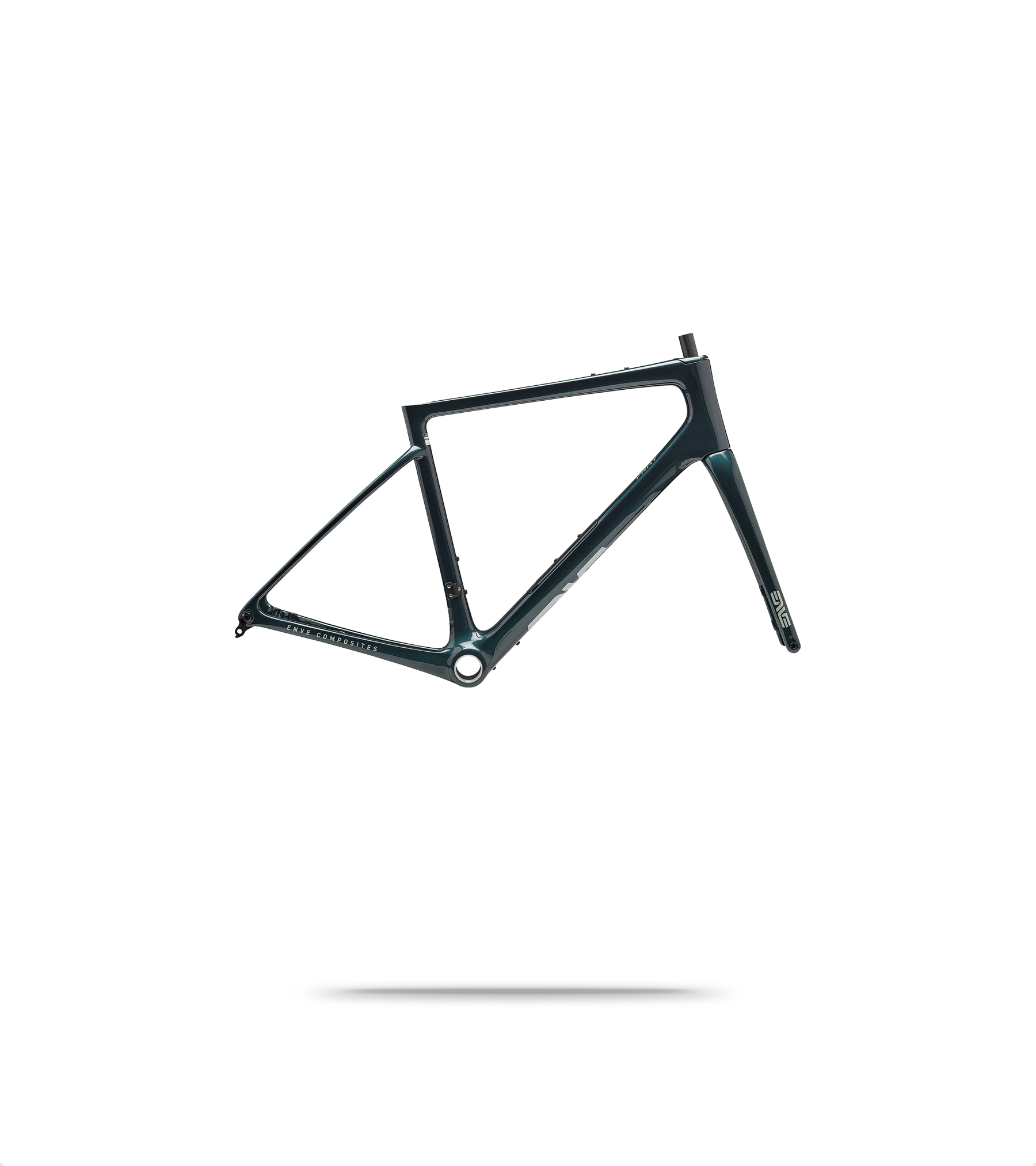

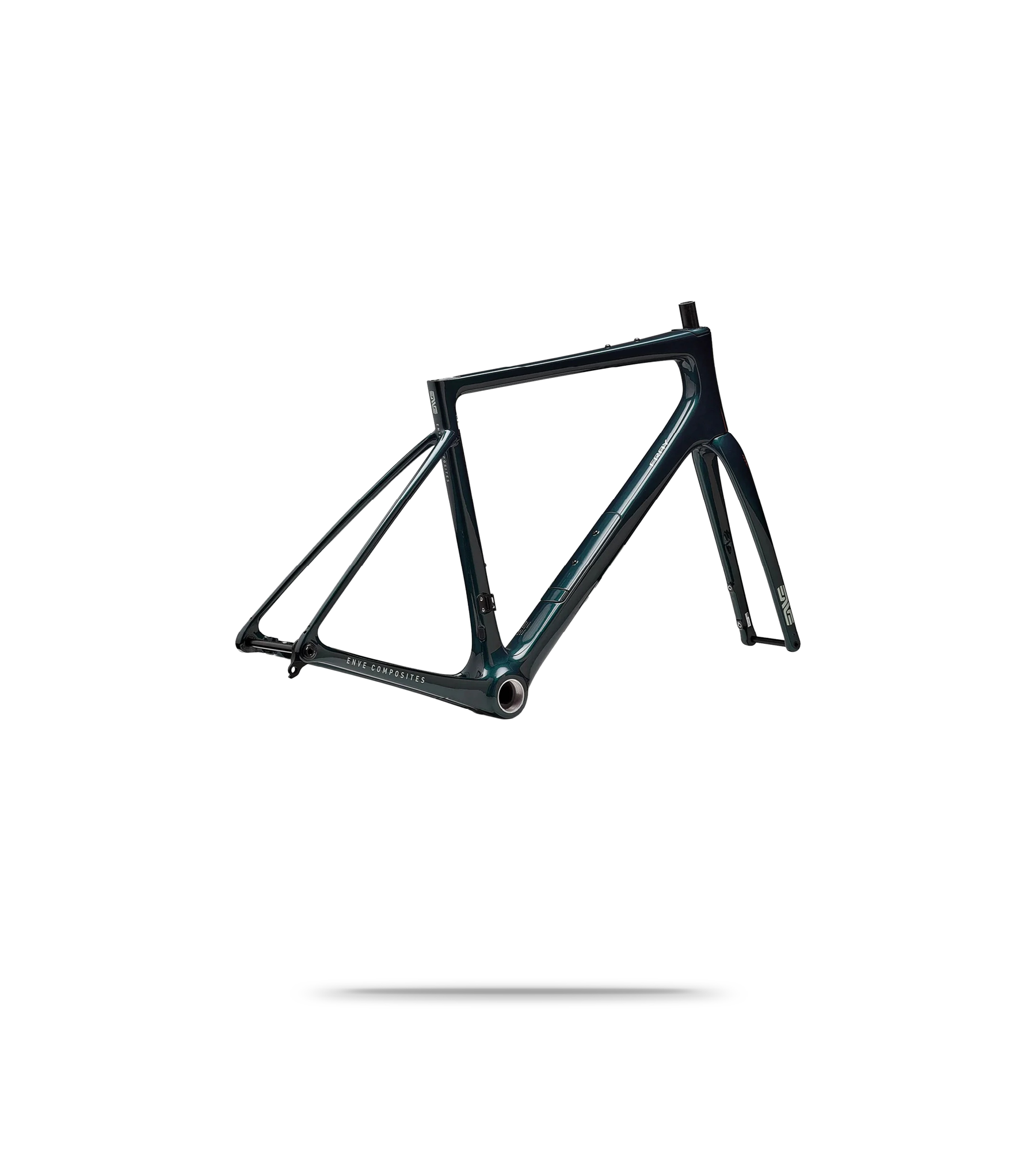

Enve Fray Road Frameset

The Fray, developed in CFD and the wind tunnel, features refined tube shapes designed to complement our SES rim shapes, delivering Real-World Fast aerodynamic performance. The IN-Route System, integrated into the front-end, routes wires and hoses internally for a sleek, silent, and wind-resistant design. This system, combined with the IN-Route Aero Stem and your choice of handlebar, maximizes aerodynamic benefits while maintaining the convenience of a two-piece setup. Sold as a chassis-only, the Fray allows for extensive customization, offering options for frame size, stem length, handlebar width, and seatpost setback (size of these components needs speccing at time of order). The aero seatpost, with a Kamm tail design and twin-bolt saddle rail clamp, enhances aerodynamic efficiency.

Built with ENVE's Material Optimized Design (M.O.D.), the Fray uses continuous carbon fibers for zone-specific performance, accommodating 31 to 35mm tires, up to 40mm, and includes an integrated Cargo Bay for in-frame storage. The threaded T47 inboard-bearing bottom bracket ensures smooth, creak-free operation. With a progressive endurance geometry, the Fray is optimized for various surfaces and terrains. Offered in seven sizes with customizable fit options, including bar model, bar width, stem length, stem rise, and seatpost length and offset, the Fray ensures a rider-specific fit and tuned geometry for confidence and performance on all roads.

Technical Specification

Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43
Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43
Frame Weight 900g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5″ IS52 Upper and Lower
Seat Post Diameter ENVE Aero
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length
Rear Axle 12×142 (Total Length
Minimum Tire Size 27mm
Optimal Tire Size 31mm - 35mm
Maximum Listed Tire Clearance 1x 40mm
Maximum Listed Tire Clearance 2x 38mm
In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing Internal
Waterbottle Capacity 3
Top Tube Mounts Yes
Fender Compatible Yes
Wheel Size 700c

ENVE Fray Road Frameset Sizing
