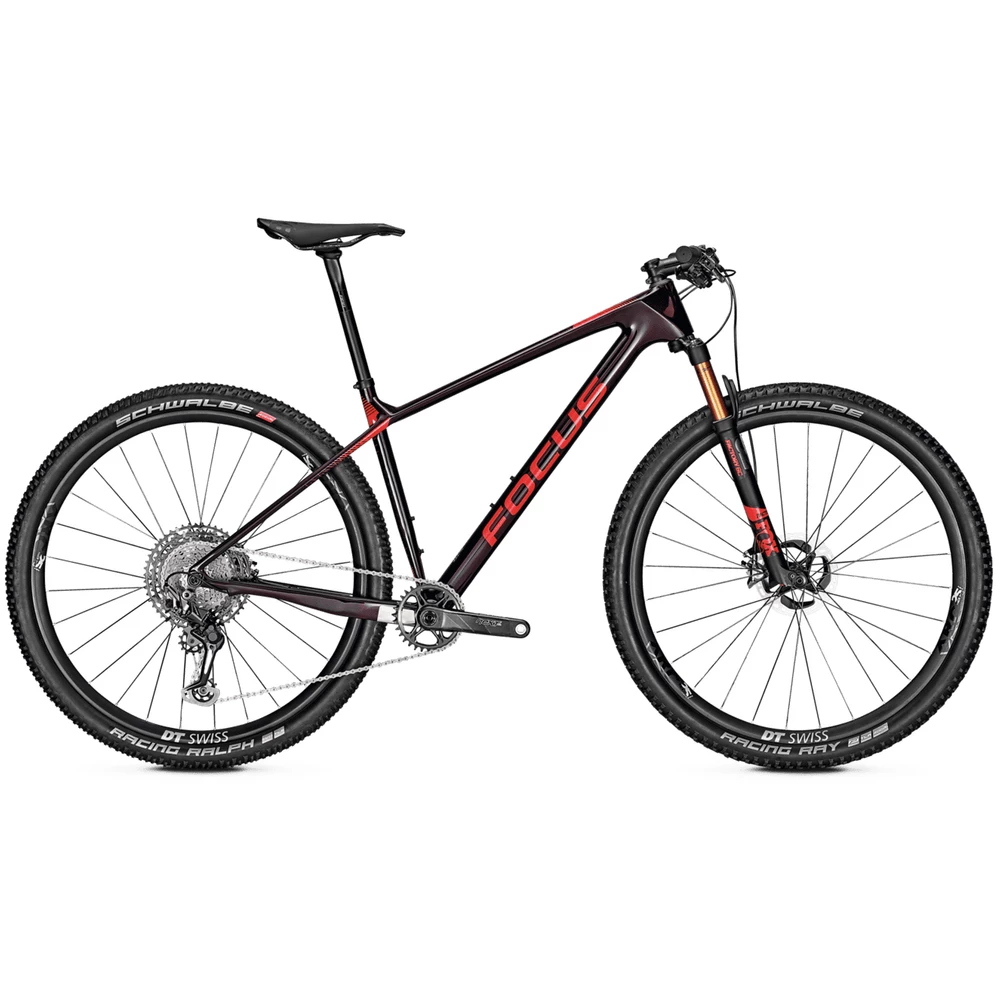

Focus Raven 9.9 Hardtail Mountain Bike 2020
The Raven 9.9 from Focus is one of the lightest hardtail mountain bikes on the market and is a proven performer at the top of the cross-country World Cup scene. Thanks to the unique carbon fibre orientation, the weight is kept impressively low, tipping the scales at just 885 grams, whilst the layup is optimised in critical areas to ensure that power, stiffness and comfort are balanced.
The build uses Shimano's top-end 12-speed XTR mechanical groupset that's light and powerful with performance XTR hydraulic disc brakes. The 32 Float SC Factory fork is Fox's lightest XC fork ever and features adjustable air-sprung pressure and rebound so that the ride experience is fully customisable. Finished with a carbon seatpost and carbon handlebar, it's only fitting that the bike should also roll on DT Swiss XRC 1200 carbon wheels developed for the fastest XC racers on the circuit.
Features
- DT Swiss XRC 1200 wheelset with hookless full carbon and tubeless-ready rim
- Full Shimano XTR groupset
- BBB carbon finishing kit
- Lightweight Fox 32 Float SC Factory fork
Technical Specification
| FRAME | Focus MAX technology Carbon frame, PF30 BB, 148x12 mm through axle, internal cable routing, Post Mount 160 mm |
| FORK | Fox 32 Float SC Factory, 2-position remote with open mode, 15 x 110 mm QR, 100 mm travel |
| HANDLEBAR | BBB Horizon carbon BHB-41, flatbar, 720mm, rise |
| GRIPS | Velo VLG-975 |
| STEM | BBB Rider BHS-109 Deluxe, 31.8mm, 7degree |
| FRONT BRAKE | Shimano XTR hydraulic disc M9100 |
| REAR BRAKE | Shimano XTR hydraulic disc M9100 |
| BRAKE LEVERS | Shimano XTR M9100 |
| REAR DERAILLEUR | Shimano XTR M9100, 12-speed |
| SHIFT LEVERS | Shimano XTR M9100, 12-speed |
| CASSETTE | Shimano XTR 10-51t CS-M9100-12 |
| CRANKSET | RaceFace Next SL G5, carbon |
| CHAIN | Shimano XTR CN-M9100 |
| FRONT WHEEL | DT Swiss XRC1200, 15x110 mm / 12x148 mm |
| REAR WHEEL | DT Swiss XRC1200, 15x110 mm / 12x148 mm |
| FRONT TYRE | Schwalbe Racing Ray Evo Addix Speedgrip 2.25 |
| REAR TYRE | Schwalbe Racing Ray Evo Addix Speedgrip 2.25 |
| SADDLE | Prologo Scratch X8 |
| SEATPOST | BBB FlyPost SP-131, 27,2mm, set-back |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride. For hassle-free home delivery and bike set-up from a qualified mechanic use our Premier Delivery Service.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
