Focus Sam2 6.9 Electric Mountain Bike 2022

★★★★★ ★★★★★

Select a colour and size to view stock availability

Find My Size

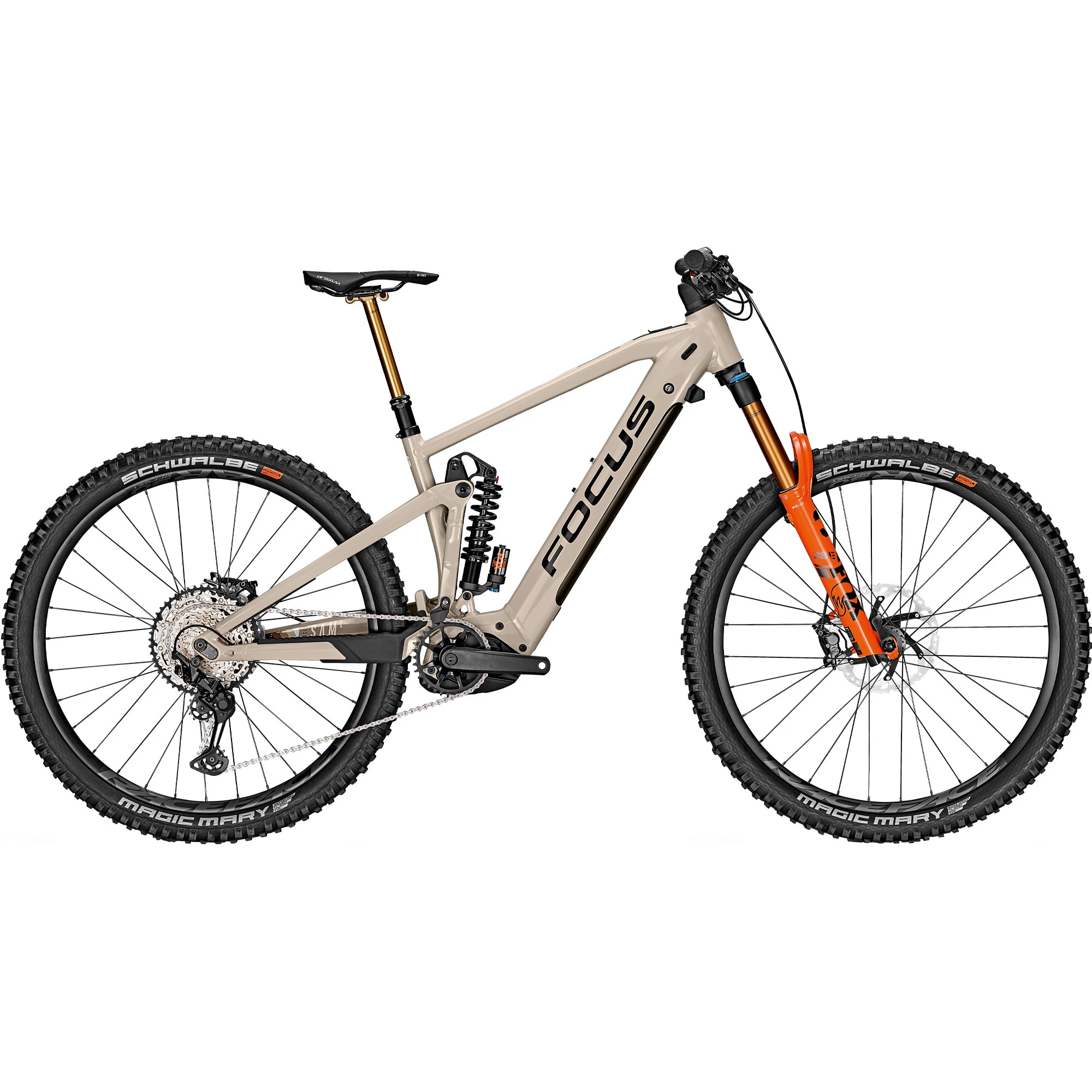

Sam2 6.9 Electric Mountain Bike 2022

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1317721

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports cycle to work scheme
Cycle to Work Scheme

Cyclescheme can save you up to 39% on a bike and accessories. Visit our Cycle to Work Scheme page to learn more and claim.

Focus Sam2 6.9 Electric Mountain Bike 2021

Made to descend - the Focus Sam2 6.9 Electric Mountain Bike is designed to meet the increased demands of some of the worlds greatest riders, with modern geometry to drop your times on the descents and tackle the obstacles you have been dreaming of. With a slack head angle and contemporary reach measurements, the Sam2 puts you firmly in control on even the wildest of runs.

170mm of Focus’s electric mountain bike optimised F.O.L.D suspension puts even the largest gaps within reach, with excellent small bump compliance giving way to a progressive ramp up as the bike goes through its travel. This gives the Sam2 bottom-out resistance, designed to help the bike take drops and big hits in its stride. When paired with the supplied FOX Van Performance coil shock there is endless grip on offer, conforming to every bump and rut on the trail.

Big batteries mean big smiles. The 625wh Bosch Powertube battery will provide you with more laps than you can imagine, with the powerful fourth-generation Performance CX motor making the climb up to the trailhead just as fun as the run down. With 250 watts of power and 85 Nm of torque at its disposal, the Bosch Performance CX is no slouch when bolted to the Sam2. A low centre of gravity helps keep the bike planted on rough terrain, and the removable integrated battery gives the bike a sleek aesthetic.

Performing suspension duties on the front are the high-performance FOX 38 Float Factory fork. All-new for 2021, the 38mm stanchions give added torsional stiffness to the bikes front end, making it easier than ever to push through the rough stuff. Couple this with FOX’s premium Kashima coating for reduced friction and the Sam 6.9 spec is clearly a winning formula. 29-inch wheels improve tracking over technical trails, reducing hangup and holding speed well on rocky terrain. Not a fan of the larger wheels? Not a problem - switch the flip-chip position and the Sam2 can accept the 27.5-inch variety, complete with an ultra-playful, short 430mm chainstay length.


  • 170mm travel frame with electric mountain bike specific F.O.L.D kinematics
  • Powerful Bosch Performance CX Gen4, 85 Nm, 250W motor
  • High capacity Bosch Powertube 625wh battery
  • FOX 38 Float Factory 170mm, 38mm stanchion fork
  • 12 speed Shimano drivetrain
  • Rock Shox Super Deluxe Select+ shock

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.9kg
  • Battery Power: 625Wh battery capacity

Technical Specification

Frame Focus 7005 hydroformed aluminium, 3D forging, 170mm F.O.L.D. kinematic, 148x12mm thru-axle, internal cable routing, post mount 203mm
Fork FOX 38 Float Factory 29, E-Bike, Grip 2, 110 x 15mm, 44mm rake, 170mm travel
Rear Shock FOX Van Performance Coil, 230/65mm, hardware 25,0x8mm
Headset Acros AZX-212 AH [1-1/8", tapered, 44/286-ZS56/40]
Stem FOCUS C.I.S. integrated, 50mm, 0 degrees, 35mm, aluminium
Handlebar RaceFace Chester 35, aluminium, 780mm, rise 35mm, backsweep 8degree
Front Brake Shimano XT M8120, four-piston
Rear Brake Shimano XT M8120, four-piston
Brake Levers Shimano XT M8120
Rear Derailleur Shimano Deore XT M8100, 12-speed
Shift Levers Shimano Deore XT M8100, 12-speed
Chain Shimano SLX CN-M7100
Cassette Shimano SLX M7100, 12-speed 10-51t
Crankset Samox EC40 ISIS, 34t
Front Wheel Rim - 29" RaceFace AR30 Offset / Hub - Novatec D041 hub, 15x110mm
Rear Wheel Rim - 29" RaceFace AR30 Offset / Hub - Novatec D041 hub, 12x148mm
Front Tyre Schwalbe Magic Mary 2.6 Super Trail Soft, clincher
Rear Tyre Schwalbe Magic Mary 2.6 Super Gravity Soft, clincher
Saddle Prologo Proxim W350
Seatpost Kind Shock RAGE, 31.6mm
Pedals Available to be purchased separately
Motor Bosch Performance CX Gen4, 75Nm, 250W
Ui/Remote Bosch Purion
Battery Bosch Powertube, 625wh with charger
Manufacturer Claimed Weight 25.95kg (size 42cm) (battery included)

Focus Sam2 6.9 Electric Mountain Bike 2022 Sizing
