Haibike ALLMTN 3 Electric Mountain Bike 2023


Select a colour and size to view stock availability

ALLMTN 3 Electric Mountain Bike 2023
Email Me When Back in Stock

We're sorry, but unfortunately, we're unable to ship this item to your country

Product ID: 1651641

Why buy your bike from Sigma Sports?

sigma sports expert advice
Expert Advice

Don't hesitate to reach out to us. It's our goal to answer all of your questions and offer the best advice from our experts. We’ll be happy to answer any questions you may have. Contact us now or visit us in-store.

sigma sports built checked tuned and tested
Built, Checked, Tuned and Tested

All our bikes are fully built by our Cytech qualified mechanics. To find out more, see the Built, Checked, Tuned and Tested section below to see how we'll deliver your bike.

Free Bike Delivery

We offer FREE DELIVERY of your bike to your home or place of work. Once you've placed your order, our Customer Care team will be in contact to offer a convenient delivery date of your choice.

sigma sports free 30 day bike insurance
Free 30-Day Bike Insurance

We've partnered with Pedalsure to offer you 30-DAYS FREE bike insurance on new bikes over £400. Visit our Cycle Insurance page to learn more and claim.

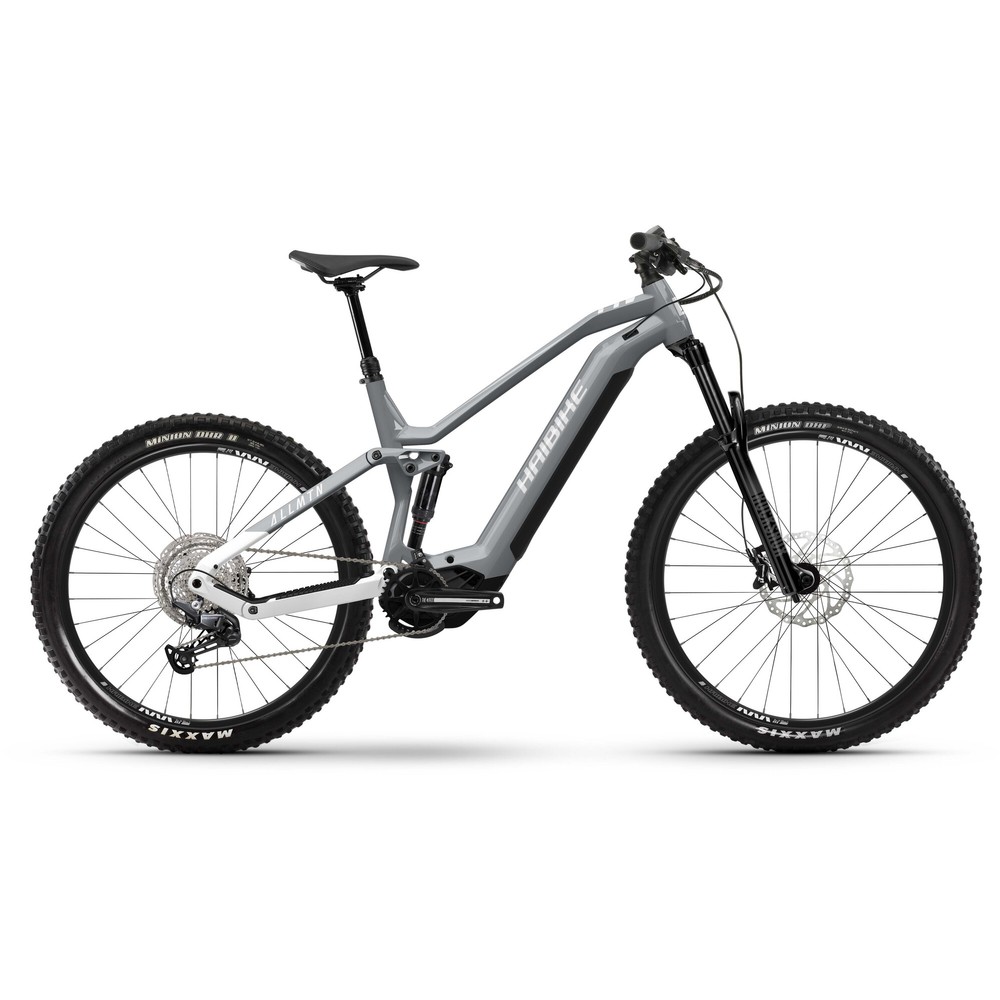

Haibike ALLMTN 3 Electric Mountain Bike 2023

Take on any terrain with the Haibike ALLMTN 3 Electric Mountain Bike. The highly robust alloy frame is brought together with a RockShox 35 Gold RL Air fork and a RockShox Deluxe Select Plus Air shock, delivering 160mm of bump-smoothing travel front and rear.

Key to this electric bike's boost is the combination of a Yamaha PW-X3 250w, 85Nm motor and an InTube 720Wh battery. Assistance is smooth and natural feeling and offers a good range for big days on the trails. The system has a maximum electric assisted speed limit of 15.5mph / 25kph. Connecting to a Yamaha Side Switch display, you get a crystal clear view of speed, battery life and mode, and can change between the five modes at the press of a button.

A Shimano Deore drivetrain in a 1x configuration simplifies shifting and the wide sprocket range means there is a gear for the steepest climbs and the fastest descents. Hydraulic disc brakes maximise stopping power at speed and in all conditions. A 29" wheel to the front and a 27.5" to the back, together with the use of Maxxis Minion DHF / DHR II tyres, create the perfect balance of traction, fast, smooth rolling and an agile ride feel.

Browse our range of Haibike electric mountain bikes today.


  • Robust aluminium frame
  • RockShox 35 Gold RL Air fork with 160mm travel, and 160mm travel in the frame, absorbs bumps and big hits
  • Yamaha PW-X3 motor delivers 250w of power and 85Nm of torque
  • Shimano Deore 1x12-speed drivetrain
  • Shimano hydraulic disc brakes provide all-weather stopping power
  • Mullet wheel setup - 29" to the front and 27.5" to the rear - and Maxxis Minion DHF/DHR II tyres
  • InTube 720Wh battery provides a good range

Battery Specifications

  • Maximum Assist: 250w / 85Nm torque
  • Motor Weight: 2.75kg
  • Battery Power: 720Wh

Technical Specification

Frame Haibike ALLMTN, aluminium, travel 160mm
Fork RockShox 35 Gold RL, Air, travel 160mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
Shock RockShox Deluxe Select Plus, Air, Trunnion Mount
Headset Acros, BlockLock, aluminium
Bottom Bracket Integrated in the motor
Stem Haibike Components TheStem ++, A-head, 31.8mm
Handlebar Haibike Components TheBar ++, 780mm
Grips Haibike MTB Grips
Front Brake Shimano MT420, 4-piston hydraulic disc brake / Shimano RT EM300L, 203mm rotor
Rear Brake Shimano MT420, 4-piston hydraulic disc brake / Shimano RT30-L, 203mm rotor
Brake Levers Shimano Deore M6100, aluminium
Rear Derailleur Shimano M6100, 12-speed
Shift Levers Shimano Deore M6100, Trigger switch
Chain Shimano CN-M6100, 12-speed
Chain Guide Nylon direct mount
Cassette Shimano M6100, 10-51t, 12-speed
Crankset Haibike Components The Crank ++, aluminium / steel 36t chainring
Front Wheel Rim - WTB, ST i30 TCS, double wall / Hub - Shimano MT400-B, Center Lock / Spokes - Sapim Race, black
Rear Wheel Rim - WTB, ST i30 TCS, double wall / Hub - Shimano MT400-B, Center Lock / Spokes - Sapim Race, black
Front Tyre Maxxis Minion DHF, 29" x 2.5", clincher
Rear Tyre Maxxis Minion DHR II, 27.5" x 2.5", clincher
Saddle Selle Royal Vivo
Seatpost Haibike Components dropper post remote, aluminium, telescope, 34.9mm
Pedals XLC Freeridepedal, aluminium with reflector
Motor Yamaha PW-X3, 250W, 85Nm
Ui/Remote Yamaha Side Switch, 1.7" LCD, 7 functions
Battery InTube, 720Wh
Electric assisted speed limit 15.5mph / 25kph
Maximum system weight 120kg (including bike, rider and cargo)

Haibike ALLMTN 3 Electric Mountain Bike 2023 Sizing
